Black rectangular backup camera with integrated lens and mounting bracket

Bolton Technical

Bolton Technical Backup Camera 2016-2017 Cadillac XTS 2 in 1 accessory

SKU CH-WP8Y-5T5VX

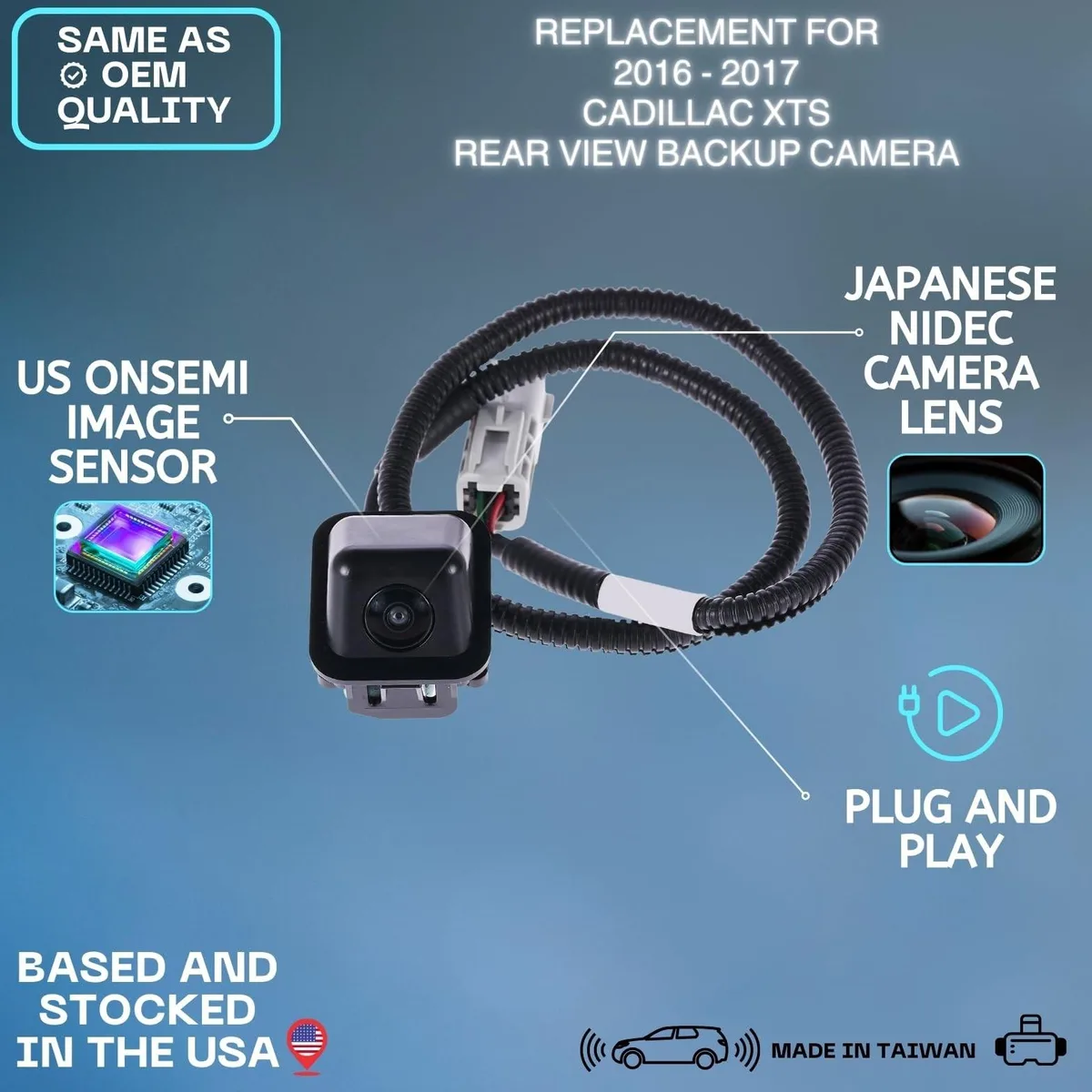

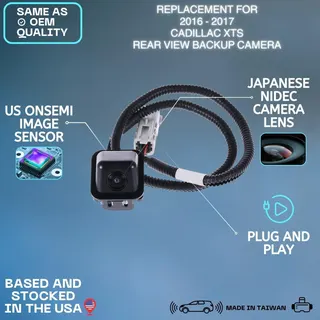

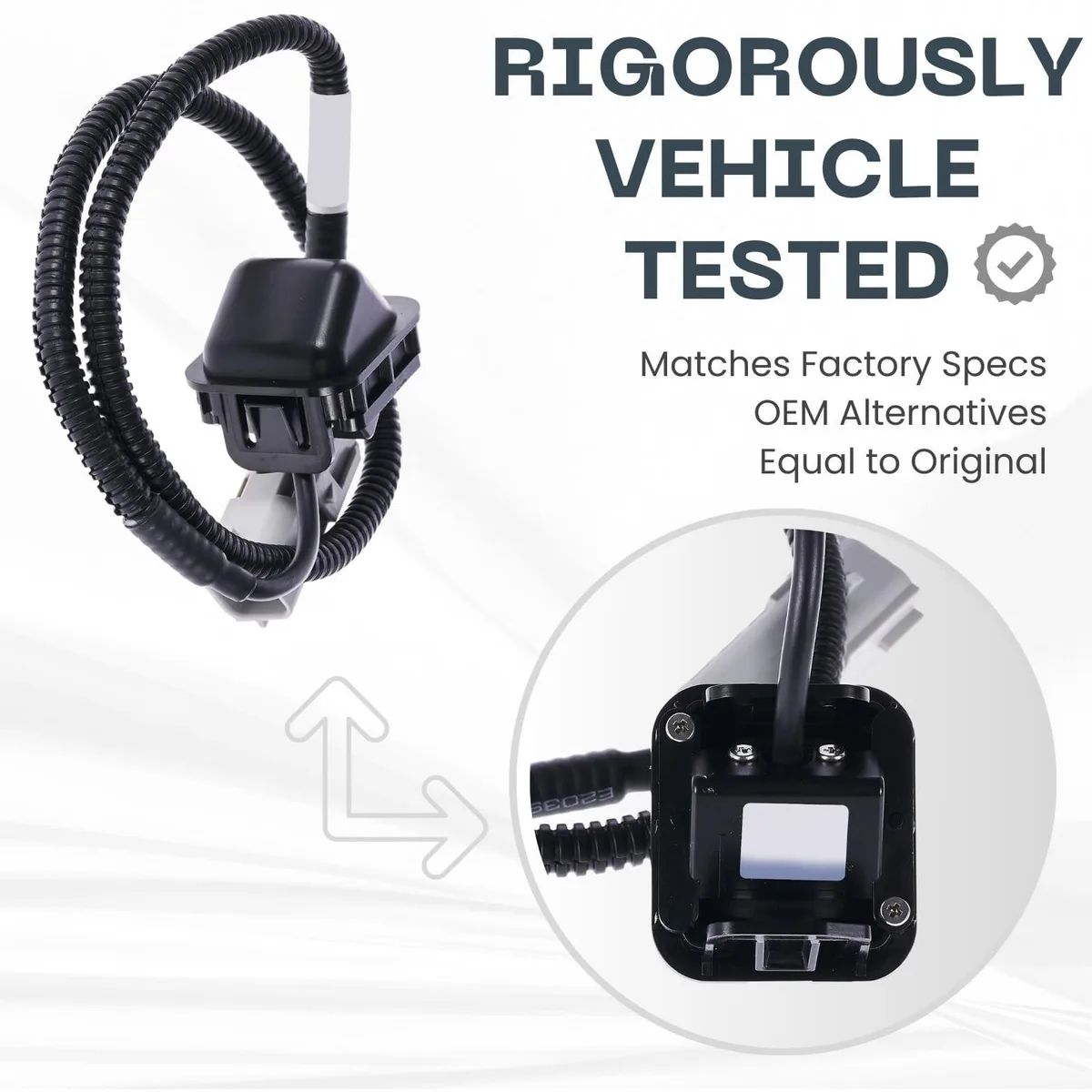

Replacement backup camera for 2016-2017 Cadillac XTS with 170-degree view, IP68 waterproofing and plug-and-play OEM harness connection

  • Plug-and-play install using the factory video harness
  • Fits 2016-2017 Cadillac XTS replacing OEM part 84003129
  • 170-degree viewing angle covers a wide rear field
  • IP68 waterproof rating withstands heavy rain and wash cycles
  • 600 TV-line resolution with 728 x 582 pixels for clear night vision

Vehicle Compatibility

This backup camera replaces original equipment part numbers 84003129, 23368296 and 23139484 on 2016-2017 Cadillac XTS models. It connects directly to the factory video harness for a plug-and-play installation without wiring modifications.

Build and Connectivity

The unit carries an IP68 waterproof rating for durability in harsh weather and road spray. A 170-degree viewing angle covers a wide rear field, while 600 TV lines resolution and 728 x 582 pixels deliver clear NTSC or PAL video. Minimum illumination of 0.1 Lux ensures visibility in low light, powered by the vehicle's 12 V DC system.

Pre-Installation Checks

Verify that your vehicle's existing camera part number matches one of the three OEM numbers listed above before ordering. Confirm the infotainment display accepts an NTSC or PAL composite video signal from the factory harness. Ensure the 12 V power feed at the harness is present and functional for the camera to operate.

Highlights

  • Plug-and-play install using the factory video harness
  • Fits 2016-2017 Cadillac XTS replacing OEM part 84003129
  • 170-degree viewing angle covers a wide rear field
  • IP68 waterproof rating withstands heavy rain and wash cycles
  • 600 TV-line resolution with 728 x 582 pixels for clear night vision

Specifications

No published specifications for this item yet.

Questions about this item

What video standard does the camera output, and what resolution does it deliver?

The camera outputs NTSC or PAL at 600 TV lines with a 728 x 582 pixel sensor.

What mounting clearance does the IP68 housing need on a 2016-2017 Cadillac XTS?

It fits the factory rear licence-plate aperture using the original bolt pattern; no extra clearance is required.

How is the camera wired into the vehicle, and what step is often missed?

Plug the camera into the existing OEM video harness and supply DC 12 V; the step often missed is confirming the OE part number matches 84003129, 23368296 or 23139484 before installation.
