Bolton Technical 4-pair gigabit PoE injector splitter kit in black enclosure

Bolton Technical

Bolton Technical 4-Pair Gigabit PoE Injector Splitter Kit 5-48V 825ft 2 in 1 accessory

SKU CH-CKQX-H4C6F

Powers IP cameras, access points and other devices over Ethernet up to 825 ft with 5-48 V passive PoE at Gigabit speeds

  • Powers devices up to 825ft away with 5-48V passive PoE
  • Delivers Gigabit speeds at 10/100/1000Mbps over standard Ethernet cabling
  • Supports 2A per channel for wireless APs, IP cameras and more
  • Enables centralized power via multi-way splitter connections
  • Includes 2-year warranty with 24/7 engineering support

4-Pair Gigabit PoE Injector Splitter Kit

This kit combines passive PoE injectors and splitters to deliver both data and power over a single Ethernet cable. It targets installers who need to supply non-PoE devices such as IP cameras, wireless access points, routers, IP phones, gateways and access-control units without running separate mains wiring.

5-48V 2A capacity with 825ft reach

Each channel accepts a 5-48V input and can supply up to 2A, giving enough headroom for typical cameras and access points. Gigabit Ethernet runs at 10/100/1000Mbps over the standard two pairs, while power uses the spare pairs up to 825ft (250 meters). Beyond that distance or above the 2A limit the kit cannot guarantee reliable operation.

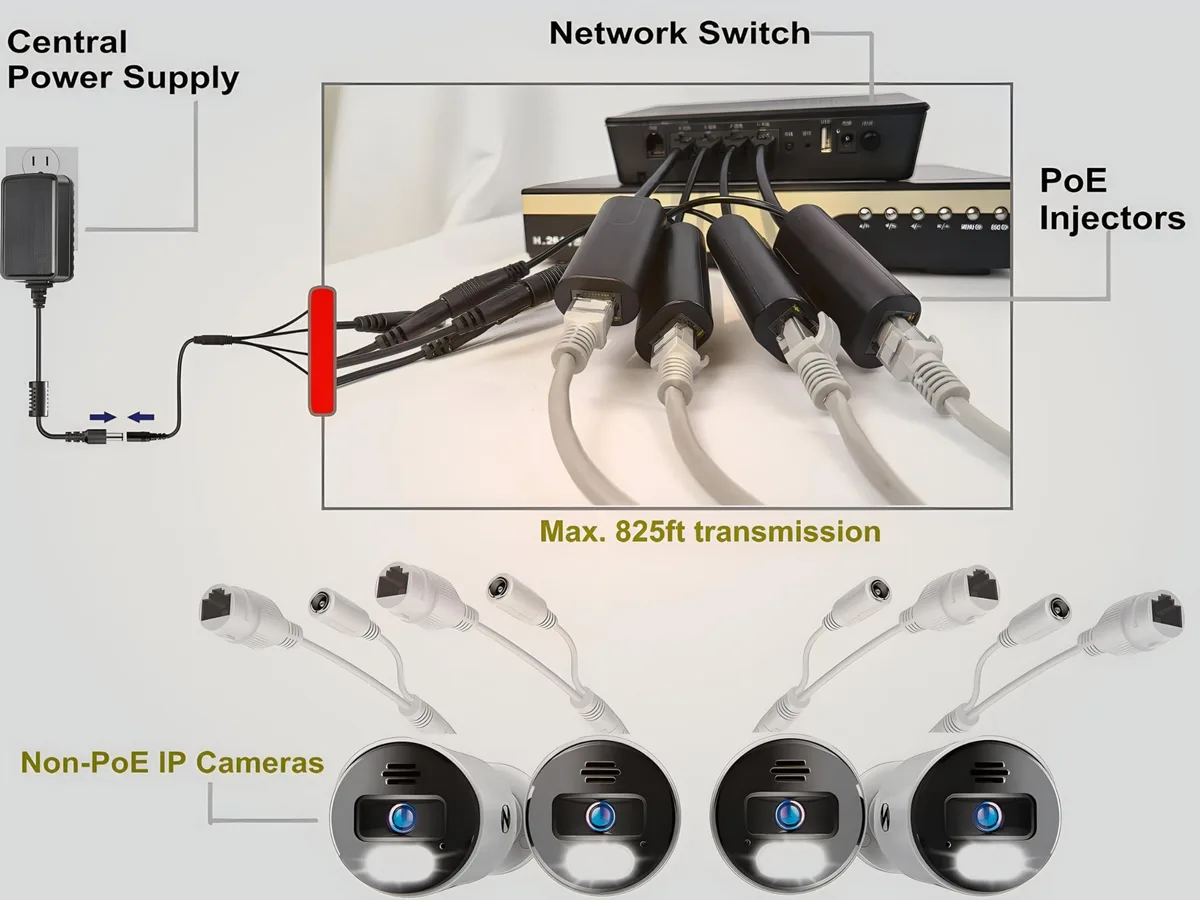

Passive pinout and centralized power support

Passive PoE places positive voltage on pins 4/5 and ground on pins 7/8, so connected devices must tolerate that pin assignment. The injectors support multi-way splitter connections, allowing several units to share a single power source for a tidy rack or cabinet installation.

Highlights

  • Powers devices up to 825ft away with 5-48V passive PoE
  • Delivers Gigabit speeds at 10/100/1000Mbps over standard Ethernet cabling
  • Supports 2A per channel for wireless APs, IP cameras and more
  • Enables centralized power via multi-way splitter connections
  • Includes 2-year warranty with 24/7 engineering support

Specifications

No published specifications for this item yet.

Questions about this item

Will the 10/100/1000Mbps passive PoE injector and splitter work with my existing Cat5e cable runs?

Yes, the kit uses standard Ethernet on two of the four pairs and passive PoE on pins 4/5 and 7/8, so it is compatible with Cat5e and higher cabling.

How can I verify the injector is delivering power correctly after installation?

Check that the connected device powers on and the link LEDs show a 10/100/1000Mbps connection; a multimeter on pins 4/5 and 7/8 should read the supplied 5-48V.

What comes in the kit and do I need to buy a separate power supply?

The kit includes the 4-pair Gigabit PoE injector and splitter; you must provide your own 5-48V power source as no power adapter is included.
