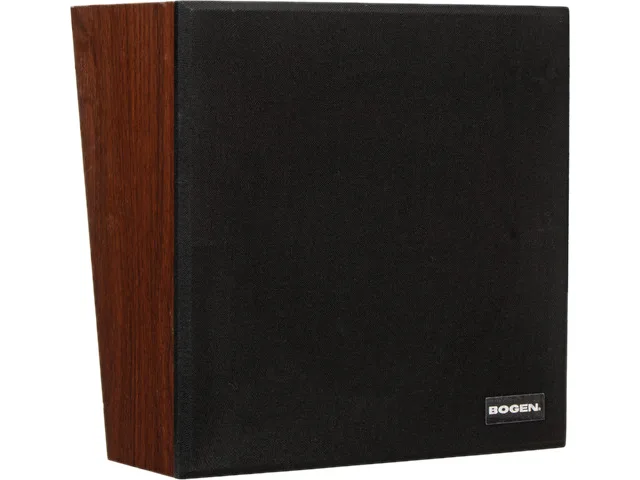

Square walnut-finished wooden box with black cloth grille, angled front, recessed volume knob

Bogen Communications

Bogen Communications WBS8T725V 8" wall baffle home audio speaker

SKU CH-ZTG6-MSRSM MPN WBS8T725V

An 8-inch wall-mountable baffle speaker with recessed volume control, six power taps and 70V/25V compatibility for distributed audio systems

  • TypeSpeakers
  • Driver UnitsDriver Type:8"
  • Frequency ResponseMinimum Frequency Response 50 Hz - Maximum Frequency Respons
  • FeaturesRMS Output Power:4 W Color:Black Material:Cloth Wood Form Fa
  • Dimensions & WeightDepth:5.3" Height:9.5" Width:9.5"
  • Package ContentsWBS8T725V Speaker Mounting Hardware
  • Clear sound across a wide range with 50 Hz to 12 kHz response
  • Flexible system integration using 70V or 25V amplifier outputs
  • Six power taps from 4 W down to 1/8 W for precise level matching
  • Recessed volume control allows local adjustment without extra hardware
  • Pre-assembled angled baffle speeds up wall mounting installation

Wall baffle speaker with volume control

The Bogen WBS8T725V is an 8-inch cone driver pre-assembled into a simulated walnut wood enclosure with black grille cloth. It mounts on a wall with the face angled downward 13.5 degrees and includes a recessed volume control. The speaker delivers 4 W RMS output and works with both 70 V and 25 V amplifier lines. Mounting hardware is supplied for faster installation.

Suited for distributed audio systems needing local

This unit fits commercial background-music or paging installations where individual zone volume is required. The six power taps from 4 W down to 1/8 W let installers match coverage to room size. Buyers wanting stereo imaging, full-range music reproduction below 50 Hz or above 12 kHz, or wireless connectivity should look at other product types.

Compatibility with 70 V

The transformer provides six selectable taps so the speaker can be wired directly to either 70 V or 25 V amplifier outputs without an external matching transformer. This single specification determines whether the unit integrates with the existing distributed-audio infrastructure.

Highlights

  • Clear sound across a wide range with 50 Hz to 12 kHz response
  • Flexible system integration using 70V or 25V amplifier outputs
  • Six power taps from 4 W down to 1/8 W for precise level matching
  • Recessed volume control allows local adjustment without extra hardware
  • Pre-assembled angled baffle speeds up wall mounting installation

Specifications

BrandBogen
ModelWBS8T725V
TypeSpeakers
Driver UnitsDriver Type:8"
Frequency ResponseMinimum Frequency Response 50 Hz - Maximum Frequency Response 12 kHz
FeaturesRMS Output Power:4 W
Color:Black
Material:Cloth
Wood
Form Factor:Wall Mountable
Dimensions & WeightDepth:5.3"
Height:9.5"
Width:9.5"
Package ContentsWBS8T725V Speaker
Mounting Hardware
Shipping weight2.27 kg
Package size254 × 254 × 127 mm

Questions about this item

How do I mount the WBS8T725V and what step is often missed?

Mount the 9.5" square baffle to the wall using the included hardware; the 13.5-degree downward angle means the speaker must be oriented with the grille cloth facing the listening area, which is the step installers most often reverse.

What maintenance will the 8" cone driver and volume control need over time?

The 8" cone and black cloth grille only need occasional dusting with a soft brush; the recessed volume control is passive and has no batteries or lamps to replace, so no scheduled service is required.

What limit appears first when the speaker runs continuously at the 4-watt tap on a 70V line?

The 4-watt RMS rating is the first limit; sustained full-power operation will reach thermal limits of the 8" driver before the 50 Hz to 12 kHz frequency response or the 70V/25V transformer taps become a constraint.
