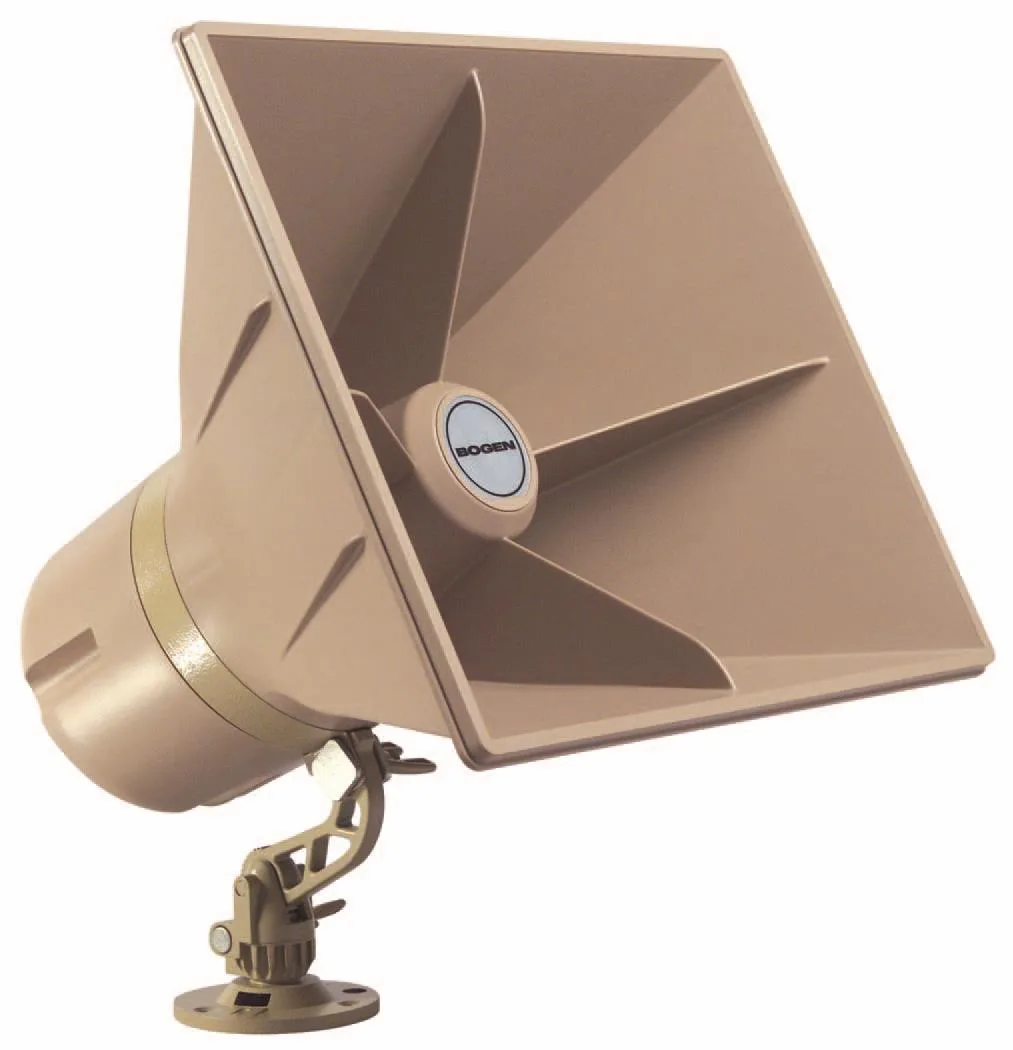

Bogen Communications SAH5 5 W 24 V Self-Amplified Horn

Powered horn for 24 V DC systems

The Bogen SAH5 is a 5 W self-amplified horn loudspeaker that runs directly from a 24 V DC supply. Its digital switching amplifier keeps current draw and heat low, so fewer power supplies are needed and longer cable runs are practical. The unit is rated for indoor or outdoor use without loss of sound quality.

Low current draw and flexible cable runs

Because the amplifier draws little DC current, installers can use smaller-gauge cable over extended distances without excessive voltage drop. The design also tolerates higher ambient temperatures than conventional analog amplified horns, reducing the need for additional cooling or oversized power supplies in warm environments.

All-orientation mounting with supplied strap

The horn can be rotated, tilted or swivelled to aim sound precisely where it is needed, and the flared profile gives controlled dispersion for clear speech intelligibility. A mounting strap is included in the package for quick attachment to poles, walls or structural members. Weighing approximately 6 lb and measuring 12 by 10.6 by 11.5 inches, it is manageable for a single installer. Buyers who need higher output or coverage of larger zones will need additional units or a different amplifier class.
