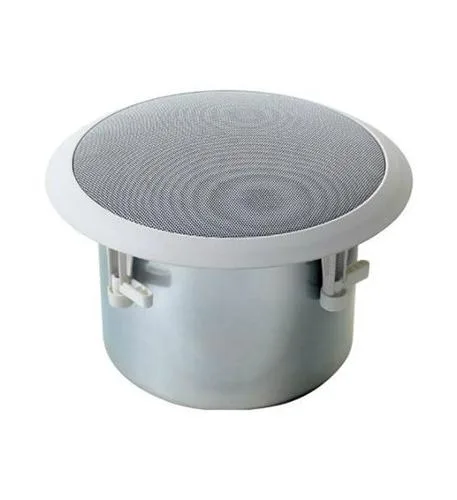

Off-white round ceiling speaker with 6.5 inch polypropylene cone and 0.75 inch dome tweeter

Bogen Communications International, Inc

Bogen Communications International, Inc HFCS1LP 6.5" home audio speaker

SKU CH-9R21-0A13H MPN HFCS1LP

A 6.5" ceiling speaker with a 0.75" dome tweeter handles 75W at 16 ohms or 32W on 70V/100V lines, offering selectable power taps, a low-profile housing and swing-out clamps for easy installation

  • Driver UnitsLF Driver: 6.5" (165mm) Polypropylene Cone HF Driver: 0.75"
  • Power Rating75W @ 16 ohms; 32W @ 70V/100V
  • Sensitivity89 dBspl (Average 100 Hz - 10 kHz)
  • FeaturesWide-dispersion coaxial driver for broad, even coverage Good
  • Dimensions & WeightSpeaker Dimensions: 12.31" dia. x 7.75" D Product Weight: 8.
  • Wide coverage from 6.5" coaxial driver
  • Smooth off-axis response for even sound
  • Full bass via computer-matched venting system
  • Flexible installs with low-profile 7.75" depth
  • Selectable 70V/100V taps plus 16-ohm input

6.5" Coaxial Ceiling Speaker

The Bogen HFCS1LP is a high-fidelity ceiling speaker built for distributed audio systems. It uses a 6.5" polypropylene cone woofer and a 0.75" polycarbonate dome tweeter in a coaxial layout. The speaker handles 75 watts at 16 ohms or 32 watts on 70V and 100V lines. Sensitivity is rated at 89 dB SPL averaged from 100 Hz to 10 kHz.

Front-Mounted Tap Selector and Plug-In Wiring

A front-mounted rotary switch lets installers choose power taps of 32, 16, 8, 4, 2, and 1 watt for 70V systems or 32, 16, 8, 4, and 2 watts for 100V systems without removing the grille. The 16-ohm bypass setting supports direct low-impedance amplifier connections. A plug-in connector with loop-through terminals speeds up daisy-chain wiring. Integral swing-out clamps secure the speaker in ceilings up to the mounting depth allowed by the low-profile housing.

Foreground Music and Paging in Commercial Spaces

This speaker suits offices, retail areas, and hospitality venues that need even coverage from a single overhead point. The wide-dispersion coaxial driver and computer-matched venting deliver consistent off-axis response and full bass output. It is not intended for buyers who need a sealed-back enclosure for fire-rated ceilings, nor for installers who require a smaller cutout diameter than the 12.31" frame provides. Home theatre enthusiasts seeking a dedicated LFE channel or surround-format decoding should look at purpose-built home cinema speakers.

Highlights

  • Wide coverage from 6.5" coaxial driver
  • Smooth off-axis response for even sound
  • Full bass via computer-matched venting system
  • Flexible installs with low-profile 7.75" depth
  • Selectable 70V/100V taps plus 16-ohm input

Specifications

BrandBogen
ModelHFCS1LP
Driver UnitsLF Driver: 6.5" (165mm) Polypropylene Cone
HF Driver: 0.75" (20mm) Polycarbonate Dome
Power Rating75W @ 16 ohms; 32W @ 70V/100V
Sensitivity89 dBspl (Average 100 Hz - 10 kHz)
FeaturesWide-dispersion coaxial driver for broad, even coverage
Good off-axis response with smooth contouring
Computer-matched venting system for full bass output
Large back can for deeper bass response (HFCS1/B)
Low-profile housing allows greater range of installations (HFCS1LP/B)
High power handling capability for foreground sound
Selectable power taps via front-mounted control
Power taps (in watts): 32, 16, 8, 4, 2, and 1 for 70V; 32, 16, 8, 4, and 2 for 100V
16-ohm input for non-transformer, multi-speaker systems (selectable via tap selector switch)
Compounded rubber surround, plus polyp
Dimensions & WeightSpeaker Dimensions: 12.31" dia. x 7.75" D
Product Weight: 8.00 lbs.
Shipping weight4.54 kg
Package size381 × 356 × 279 mm

Questions about this item

Will the polypropylene cone or polycarbonate dome need replacement after years of use?

The 6.5" polypropylene cone and 0.75" polycarbonate dome use compounded rubber surrounds built for lasting performance, so no routine driver replacement is expected.

What limits output first during long listening sessions at high volume?

The 75 W power rating at 16 ohms is the thermal ceiling; sustained levels above that will trigger protection before any mechanical limit is reached.

How much heat does the speaker produce when running all day at moderate levels?

At typical foreground levels the 89 dB sensitivity keeps amplifier current modest, so the steel back-can stays only warm to the touch with no active cooling required.
