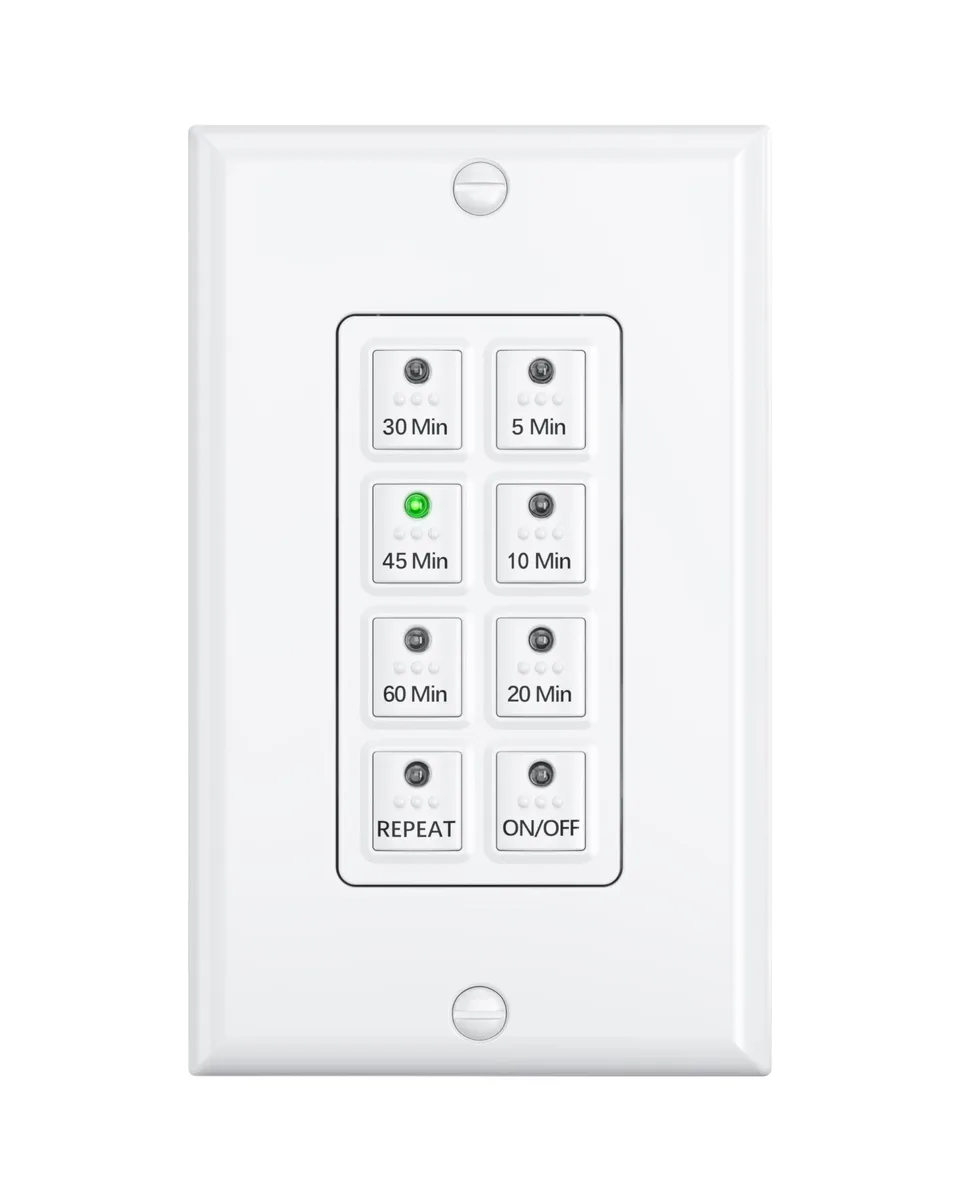

White wall-mount timer switch with six preset countdown buttons and manual on/off control

BN-LINK BND-60/U110a-1 60 min electrical timer switch

SKU CH-FWNQ-19HJE MPN BND-60/U110a-1

Wall-mounted countdown timer with six preset intervals up to 60 minutes, 15 A / 125 V rating, ETL listed, IP54 enclosure, neutral required

  • TypeWall Mount, Wired, 60Minutes
  • Voltage12
  • Amps15
  • Compatibility/Fitmentincandescent, fluorescent, and LED lighting, bathroom exhaus
  • Timing Rangemanual
  • Pole ConfigurationScrew
  • Six preset countdown options from 5 to 60 minutes

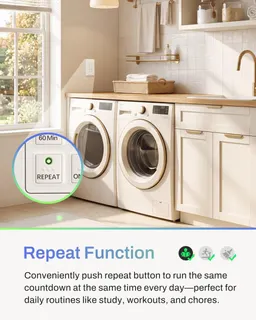

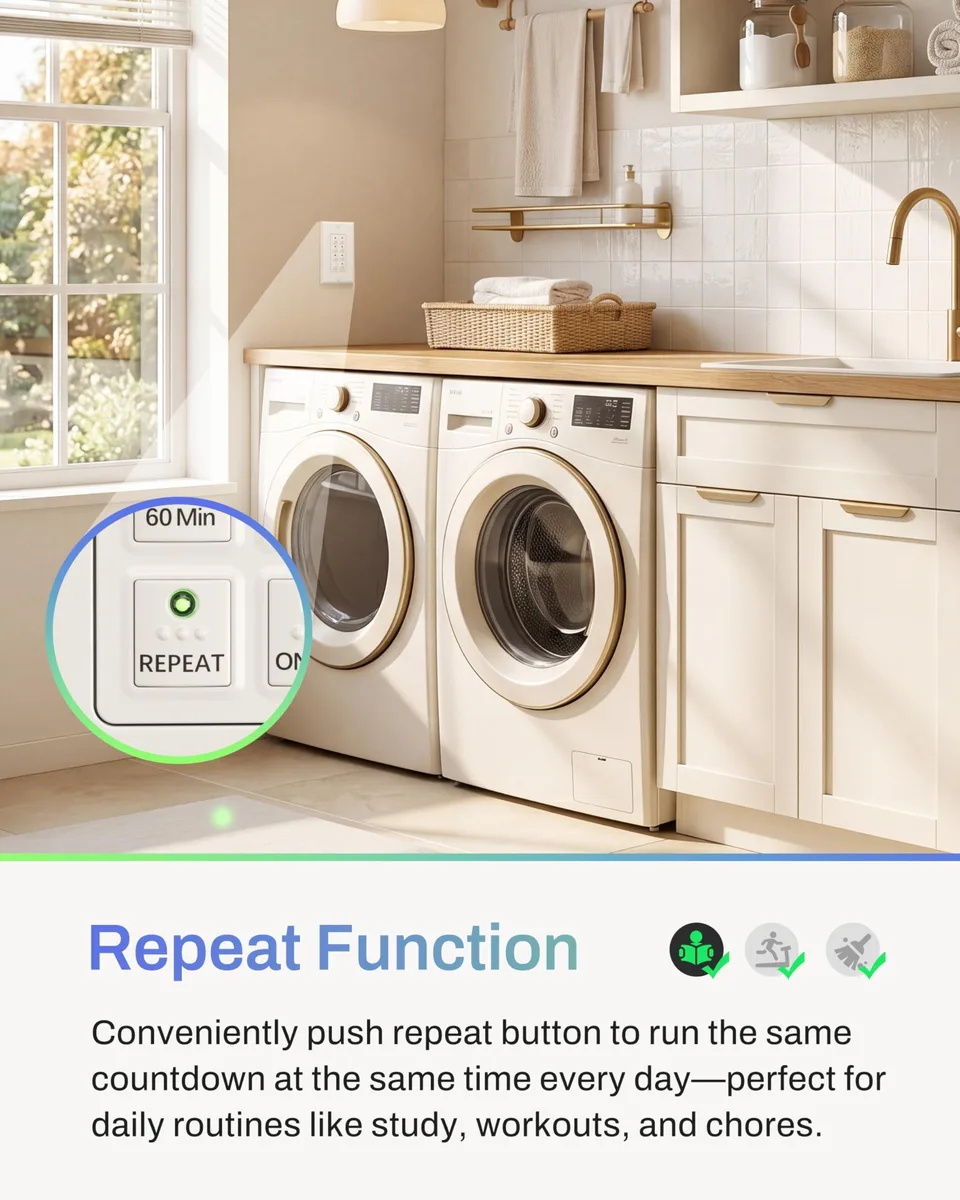

  • Repeat function runs the same countdown daily
  • Automated shut-off saves energy on lights and fans
  • ETL certified and IP54 rated for bathroom use
  • Neutral wire required; fits standard single-gang wall boxes

What this timer switch does

The BN-LINK BND-60/U110a-1 is a wall-mounted countdown timer switch designed for single-pole lighting and fan circuits. It offers six preset timing options from 5 to 60 minutes with one-touch operation. A repeat function runs the selected countdown daily, while a manual override cancels or bypasses the schedule. The unit is rated for 1875 watts at 125 volts and carries ETL certification.

Wiring and circuit checks before ordering

Installation requires a neutral wire in the wall box; the switch will not operate without it. A load wire is also mandatory, while the ground wire is optional. Verify that your existing box contains hot, load and neutral conductors and that the circuit is single-pole only. The device fits standard decorator or toggle plates and includes a wall plate and mounting screws.

What it replaces and when the upgrade makes sense

This timer replaces a standard single-pole toggle or decorator switch that currently runs a bathroom fan, heater or light circuit. The jump is worthwhile when you want automatic shut-off after a set period to cut energy waste, or when a daily repeat schedule matches a regular routine such as morning showers. It is not suited for three-way switching, circuits without a neutral, or loads exceeding 1875 watts.

Highlights

  • Six preset countdown options from 5 to 60 minutes
  • Repeat function runs the same countdown daily
  • Automated shut-off saves energy on lights and fans
  • ETL certified and IP54 rated for bathroom use
  • Neutral wire required; fits standard single-gang wall boxes

Specifications

TypeWall Mount, Wired, 60Minutes
Voltage12
Amps15
Compatibility/Fitmentincandescent, fluorescent, and LED lighting, bathroom exhaust fans, heaters
Timing Rangemanual
Pole ConfigurationScrew
Horsepower1875 watts
Watts1875 watts
Number of Receptacles60Minutes, BND-60/U110a-1
Receptacle Type15 amps, 125 volts
Size/Dimensions4.2 in x 1.8 in x 2 in
Color/FinishWhite
StyleWired
Standards/CertificationsETL
Switch TypePush Button
Maximum Time Settingmanual
Number of Poles1-way
Contact Form1-way
Enclosure TypeIP54, Wall Mount
Input Voltage125 volts
MountingWall Mount
Operating Temperature Range-15 degrees_fahrenheit to 122 degrees_fahrenheit
Featuresincandescent, fluorescent, and LED lighting, bathroom exhaust fans, heaters
BrandBN-LINK
ModelBND-60/U110a-1
Item Count12 pack
Selling Unit60Minutes
Commercial/Residentialincandescent, fluorescent, and LED lighting, bathroom exhaust fans, heaters
Part NumberBND-60/U110a-1

Questions about this item

What comes in the box and what must be bought separately?

The timer switch ships with a wall plate and mounting screws. A neutral wire must be present in the wall box; the green ground wire is optional but the hot, load and neutral conductors are required for operation.

Which timing option should I choose for a bathroom fan?

The switch offers six preset countdown times — 5, 10, 20, 30, 45 and 60 minutes — selectable with one touch. Pick the duration that matches the ventilation time you need after each use.

What does the 1875 watt rating mean when the switch is installed?

At 125 volts the switch handles up to 15 amps, so it can control incandescent, fluorescent or LED lighting, exhaust fans and heaters totalling 1875 watts on a single‑pole circuit.
