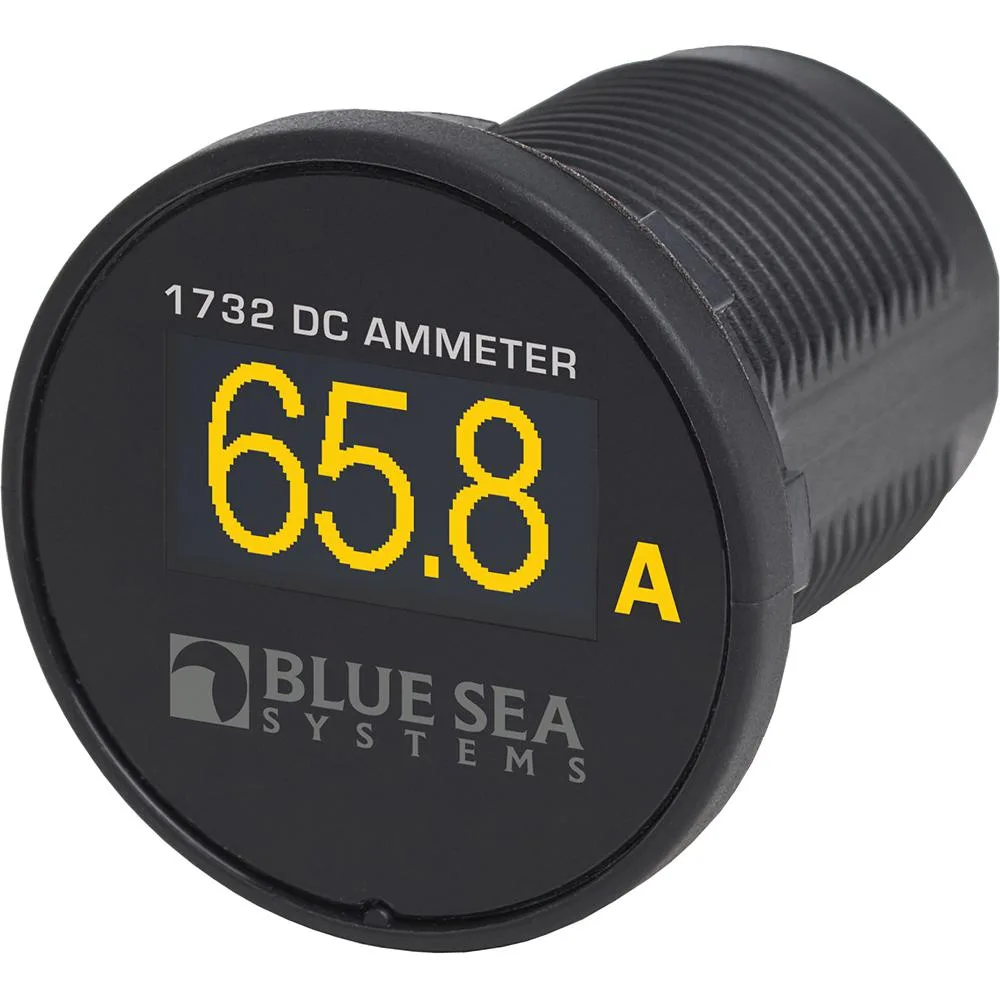

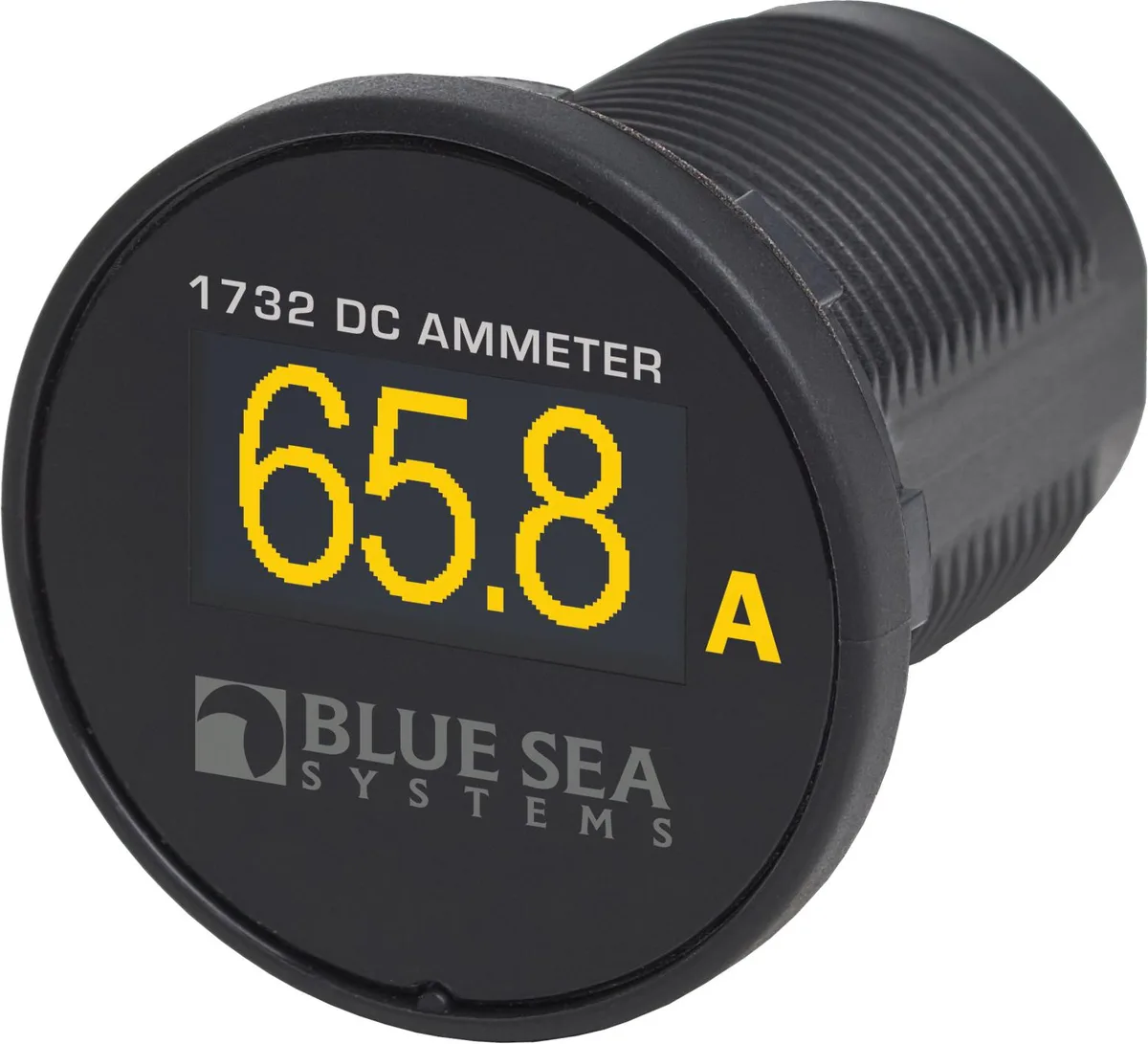

Compact round marine ammeter with a bright OLED display face

Blue Sea Systems

Blue Sea Systems 1732 Mini OLED Ammeter

SKU CH-CBS7-GTZRF

Compact marine ammeter monitors -100 A to 100 A DC on a bright, waterproof, daylight-readable OLED screen, mounts in a standard 1-1/8" hole with reverse-polarity protection

  • TypeAccessories
  • Bright OLED readability in direct sunlight
  • Monitors -100 A to 100 A DC for full current visibility
  • ±2 % accuracy ensures reliable system data
  • Fits standard 1-1/8" cutout for simple installation
  • Reverse polarity protection prevents wiring damage

Purpose and fit

The Blue Sea Systems 1732 Mini OLED Ammeter is a compact marine instrument for 12V or 24V DC electrical systems. It suits boat owners and installers who need real-time amperage data on a bright, waterproof, daylight-readable OLED screen. The meter mounts in a standard 1-1/8" hole for flexible placement.

Deciding specification

The meter monitors current from -100A to 100A DC with a resolution of 0.1A and an accuracy of ± 2%. It accepts positive or negative side wiring and operates on an input voltage range of 8-36V DC while drawing only 15mA. Reverse polarity protection is built in.

Bundled impact

The unit is classified as an accessory and arrives as a standalone meter. No separate shunt, wiring harness or configuration software is included, so installers must supply their own connections and mounting hardware to complete the installation.

Highlights

  • Bright OLED readability in direct sunlight
  • Monitors -100 A to 100 A DC for full current visibility
  • ±2 % accuracy ensures reliable system data
  • Fits standard 1-1/8" cutout for simple installation
  • Reverse polarity protection prevents wiring damage

Specifications

TypeAccessories

Questions about this item

What does the 100A range tell me about the current I can actually watch on my boat?

The meter reads from -100A to 100A DC with 0.1A resolution, so you see charge and discharge currents up to that level on the OLED screen.

How does the 12V/24V nominal voltage and 8-36V input range limit where I can wire it?

It powers from any 8-36V DC source, covering both 12V and 24V nominal systems, and draws only 15mA itself.

What size hole and clearance do I need to mount the 1732 in a panel?

It fits a standard 1-1/8" cut-out; the compact case slides through from the front and secures with the supplied hardware.
