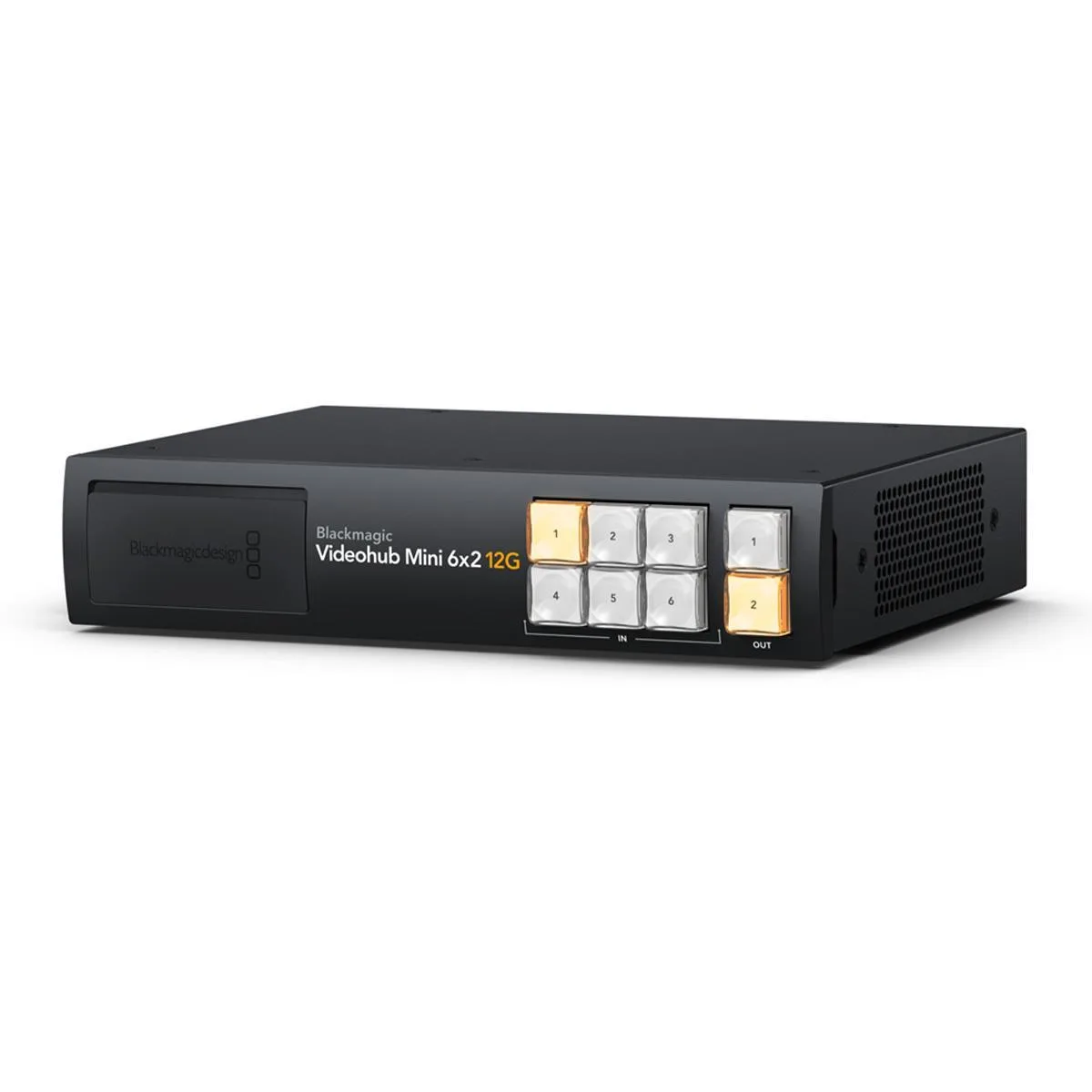

Compact half-rack 12G-SDI video router with front panel controls and USB-C webcam output

Blackmagic Design Pty. Ltd.

Blackmagic Design Videohub Mini 6x2 12G Router

SKU CH-695R-KX6WM

Compact zero-latency router with six 12G-SDI inputs, two outputs and USB-C webcam output supporting SD, HD and 2160p60 Ultra HD

  • Zero-latency routing of SD, HD and Ultra HD simultaneously
  • 6 12G-SDI inputs and 2 12G-SDI outputs for flexible connectivity
  • Clean-switch on every output locks video at up to 2160p60
  • Full SDI re-clocking regenerates signals and prevents data errors
  • USB-C webcam output sends router video directly to a computer

Compact 12G-SDI Router for Mobile Racks

The Blackmagic Design Videohub Mini 6x2 12G is a compact zero-latency video router built for professional broadcast and streaming workflows. Its 1/2 rack width form factor fits tight mobile rack spaces while handling mixed SD, HD and Ultra HD signals simultaneously. The front panel provides direct routing control and an emergency 12G-SDI patch input for quick external connections. A USB-C webcam output adds simple computer video integration.

6 Inputs and 2 Outputs at 12G-SDI

The decisive specification is the six 12G-SDI inputs paired with two 12G-SDI outputs. This fixed I/O count determines whether the unit matches the source and destination requirements of a specific installation. Reference connections are included for locking clean switch outputs. External Ethernet control allows integration into larger management systems.

Routes 2160p60 with Full Re-clocking

The router comfortably handles any combination of SD, HD and Ultra HD standards up to 2160p60 on every port at the same time. Full SDI re-clocking regenerates the video signal to maintain optimal quality and prevent data errors across the path. Clean switching is selectable per output rather than locked to inputs. It is not suited for installations needing more than two simultaneous routed outputs or more than six source connections.

Highlights

  • Zero-latency routing of SD, HD and Ultra HD simultaneously
  • 6 12G-SDI inputs and 2 12G-SDI outputs for flexible connectivity
  • Clean-switch on every output locks video at up to 2160p60
  • Full SDI re-clocking regenerates signals and prevents data errors
  • USB-C webcam output sends router video directly to a computer

Specifications

No published specifications for this item yet.

Questions about this item

How does the 12G-SDI rating translate to real-world resolution and frame-rate support?

The router handles any mix of SD, HD and Ultra HD simultaneously up to 2160p60 on every connection.

What does the 12G-SDI interface cap in practice?

It supports all SDI video standards up to 2160p60 with full re-clocking on every input and output.

What physical space and mounting does the 6x2 model need?

It fits a 1/2 rack width slot and is designed for mobile racks where space is limited.
