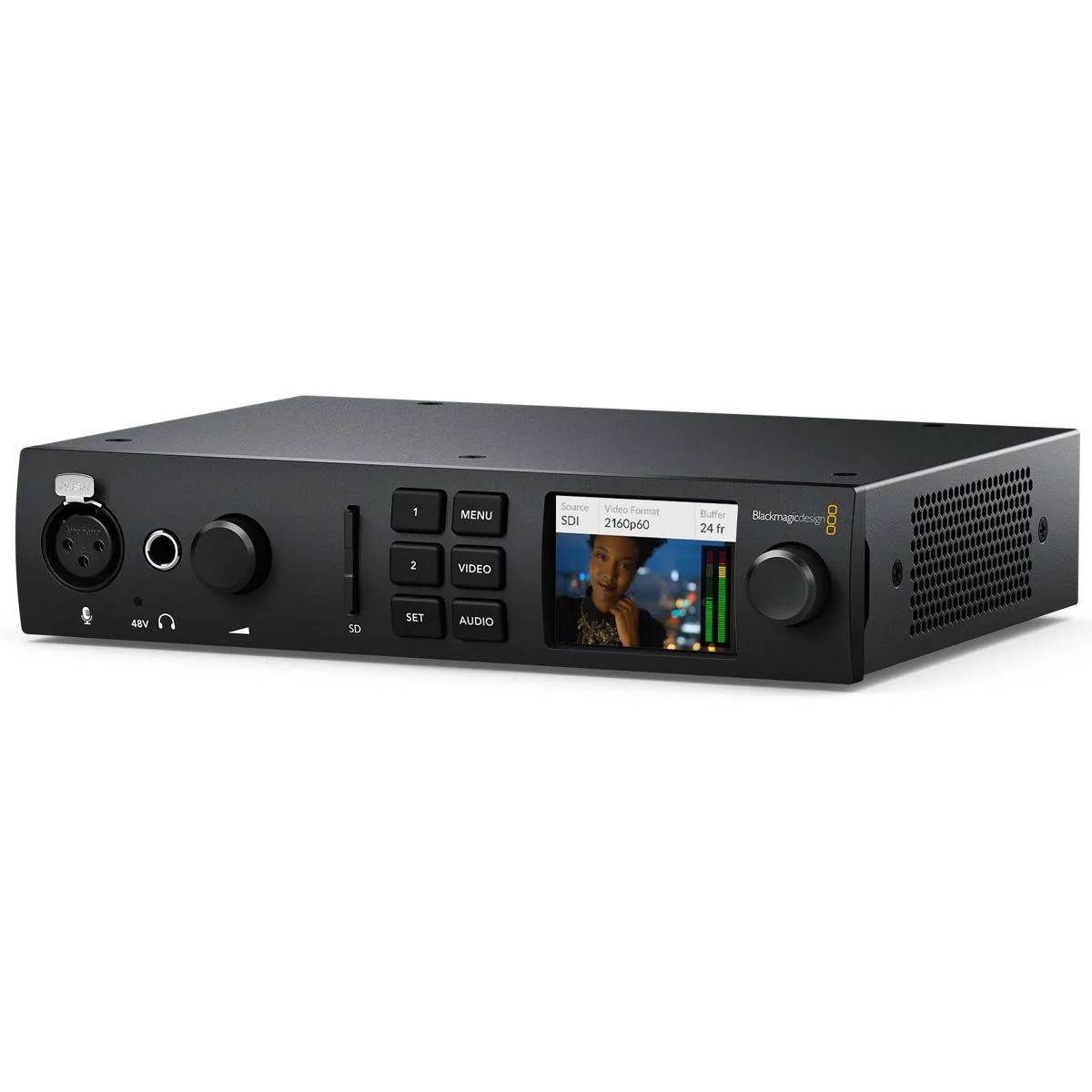

Compact Thunderbolt capture box with front LCD screen and SD card slot

Blackmagic Design Pty. Ltd.

Blackmagic Design UltraStudio 4K Mini video capturing device

SKU CH-91X8-7C8T9

Captures DCI 4K60 4:2:2 via 12G-SDI or DCI 4K30 via HDMI, records 12-bit HDR, includes LCD monitoring, SD card reader and Thunderbolt 3 with 45W power output

  • Thunderbolt 3 delivers 45W laptop charging power
  • Capture DCI 4K60 4:2:2 video via 12G-SDI single link
  • Record 12-bit HDR footage at DCI 4K30 rates
  • Built-in LCD screen enables real-time signal monitoring
  • Integrated SD card reader provides immediate media access

Thunderbolt 3 Capture & Playback

The Blackmagic Design UltraStudio 4K Mini connects a Thunderbolt 3 computer to professional video equipment for capture, playback and streaming. It delivers 45W power output to charge a laptop while in use. The unit is built for mobile production workflows that demand high-quality I/O in a small footprint.

12G-SDI & HDMI Video Formats

It captures DCI 4K60 4:2:2 via single-link 12G-SDI and DCI 4K30 4:2:2 via HDMI. Recording supports 12-bit HDR up to DCI 4K30 and 8- or 10-bit up to DCI 4K60. Audio includes 16-channel SDI and 8-channel HDMI embedded I/O plus a 3-pin XLR input and headphone output.

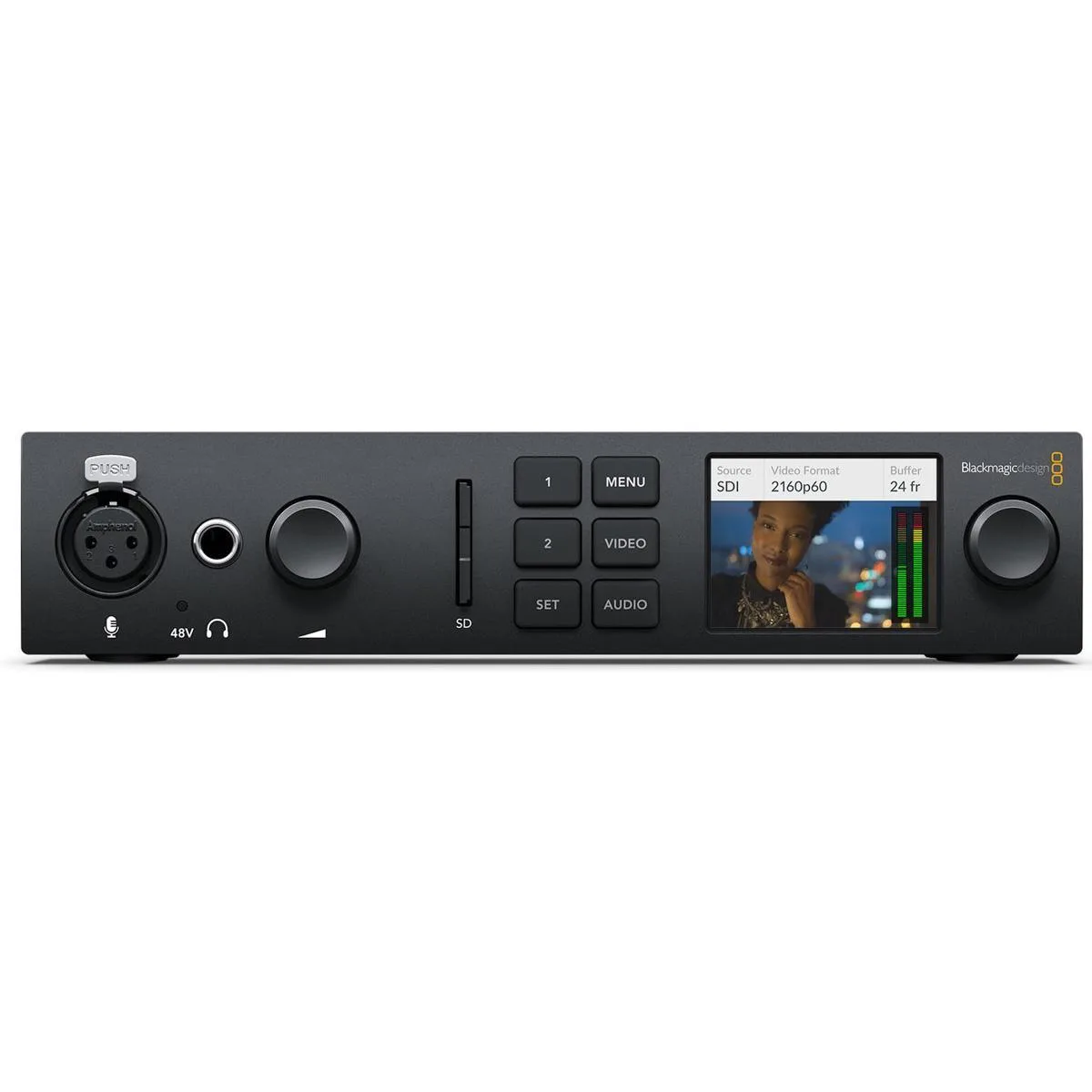

Front Panel Controls & SD Slot

A built-in LCD screen provides real-time signal monitoring without external tools. Front-panel buttons give direct access to key functions. An integrated SD card reader allows immediate media access. Buyers without a Thunderbolt 3 port cannot use this device.

Highlights

  • Thunderbolt 3 delivers 45W laptop charging power
  • Capture DCI 4K60 4:2:2 video via 12G-SDI single link
  • Record 12-bit HDR footage at DCI 4K30 rates
  • Built-in LCD screen enables real-time signal monitoring
  • Integrated SD card reader provides immediate media access

Specifications

No published specifications for this item yet.

Questions about this item

What does DCI 4K60 4:2:2 capture mean for my Thunderbolt 3 workflow?

You can ingest full-resolution DCI 4K at 60 frames per second with 4:2:2 chroma subsampling over a single 12G-SDI link, then stream or record directly to the host computer over Thunderbolt 3 without dropping frames.

How does the Thunderbolt 3 link limit what I can capture or play back?

The Thunderbolt 3 connection carries the 12G-SDI or HDMI signal to the computer and supplies up to 45W of power to the host, so the practical ceiling is the 12G-SDI single-link maximum of DCI 4K60 4:2:2 or HDMI at DCI 4K30 4:2:2.

What physical connections and mounting does the unit need on my desk or rack?

It requires a Thunderbolt 3 cable to the computer, 12G-SDI or HDMI for video, XLR for analogue audio, headphones for monitoring, and an SD card slot for media; the compact chassis sits on a desktop or can be rack-mounted with optional ears.
