Blackmagic Design Pty. Ltd.
Blackmagic Design Pty. Ltd. CONVMCSAUD4K SDI to Audio 4K media converter
De-embeds 4 analog or 8 digital audio channels from SD, HD, 3G or 6G-SDI video up to 4K, with redundant input failover and USB configuration
- Converter TypeSDI to Audio
- FormatSDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 P
- SDI ComplianceSMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B
- Video Sampling4:2:2, 4:4:4
- Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit.
- ColorSDI Color Precision: 4:2:2, 4:4:4 SDI Color Space: YUV, RGB
- De-embed 4 analog or 8 digital audio channels from any SDI video connection
- Redundant SDI input automatically switches over if the main signal is lost
- Auto-detects SD, HD, 3G and 6G-SDI rates including 4K and UHD formats
- 48 kHz 24-bit audio sampling with professional balanced 1/4 inch jack connections
- Low 5.52 W power draw with universal 12 V supply and international socket adapters
SDI to Audio 4K converter

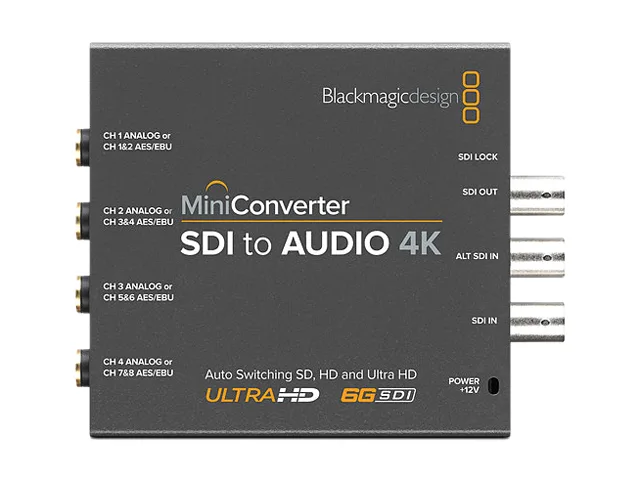

The Blackmagic Design Mini Converter SDI to Audio 4K de-embeds four channels of balanced analog audio or eight channels of AES/EBU digital audio from any SD, HD, 3G or 6G-SDI signal. It supports video formats up to 4096 x 2160p30 and 3840 x 2160p30 with automatic input detection and reclocking. Configuration is handled by onboard mini switches or via USB using the included Mac and Windows utility. A universal 12 V power supply with international adapters is included.
Replaces embedded-audio extraction workflows
This unit replaces the need for a separate de-embedder and distribution amplifier when you only need the audio portion of an SDI stream. The jump is worth it when moving from SD or HD infrastructure to 3G or 6G-SDI and you require simultaneous analog and digital outputs with redundant input failover. It is not suited for installations that need video routing, format conversion, or more than eight audio channels from a single link.
Limited to single-link SDI bandwidth
The converter operates within the constraints of single-link 6G-SDI, so 4K sources above 30 fps or 12G-SDI signals are not supported. Audio is fixed at 48 kHz 24-bit sampling with no sample-rate conversion, and the USB port serves only for firmware updates and configuration, not for audio streaming. The 12–31 V DC input range allows battery or rack power, but the device provides no genlock reference or timecode pass-through.
Highlights
- De-embed 4 analog or 8 digital audio channels from any SDI video connection
- Redundant SDI input automatically switches over if the main signal is lost
- Auto-detects SD, HD, 3G and 6G-SDI rates including 4K and UHD formats
- 48 kHz 24-bit audio sampling with professional balanced 1/4 inch jack connections
- Low 5.52 W power draw with universal 12 V supply and international socket adapters
Specifications
| Brand | Blackmagic Design |
|---|---|
| Model | CONVMCSAUD4K |
| Converter Type | SDI to Audio |
| Format | SDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24,2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30. |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036 |
| Video Sampling | 4:2:2, 4:4:4 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Color | SDI Color Precision: 4:2:2, 4:4:4 SDI Color Space: YUV, RGB |
| SDI | SDI Video Input: Switchable between SD, HD, 3G and 6G-SDI. SDI Video Output: Automatically matches the SD, HD, 3G and 6G-SDI video input. SDI Redundant Input: Automatically switches over if main SDI input is lost. |
| USB Port | Updates and Configuration: USB |
| Digital Aduio | 8 channels of professional balanced digital with standard 1/4 inch jack connections. |
| Analog Aduio | 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Other Connector | Multi Rate Support: Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs. Reclocking: Yes |
| Software | Software Control: Mac OS X and Windows software upgrade via USB. Internal Software Upgrade: Via included updater application. |
| System Requirements | Operating Systems Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8. |
| Power Consumption | 5.52 Watts |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. Operational Voltage Range: 12V - 31V DC |

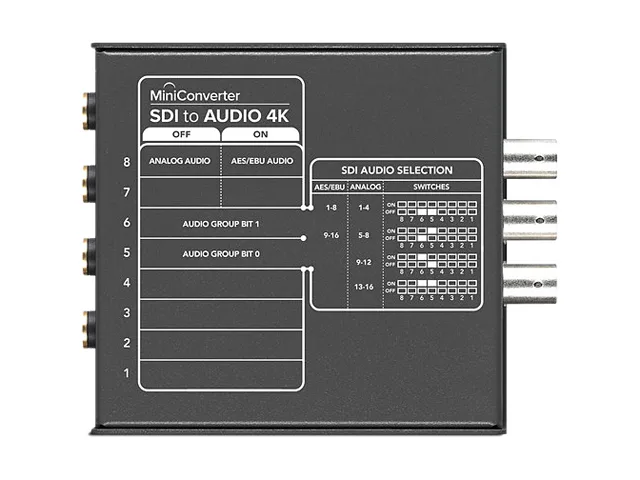

| Specification | SDI Video Rates: SDI video connections are switchable between standard definition and high definition. SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G-SDI. Settings Control: Mini Switches or USB software. Operating temperature: 0° to 40° C (32° to 104° F) Storage temperature: -20° to 60° C (-4° to 113° F) Relative Humidity: 0% to 90% non-condensing |
| Feature | Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more! |
| Dimensions | 4.52" x 3.63" x 0.9" |
| Weight | 7.61 oz |
| Package Content | Mini Converter SDI to Audio 4K 12V universal power supply with international socket adapters |
| Shipping weight | 0.45 kg |
| Package size | 152 × 127 × 51 mm |
Questions about this item
What are the dimensions of the CONVMCSAUD4K for rack-mount planning?
The unit measures 4.52 inches wide, 3.63 inches deep and 0.9 inches high, so it fits in a compact desktop space or a 1U rack shelf with room for cable routing.
How is the converter configured, and what step do users often miss?
Settings are changed via the mini switches on the enclosure or through the USB port using the included updater application on Mac OS X 10.9 or later and Windows 7 or 8; the step often missed is running the updater after switch changes to lock the new configuration.
What ongoing maintenance does the Mini Converter SDI to Audio 4K require?
The only maintenance is periodic firmware updates via the USB port using the supplied updater application; the internal power supply operates from 12 V to 31 V DC and has no user-serviceable parts.
