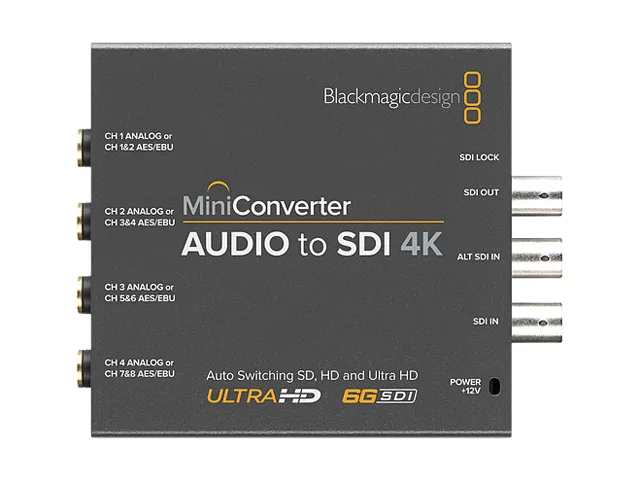

Small black metal box with quarter-inch audio jacks and BNC connectors

Blackmagic Design Pty. Ltd.

Blackmagic Design Pty. Ltd. CONVMCAUDS4K Audio to SDI 4K Media Converter

SKU CH-EWNF-YVB6H MPN CONVMCAUDS4K

Embeds four analog or eight digital audio channels into SD, HD, 3G or 6G-SDI video up to 4K with automatic format detection and reclocking

  • Converter TypeAudio to SDI 4K
  • FormatSDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 P
  • SDI ComplianceSMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B
  • Video Sampling4:2:2, 4:4:4
  • Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit.
  • ColorSDI Color Precision: 4:2:2, 4:4:4 SDI Color Space: YUV, RGB
  • Embed 4 analog or 8 digital audio channels into SDI video
  • Redundant SDI input switches automatically if main signal fails
  • Supports SD through 6G-SDI and 4K UHD formats automatically
  • 48 kHz 24-bit audio sampling meets broadcast standards
  • USB port enables configuration and firmware updates on Mac or Windows

Mini Converter Audio to SDI 4K

Blackmagic Design Mini Converter Audio to SDI 4K embeds four channels of balanced analog audio or eight channels of AES/EBU digital audio into SD, HD, 3G or 6G-SDI video signals. It supports formats from 525i NTSC up to 4096 x 2160p30 4K. A universal 12 V power supply with international adapters is included.

Broadcast engineers embedding external audio

Suits broadcast engineers who need to embed analog or AES/EBU sources into an SDI stream for live production or post workflows. Not for buyers who require HDMI input or output, or who need to de-embed audio from an SDI signal.

6G-SDI reclocked output with redundant input

The single specification that decides fit is the 6G-SDI reclocked output with automatic redundant-input failover. It ensures clean 4K transport and signal continuity when the primary SDI feed is lost.

Highlights

  • Embed 4 analog or 8 digital audio channels into SDI video
  • Redundant SDI input switches automatically if main signal fails
  • Supports SD through 6G-SDI and 4K UHD formats automatically
  • 48 kHz 24-bit audio sampling meets broadcast standards
  • USB port enables configuration and firmware updates on Mac or Windows

Specifications

BrandBlackmagic Design
ModelCONVMCAUDS4K
Converter TypeAudio to SDI 4K
FormatSDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24,2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30.
SDI ComplianceSMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
Video Sampling4:2:2, 4:4:4
Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit.
ColorSDI Color Precision: 4:2:2, 4:4:4
SDI Color Space: YUV, RGB
SDISDI Video Input: Switchable between SD, HD, 3G and 6G-SDI.
SDI Video Output: Automatically matches the SD, HD, 3G and 6G-SDI video input.
SDI Redundant Input: Automatically switches over if main SDI input is lost.
USB PortUpdates and Configuration: USB
Digital Aduio8 channels of professional balanced digital with standard 1/4 inch jack connections.
Analog Aduio4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Other ConnectorMulti Rate Support: Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs.
Reclocking: Yes
SoftwareSoftware Control: Mac OS X and Windows software upgrade via USB.
Internal Software Upgrade: Via included updater application.
System RequirementsOperating Systems
Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Power Consumption8.40 Watts
Power Supply+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Operational Voltage Range: 12V - 31V DC
SpecificationSDI Video Rates: SDI video connections are switchable between standard definition and high definition.
SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G-SDI.

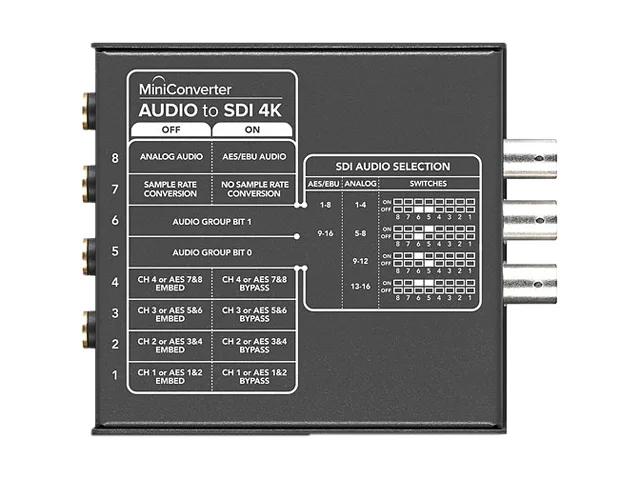

Settings Control: Mini Switches or USB software.
Operating temperature: 0° to 40° C (32° to 104° F)
Storage temperature: -20° to 60° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
FeatureMini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!
Dimensions4.52" x 3.63" x 0.9"
Weight7.61 oz
Package ContentMini Converter Audio to SDI 4K
12V universal power supply with international socket adapters
Shipping weight0.45 kg
Package size152 × 127 × 51 mm

Questions about this item

How do I connect analog audio to the 1/4 inch jacks and avoid the common mistake of unbalanced cables?

Plug four channels of professional balanced analog audio into the standard 1/4 inch jack connections; the mistake is using unbalanced cables which can introduce noise and ground loops in studio environments.

Will the USB port need firmware updates over time and how are they applied?

The USB port is used for software upgrades and configuration via the included updater application on Mac OS X 10.9 or later and Windows 7 or 8; connect to a computer to apply updates when released.

At what point does the 8.40 Watt power draw become a thermal limit during continuous 4K operation?

The converter consumes 8.40 Watts and operates from 12V to 31V DC with the supplied universal power supply; sustained 4K embedding runs within this envelope without a stated thermal throttle point.
