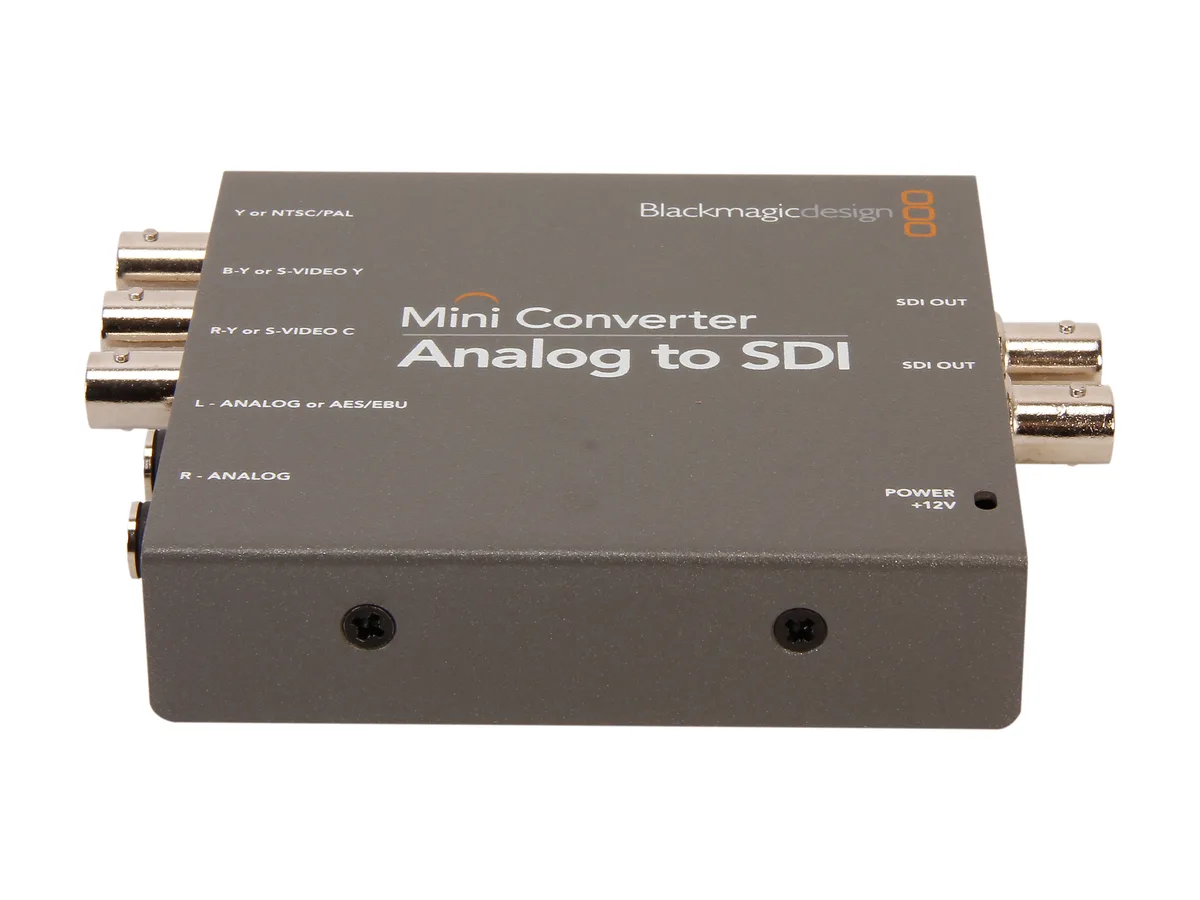

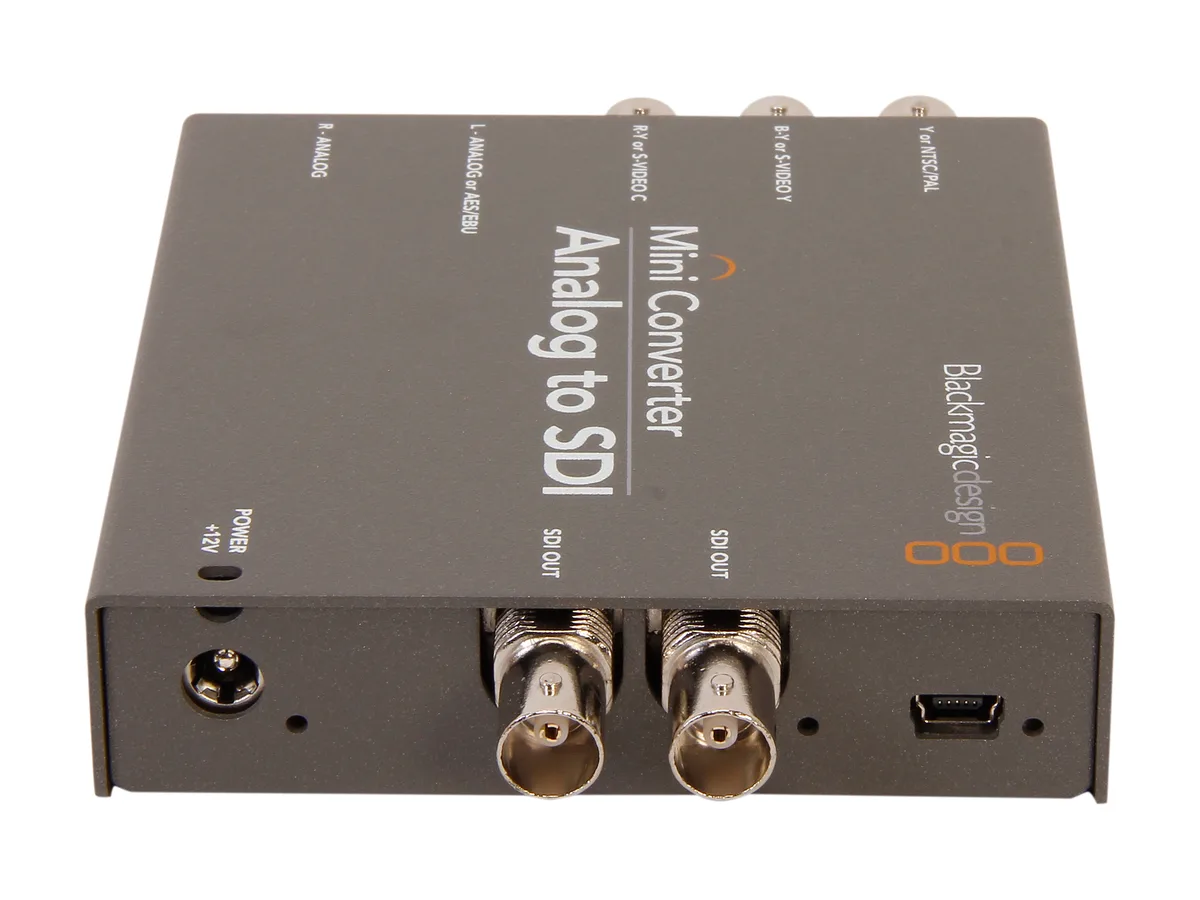

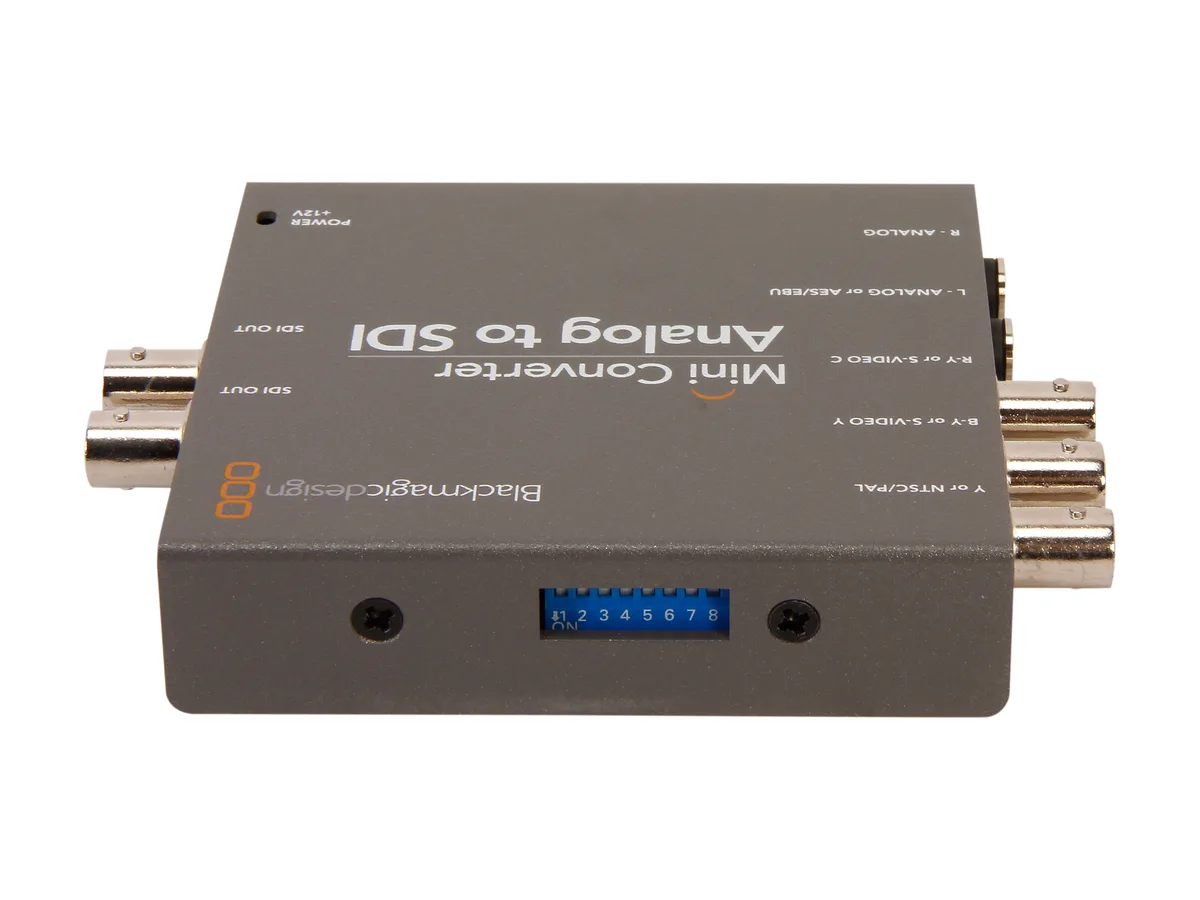

Small black metal box with BNC and quarter-inch jacks on front, power port on side

Blackmagic Design Pty. Ltd.

Blackmagic Design Pty. Ltd. CONVMAAS2 Media Converter Analog to SDI

SKU CH-RG02-NZCC9 MPN CONVMAAS2

Converts analog component, NTSC, PAL or S-video to switchable SD, HD or 3G-SDI with embedded balanced analog or AES/EBU audio

  • VideoInput: (1) component, NTSC, PAL, and S-video via 3x BNCs Out
  • AudioAnalog: (2) channels of professional balanced analog with st
  • FeatureThe Mini Converter Analog to SDI from Blackmagic will accept
  • Package ContentPower Supply
  • Converts analog component, NTSC, PAL or S-video to SDI via 3×BNC input
  • Dual SDI output switchable between SD, HD and 3G-SDI rates
  • Embeds two channels of balanced analog audio via ¼″ jacks into the SDI stream
  • Embeds two channels of AES/EBU digital audio via ¼″ jacks into the SDI stream
  • Includes external power supply for immediate deployment

Analog to SDI Video Conversion

The Blackmagic Design CONVMAAS2 is a compact media converter that accepts analog component, NTSC, PAL, or S-video signals through three BNC inputs and delivers two switchable SDI outputs covering SD, HD, and 3G-SDI rates. It also embeds two channels of audio sourced from either balanced 1/4-inch analog jacks or AES/EBU digital inputs. The unit ships with an external power supply.

For Legacy Source Integration

This converter suits engineers and operators who need to bridge older analog gear such as Betacam SP decks, VHS players, set-top boxes, or HDV cameras into modern SDI workflows. It is not intended for users who require HDMI, DisplayPort, or uncompressed digital video inputs, nor for installations needing more than two SDI outputs or multichannel audio embedding beyond a stereo pair.

Switchable SD, HD, and 3G-SDI Output

The defining specification is the dual SDI output that can be configured for standard-definition, high-definition, or 3Gbps SDI formats, determining whether the converter matches the target production standard and cabling infrastructure.

Highlights

  • Converts analog component, NTSC, PAL or S-video to SDI via 3×BNC input
  • Dual SDI output switchable between SD, HD and 3G-SDI rates
  • Embeds two channels of balanced analog audio via ¼″ jacks into the SDI stream
  • Embeds two channels of AES/EBU digital audio via ¼″ jacks into the SDI stream
  • Includes external power supply for immediate deployment

Specifications

BrandBlackmagic Design
ModelCONVMAAS2
VideoInput: (1) component, NTSC, PAL, and S-video via 3x BNCs
Output: (2) SDI (switchable between SD, HD & 3Gbs SDI)
AudioAnalog:
(2) channels of professional balanced analog with standard 1/4" jack connections
Digital:
(2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
(Audio inputs are shared)
FeatureThe Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.
Analog to SDI Conversion
Use this device to convert analog video sources to SDI video output.
Embedded Audio
This unit can embed SDI audio from balanced AES/EBU or analog audio inputs.

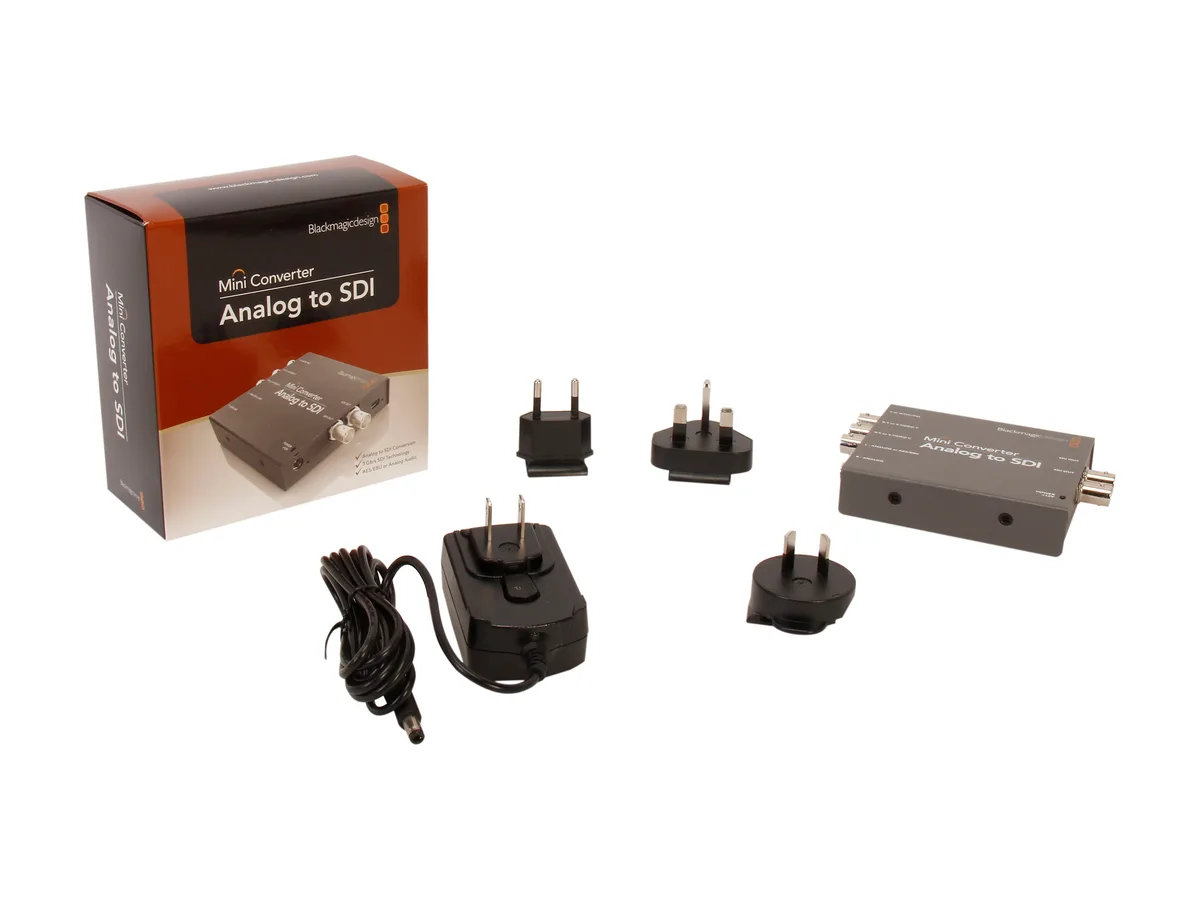

Package ContentPower Supply
Shipping weight0.54 kg
Package size147 × 140 × 69 mm

Questions about this item

What video connectors does the CONVMAAS2 need on the source side?

The converter accepts component, NTSC, PAL or S-video signals through three BNC connectors on the input panel.

Which installation step is most often missed when setting up the CONVMAAS2?

Connect the included power supply before expecting any SDI output; the unit has no internal battery and will not pass video without external power.

What ongoing maintenance does the CONVMAAS2 require?

No scheduled maintenance is needed; keep the BNC and 1/4" jacks clean and verify the power supply remains secure during long-term rack or shelf use.
