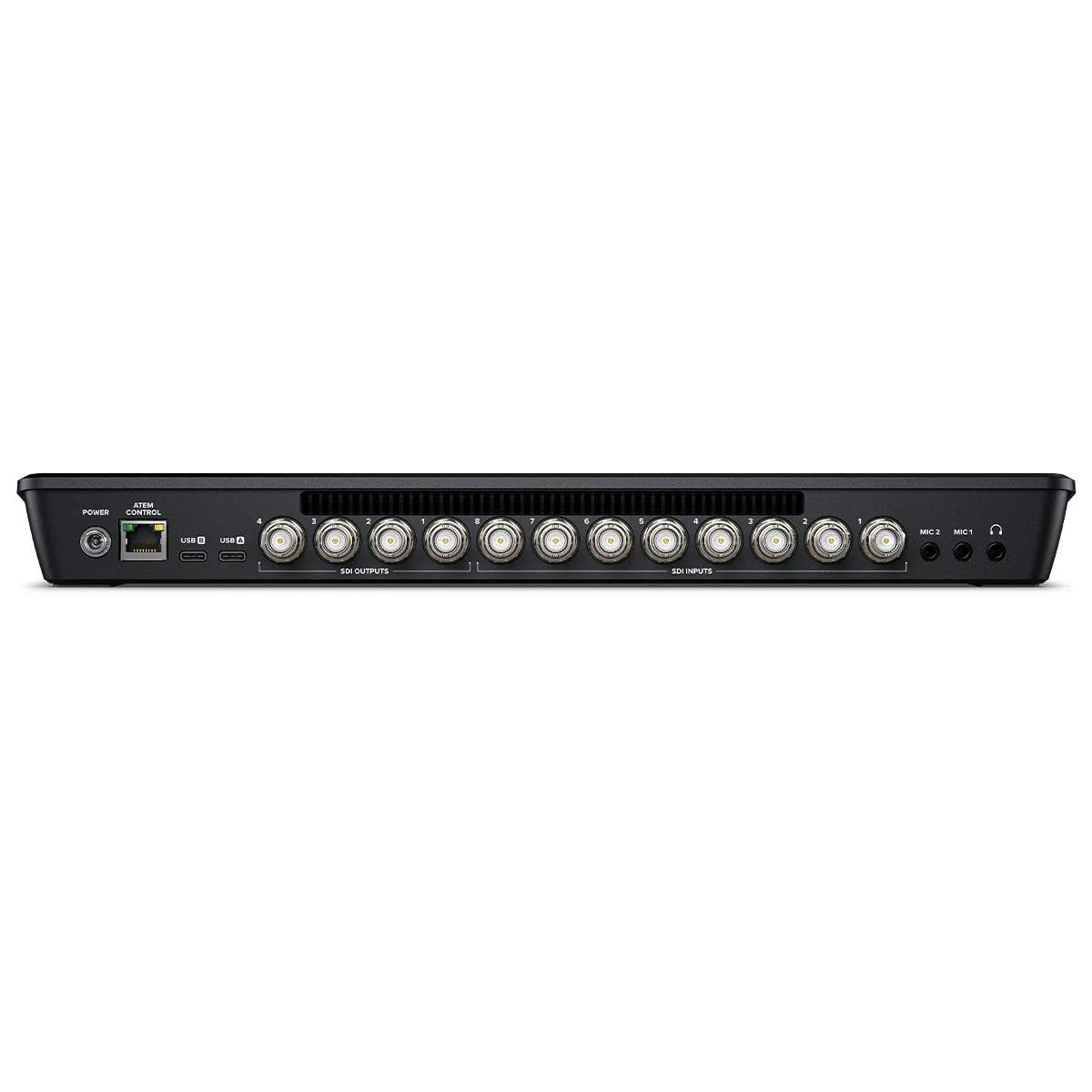

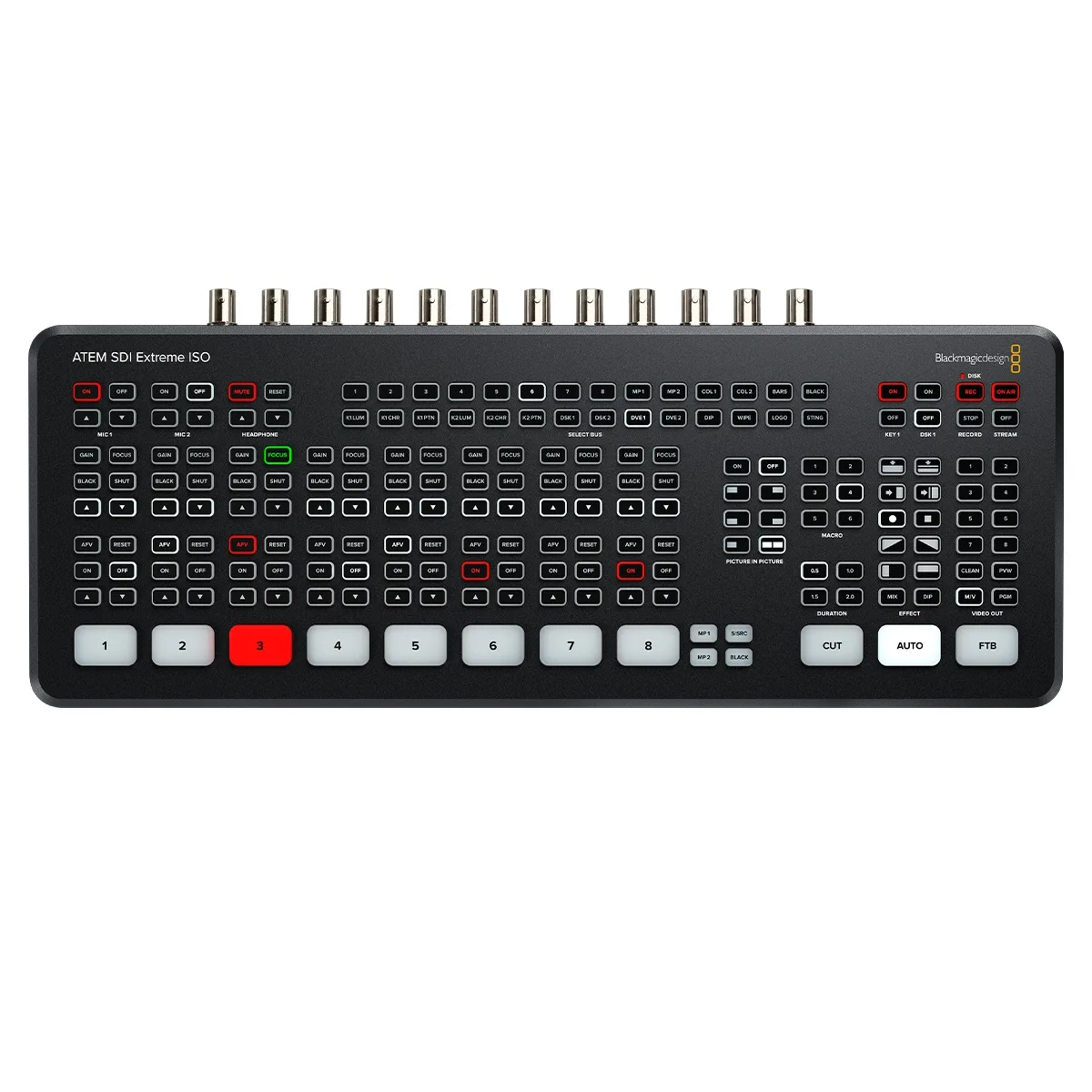

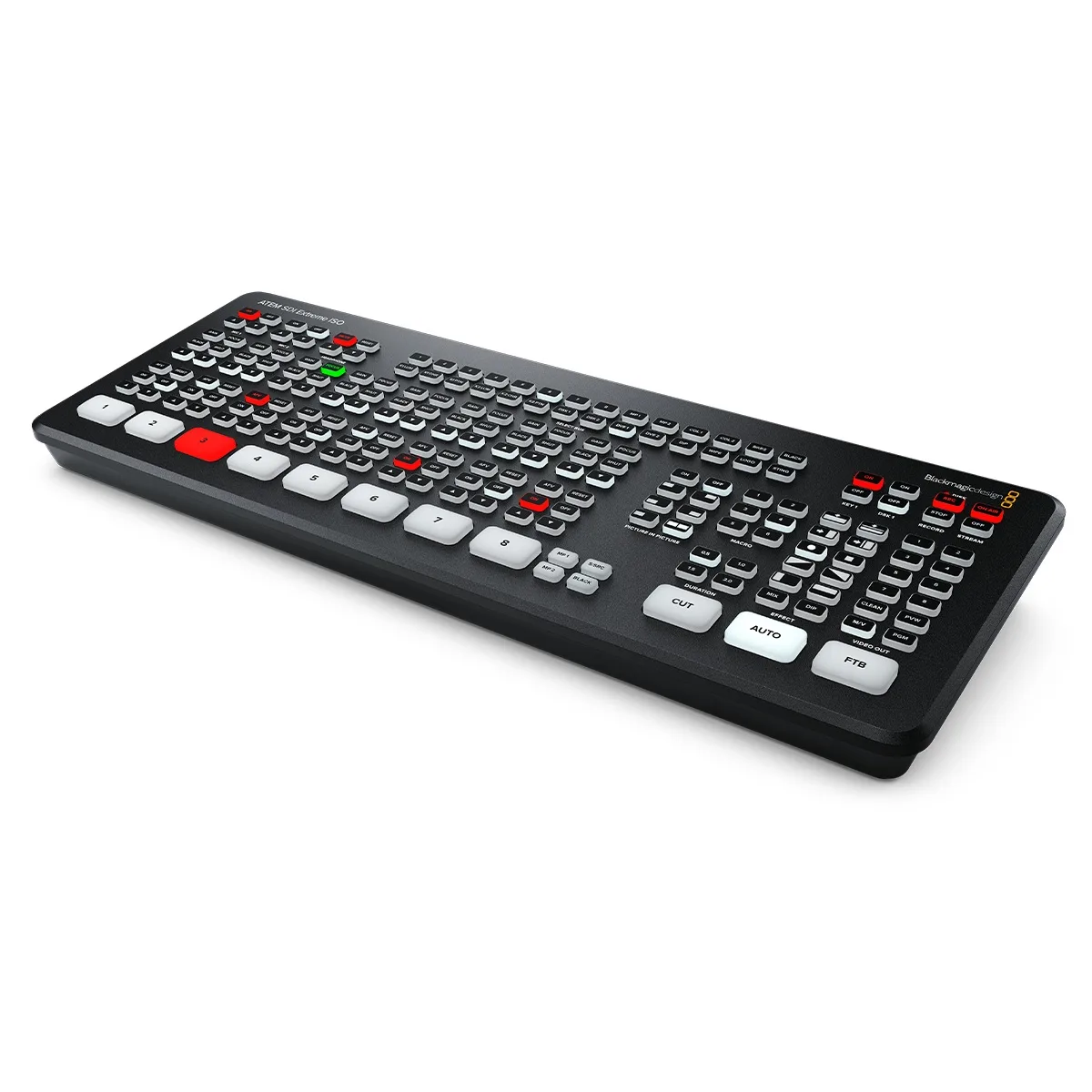

Blackmagic Design ATEM SDI Extreme ISO switcher, 8 SDI inputs, 4 SDI outputs, portable metal chassis

Blackmagic Design Pty. Ltd.

Blackmagic Design Pty. Ltd. ATEM SDI Extreme ISO Live Production Switcher

SKU CH-NMVT-S07JW

Live production switcher with eight SDI inputs, four outputs, and real-time recording of nine H.264 streams plus a DaVinci Resolve project file

  • Records 9 H.264 streams including clean feeds
  • 8 SDI inputs with standards conversion on every input
  • 4 upstream chroma keyers for virtual set creation
  • SuperSource adds 4 DVE layers plus background
  • USB webcam output plus built-in streaming engine

Portable live production with 8 SDI inputs

The ATEM SDI Extreme ISO is a compact live production switcher built for broadcasters who need extreme portability. It provides eight 3G-SDI inputs with standards converters and re-sync on every channel. Four inputs are suited for cameras while four can connect to a virtual set computer. The USB connection works as a webcam for computer streaming.

Records nine H.264 streams simultaneously

The switcher records nine separate H.264 video streams in real time, capturing all eight clean feed inputs plus the program output. This gives full post-production flexibility for every source. A DaVinci Resolve project file is saved automatically alongside the recordings. Storage speed and capacity requirements will depend on the chosen recording media and session length.

Advanced keying and multi-layer compositing

Four upstream chroma keyers enable the creation of virtual sets directly in the switcher. The SuperSource processor adds four extra DVE layers plus a background layer for complex picture-in-picture effects. Output selection buttons allow instant switching between program, direct camera feeds and the multiview. The Fairlight audio mixer includes a compressor, limiter and six-band parametric EQ on each input.

Highlights

  • Records 9 H.264 streams including clean feeds
  • 8 SDI inputs with standards conversion on every input
  • 4 upstream chroma keyers for virtual set creation
  • SuperSource adds 4 DVE layers plus background
  • USB webcam output plus built-in streaming engine

Specifications

No published specifications for this item yet.

Questions about this item

Will the 8 SDI inputs accept the 3G-SDI cameras I already own without extra converters?

Every SDI input includes a built-in standards converter and re-sync, so 3G-SDI sources connect directly and are frame-aligned automatically.

How can I verify that all 9 H.264 streams are being recorded correctly during a live show?

The multiview output lets you monitor the program feed, each clean camera input and the recording status on a single screen.

Does the box include the DaVinci Resolve licence needed to open the saved project file?

The switcher writes a DaVinci Resolve project file to the recording media; the Resolve application itself is a separate free or Studio download.
