Compact metal box with SDI input, analog video and audio outputs, quarter-inch jacks, 12 VDC power

Blackmagic Design Pty. Ltd.

Blackmagic Design Mini Converter SDI to Analog CONVMASA 12VDC

SKU CH-Z60D-RX3TM

Converts SDI video to component, NTSC, PAL or S-video with embedded audio de-embedding via balanced 1/4" jacks

  • VideoInput: (1) SDI (switchable between SD, HD & 3Gbs SDI) Output
  • Digital Aduio2) channels of professional balanced digital with standard 1
  • Analog Aduio(2) channels of professional balanced analog with standard 1
  • Power Supply12VDC
  • FeatureThe Mini Converter SDI to Analog from Blackmagic will accept
  • Package ContentConverter Power Supply
  • Converts SDI to component, NTSC, PAL or S-video
  • De-embeds embedded SDI audio for balanced analog output
  • Provides balanced digital audio via 1/4" AES/EBU jacks
  • Includes 12 VDC power supply for immediate operation
  • Switchable SDI input handles SD, HD and 3Gb/s signals

SDI to Analog Conversion

The Blackmagic Design Mini Converter accepts an SDI input signal and converts it to HD or SD component, NTSC, PAL, or S-video output. It is built for broadcast engineers and post-production facilities that need to integrate legacy analog monitors or recorders into modern serial digital workflows. The unit also provides a loop-through SDI output for signal continuity.

Switchable SD, HD and 3G-SDI Input

The single specification that decides compatibility is the switchable SDI input, which handles SD, HD and 3Gb/s SDI standards automatically. If your source operates outside these three serial digital rates, this converter will not lock to the signal and a different interface device is required.

12VDC Power Supply

The converter ships with an external 12VDC power supply and draws minimal power during normal operation. The compact metal enclosure runs passively without a fan, so it adds no audible noise to a quiet studio or outside broadcast rack.

Highlights

  • Converts SDI to component, NTSC, PAL or S-video
  • De-embeds embedded SDI audio for balanced analog output
  • Provides balanced digital audio via 1/4" AES/EBU jacks
  • Includes 12 VDC power supply for immediate operation
  • Switchable SDI input handles SD, HD and 3Gb/s signals

Specifications

BrandBlackmagic Design
ModelCONVMASA
VideoInput:
(1) SDI (switchable between SD, HD & 3Gbs SDI)
Output:
(1) component, NTSC, PAL, and S-video
(1) SDI (switchable between SD, HD & 3Gbs SDI)
Digital Aduio2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
Analog Aduio(2) channels of professional balanced analog with standard 1/4" jack connections
Power Supply12VDC
FeatureThe Mini Converter SDI to Analog from Blackmagic will accept an SDI input signal and convert it to HD/SD component, NTSC, PAL, or S-video output. Also, if your SDI signal has audio embedded, the Converter will let you first de-embed the audio so that you can output it via the analog outs.
SDI to Analog Conversion
Use this device to convert SDI video signals to analog output.
Embedded Audio
The Converter can de-embed audio from an SDI signal so that you can output it via the analog outs.

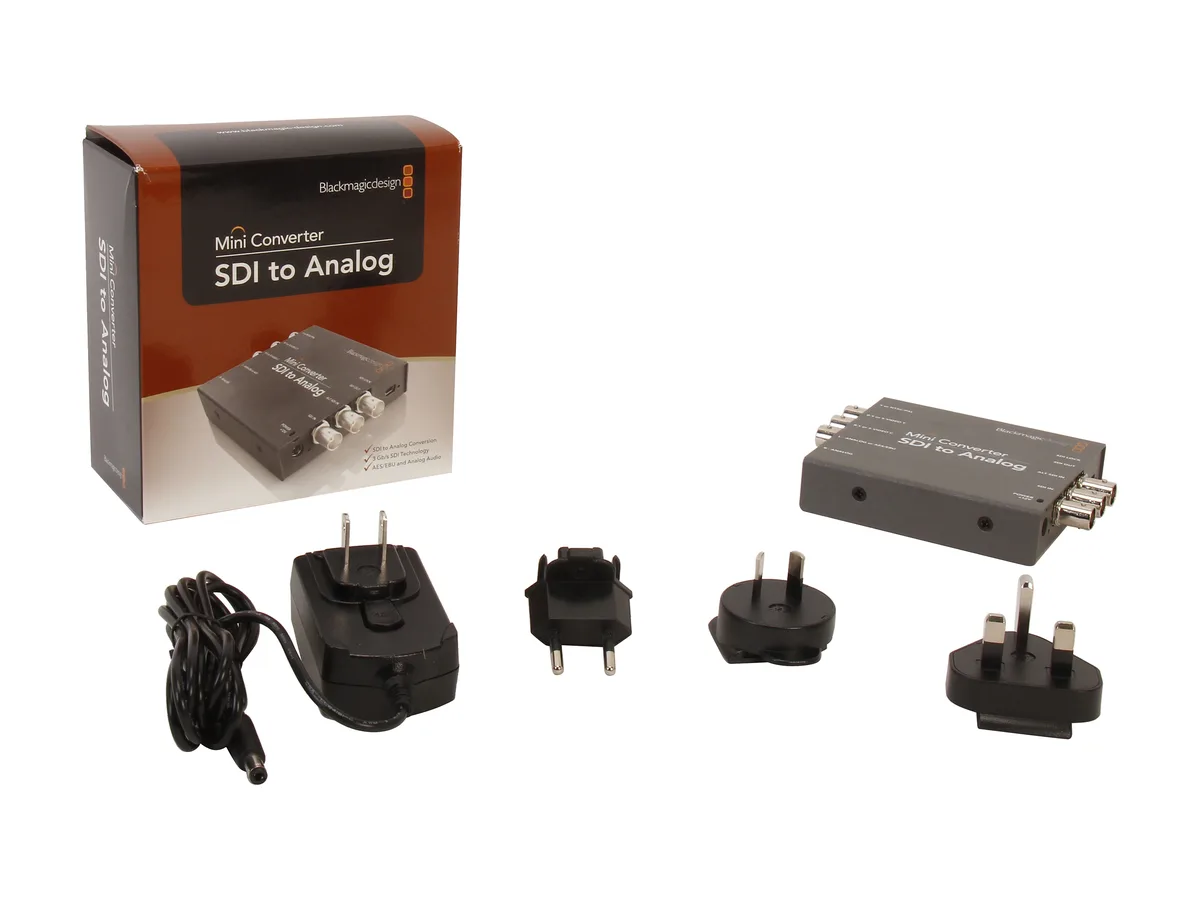

Package ContentConverter
Power Supply
Shipping weight0.52 kg
Package size147 × 140 × 69 mm

Questions about this item

What does the switchable SD, HD and 3Gb/s SDI input mean for my workflow?

The converter accepts standard-definition, high-definition and 3Gb/s SDI signals on a single BNC input, so you can feed it from legacy SD cameras, modern HD gear or 3G-SDI sources without changing hardware.

How does the AES/EBU digital audio output limit what I can connect?

The two balanced ¼-inch jacks carry professional AES/EBU digital audio de-embedded from the SDI stream, so they connect directly to digital mixers or recorders that expect that standard.

What physical space and mounting does the Mini Converter need?

The compact metal enclosure sits on a desk or rack shelf and ships with a 12 V DC power supply; no rack ears or brackets are included.
