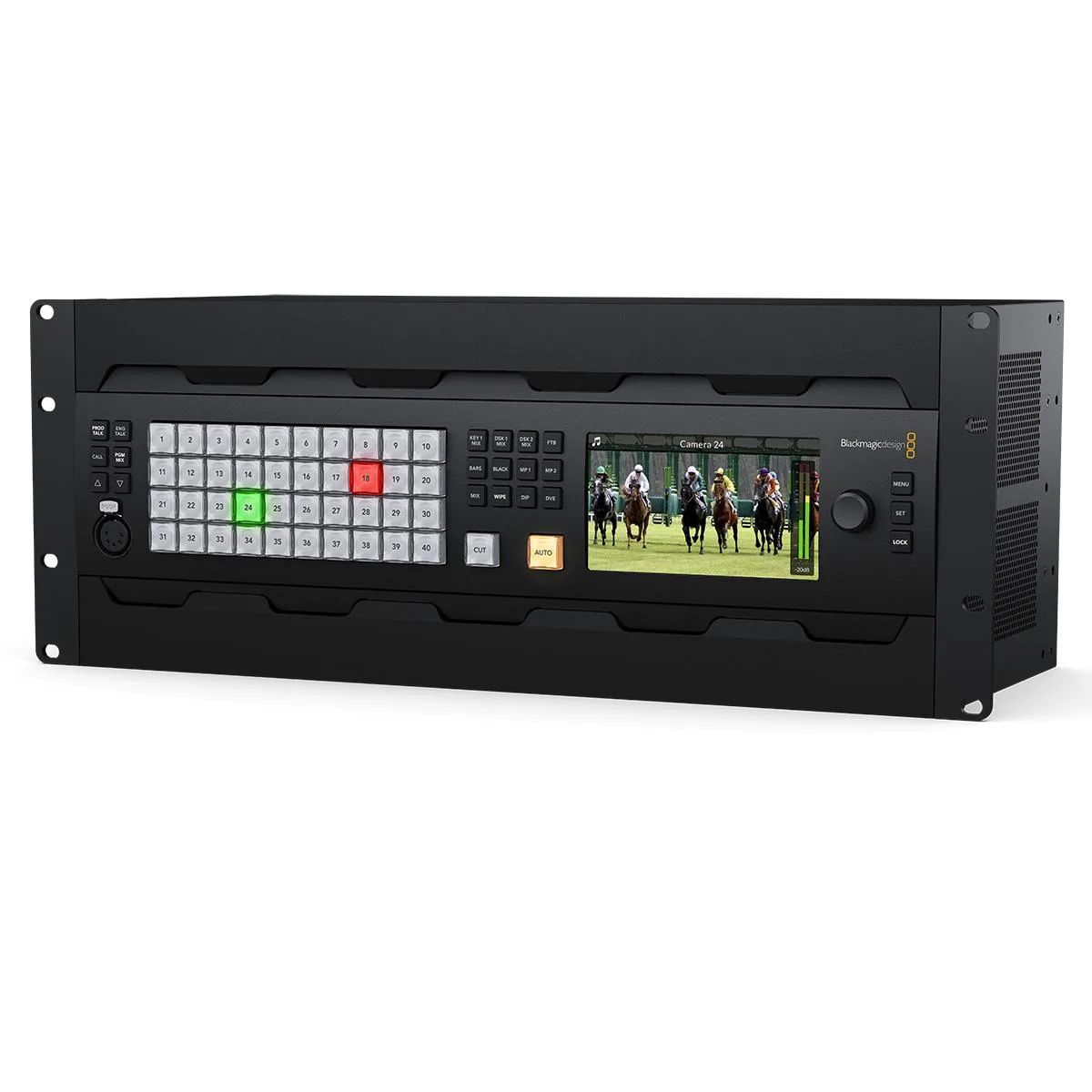

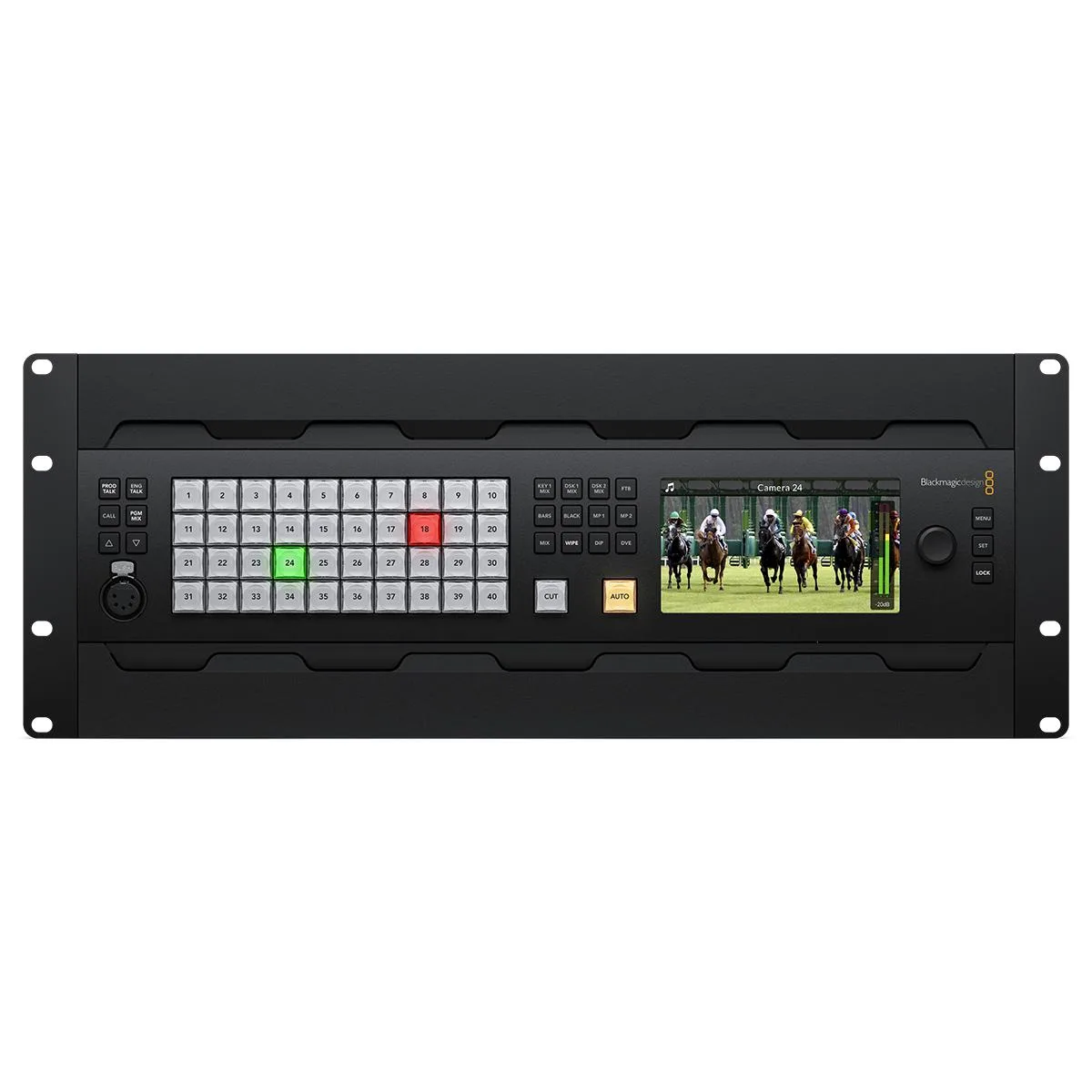

Blackmagic Design ATEM 4 M/E Constellation 4K PLUS production switcher

Core Purpose

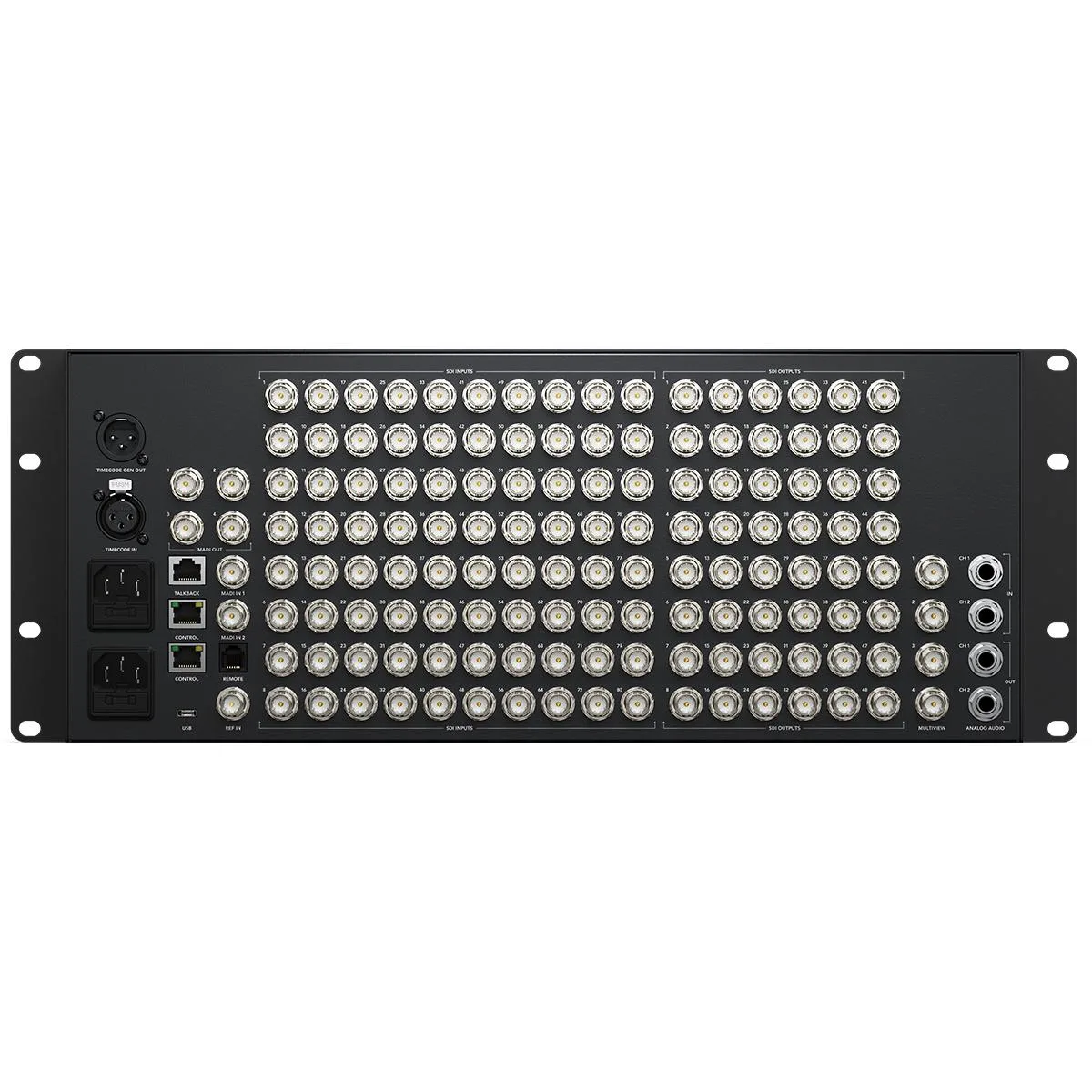

The Blackmagic Design ATEM 4 M/E Constellation 4K PLUS is a 4 M/E Ultra HD live production switcher built for large-scale broadcast and event workflows. It provides 80 standards-converted 12G-SDI inputs and 52 outputs in a rack-mount design. Four DVEs, 16 advanced chroma keyers, four media players and four independent Ultra HD multi-views handle complex layering. Two SuperSource processors add extra multi-box compositing power.

Fit and Limits

This unit suits production teams that need massive input counts, deep routing flexibility and integrated broadcast-grade audio mixing in one chassis. The 48 aux outputs and 298-channel Fairlight mixer with 6-band parametric EQ and dynamics serve multi-destination shows. Operations requiring more than four mix-effect buses, or facilities without 12G-SDI infrastructure, should evaluate other configurations. Buyers who need internal recording or streaming engines must add external hardware.

Deciding Specification

The switcher offers 80 standards-converted 12G-SDI inputs, each with a dedicated format converter so disparate sources sync automatically. This input count and per-input conversion define whether the platform matches the scale and signal variety of the production.
