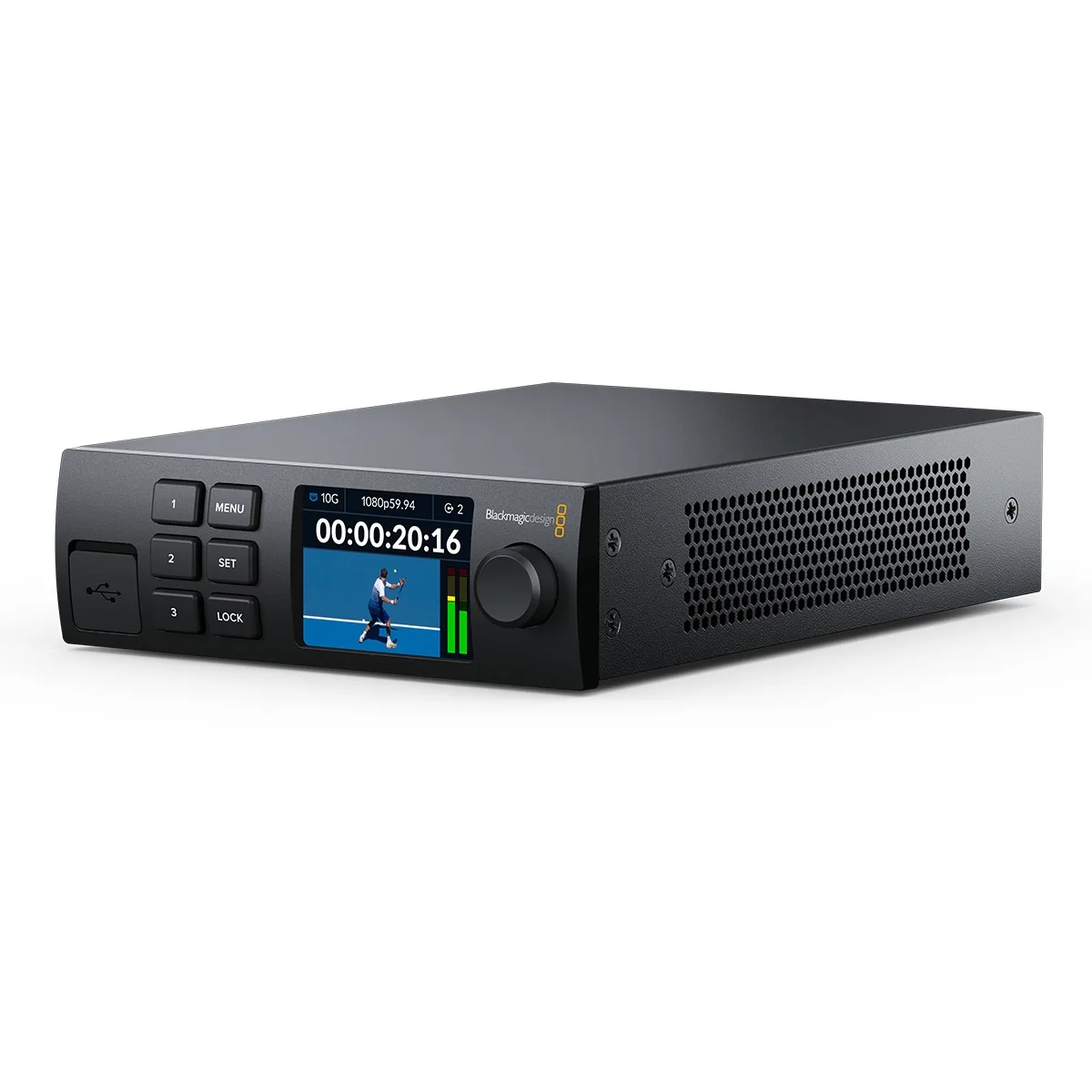

Black rectangular rack-mount video converter with front LCD panel and SDI ports

Blackmagic Design Pty. Ltd.

Blackmagic Design 2110 IP Converter 3x3G professional video device

SKU CH-G0DW-953VW

Converts three 3G-SDI channels to SMPTE 2110 IP video with 10G Ethernet, 1080p60 support and low-latency traffic shaping

  • Superior 1080p60 image clarity for detailed IP video conversion
  • Three 3G-SDI I/O channels plus 10G Ethernet integrate SDI and IP systems
  • SMPTE 2110-21 traffic shaping minimises latency for real-time production
  • Wide SD/HD format support via SMPTE 259M, 292M and 424M standards

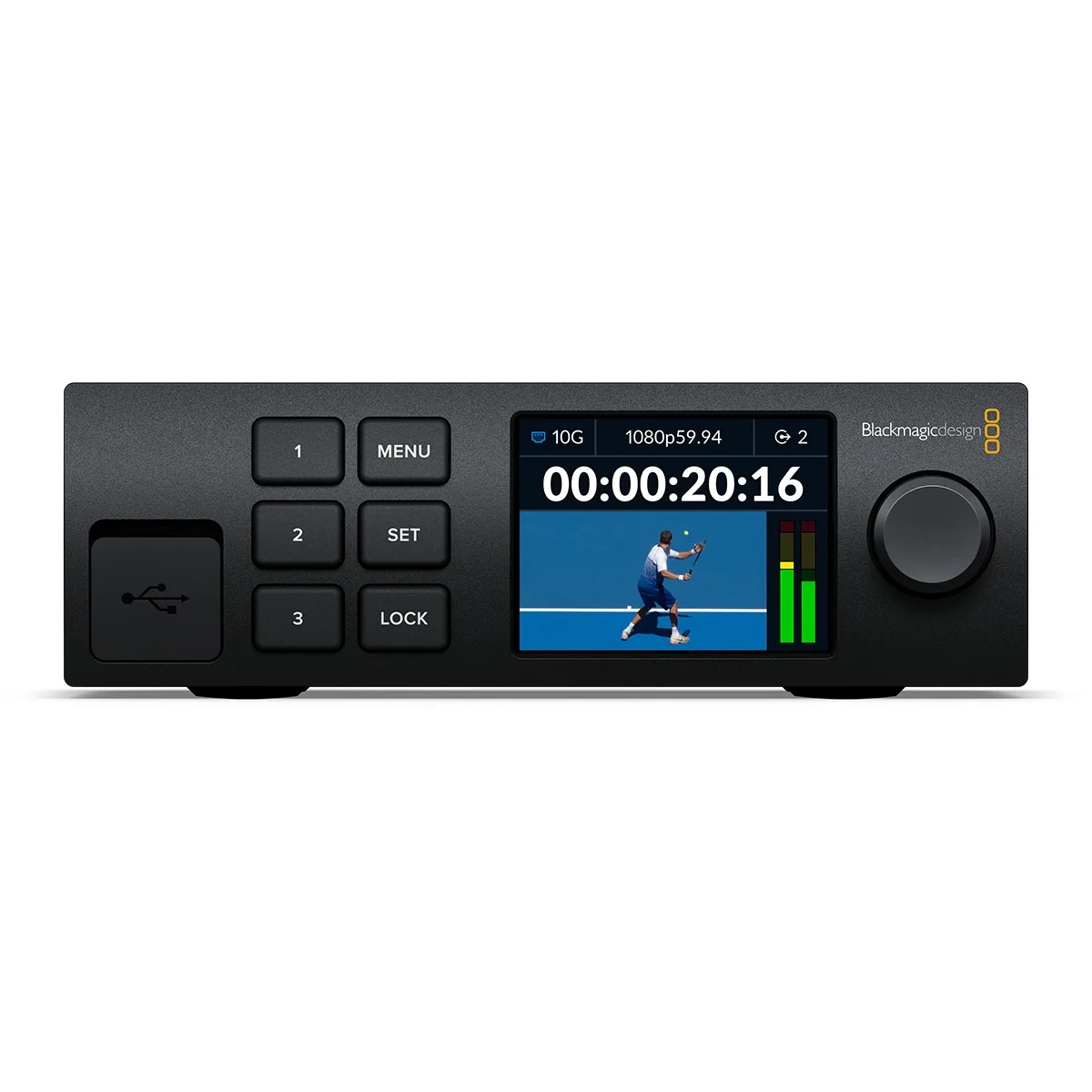

  • Front LCD with menu, diagnostics and IP input routing simplifies operation

IP Video Conversion

The Blackmagic Design 2110 IP Converter 3x3G translates three independent 3G-SDI channels to and from a single 10G Ethernet link using SMPTE 2110 standards. It is built for broadcast engineers who need to integrate existing SDI cameras, switchers or recorders into an IP-based production backbone without replacing legacy gear.

Bandwidth And Format Limits

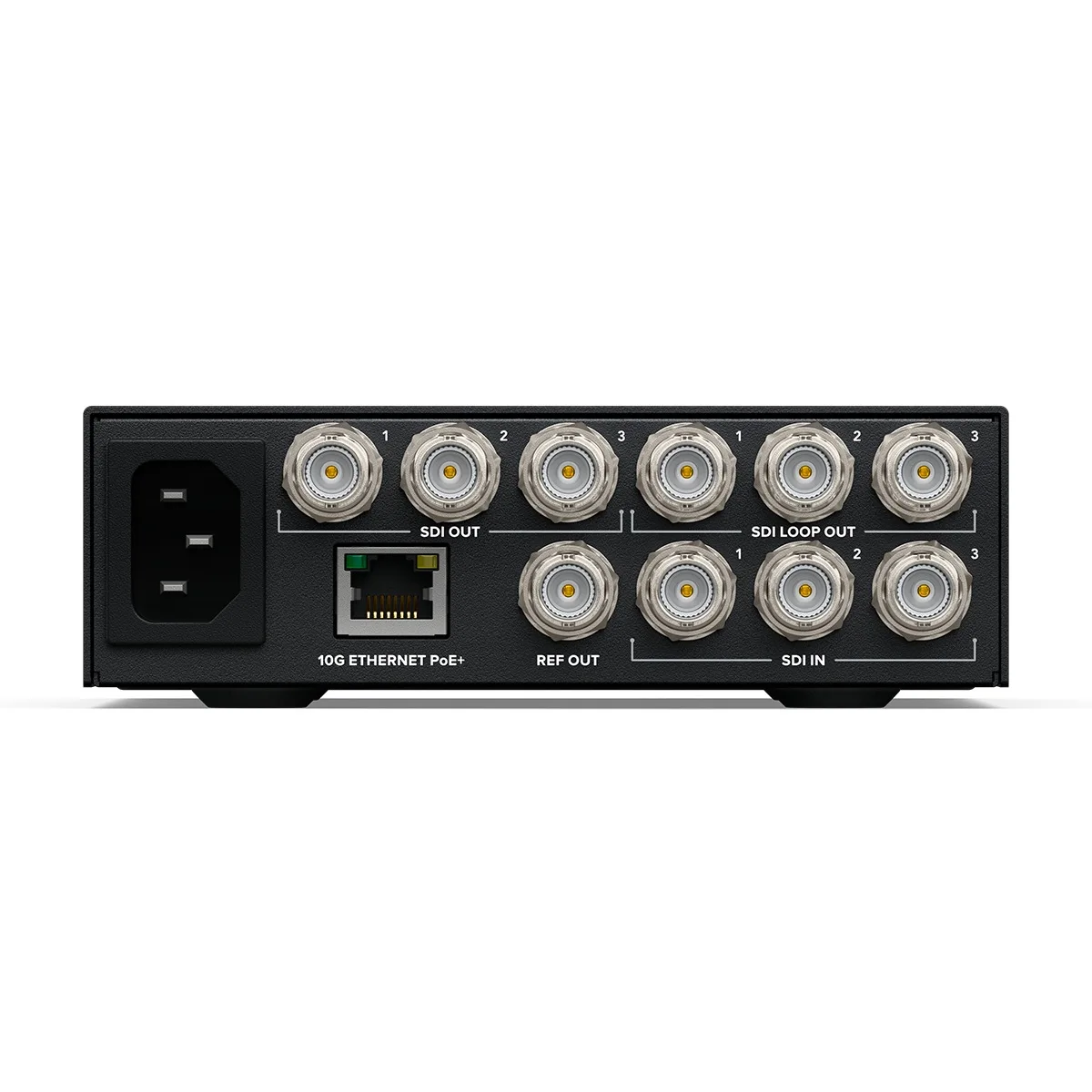

The 10G Ethernet port carries up to three simultaneous 1080p60 streams, so total payload cannot exceed that pipe. Supported SDI standards are SMPTE 259M, 292M and 424M; resolutions above 1080p60 or formats outside those three specifications will not pass. Each channel has dedicated input and output BNCs with loop-through on the input side.

Installation Checklist

Verify your network switch provides a 10G port with PTP support for SMPTE 2110-21 traffic shaping. Confirm rack space: the unit mounts in a Universal Rack Shelf that holds up to three converters side by side in one rack unit. Ensure SDI cabling reaches the front-panel BNCs and that a reference signal locked to the PTP clock is available for the reference output.

Highlights

  • Superior 1080p60 image clarity for detailed IP video conversion
  • Three 3G-SDI I/O channels plus 10G Ethernet integrate SDI and IP systems
  • SMPTE 2110-21 traffic shaping minimises latency for real-time production
  • Wide SD/HD format support via SMPTE 259M, 292M and 424M standards
  • Front LCD with menu, diagnostics and IP input routing simplifies operation

Specifications

No published specifications for this item yet.

Questions about this item

How do I decide between using one, two or all three 3G-SDI channels?

Each channel has independent SDI input and output with loop-through, so you can connect up to six SDI devices total; use only the channels your workflow needs and leave the rest unused.

What does the 1080p60 rating mean when the converter is installed in a live rack?

It guarantees each of the three channels can transport full 1080 progressive frames at 60 frames per second over the 10G Ethernet link without dropping resolution or frame rate.

What does the 10G Ethernet port actually limit in a 2110 workflow?

The 10G connection carries all three 3G-SDI streams simultaneously with SMPTE 2110-21 traffic shaping, so aggregate bandwidth and per-channel latency are bounded by that single 10G pipe.
