Blackmagic Design 2110 IP Converter 3X3G rackmount unit with 2.2 inch LCD display and 50 foot SDI cable

Blackmagic Design Pty. Ltd.

Blackmagic Design 2110 IP Converter 3X3G Bundle with 50' SDI Cable

SKU CH-PVMD-4JV0Y

Converts three 3G-SDI signals to 2110 IP video with a 2.2" LCD, 16 audio channels, PoE+ and a 50' 75-ohm SDI cable included

  • Converts three 3G-SDI sources to 2110 IP video with 10G Ethernet handling three channels simultaneously
  • 2" color LCD provides signal monitoring, menus and diagnostic data on the front panel
  • PoE+ support via the RJ45 10G Ethernet port enables power over the same connection
  • 16 channels of embedded audio travel with each video signal through the converter
  • Supports resolutions up to 1080p60 across three 3G-SDI inputs, outputs and loop outputs

Convert 3G-SDI to 2110 IP

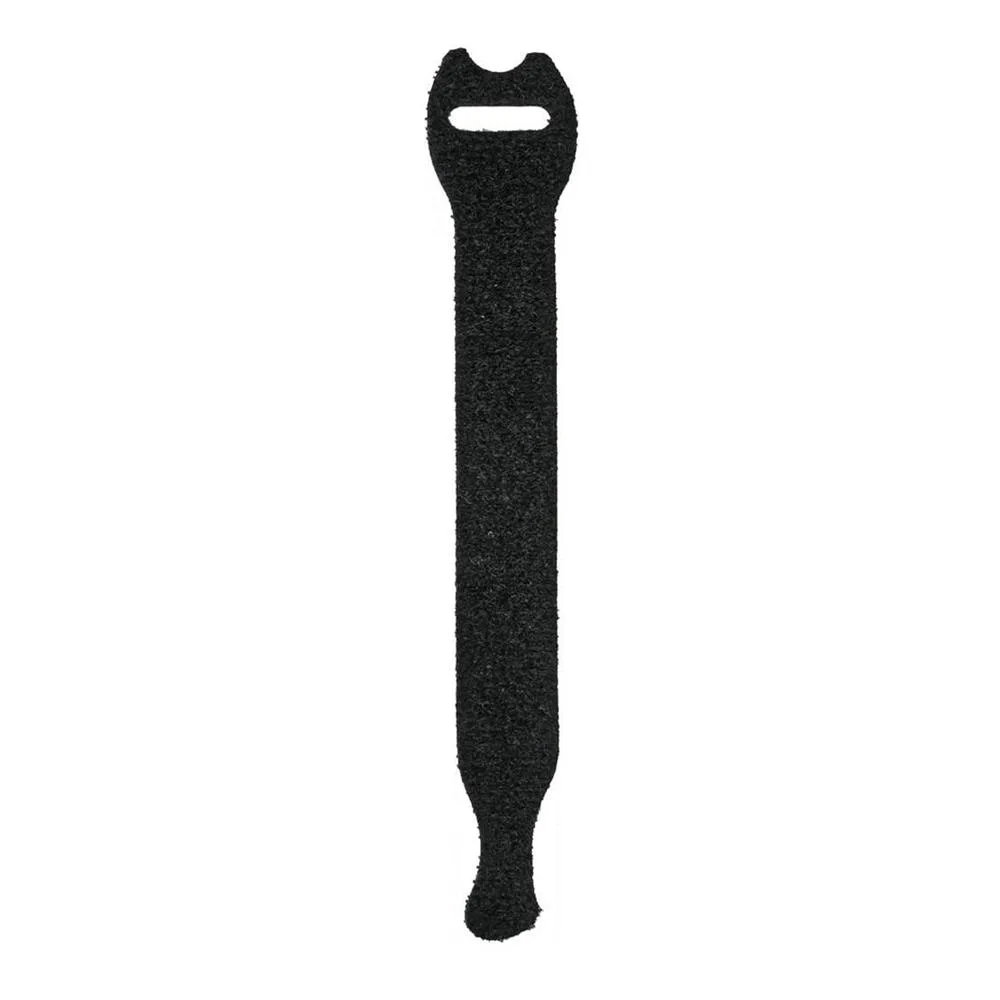

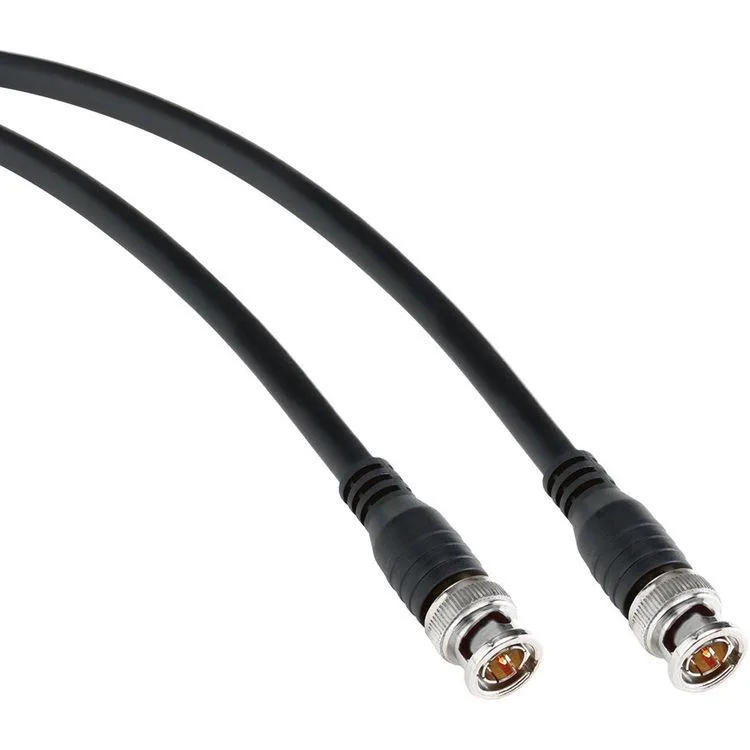

This bundle pairs a Blackmagic Design 2110 IP Converter 3X3G with a 50-foot 75-ohm SDI cable and fastener straps. The converter translates signals from three separate 3G-SDI devices into 2110 IP video systems. A 10G Ethernet port carries up to three video channels simultaneously. Integrated PoE+ support allows power delivery over the same RJ45 connection.

Studios adopting 2110 IP workflows

Facilities moving legacy 3G-SDI cameras, switchers or recorders into SMPTE ST 2110 infrastructures will use this converter to bridge the gap. The 2.2-inch front LCD provides signal monitoring and menu access without a separate display. Operations that already run native 2110 gear or require 4K and HDR signal paths should look at other solutions because this unit handles resolutions up to 1080p60 only.

Three-channel 10G Ethernet capacity

The single RJ45 10G BASE-T port transports three independent 3G-SDI streams plus up to 16 channels of embedded audio per stream. If your installation needs more than three concurrent video channels over IP, this converter cannot meet that requirement.

Highlights

  • Converts three 3G-SDI sources to 2110 IP video with 10G Ethernet handling three channels simultaneously
  • 2" color LCD provides signal monitoring, menus and diagnostic data on the front panel
  • PoE+ support via the RJ45 10G Ethernet port enables power over the same connection
  • 16 channels of embedded audio travel with each video signal through the converter
  • Supports resolutions up to 1080p60 across three 3G-SDI inputs, outputs and loop outputs

Specifications

No published specifications for this item yet.

Questions about this item

What 3G-SDI sources do I need to feed the three inputs?

Three separate 3G-SDI devices — such as cameras or routers — each providing a 1080p60 signal with up to 16 embedded audio channels.

Will my existing 3G-SDI monitors still receive a signal through the loop outputs?

Yes, each of the three loop outputs passes the original 3G-SDI feed unchanged so downstream monitors or recorders continue to work.

How do I confirm the converter is locked to the 2110 PTP clock?

The front 2.2" LCD shows the reference output status and diagnostic data indicating PTP lock and active video channels.
