Black Box SI1P-SH-DVI-UCAC 1-Port DVI-I USB KVM Switch CAC
NIAP 3.0 certified single-port DVI-I USB KVM switch with CAC support, anti-tamper protection and resolutions up to 3840 x 2160 at 30 Hz
- TypeDVI, USB
- PC Connectors(2) USB Type A for keyboard/mouse connections, (1) USB Type
- Console Connectors(1) DVI-I, 29-pin (female) (2) USB Type B
- Computer Connections1 Port
- Monitor Connections1 Port
- Video Resolution2560 x 1600 @ 60Hz, 3840 x 2160 @ 30Hz (with HDMI-to-DVI ada
- NIAP 3.0 certification validates high-assurance peripheral switching security
- Tamper-evident seals and chassis intrusion detection protect physical integrity
- Fixed firmware and automatic keyboard clearing prevent data leakage
- Supports 2560 x 1600 at 60 Hz and 3840 x 2160 at 30 Hz video
- Front-panel buttons give immediate port selection control
Secure Single-Port KVM for CAC Environments

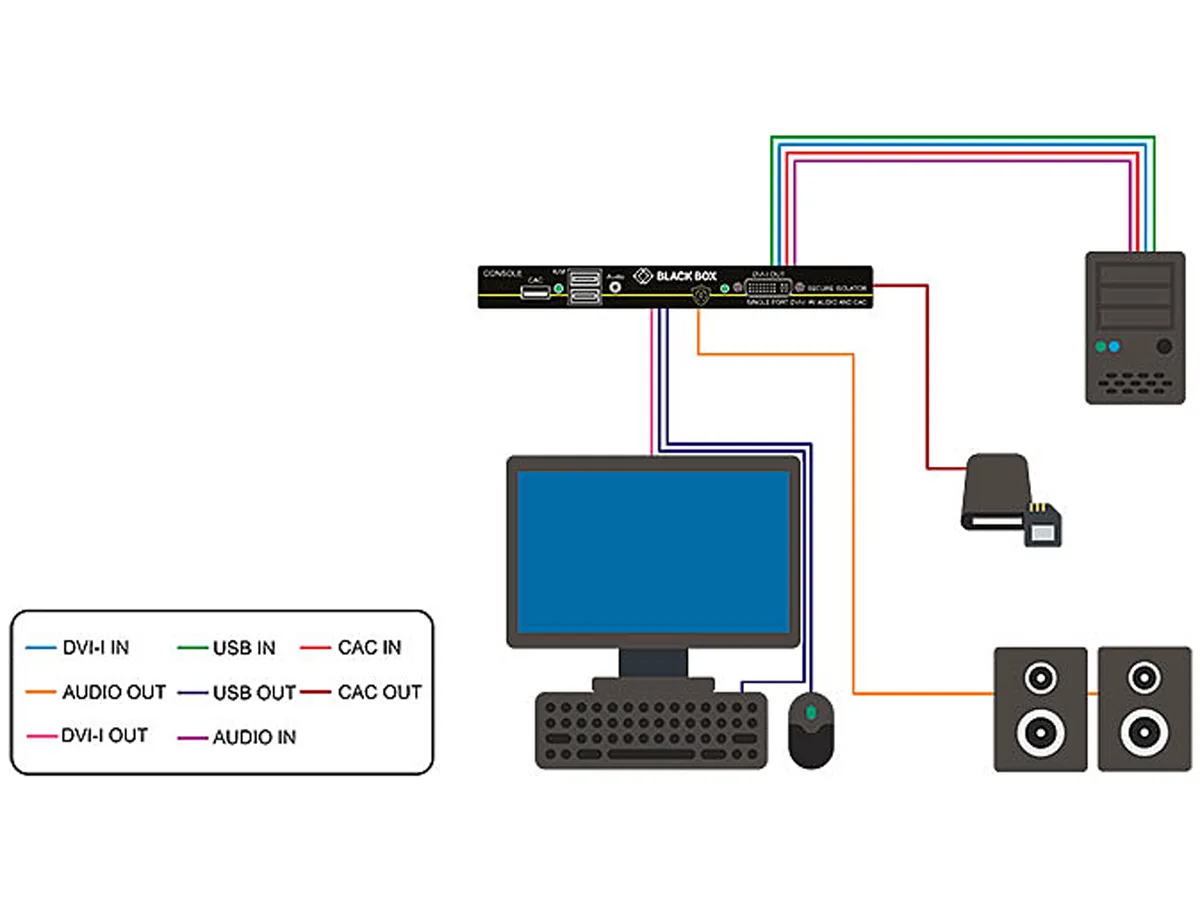

The Black Box SI1P-SH-DVI-UCAC is a NIAP 3.0 certified KVM defender designed for single-head DVI-I workstations that require Common Access Card authentication. It provides absolute isolation between the connected computer and the console peripherals. This unit targets government or defence users who must prevent data leakage across classification boundaries while operating at resolutions up to 2560 x 1600 at 60Hz.
Verify DVI-I Video and USB 1.1 Peripheral Support

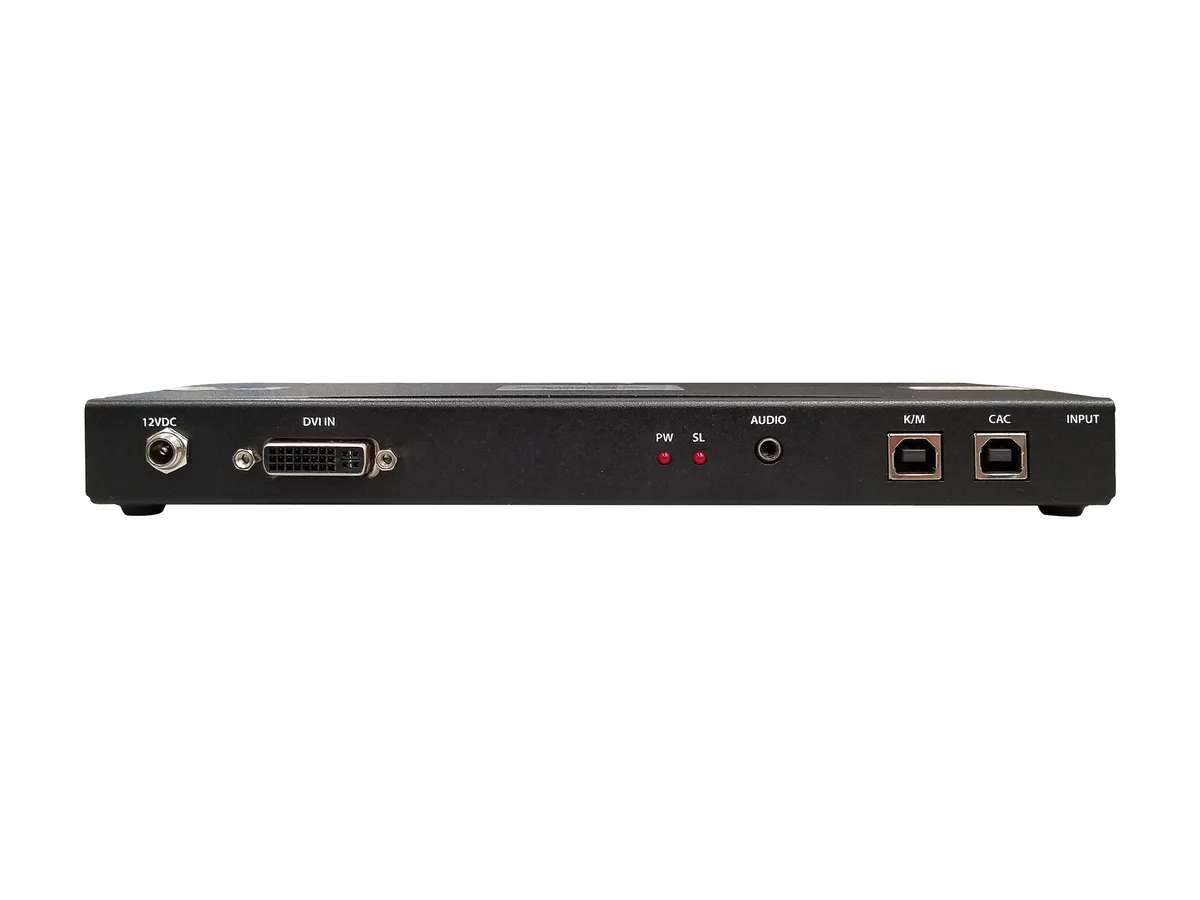

Before ordering, confirm that your source system outputs a DVI-I signal compatible with the 29-pin female connector and that the display accepts the same interface. The switch passes USB 1.1 keyboard and mouse data only through two Type B console ports and two Type A computer ports; higher-speed USB devices will not function. An external 12-VDC power supply is included and required for operation.
Passive Cooling Within 0 to 40°C Range
The device operates without fans, relying on passive dissipation within an ambient temperature range of 32 to 104°F (0 to 40°C) and humidity up to 80% non-condensing. With only a single computer connection and USB 1.1 signalling, power draw remains minimal and acoustic output is silent. Anti-tamper features such as hologram seals and chassis intrusion detection add physical security without thermal impact.
Highlights
- NIAP 3.0 certification validates high-assurance peripheral switching security
- Tamper-evident seals and chassis intrusion detection protect physical integrity
- Fixed firmware and automatic keyboard clearing prevent data leakage
- Supports 2560 x 1600 at 60 Hz and 3840 x 2160 at 30 Hz video
- Front-panel buttons give immediate port selection control
Specifications
| Brand | Black Box |
|---|---|
| Model | SI1P-SH-DVI-UCAC |
| Type | DVI, USB |
| PC Connectors | (2) USB Type A for keyboard/mouse connections, (1) USB Type A for CAC (1) DVI-I, 29-pin (female) |
| Console Connectors | (1) DVI-I, 29-pin (female) (2) USB Type B |
| Computer Connections | 1 Port |
| Monitor Connections | 1 Port |
| Video Resolution | 2560 x 1600 @ 60Hz, 3840 x 2160 @ 30Hz (with HDMI-to-DVI adapter) |
| PC Selection | Front-panel buttons |
| Temperature | 32 to 104° F (0 to 40° C) |
| Humidity | 0 to 80% relative humidity, noncondensing |
| USB Features | USB 1.1 keyboard & mouse only |
| Features | NIAP Protection Profile for Peripheral Switching Devices v. 3.0 Equipped with anti-tampering protection such as tamper evident hologram seals, chassis intrusion, fixed firmware and automatic keyboard data clearing Absolute secure and isolation between data paths Secure EDID learning and emulation Resolutions up to UHD 4K or 2560 x 1600 Available with DisplayPort 1.2, HDMI 2.0, and DVI-I video connections Advanced and fully configurable CAC option available |
| Package Contents | (1) NIAP 3.0 Secure 1-Port DVI-I Defender, CAC (1) 12-VDC Power Supply with US power cord Quick Start Guide |
| Shipping weight | 1.72 kg |
| Package size | 224 × 170 × 45 mm |
Questions about this item
What cables and accessories are included with the SI1P-SH-DVI-UCAC?
The box contains the 1-port DVI-I KVM switch, a 12 VDC power supply with US power cord, and a quick start guide. You must supply your own DVI-I cable for the monitor and USB Type A to Type B cables for the computer keyboard, mouse and CAC reader connections.
This model is listed as a single-head DVI-I switch — are there other video or port-count versions in the same series?
The series is also offered with DisplayPort 1.2 and HDMI 2.0 video interfaces, and the CAC option is available on those variants. The DVI-I version shown here supports one computer and one monitor at 2560 x 1600 @ 60 Hz or 3840 x 2160 @ 30 Hz with an HDMI-to-DVI adapter.
What does the 2560 x 1600 @ 60 Hz rating mean when the switch is connected to a typical desktop?
The switch passes native DVI-I signals up to 2560 x 1600 at 60 Hz without scaling. If your source outputs 3840 x 2160 you will need an active HDMI-to-DVI adapter and the refresh rate will be limited to 30 Hz. USB 1.1 limits keyboard and mouse traffic to low-speed endpoints.
