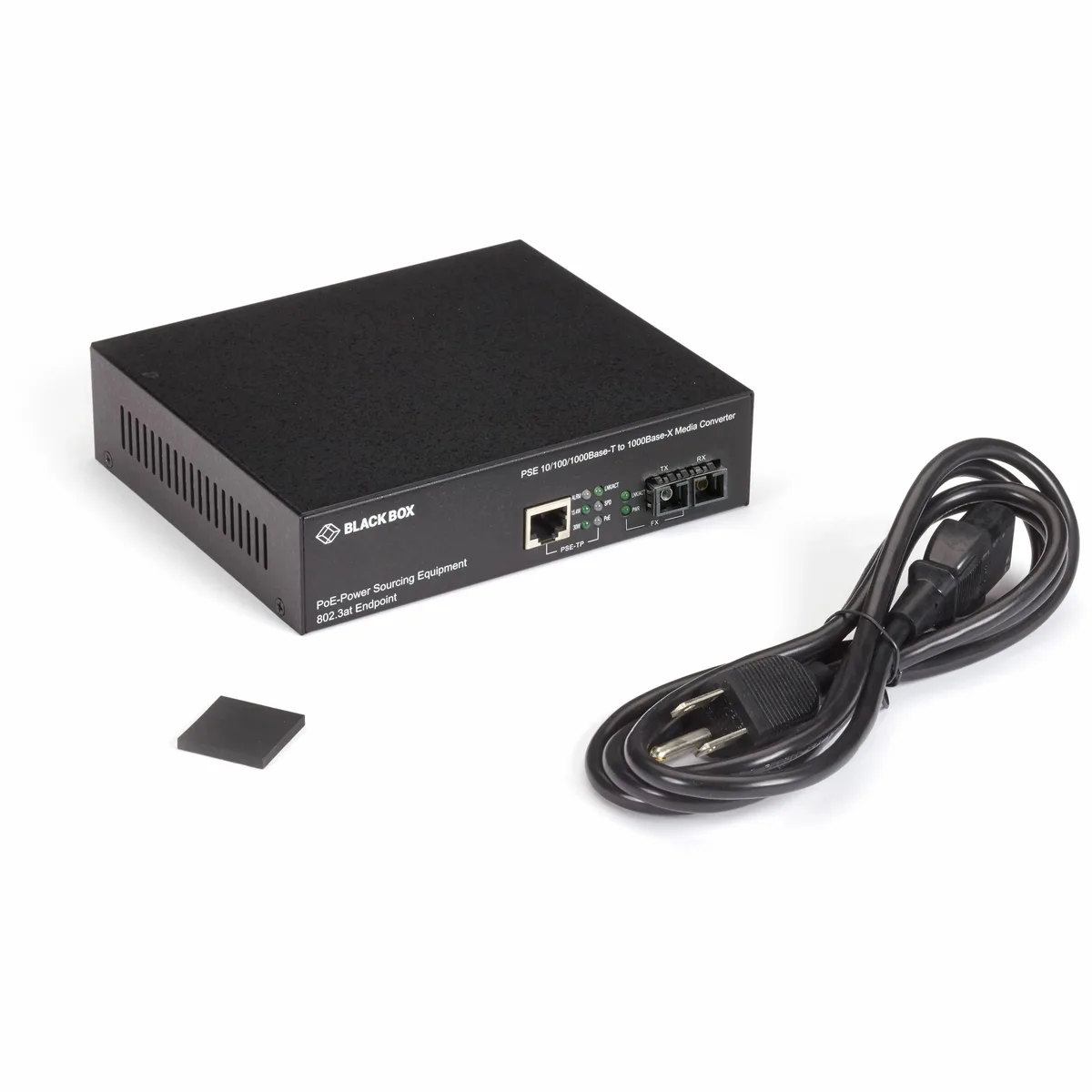

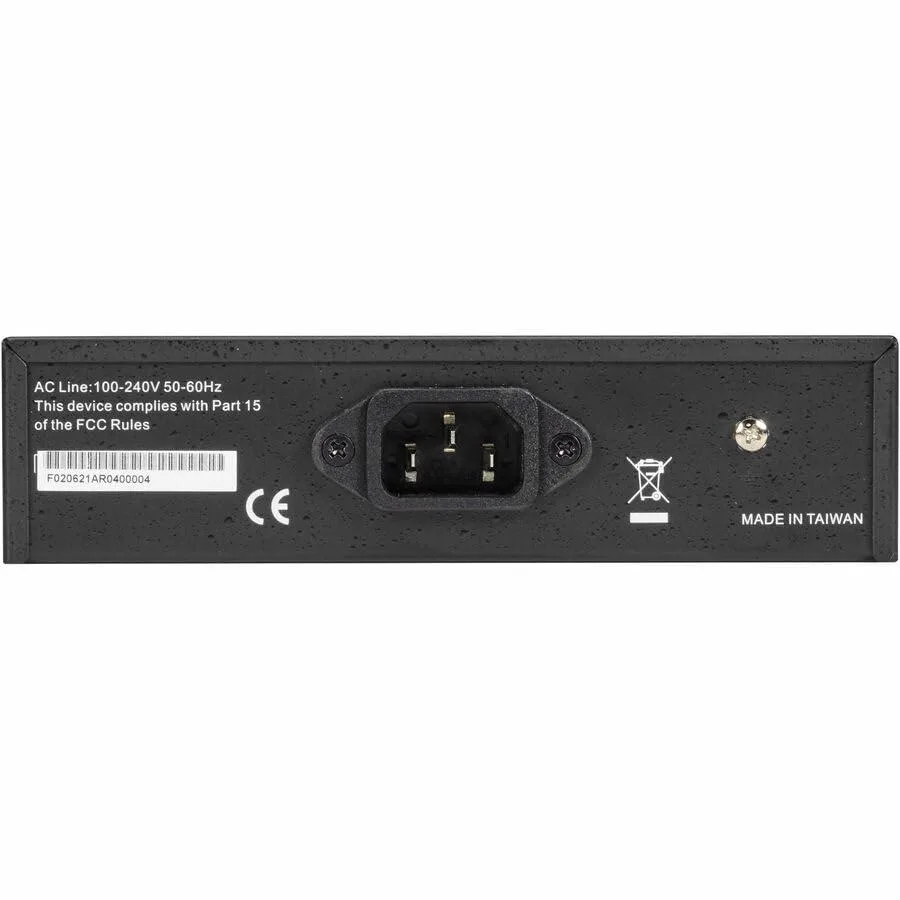

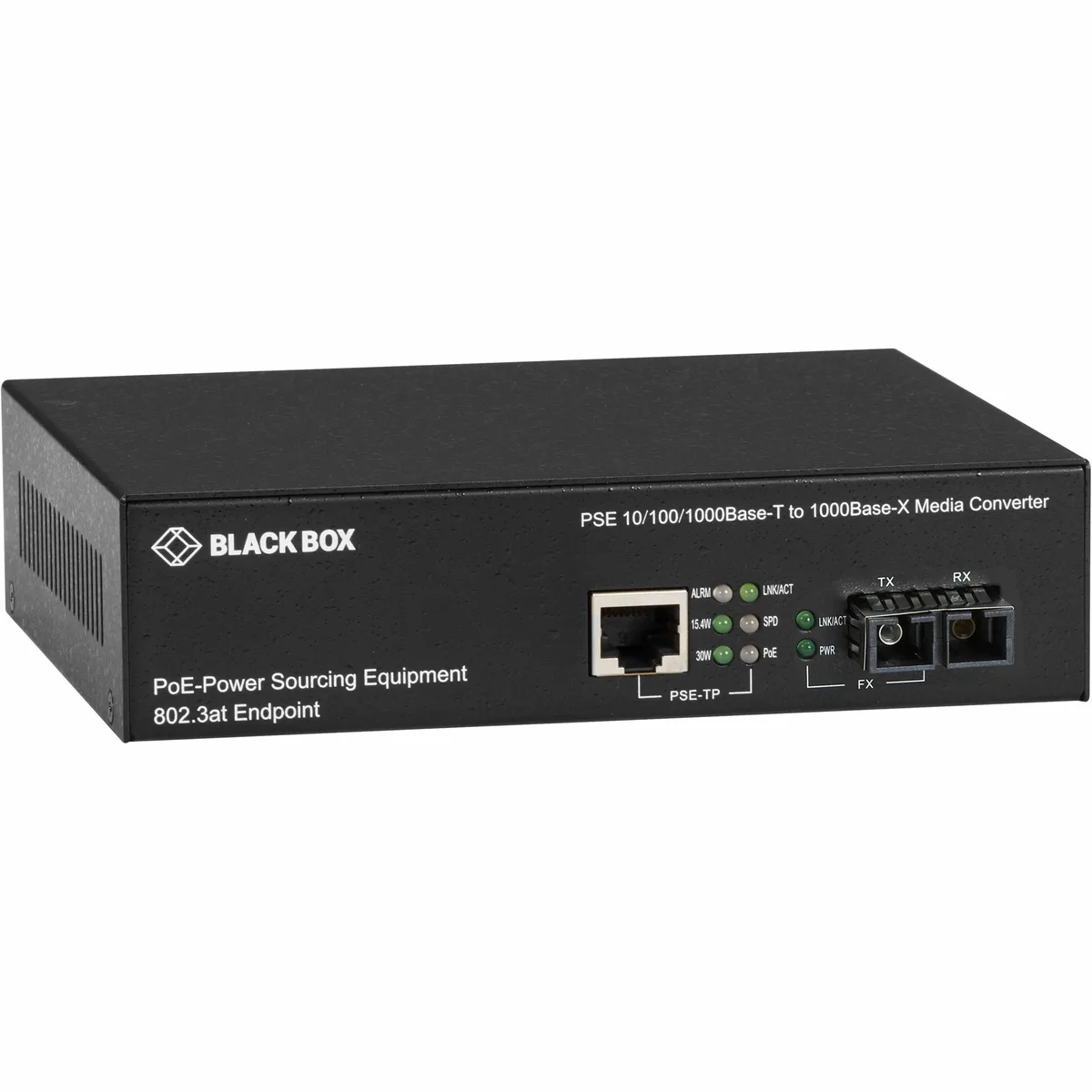

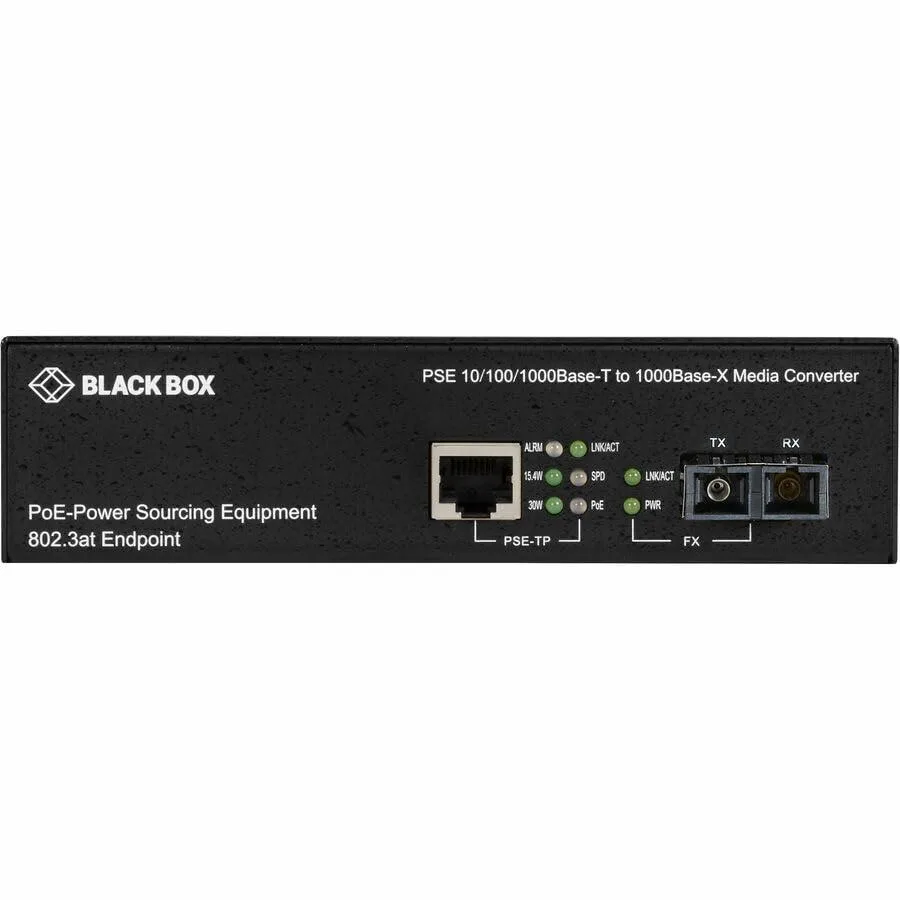

Black Box LPS500 Gigabit PoE media converter rectangular metal enclosure

Black Box Corporation

Black Box LPS500AMMSCR3 PoE Media Converter

SKU CH-8NWZ-9BS8Y MPN LPS500AMMSCR3

Converts Gigabit fiber to copper UTP while delivering up to 30 W PoE power to remote devices over 100 m

  • Form Factor1.6" x 6.2" x 5.2"
  • Fiber Cable1.6" x 6.2" x 5.2"
  • Max Distance1.6" x 6.2" x 5.2"
  • Power AdapterInformation Not Available
  • Weight2.6 pounds
  • Package ContentsInformation Not Available
  • Powers PoE devices up to 30 W using 802.3at standard
  • Extends Gigabit Ethernet beyond 100 m over multimode fiber
  • Overcurrent protection and undercurrent detection safeguard connected equipment
  • Link fault passthrough monitors copper and fiber ports for signal loss
  • Far-end fault detection prevents data transmission over invalid links

Gigabit fibre-to-copper PoE converter

The Black Box LPS500AMMSCR3 connects a 10/100/1000 Mbps copper UTP segment to Gigabit multimode fibre while supplying Power over Ethernet to attached devices. It extends Ethernet well beyond the 100-metre copper limit and powers cameras or wireless points where mains outlets are absent.

30 W PoE with protection circuits

The unit delivers up to 30 W under the 802.3at standard and includes overcurrent protection, undercurrent detection and minimum-load sensing. Link fault passthrough and far-end fault detection monitor both copper and fibre receivers for signal loss, preventing data transmission over invalid links.

Sustained operation within EN 62368 compliance

Designed for continuous duty, the converter maintains PoE output and media conversion without thermal throttling during prolonged use. Its 48 VDC power feed over existing CATx cabling simplifies infrastructure while the safety-certified design ensures reliable long-term deployment in security and access-point installations.

Highlights

  • Powers PoE devices up to 30 W using 802.3at standard
  • Extends Gigabit Ethernet beyond 100 m over multimode fiber
  • Overcurrent protection and undercurrent detection safeguard connected equipment
  • Link fault passthrough monitors copper and fiber ports for signal loss
  • Far-end fault detection prevents data transmission over invalid links

Specifications

BrandBlack Box
ModelPS500A-MM-SC-R3
Part NumberPS500A-MM-SC-R3
Form Factor1.6" x 6.2" x 5.2"
Fiber Cable1.6" x 6.2" x 5.2"
Max Distance1.6" x 6.2" x 5.2"
Power AdapterInformation Not Available
Weight2.6 pounds
Package ContentsInformation Not Available
Shipping weight1.18 kg
Package size257 × 213 × 86 mm

Questions about this item

How do I install the LPS500AMMSCR3 and what step is often missed?

Mount the unit, connect multimode fiber to the SC ports, link the copper side with UTP, attach the 48 VDC power adapter, then enable PoE on the copper port so the converter sends up to 30 W to the powered device.

What maintenance or replacement will the LPS500AMMSCR3 need later?

The converter itself has no user-serviceable parts; plan to replace the external 48 VDC power adapter if it fails and verify fiber patch cords remain clean for reliable 1000 Mbps operation.

What limit appears first under sustained load on the LPS500AMMSCR3?

The PoE power budget of 30 W per port is the first ceiling; the copper link stays at 1000 Mbps and multimode fiber reaches the rated distance, so total connected device draw must not exceed 30 W.
