Black Box KVXLCHDPF-200 KVM Switch 4K Dual-Head HDMI DP USB 2.0 Fiber
KVM fiber extender delivers dual-head 4K at 30 Hz, USB 2.0, audio and serial up to 30 km over singlemode cable
- TypeKVM Extender over Fiber
- PC ConnectorsVideo Input: (1) HDMI female, (1) DisplayPort female Serial
- Console ConnectorsVideo Output: (2) HDMI female Serial Control Port: (1) DB9 m
- Video Resolution4K @ 30 Hz, 3840 x 2160 @ 30 Hz
- LED IndicatorsPower: Red Link: Green
- Audio Features2-Way Analog Audio
- Dual-head 4K video extends up to 30 km over singlemode fiber
- Transparent USB 2.0 extension supports keyboards, mice and mass storage
- Bidirectional analog audio carries speaker output and microphone input
- RS-232 serial port connects scanners or terminals at the remote console
- Local HDMI and DisplayPort loopback lets you monitor the source on the transmitter
Dual-Head 4K KVM Extender
The Black Box KVXLCHDPF-200 is a fiber-based KVM extender that transports dual-head 4K video, USB 2.0, audio and serial signals between a computer and a remote console. It supports resolutions up to 3840 x 2160 at 30 Hz over singlemode fiber links up to 30 km. The transmitter and receiver units each measure 1.71" H x 7.09" W x 3.27" D and weigh .85 lb without SFP modules. This kit suits operators who need to locate workstations far from secure or noise-sensitive environments.
Build Integration

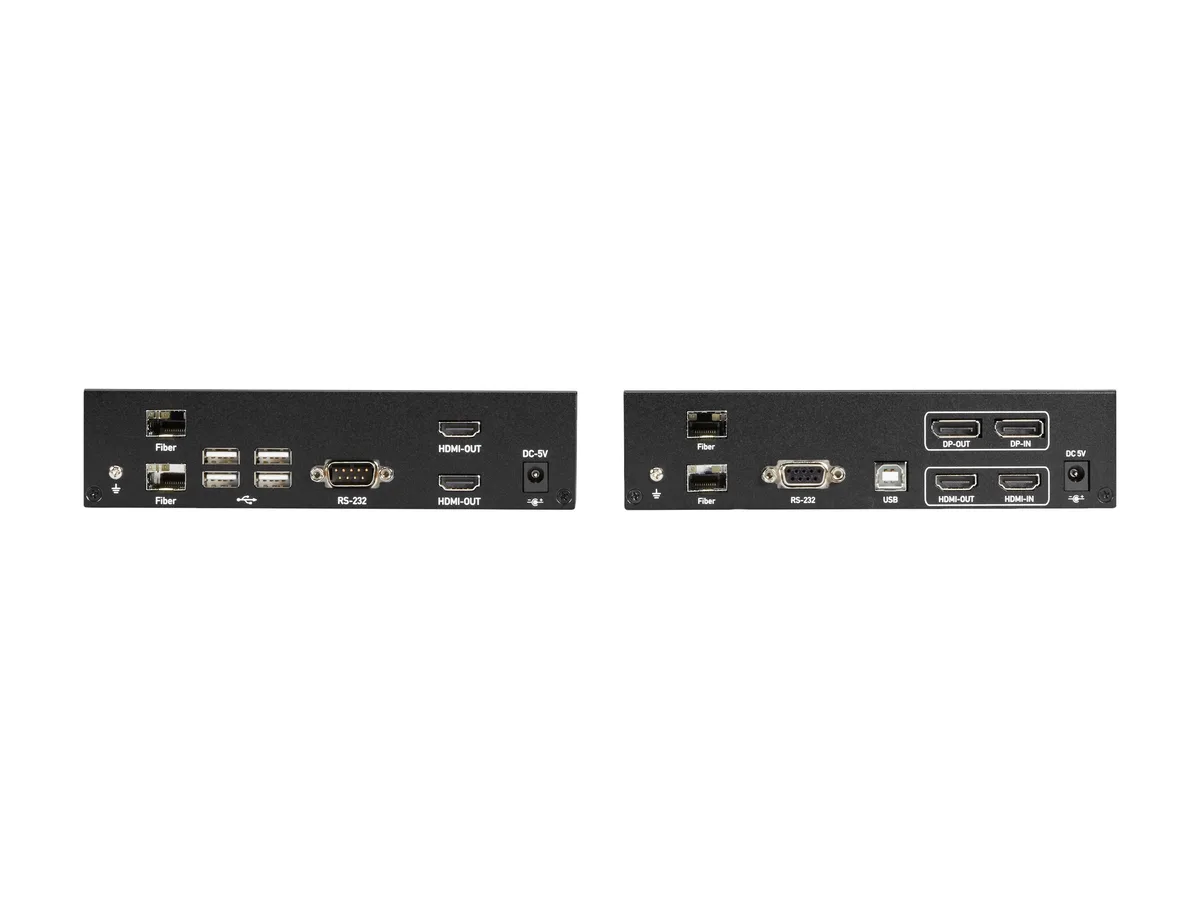

The transmitter connects to a host via one HDMI and one DisplayPort input, a USB Type-B port, a DB9 serial port and analog line-level audio. The receiver provides two HDMI outputs, four USB Type-A ports for HID and mass-storage peripherals, a DB9 serial port and mic/speaker jacks. Both units require an SFP transceiver (not included) rated up to 1250 Mbps and the supplied 5 V / 2 A external power adapters. A local video loopback on the transmitter allows on-site monitoring without extra splitters.
Thermals and Power

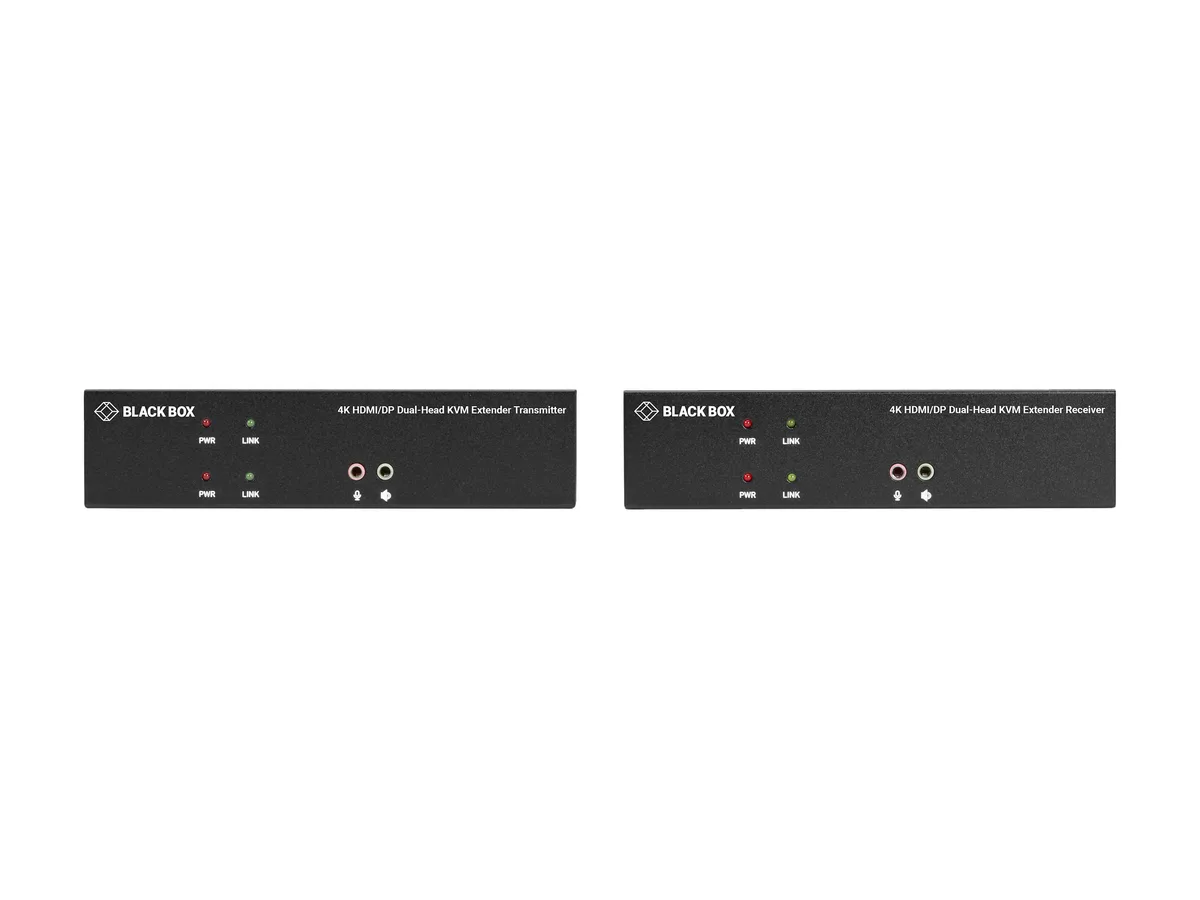

Each unit draws power from its own 5 V / 2 A DC supply, so no internal fans or active cooling are present. The metal enclosure dissipates heat passively, resulting in silent operation suitable for control rooms or studios. LED indicators show red for power and green for link status on both ends. The fiber link eliminates electromagnetic interference and ground-loop issues common with copper cabling over long distances.
Highlights
- Dual-head 4K video extends up to 30 km over singlemode fiber
- Transparent USB 2.0 extension supports keyboards, mice and mass storage
- Bidirectional analog audio carries speaker output and microphone input
- RS-232 serial port connects scanners or terminals at the remote console
- Local HDMI and DisplayPort loopback lets you monitor the source on the transmitter
Specifications
| Brand | Black Box |
|---|---|
| Series | KVX Series |
| Model | KVXLCHDPF-200 |
| Type | KVM Extender over Fiber |
| PC Connectors | Video Input: (1) HDMI female, (1) DisplayPort female Serial Control Port: (1) DB9 female Link Port: (1) SFP cage USB: (1) USB Type B female Audio: (1) Line in, (1) Line out; Local Video Output: (1) HDMI female, (1) DisplayPort female |
| Console Connectors | Video Output: (2) HDMI female Serial Control Port: (1) DB9 male Link Port: (1) SFP cage USB 2.0: (4) USB Type A female Audio: (1) Mic In, (1) Speaker Out |
| Video Resolution | 4K @ 30 Hz, 3840 x 2160 @ 30 Hz |
| LED Indicators | Power: Red Link: Green |
| Audio Features | 2-Way Analog Audio |
| Power Features | External DC 5V / 2A Power Supply |
| Features | DisplayPort or HDMI dual-head 4K transmission up to 30 km over singlemode cable Supports DisplayPort and HDMI video up to 3840 x 2160 at 30 Hz Transparent USB 2.0 extension supports HID devices, mass storage devices. Bidirectional audio via speaker/mic connection Supports RS-232 peripheral (serial) devices such as scanners or terminals. Local and remote units connect at distances of up to 10 km using SFP <1250 Mbps Supports dual 4K view video source transmission (one PC with two video output ports) Local video port loopback for monitoring on transmitter (TX) unit |
| Dimensions | 1.71" H x 7.09" W x 3.27" D (4.4 x 18 x 8.3 cm) |
| Weight | 0.85 lb. (0.386 kg) (no SFP) |
| Package Contents | (1) HDMI/DP Dual-Head KVM Fiber Extender Transmitter (1) HDMI/DP Dual-Head KVM Fiber Extender Receiver (2) Power Supplies (includes US, EU, UK, AU plug types) (1) HDMI cable (6-ft./1.8-m) (1) DisplayPort cable (6-ft./1.8-m) (1) 3.5mm audio cable (6-ft./1.8-m) (1) USB-B to USB-A cable (6-ft./1.8-m) |
| Shipping weight | 1.04 kg |
| Package size | 184 × 102 × 56 mm |
Questions about this item
How far can the 4K dual-head signal travel over singlemode fiber before it degrades?
The extender transmits dual 4K video up to 30 km over singlemode cable, and the SFP link is rated for up to 10 km at <1250 Mbps.
What are the power draw and heat indicators when the transmitter and receiver run continuously?
Each unit uses an external 5 V / 2 A DC supply; a red power LED and green link LED show normal operation with no fan noise.
Which SFP module and fiber patch cables must I already have to link the transmitter and receiver?
You need a pair of SFP transceivers rated <1250 Mbps and matching singlemode patch cords with LC connectors for the SFP cages on both units.
