Black Box KVXLCDPF-200 Dual-Head 4K KVM Switch over Fiber
Extends dual 4K DisplayPort, USB 2.0, audio and serial over singlemode fiber up to 30 km with local video loopback
- TypeDisplayPort, USB
- PC ConnectorsTRANSMITTER Host connection: Video Input: (2) DisplayPort fe
- Console ConnectorsRECEIVER Console connection: ; Video Output: (2) DisplayPort
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolutionup to 3840 x 2160@30Hz,4K
- Dual 4K displays reach 30 km over singlemode fiber
- 3840 x 2160 at 30 Hz keeps detail sharp
- USB 2.0 extends keyboards, mice and storage transparently
- Bidirectional audio links speakers and microphone at the console
- RS-232 serial port connects scanners or terminals remotely
Dual-Head 4K KVM Extender

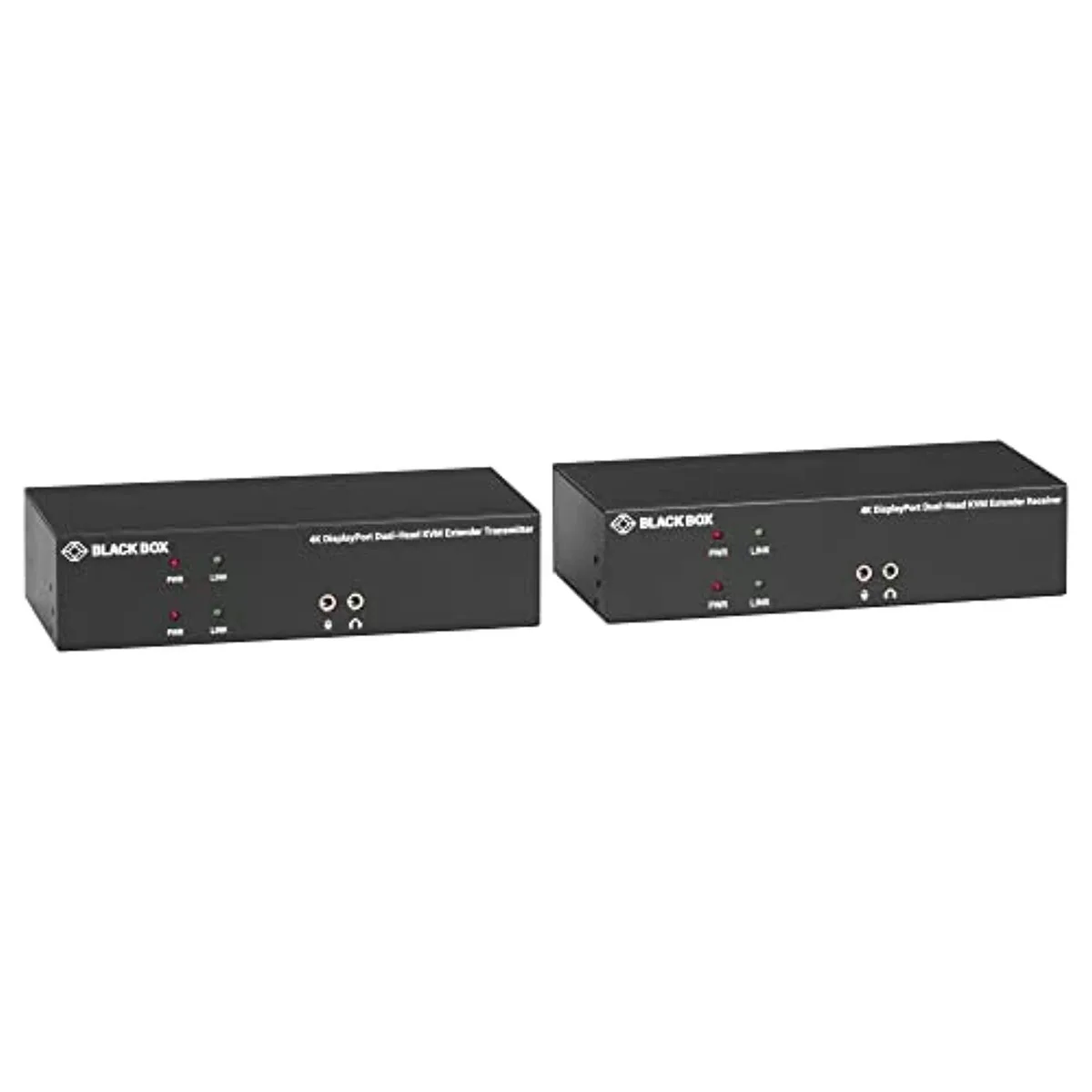

The Black Box KVXLCDPF-200 extends dual DisplayPort video, USB 2.0, audio and RS-232 signals up to 30 km over singlemode fiber. It supports resolutions up to 3840 x 2160 at 30 Hz and includes local video loopback on the transmitter for monitoring. Two ports on each side allow one computer to drive two remote displays. Power supplies and cables are included.
IT managers and integrators needing remote dual-4K
This extender suits operators who must place a workstation up to 30 km from its console while keeping full keyboard, mouse, mass-storage, audio and serial control. It does not suit buyers who need higher refresh rates than 30 Hz at 4K, more than two video heads, USB 3.x speeds or copper cabling beyond the SFP link.
Check your DisplayPort outputs and SFP modules
Verify the source computer provides two DisplayPort outputs and that the console monitors accept DisplayPort input at 3840 x 2160@30Hz. Confirm singlemode fiber is available for the desired distance and select SFP transceivers rated for up to 1250 Mbps. Ensure the operating environment stays within 0 to 50 °C and that power outlets accept the supplied 5 V 2 A adapters with regional clips.
Highlights
- Dual 4K displays reach 30 km over singlemode fiber
- 3840 x 2160 at 30 Hz keeps detail sharp
- USB 2.0 extends keyboards, mice and storage transparently
- Bidirectional audio links speakers and microphone at the console
- RS-232 serial port connects scanners or terminals remotely
Specifications
| Brand | Black Box |
|---|---|
| Series | KVX Series |
| Model | KVXLCDPF-200 |
| Type | DisplayPort, USB |
| PC Connectors | TRANSMITTER Host connection: Video Input: (2) DisplayPort female; Serial Control Port: (1) DB9 female; Link Port: (1) SFP cage; USB: (1) USB Type B female; Audio: (1) Line in, (1) Line out; Local Video Output: (2) DisplayPort female |
| Console Connectors | RECEIVER Console connection: ; Video Output: (2) DisplayPort female; Serial Control Port: (1) DB9 male; Link Port: (1) SFP cage; USB: (4) USB Type A female; Audio: (1) Mic In, (1) Speaker Out |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | up to 3840 x 2160@30Hz,4K |

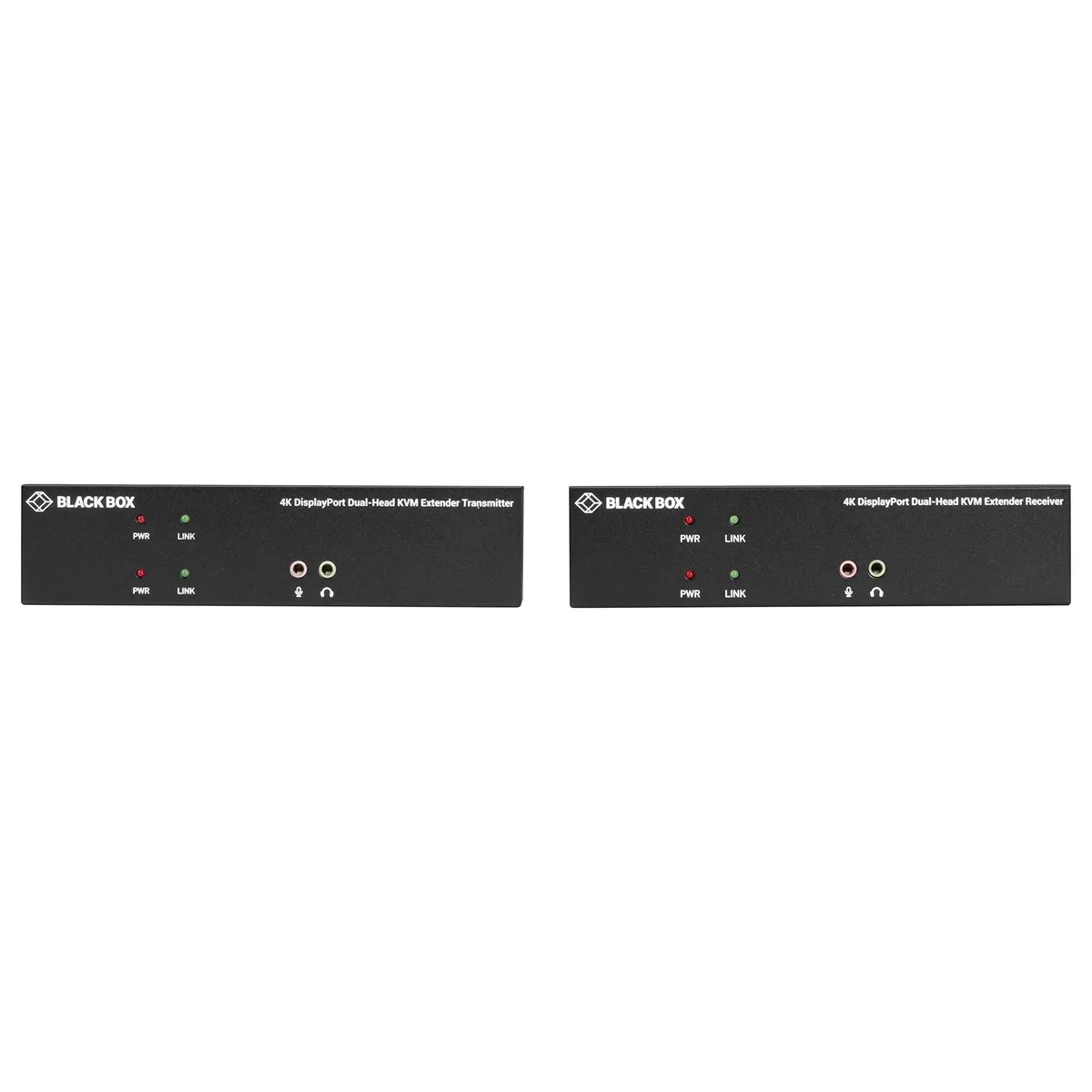

| LED Indicators | Power: Red Link: Green |
| Temperature | 32 to 122° F (0 to 50° C) |
| Features | DisplayPort dual-head 4K transmission up to 30 km over singlemode cable Supports DisplayPort video resolution up to 3840 x 2160 at 30 Hz Transparent USB 2.0 extension supports HID devices, mass storage devices. Bidirectional audio via speaker/mic connection Supports RS-232 peripheral (serial) devices such as scanners or terminals. Local and remote units connect at distances of up to 10 km using SFP <1250 Mbps Supports dual 4K view video source transmission (one PC with two video output ports) Local video port loopback for monitoring on transmitter (TX) unit |
| Dimensions | Dimensions (Per Unit): 0.83" H x 3.27" W x 7.09" D (2.1 x 8.3 x 18 cm) |
| Weight | Weight (Receiver): 0.85 lb. (0.386 kg) (no SFP) Weight (Transmitter): 0.85 lb. (0.386 kg) (no SFP) |
| Package Contents | (1) Dual-Head DisplayPort KVM Fiber Extender Transmitter (1) Dual-Head DisplayPort KVM Fiber Extender Receiver (2) Wallmount Power Supplies 5V, 2 A W/ US, EU, AU, and UK Power Clips (2) DisplayPort Cables, M/M (6-ft./1.8-m) (1) USB Type A To B Cable, M/M (6-ft./1.8-m) (1) 3.5-mm Dual Audio/Mic Cable, M/M (6-ft./1.8-m) |
| Shipping weight | 1.36 kg |
| Package size | 318 × 222 × 95 mm |
Questions about this item
What host ports must my computer provide to connect the transmitter?
The transmitter needs two DisplayPort female outputs, one USB Type B female port, one DB9 female serial port, and line-in plus line-out audio jacks.
Will my existing USB 2.0 keyboard and mouse work through the receiver?
Yes, the receiver provides four USB Type A female ports that transparently extend USB 2.0 for HID devices such as keyboards and mice.
Which LED colours confirm the link is active after I install the SFP modules?
A green Link LED on each unit indicates the fiber connection is established, while a red Power LED shows each unit is powered.
