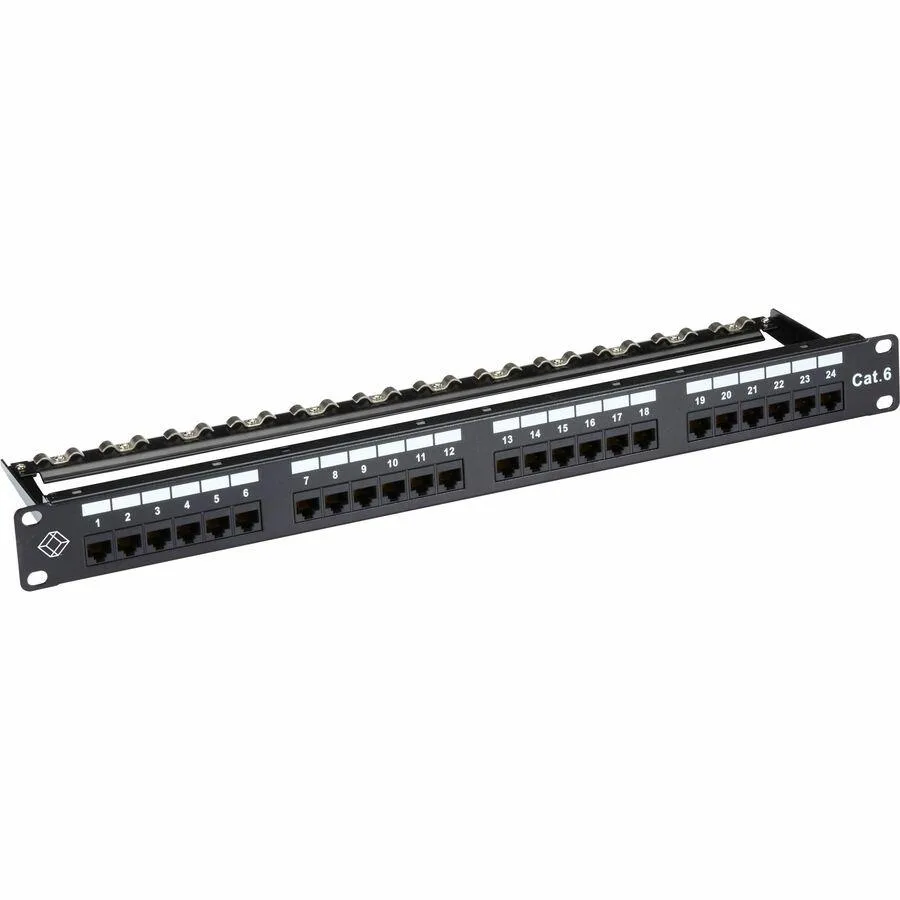

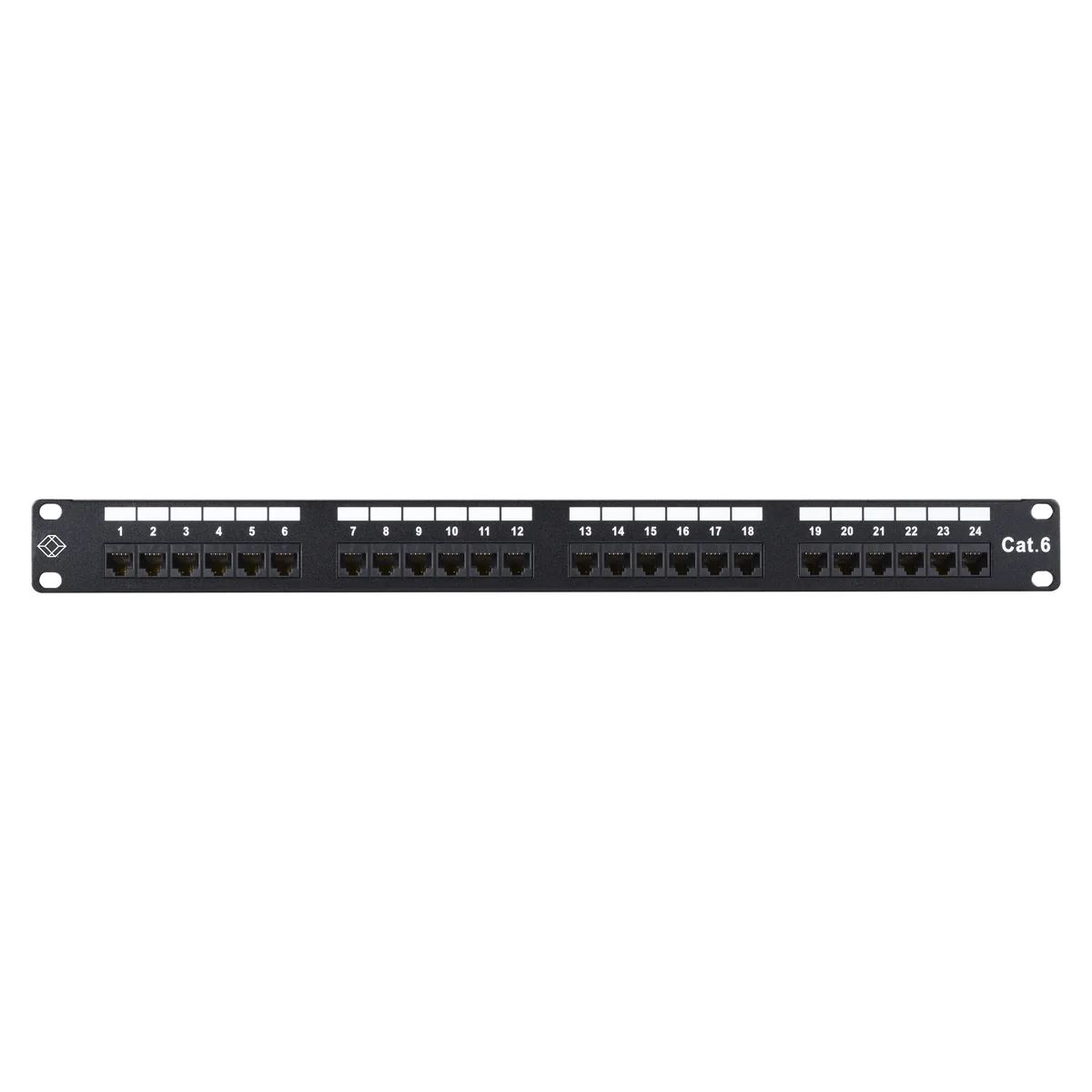

Black 1U rack-mount CAT6 patch panel with 24 unshielded ports and 110 IDC blocks

Black Box Corporation

Black Box JPM610A-R9 GigaTrue CAT6 24-Port Patch Panel

SKU CH-2RE8-AG607 MPN JPM610A-R9

A 24-port unshielded CAT6 patch panel in a 1U rack unit, component-tested to 250 MHz with 110 IDC blocks and dual T568A/B labelling

  • TypePatch Panel
  • ColorBlack
  • Component-level tested panel passes CAT6 on its own
  • Cable management bars included for easier organisation
  • Meets ANSI/TIA/EIA-568-C.2 Category 6 component specs
  • Tested for NEXT, PS-NEXT, FEXT, Return Loss and attenuation to 250 MHz
  • Universal T568A and T568B wiring labels supplied

24-Port CAT6 Patch Panel

The Black Box JPM610A-R9 is a 1U unshielded patch panel designed for structured cabling installations. It provides 24 ports for terminating copper horizontal runs in equipment racks or cabinets. Network installers and IT managers use it to organise incoming cables at the rack head end.

Rolled-Edge Construction and Cable Management

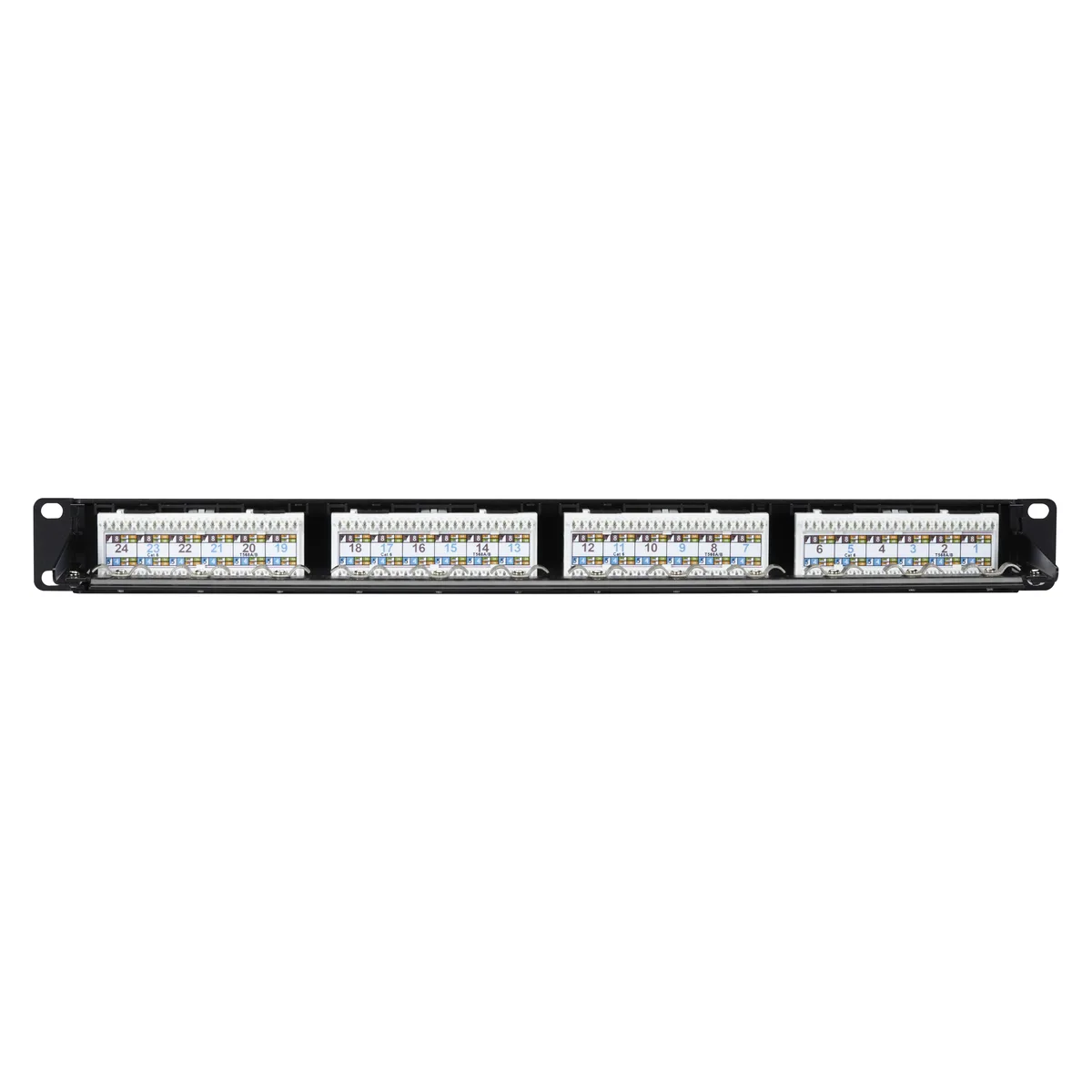

Rolled-edge construction gives the panel rigidity that prevents flex while you terminate each conductor. Redesigned IDC 110 blocks feature peaks that guide wires into position for faster lacing. Paired punchdown sequence keeps pair twist within a short distance of the termination point. Included cable management bars support tidy routing after every port is punched.

Component-Level Tested to 250 MHz

Each panel is tested at component level for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation up to 250 MHz. Performance meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component specifications. Universal labelling supports both T568A and T568B wiring schemes on the same unit.

Highlights

  • Component-level tested panel passes CAT6 on its own
  • Cable management bars included for easier organisation
  • Meets ANSI/TIA/EIA-568-C.2 Category 6 component specs
  • Tested for NEXT, PS-NEXT, FEXT, Return Loss and attenuation to 250 MHz
  • Universal T568A and T568B wiring labels supplied

Specifications

BrandBlack Box
ModelJPM610A-R9
Part NumberJPM610A-R9
TypePatch Panel
ColorBlack
Shipping weight0.91 kg
Package size508 × 76 × 76 mm

Questions about this item

Does this patch panel meet the ANSI/TIA/EIA-568-C.2 Category 6 standard for component performance?

Yes, the panel meets or exceeds the ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications and is tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz.

What physical mounting space and hardware does the panel require?

The panel is a 1U unit designed for standard rack mounting and includes cable management bars for organisation. Its rolled-edge construction provides rigidity to eliminate flex during termination.

How are cables terminated on the IDC 110 blocks, and what common mistake should be avoided?

The redesigned IDC 110 blocks feature peaks to ease lacing, and the paired punchdown sequence maintains pair twist within 1-2 inches of termination; maintain the twist close to the connection point to avoid performance loss.
