Black Box Corporation

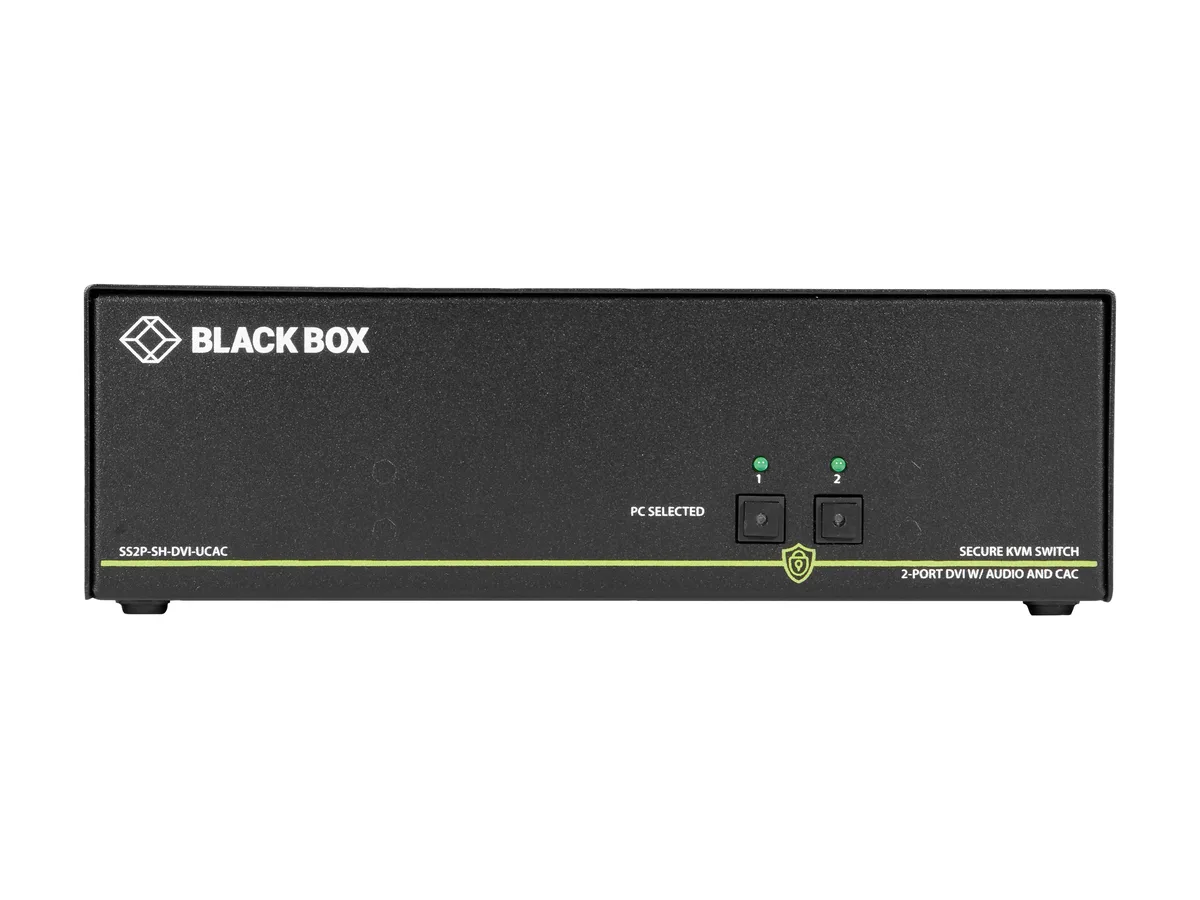

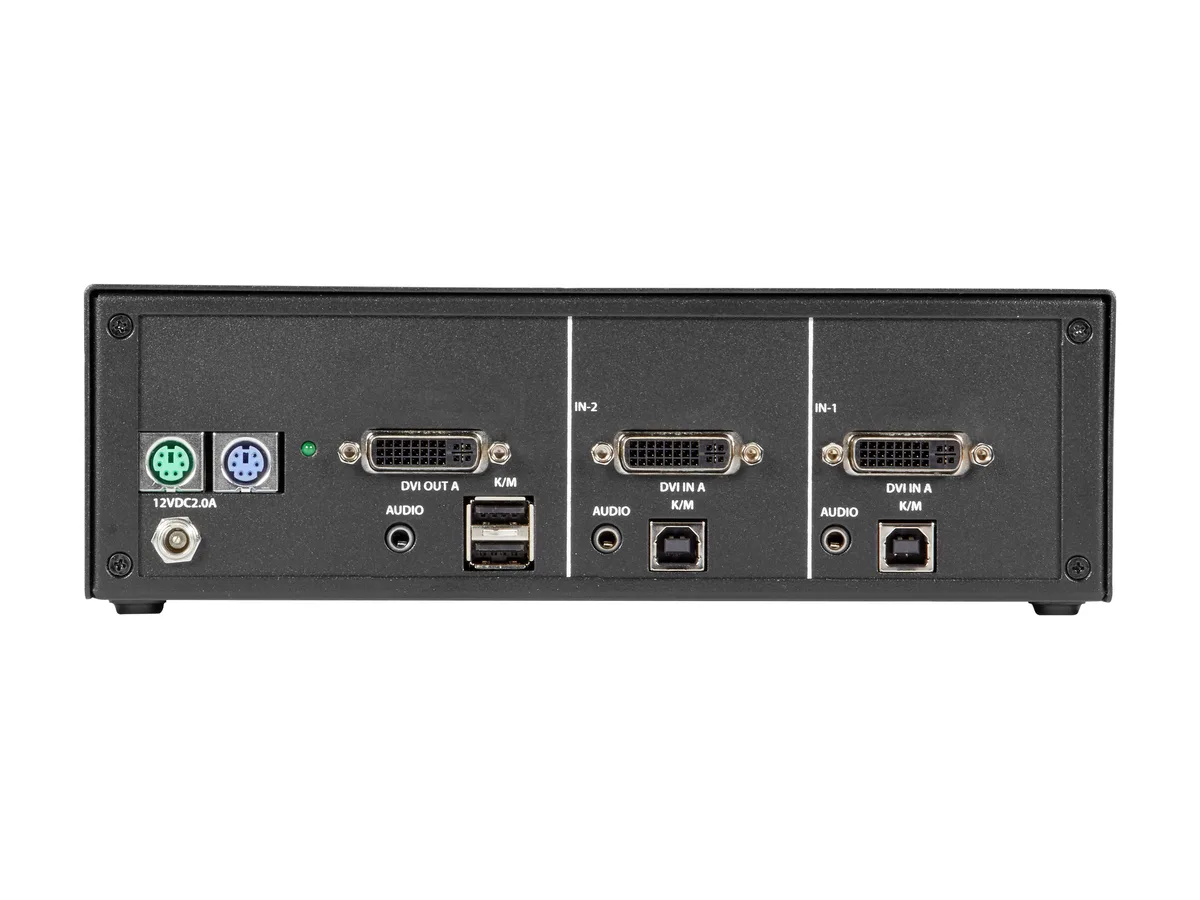

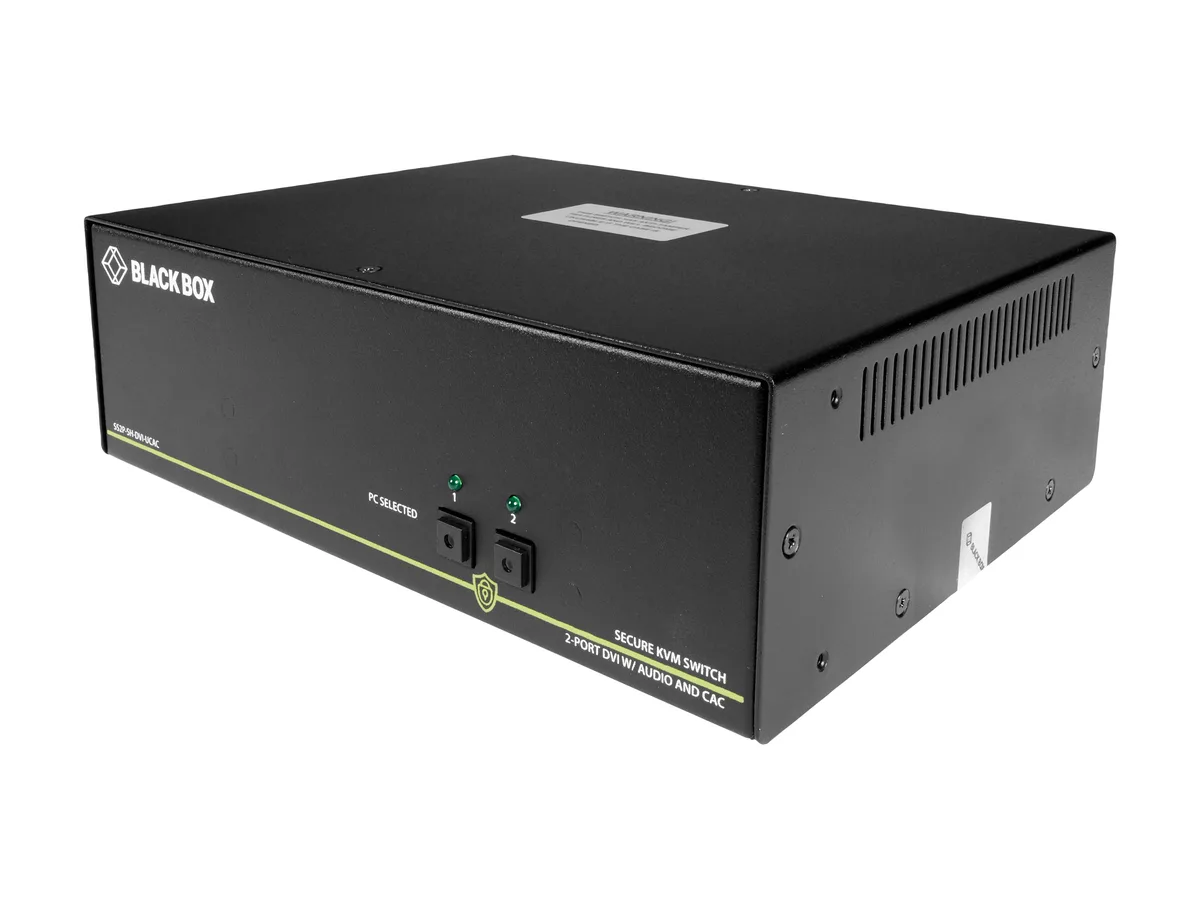

Black Box Corporation SS2P-SH-DVI-U 2-Port Secure KVM Switch DVI-I PS2
Two-port secure KVM switch supporting DVI-I video up to 2560x1600 at 60Hz with PS/2, USB HID and stereo audio, NIAP 3.0 certified
- TypeSwitchboxes
- Weight4.8
- NIAP 3.0 certification validates high-assurance security
- DVI dual-link drives 2560x1600 at 60 Hz
- Anti-tamper seals and chassis intrusion guard hardware integrity
- Fixed firmware with automatic keyboard clearing prevents data leakage
- Secure EDID learning isolates video paths between ports
2-Port Secure KVM for Isolated Workstations
The Black Box SS2P-SH-DVI-U is a two-port KVM switch built for environments that require strict data separation. It lets a single operator control two connected computers using one DVI-I monitor, PS/2 keyboard and mouse, and stereo audio. NIAP Protection Profile version 3.0 certification confirms it meets government-grade security requirements.
Anti-Tamper Design and Fixed Firmware
Tamper-evident hologram seals and chassis intrusion detection protect the physical device from unauthorised access. Firmware is stored in non-reprogrammable ROM so it cannot be altered in the field, and keyboard data is cleared automatically when switching ports. Secure EDID learning and emulation prevents display information from leaking between the isolated channels.
Dual-Link Video Headroom and Balanced Audio
The switch supports DVI Dual-Link resolutions up to 2560x1600 at 60Hz, giving ample headroom for standard office and monitoring tasks. VGA sources can be connected through a passive adapter, while balanced speaker outputs maintain audio quality when switching. The single-head design means users needing dual-monitor setups will require a different solution.
Highlights
- NIAP 3.0 certification validates high-assurance security
- DVI dual-link drives 2560x1600 at 60 Hz
- Anti-tamper seals and chassis intrusion guard hardware integrity
- Fixed firmware with automatic keyboard clearing prevents data leakage
- Secure EDID learning isolates video paths between ports
Specifications
| Brand | Black Box Corporation |
|---|---|
| Type | Switchboxes |
| Weight | 4.8 |
| Shipping weight | 68.13 kg |

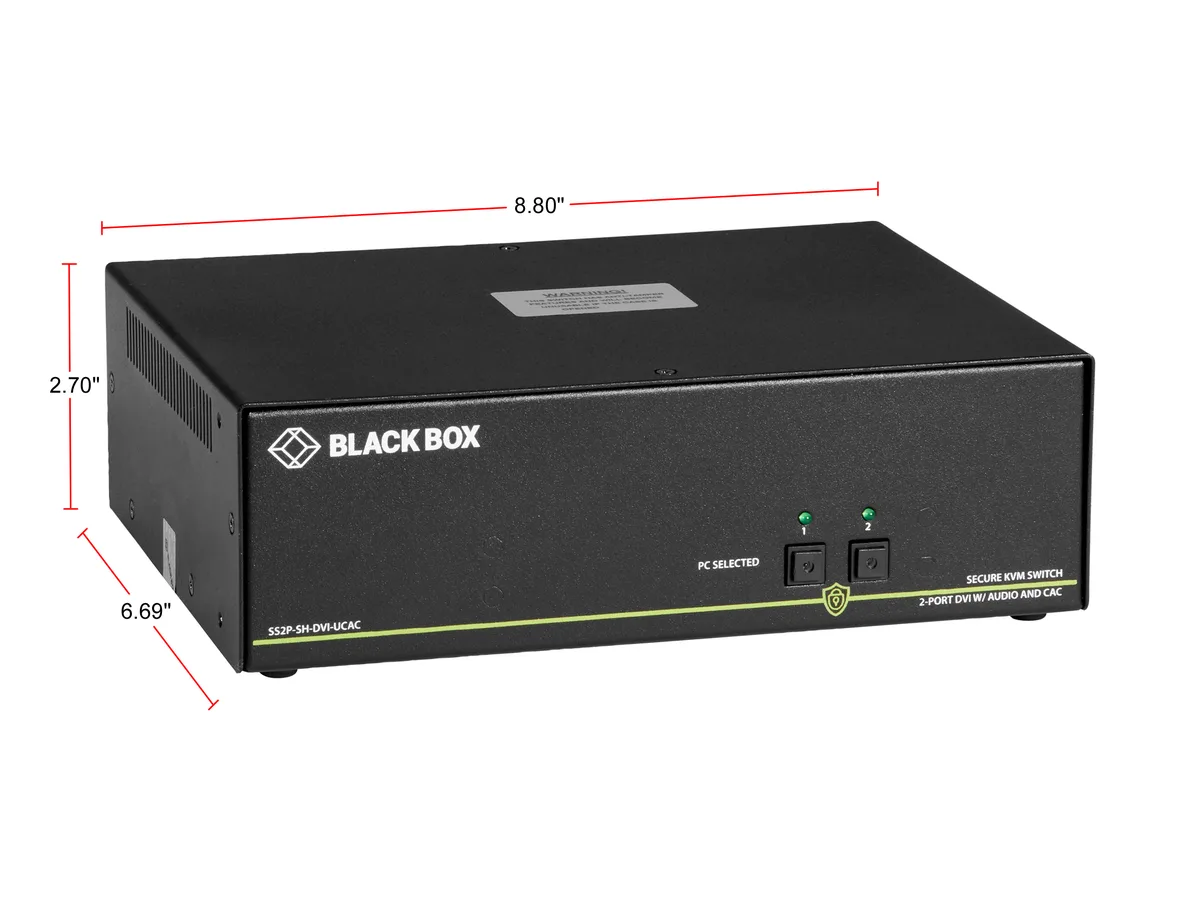

| Package size | 254 × 25 × 25 mm |
Questions about this item
Does the tamper-evident hologram seal on the SS2P-SH-DVI-U need periodic replacement?
The hologram seal is a permanent anti-tampering feature and does not require scheduled replacement.
What video limit appears first when running dual-link DVI at 2560x1600 for long periods?
The switch is rated for 2560x1600 at 60Hz dual-link DVI and maintains that resolution continuously.
How much heat or fan noise does the 4.8 kg unit produce during all-day operation?
The unit operates without fans, so it generates minimal heat and no audible fan noise during continuous use.
