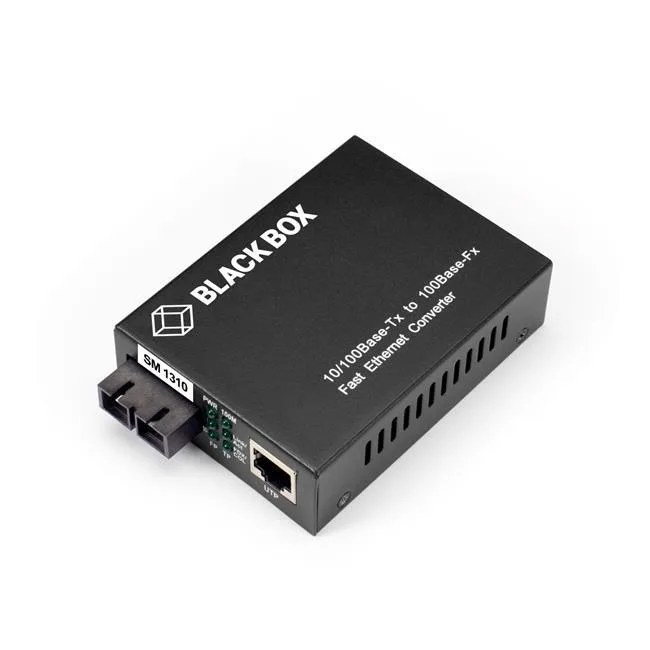

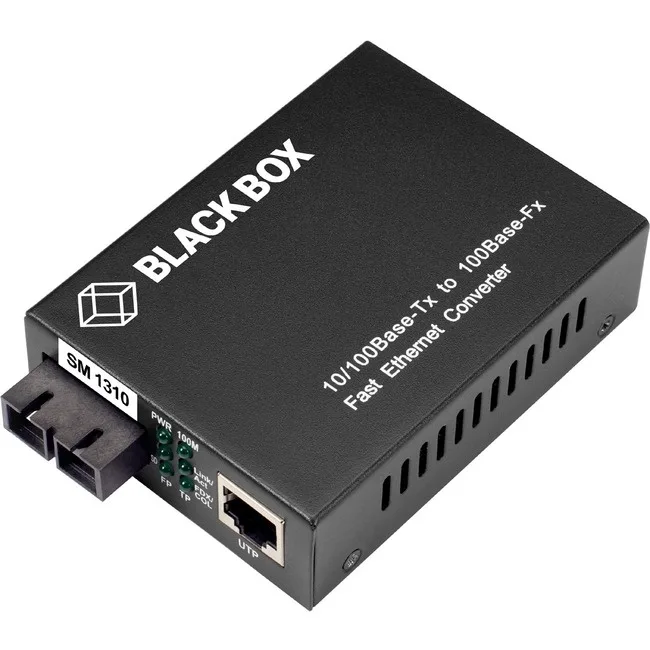

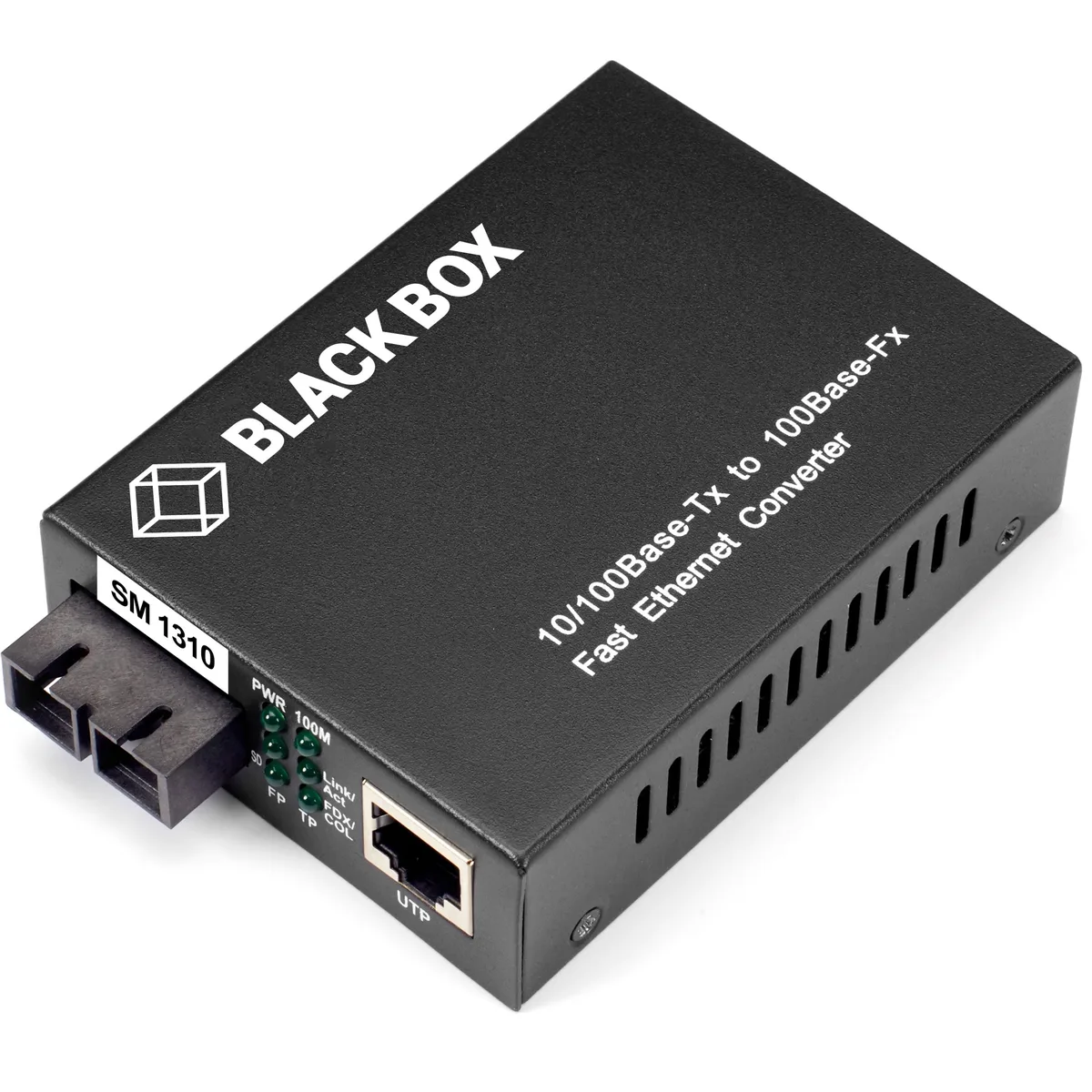

Compact standalone media converter, black metal enclosure, RJ-45 and duplex SC ports, AC adapter included

Black Box Corporation

Black Box Corporation LHC212A switch module 10/100 1310nm 20km SC

SKU CH-Q6SP-HHPTZ MPN LHC212A

Converts 10/100 Ethernet to single-mode fibre at 1310 nm over 20 km using SC duplex connectors

  • Converts 10/100 copper to single-mode fibre up to 6.21 mile
  • Single SC duplex port handles 1310 nm wavelength over 9/125 µm cable
  • Compact standalone unit measures 3.7 × 2.7 × 1 inches and weighs 11.20 oz
  • Includes 5 V AC adapter for immediate desktop deployment
  • RoHS and WEEE certified with three-year limited warranty

Media converter for single-mode fibre

The Black Box LHC212A converts a 10/100Base-TX copper link to a 100Base-FX single-mode fibre connection at 1310 nm. It provides one RJ-45 port and one duplex SC port for distances up to 6.21 mile over 8.3/125 µm cable. The unit is powered by an included 5 VDC AC adapter and ships in a standalone enclosure measuring 1 by 3.7 by 2.7 inches. RoHS and WEEE certifications confirm environmental compliance.

Replaces copper runs that exceed the 100 metre limit

When a twisted-pair segment cannot reach a remote switch or camera, this module bridges the gap with single-mode fibre instead of repeaters or additional switches. The upgrade is worth it whenever the link distance surpasses standard copper reach or when electrical isolation between sites is required. It supports the same 10/100 Mbps data rate on both sides, so no reconfiguration of existing Fast Ethernet equipment is necessary.

Steady throughput within Fast Ethernet limits

Under continuous load the converter forwards traffic at line rate without buffering delays because the copper and fibre interfaces operate at identical 100 Mbps speeds. The AC adapter supplies constant power, so there is no performance drop as a battery would exhibit during extended operation. The compact 11.20 oz chassis relies on passive cooling, which remains effective as long as ambient temperature stays within normal indoor ranges. Not suited for gigabit or multi-gigabit backbones that require higher bandwidth.

Highlights

  • Converts 10/100 copper to single-mode fibre up to 6.21 mile
  • Single SC duplex port handles 1310 nm wavelength over 9/125 µm cable
  • Compact standalone unit measures 3.7 × 2.7 × 1 inches and weighs 11.20 oz
  • Includes 5 V AC adapter for immediate desktop deployment
  • RoHS and WEEE certified with three-year limited warranty

Specifications

BrandBLACK BOX CORPORATION
Shipping weight0.45 kg
Package size241 × 127 × 57 mm

Questions about this item

What size rack shelf or desktop space does the 3.7" wide by 2.7" deep standalone unit require?

The module measures 3.7 inches wide, 2.7 inches deep and 1 inch high, so it fits on any flat surface or shelf with at least that footprint.

Which cables plug into the RJ-45 and SC duplex ports during first-time setup?

Connect a Cat5 twisted-pair cable to the single RJ-45 port and a 9/125 µm single-mode duplex patch cord to the SC port, then attach the included 5 VDC power adapter.

When should the 5 VDC power adapter be replaced?

Replace the external 5 VDC adapter if the converter loses power or shows no LED activity while the AC outlet is confirmed live.
