Black Box Corporation
Black Box Corporation LHC211A 10/100Base-TX 100Base-FX switch module
Converts 10/100Base-TX copper to 100Base-FX multi-mode fibre up to 1.24 miles via SC duplex
- Converts copper to fibre up to 1.24 Mile with 1310 nm multimode optics
- Single RJ-45 port delivers 10/100Base-TX connectivity for legacy devices
- Duplex SC interface accepts 50/125 µm or 62.5/125 µm fibre cables
- Standalone 1" high enclosure fits tight racks or desktop spaces
- RoHS and WEEE certified with a 3 Year limited warranty
Fast Ethernet Media Converter

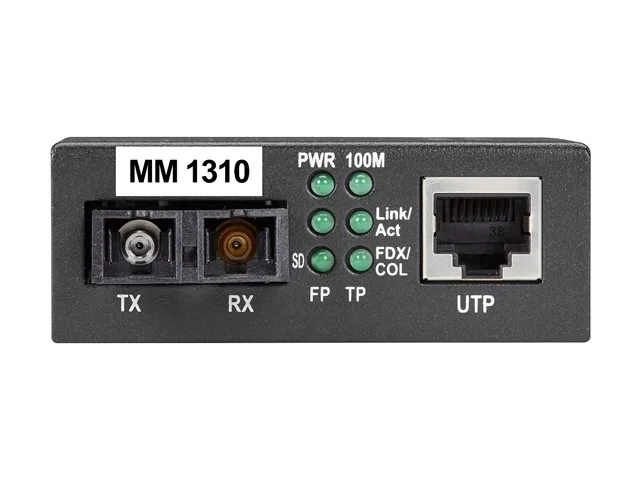

The Black Box LHC211A converts 10/100Base-TX twisted-pair signals to 100Base-FX multi-mode fibre. It provides a single RJ-45 port and one duplex SC connector in a standalone enclosure powered by an included AC adapter.
Multi-mode Fibre Reach
The module operates at 1310 nm over 50/125 µm or 62.5/125 µm fibre with a maximum distance of 1.24 miles. This reach figure decides whether the link span fits the installation.
Installers Extending Copper Segments
Suited for technicians who need to bridge copper runs beyond 100 metres using existing multi-mode infrastructure. Not for networks requiring gigabit speeds, single-mode fibre or managed switching features.
Highlights
- Converts copper to fibre up to 1.24 Mile with 1310 nm multimode optics
- Single RJ-45 port delivers 10/100Base-TX connectivity for legacy devices
- Duplex SC interface accepts 50/125 µm or 62.5/125 µm fibre cables
- Standalone 1" high enclosure fits tight racks or desktop spaces
- RoHS and WEEE certified with a 3 Year limited warranty
Specifications
| Brand | BLACK BOX |
|---|---|
| Shipping weight | 0.45 kg |
| Package size | 239 × 130 × 58 mm |
Questions about this item
What does 10/100Base-TX and 100Base-FX mean for actual network speed?
The module links a 10 or 100 Mbps copper port to a 100 Mbps fibre port, so the connection runs at Fast Ethernet rates in both directions.
What does the SC duplex multi-mode interface limit in practice?
The SC duplex connector works with 50/125 µm or 62.5/125 µm multi-mode fibre at 1310 nm, giving a maximum reach of 1.24 miles.
How much space does the 1-inch high standalone unit need on a desk or shelf?
It measures 3.7 inches wide by 2.7 inches deep and weighs 11.20 oz, so it fits on any flat surface near an AC outlet.
