Black Box Corporation KV0008A-R2 8-Port KVM Switch
Control eight computers with one keyboard, mouse, two USB peripherals and audio using glide-and-switch mouse movement across monitors
- TypeKeyboard/mouse
- Console ConnectorsKeyboard/mouse: USB Type A female Switched USB: USB 2.0 Type
- Power FeaturesDual DC connectors (one power adapter included); Input: 100
- ApplicationGlide-and-Switch Glide-and-switch technology enables you to
- FeaturesGlide a mouse from screen to screen to switch computers. Cle
- Dimensions17.05" x 6.22" x 0.22"
- Switch eight computers by gliding your mouse across screens
- One keyboard and mouse control eight systems, clearing desk space
- Share two USB 2.0 peripherals across all connected computers
- Copy and paste files between systems in standalone mode
- Auto-combiner merges all audio channels into one 3.5 mm jack
Eight-Port Keyboard and Mouse Switch
The Black Box KV0008A-R2 lets one USB keyboard and mouse control eight computers. Glide-and-switch technology moves focus by sliding the mouse across monitor edges. Two USB 2.0 ports share peripherals such as drives or printers across every connected system. Audio from all channels combines through a single 3.5-mm stereo jack.
Desktop Installation and Common Issues
The unit measures 17.05 by 6.22 by 0.22 inches and weighs 6.2 units, fitting on a desk with four self-adhesive feet. One 12 VDC 1.5 A adapter is included; a second DC connector allows redundant power. A modular 10p10c port handles flash upgrades and channel commands. Missing cables or incorrect USB port selection are typical setup errors.
Compatibility Checks Before Ordering
Verify each target computer provides a USB Type A port for keyboard and mouse signals. Confirm the 3.5-mm audio jack matches your speaker or headset plug. Ensure 100 to 240 VAC mains supply is available for the adapter. The switch does not support video switching, so each system requires its own monitor connection.
Highlights
- Switch eight computers by gliding your mouse across screens
- One keyboard and mouse control eight systems, clearing desk space
- Share two USB 2.0 peripherals across all connected computers
- Copy and paste files between systems in standalone mode
- Auto-combiner merges all audio channels into one 3.5 mm jack
Specifications
| Brand | Black Box |
|---|---|
| Model | KV0008A-R2 |
| Type | Keyboard/mouse |

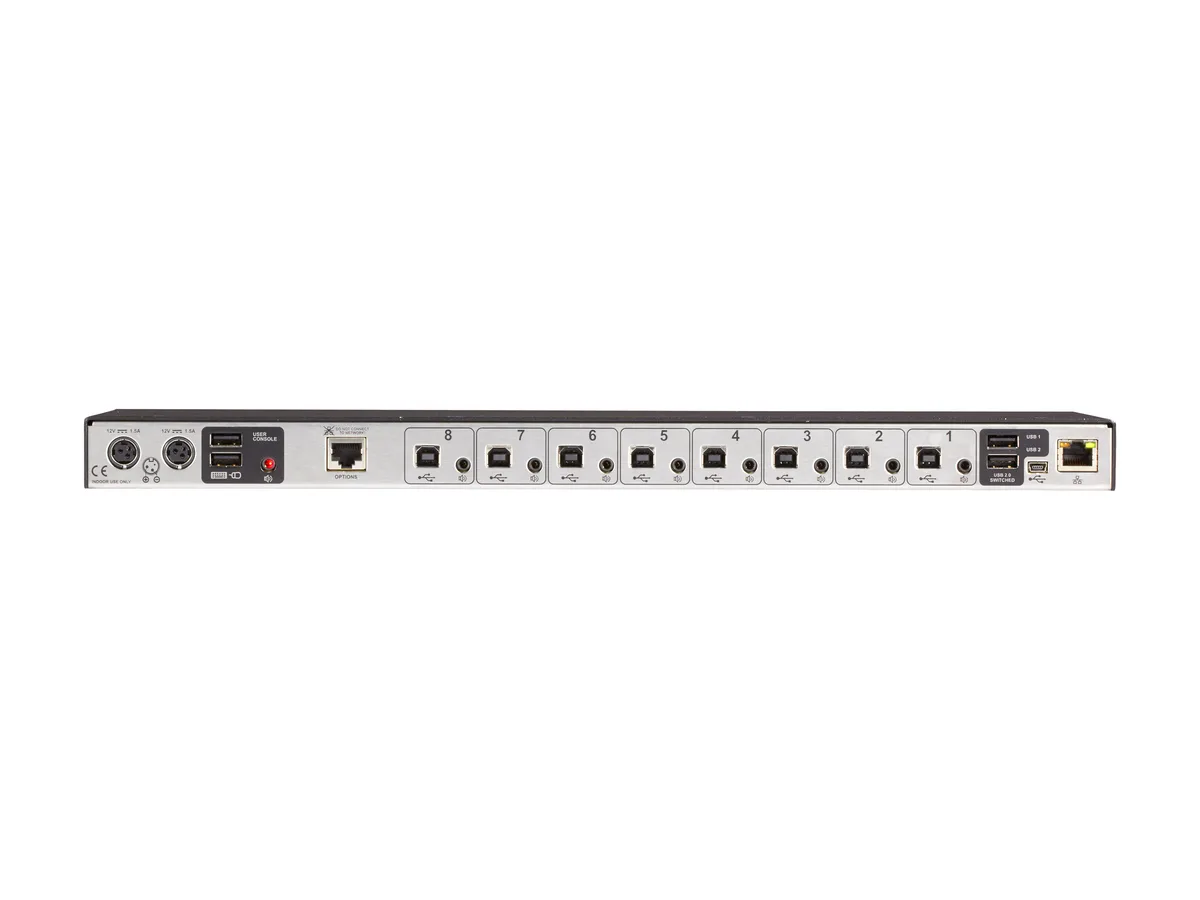

| Console Connectors | Keyboard/mouse: USB Type A female Switched USB: USB 2.0 Type A female Audio: 3.5-mm stereo jack Other: Modular 10p10c for flash upgrade and channel switching commands |
| Power Features | Dual DC connectors (one power adapter included); Input: 100 to 240 VAC, 50 to 60 Hz; Output: 12 VDC, 1.5 A; Consumption: 18 W |
| Application | Glide-and-Switch Glide-and-switch technology enables you to easily access information and control operations across eight computer systems and monitors by simply moving your mouse from screen to screen The Freedom II works like an extended desktop switch. With it, you can perform functions that ordinarily would require eight separate keyboard/mouse sets. Use it to create a unified desktop system with eight computers with similar or different operating systems. You'll free up valuable desktop space, save money on equipment and simplify your work. The Freedom II is ideal for command an |
| Features | Glide a mouse from screen to screen to switch computers. Clean up the desktop. Use one keyboard and mouse for eight computers. Share two USB peripherals among all computer systems. Copy and paste files between systems when the Freedom is used in standalone mode. Features an auto-combiner for all audio channels. Switch five ways: mouse, keyboard, front-panel buttons, remote control or Glide-and-Switch technology. Channel indicator makes it easy to see which display is currently selected. Improve desktop ergonomics. |

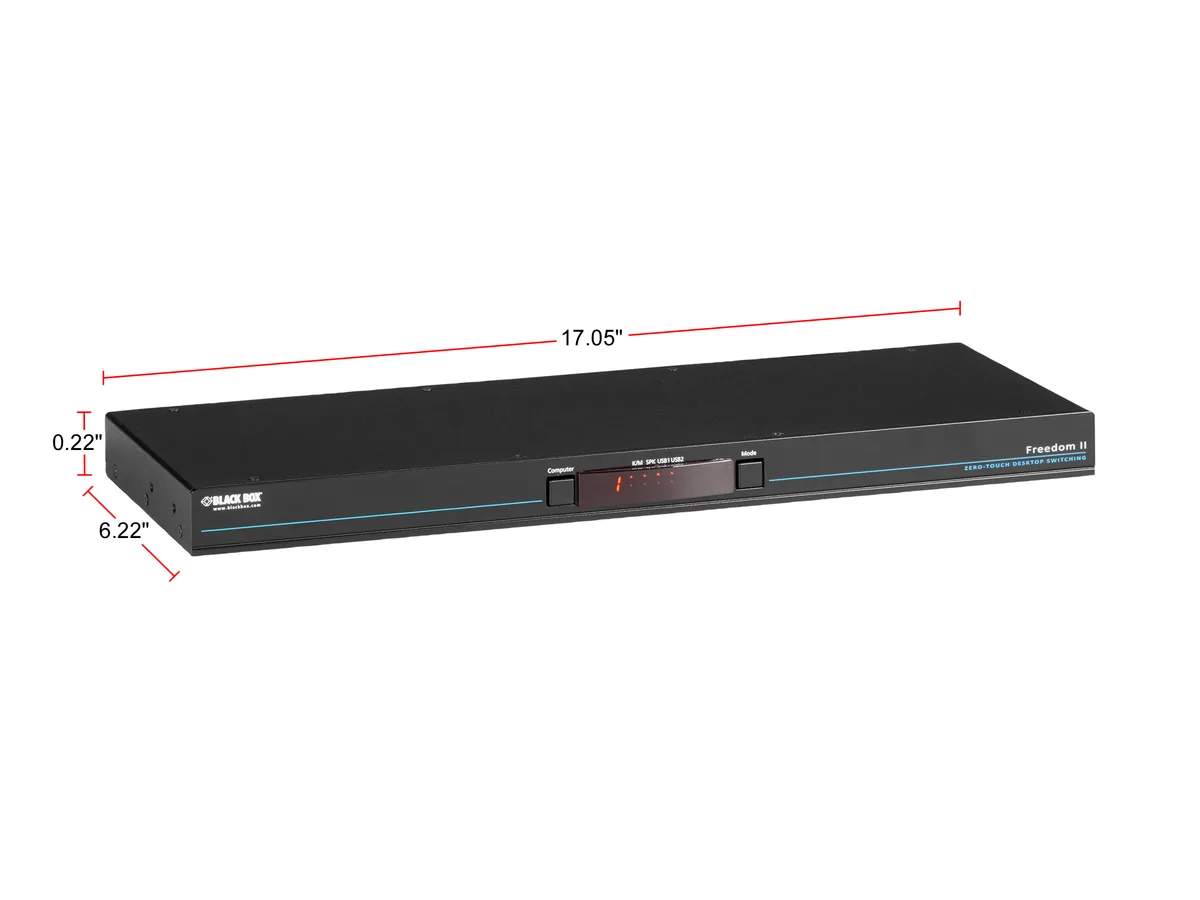

| Dimensions | 17.05" x 6.22" x 0.22" |
| Weight | 6.2 |
| Package Contents | Freedom II unit Power adapter and power cord Flash upgrade adapter 4 x self-adhesive feet |
| Shipping weight | 3.63 kg |
| Package size | 610 × 508 × 457 mm |
Questions about this item
How can I verify the switch is working after connecting eight computers and monitors?
Move the mouse pointer across each screen; the active computer should follow the cursor instantly, and the two shared USB peripherals should appear on whichever system is currently selected.
What ships in the box and what must I source separately?
The package includes the Freedom II unit, one power adapter with cord, a flash upgrade adapter and four self-adhesive feet; you must supply USB cables for each computer and any additional USB peripherals you wish to share.
Which version of this KVM should I choose for eight systems with audio?
The KV0008A-R2 is the single 8-port model listed; it provides eight computer ports, dual USB 2.0 peripheral ports and a 3.5-mm stereo jack that auto-combines all audio channels.
