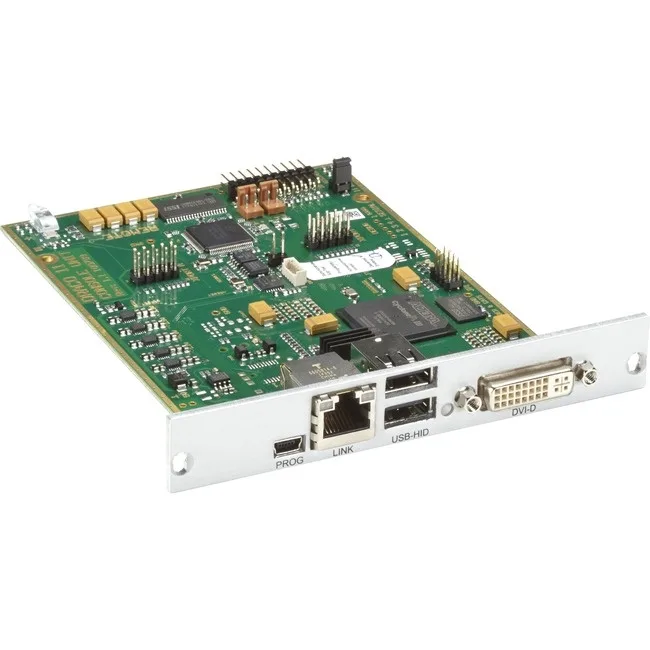

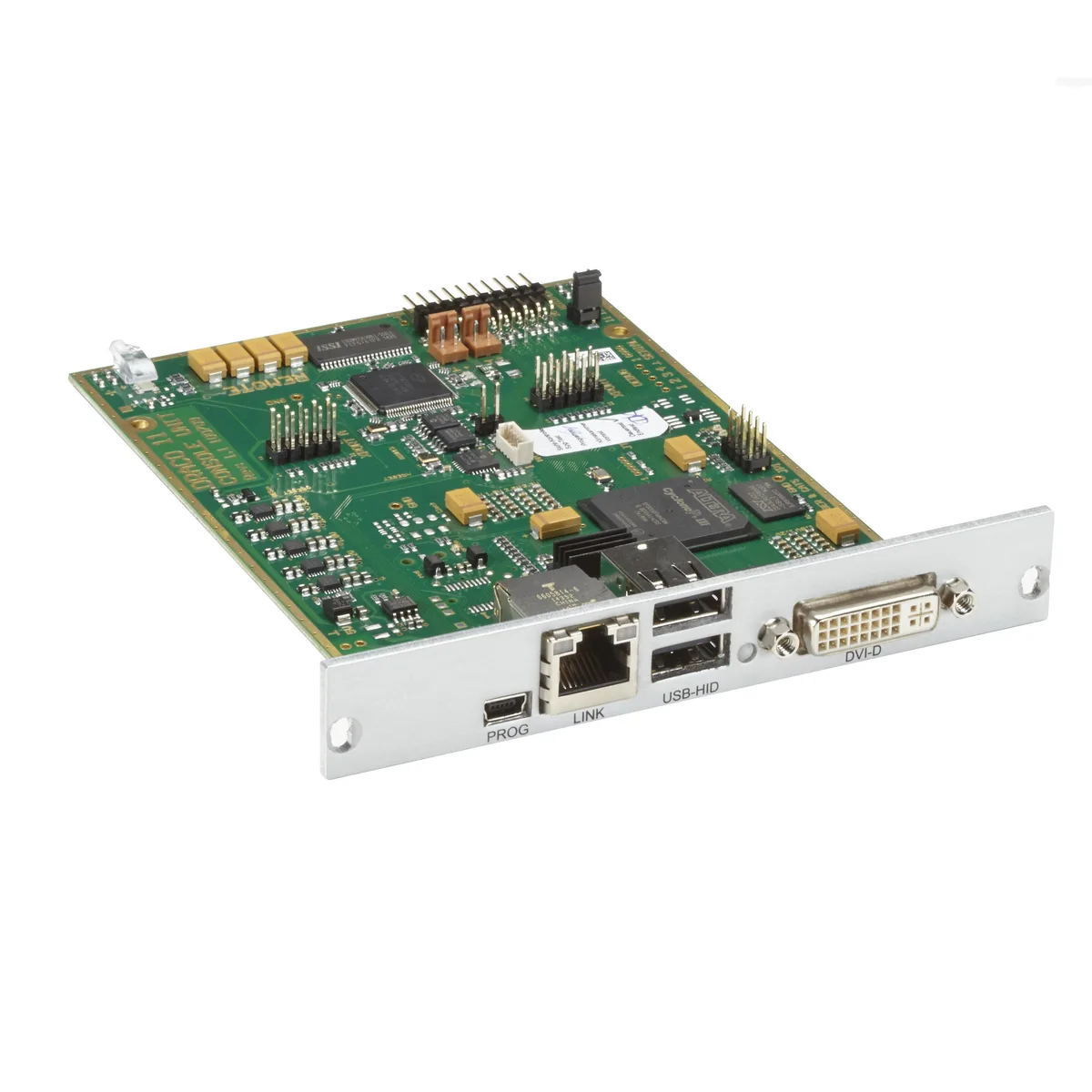

Black Box plug-in card with one RJ-45, two USB and one DVI port

Black Box Corporation

Black Box Corporation ACX1MR-DHID-C switch module, 1 RJ-45, 2 USB, 1 DVI

SKU CH-FQKC-XBJ8W MPN ACX1MR-DHID-C

Modular KVM extender receiver card with one RJ-45, two USB and one DVI port

  • Single-head DVI-D video extension over a single link
  • One RJ-45 network port for wired connectivity
  • Two USB ports for peripheral support
  • Plug-in card form factor for modular installation
  • WEEE and RoHS certified with a 2-year limited warranty

Modular KVM Extender Interface Card

This plug-in card adds a single-head, single-link DVI-D connection to a modular KVM extender system. It provides one RJ-45 network port and two USB ports for keyboard and mouse extension. The module is designed for wired network connectivity in commercial environments and carries a two-year limited warranty.

Installation and Common Issues

The card installs directly into a compatible modular KVM extender chassis without tools. Ensure the chassis slot matches the plug-in form factor before seating the module. A frequent issue is using a dual-link DVI cable, which will not work with the single-link DVI-D interface. Verify that the RJ-45 cabling meets the required category rating for the extender distance.

Pre-Order Compatibility Check

Confirm that your existing modular KVM extender chassis accepts plug-in interface cards of this type. The system must support single-head, single-link DVI-D video and provide the necessary backplane connections for one network and two USB ports. Check that your source and display equipment use DVI-D signalling rather than analogue VGA or HDMI without an active adapter.

Highlights

  • Single-head DVI-D video extension over a single link
  • One RJ-45 network port for wired connectivity
  • Two USB ports for peripheral support
  • Plug-in card form factor for modular installation
  • WEEE and RoHS certified with a 2-year limited warranty

Specifications

BrandBLACK BOX
Shipping weight0.25 kg
Package size267 × 165 × 76 mm

Questions about this item

How can I confirm the ACX1MR-DHID-C module is operating correctly after installation?

Verify the single RJ-45 network link light is active and that both USB ports enumerate connected peripherals while the single DVI port outputs a stable video signal to the display.

What ships with the ACX1MR-DHID-C and what must be sourced separately?

The module itself is supplied; you must provide the compatible modular KVM extender chassis, a Cat5e or better patch cable for the RJ-45 link, a DVI-D video cable and any USB cables for attached devices.

Which version of the ACX1MR-DHID-C should I select for a single-head DVI-D setup?

This model is the single-head, single-link DVI-D receiver interface card with one RJ-45 and two USB ports, so it matches that exact requirement without further options.
