Black Box Corporation

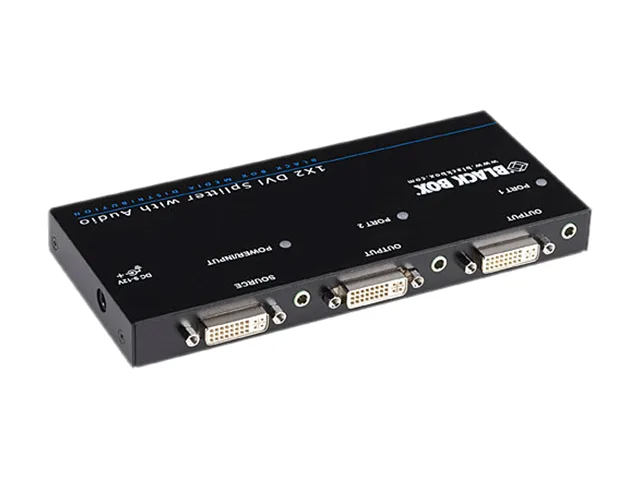

Black Box AVSP-DVI1X2 1x2 DVI-D Splitter with Audio
Splits a single DVI-D video source with stereo audio to two displays at up to 1920 x 1200 resolution without signal loss
- Splitter TypeSignal Splitter
- SpecificationSignal Type: Single-Link DVI-D CE Approval: Yes RoHS: Yes Co
- Resolution Support1080p (1920 x 1080), UXGA (1600 x 1200)/WUXGA (1920 x 1200)
- Power Consumption2.8 watts
- Power SupplyInput: 100-240 VAC, 50-60 Hz Output: 9 VDC, 0.6 amps
- FeatureEnables you to put digital video content before more custome
- Duplicates DVI-D video without attenuation or distortion for clean signal
- Splits one DVI-D and audio input to two displays simultaneously
- Supports 1080p and WUXGA 1920 x 1200 resolution for sharp HD content
- Fully HDCP compliant for protected Blu-ray and broadcast video playback
- Compact 7.1 x 3.3 x 0.8 inch design with low 2.8 watt power draw
Signal Splitter for Dual Displays
The Black Box AVSP-DVI1X2 distributes a single-link DVI-D source and stereo audio to two identical outputs. It suits retail signage, classroom projection or control-room monitoring where the same 1080p or WUXGA image must appear on two screens simultaneously. Fully HDCP compliant, it passes protected Blu-ray content without stripping the signal. No scaling or format conversion is performed; the source resolution is duplicated pixel-for-pixel.
Plug-and-Play Installation
Connect the source to the single DVI-D input and 3.5-mm audio jack, then attach two displays to the paired outputs. The unit draws 2.8 watts from the included 9 VDC 0.6 A adapter, which accepts 100-240 VAC at 50-60 Hz. A dual-colour LED confirms power and video lock on each channel. The only common issue is an HDCP handshake failure if one display does not support the content protection scheme, which will blank both outputs.
Pre-Order Compatibility Check
Verify that your source device outputs single-link DVI-D at 1920 x 1080, 1600 x 1200 or 1920 x 1200; higher resolutions or dual-link signals are not supported. Ensure both target displays accept one of those native resolutions and have DVI-D inputs. Confirm the installation site can accommodate a 7.1 x 3.3 x 0.8 inch enclosure and a nearby mains socket for the external power supply. Audio cables must be standard 3.5-mm stereo plugs.
Highlights
- Duplicates DVI-D video without attenuation or distortion for clean signal
- Splits one DVI-D and audio input to two displays simultaneously
- Supports 1080p and WUXGA 1920 x 1200 resolution for sharp HD content
- Fully HDCP compliant for protected Blu-ray and broadcast video playback
- Compact 7.1 x 3.3 x 0.8 inch design with low 2.8 watt power draw
Specifications
| Brand | Black Box |
|---|---|
| Model | AVSP-DVI1X2 |
| Splitter Type | Signal Splitter |
| Specification | Signal Type: Single-Link DVI-D CE Approval: Yes RoHS: Yes Connectors Inputs: 1 x DVI-D, 1 x 3.5-mm stereo audio jack Outputs: 2 x DVI-D, 2 x 3.5-mm stereo audio jacks Indicators: 1 x Power/Video OK dual-color LED, 2 x Video Output LEDs |
| Resolution Support | 1080p (1920 x 1080), UXGA (1600 x 1200)/WUXGA (1920 x 1200) |
| Power Consumption | 2.8 watts |
| Power Supply | Input: 100-240 VAC, 50-60 Hz Output: 9 VDC, 0.6 amps |
| Feature | Enables you to put digital video content before more customers and users. Accurately duplicates DVI-D video without attenuation and distortion. Fully HDCP compliant for showing Blu-ray player content. |
| Dimensions | 7.1"W x 3.3" x 0.8"H |
| Package Content | Splitter Power supply Set of rubber feet User manual |
| Shipping weight | 2.21 kg |
| Package size | 381 × 381 × 381 mm |
Questions about this item
How can I confirm the splitter is passing video and audio to both displays after connecting everything?
The front panel has a dual-colour Power/Video OK LED that lights when a valid DVI-D signal is present, and each of the two output ports has its own indicator showing active video and audio paths.
What cables or accessories do I need to buy separately to run two monitors with sound from one source?
The box includes the splitter, a 9 VDC 0.6 A power supply (100-240 VAC input) and rubber feet; you must supply one DVI-D cable for the source and two DVI-D cables plus two 3.5 mm stereo audio cables for the displays.
Which resolution setting should I choose on my source to match the splitter's maximum capability?
Set the source to 1920 x 1200 (WUXGA) or 1920 x 1080 (1080p) at 60 Hz; the splitter duplicates single-link DVI-D signals up to those resolutions without scaling or compression.
