Black Box Corporation
Black Box ACU075A-USB KVM switch 75 ft VGA USB CATx
Extends a VGA display and USB keyboard/mouse up to 75 feet over a single CATx cable with 1920 x 1080 resolution support
- TypeKVM Console/Extender
- PC Connectors1 x HD15 Female 1 x RJ-45
- Console Connectors1 x HD15 Female 1 x RJ-45 1 x USB Type A Female
- Computer Connections1 Display VGA
- Monitor Connections1 Port
- Video Resolution1280 x 1024
- Extends VGA and USB control up to 75 ft over CATx cable
- Supports video resolutions up to 1920 x 1080 for clear display
- USB-HID enables keyboard and mouse operation at the remote console
- Compact units measure 0.80 x 6.10 x 2.60 in and weigh 9.60 oz each
- Includes computer and console units, power adapter, foot pads and KVM cable
75 ft VGA USB CATx Extender

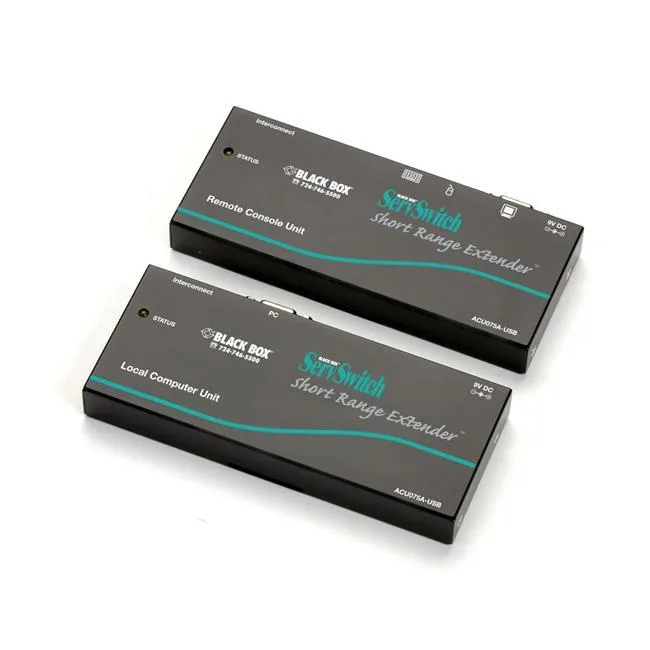

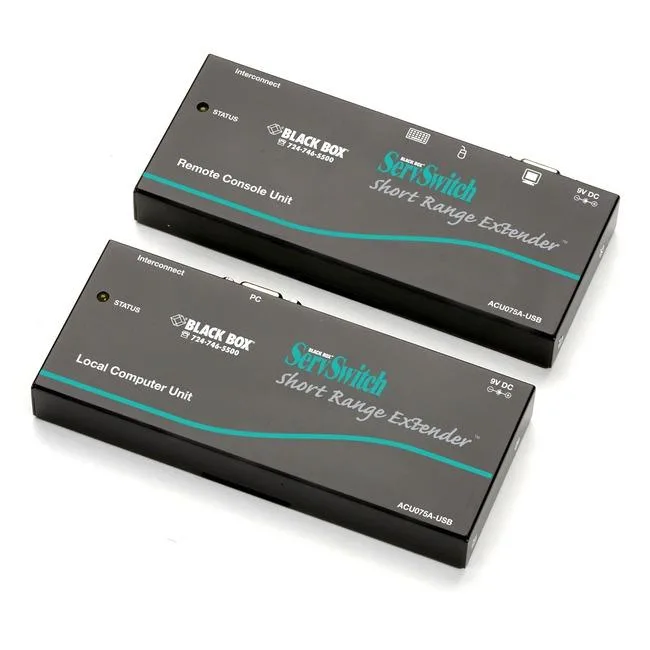

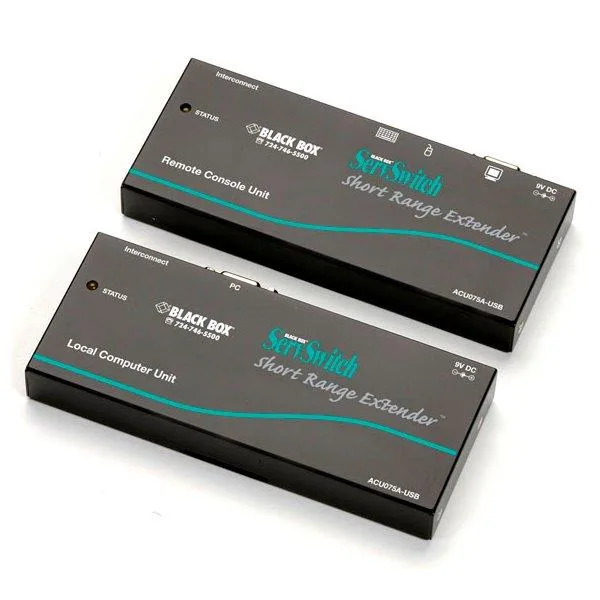

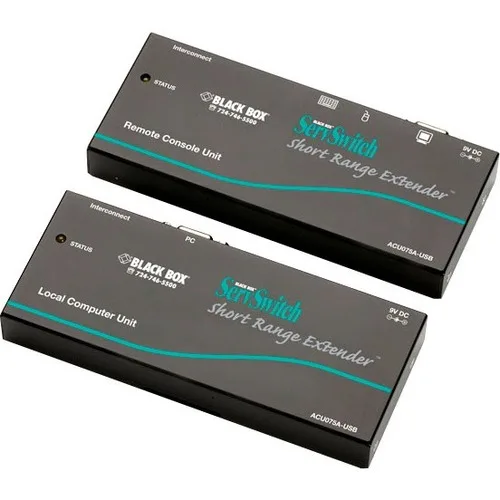

The Black Box ACU075A-USB extends a single computer's VGA video and USB-HID signals up to 75 ft over a single CATx cable. It comprises a local transmitter and a remote receiver console unit, each measuring 0.80" x 6.10" x 2.60" and weighing 9.60 oz. The kit includes a 9 VDC 600 mA power adapter, foot pads and a combined KVM cable.
Suited for single-user remote desktop access
This extender serves one operator who needs a keyboard, monitor and mouse up to 74.80 ft (22.8 m) from the host PC or KVM switch in a cleaner or more secure area. It supports only one computer and one remote console, so multi-user environments or installations requiring longer cable runs must consider different equipment.
Handles SXGA and 1080p signals within range
Video operates at 1280 x 1024 SXGA natively and accepts resolutions up to 1920 x 1080 over the 75 ft CATx link. USB-HID carries standard keyboard and mouse input without additional drivers. Beyond the rated distance or with higher-resolution demands, signal quality will degrade.
Highlights
- Extends VGA and USB control up to 75 ft over CATx cable
- Supports video resolutions up to 1920 x 1080 for clear display
- USB-HID enables keyboard and mouse operation at the remote console
- Compact units measure 0.80 x 6.10 x 2.60 in and weigh 9.60 oz each
- Includes computer and console units, power adapter, foot pads and KVM cable
Specifications
| Brand | Black Box |
|---|---|
| Model | ACU075A-USB |
| Type | KVM Console/Extender |
| PC Connectors | 1 x HD15 Female 1 x RJ-45 |
| Console Connectors | 1 x HD15 Female 1 x RJ-45 1 x USB Type A Female |
| Computer Connections | 1 Display VGA |
| Monitor Connections | 1 Port |
| Video Resolution | 1280 x 1024 |
| Monitors Supported | SXGA |
| Features | VGA video with resolutions up to 1920 x 1080 USB-HID CATx connections Up to 75 Ft. over CATx Low-cost, high-quality video extender is perfect for short distances and limited budgets. Enables you to place a CPU in a remote environment that is more secure or cleaner than where you work. Place a keyboard, monitor, and mouse up to 75 feet (22.8 m) from a computer or KVM switch. Connects the computer unit and console (station) unit via inexpensive Category 5 UTP cable. |
| Dimensions | 0.80" x 6.10" x 2.60" |
| Weight | 0.60 lbs. |
| Package Contents | 1 x KVM Extender Console (Station) Unit 1 x KVM Extender Computer Unit 1 x 9-VDC, 600-mA power adapter 2 x sets of foot pads 1 x KVM Cable 2-to-1 (EHN9000U-0006) User's manual |
| Shipping weight | 1.47 kg |
| Package size | 298 × 248 × 89 mm |
Questions about this item
What cable do I need between the computer unit and the console unit?
A standard Category 5 UTP cable up to 75 ft connects the two units.
Will my existing USB keyboard and mouse work with the console unit?
Yes, the console unit provides a USB Type A female port for HID devices.
How do I confirm the extender is delivering the expected 1280 x 1024 image?
Check the display settings on the connected computer; the console unit will output up to 1280 x 1024 over VGA.
