Bitspower G1/4 inch male-female extender fitting 25mm true brass finish

Bitspower

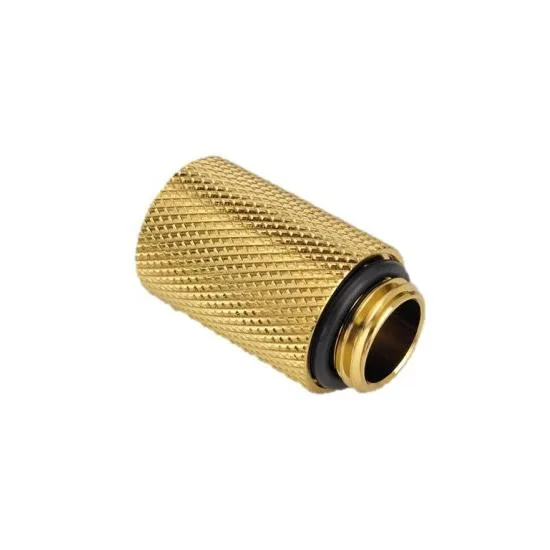

Bitspower BP-TBWP-C62 G1/4" Male-Female Extender Fitting 25mm True Brass

SKU CH-J18R-H92WZ MPN BP-TBWP-C62

A G1/4" male-to-female extender fitting that adds 25 mm of clearance in custom liquid-cooling loops

  • TypeFittings
  • G1/4" male-to-female thread extends loop reach by 25mm
  • True brass construction resists corrosion in liquid-cooling loops
  • Hidden O-ring design seals without visible rubber rings
  • Hi-flow bore maintains coolant velocity through the extender
  • Compact 25mm length fits tight component spacing

25 mm G1/4 Extender Fitting

This G1/4 male-to-female extender adds 25 mm of reach between water-cooling components. It suits custom-loop builders who need extra clearance between a block, radiator or reservoir and a tight corner. The true-brass body matches Bitspower fittings for a consistent finish. It is not for installations that require a rotating or angled connection.

Replaces Rigid Tubing Runs

Use this fitting instead of bending hard tubing or chaining multiple couplings when a short straight gap must be bridged. The jump is worth it when component ports sit slightly out of alignment or when a reservoir sits deeper than expected. It does not replace an angled adapter if the port orientation must change direction.

Simple Thread-In Installation

Screw the male end into the female port and the female end onto the mating fitting by hand, then snug lightly with a wrench on the hex flats. The hidden O-ring seals without separate washers. Over-tightening can strip the fine G1/4 threads or deform the O-ring, causing a slow leak that appears only under pressure.

Highlights

  • G1/4" male-to-female thread extends loop reach by 25mm
  • True brass construction resists corrosion in liquid-cooling loops
  • Hidden O-ring design seals without visible rubber rings
  • Hi-flow bore maintains coolant velocity through the extender
  • Compact 25mm length fits tight component spacing

Specifications

TypeFittings

Questions about this item

How much clearance does the 25 mm extender add between components?

The fitting extends the connection by 25 mm, creating extra space between the male G1/4" port and the female G1/4" port.

Which way round do the male and female G1/4" threads go when installing the extender?

Screw the male G1/4" end into the component port first, then attach the female G1/4" side to your tubing fitting; the hidden O-ring seals on the male thread.

Will the true brass body need any corrosion protection over time?

True brass naturally develops a patina; periodic inspection and light polishing will maintain appearance, while the hidden O-ring should be replaced if it shows wear or leakage.
