Black handheld tester fixture with screen and buttons

bitmain

Bitmain Antminer Repair Tester fixture handheld pcs accessory

SKU CH-86HF-ZCPWA

Handheld tester diagnoses and flashes EEPROM on 18 Antminer models in under 30 seconds without a computer or extra power supply

  • ColorBlack
  • Diagnose and repair over 18 Antminer models from S9 to S19J
  • Flash EEPROM on any supported board in under 30 seconds without a PC
  • Edit hash board EEPROM firmware parameters including voltage and frequency directly on the tester
  • Test boards without full load so no extra cooling is required

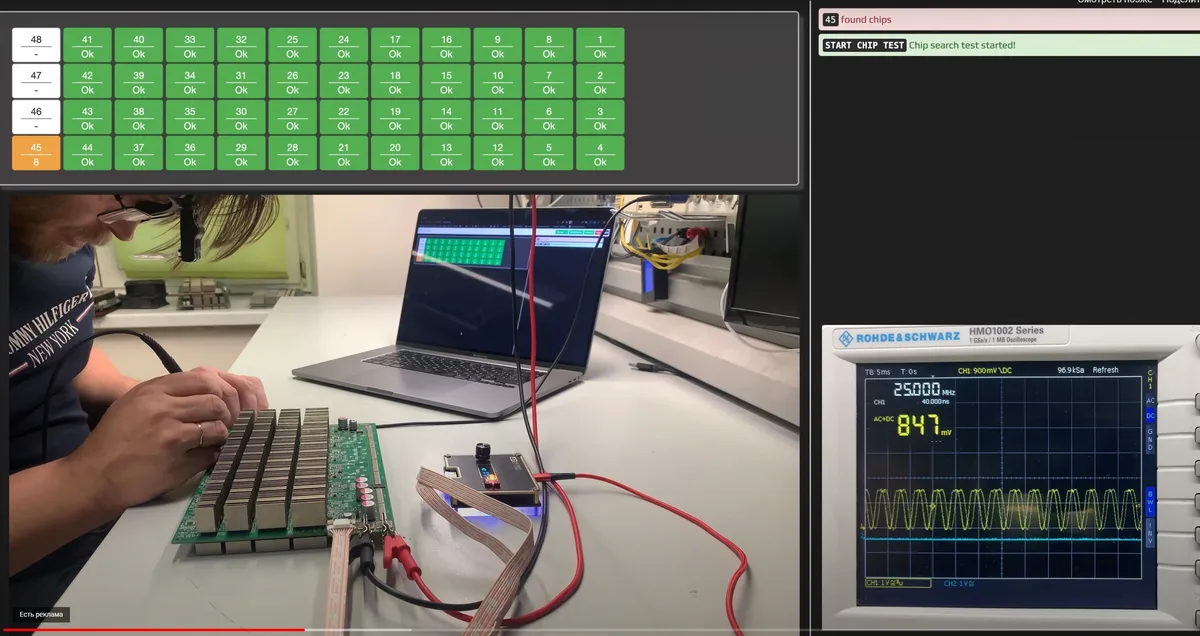

  • Handheld fixture lets you check hash boards at the bench without removing them from the miner case

Bitmain Antminer Repair Tester

This handheld fixture supports diagnostics and EEPROM flashing for more than 18 Antminer models, covering the L3+, S9, S11, Z11, S15, T15, S17, T17, S19 and T19 families. It performs flashing in under 30 seconds without a computer, extra programmer or hash-board power supply. The interface automatically detects the board model and checks firmware integrity.

For ASIC repair technicians and mining farms

Technicians who service Bitmain hash boards on a bench will benefit from the standalone operation and automatic template flashing. Operations that need to test boards under full thermal load or that service non-Bitmain hardware should look at other equipment.

Built-in EEPROM editor and template storage

The on-board editor lets you view and edit voltage, frequency and serial-number parameters directly on the tester. Saved templates allow rapid re-flashing of multiple boards without using a web interface. Because the board is not driven to full power, no additional cooling is required during diagnostics.

Highlights

  • Diagnose and repair over 18 Antminer models from S9 to S19J
  • Flash EEPROM on any supported board in under 30 seconds without a PC
  • Edit hash board EEPROM firmware parameters including voltage and frequency directly on the tester
  • Test boards without full load so no extra cooling is required
  • Handheld fixture lets you check hash boards at the bench without removing them from the miner case

Specifications

ColorBlack

Questions about this item

Which Antminer models can I test with this fixture?

It supports more than 18 models including L3+, S9, S9k, S9se, S11, Z11, S15, T15, S17, T17, S17pro, T17pro, S17+, T17+, S17e, T17e, S19, T19, S19pro and S19J.

Do I need a separate power supply for the hash board during EEPROM flashing?

No, EEPROM flashing takes less than 30 seconds and is performed without a computer, additional programmer or power supply for the hash board.

How do I confirm the hash board is detected correctly after connecting it?

The tester automatically detects the hash board model, checks EEPROM firmware integrity and displays recorded parameters such as voltage, frequency and serial number.
