Bipra 8 Channel Level Translator 5V/24V 10MHZ 2 in 1 accessory

SKU CH-8FGM-JYN8W

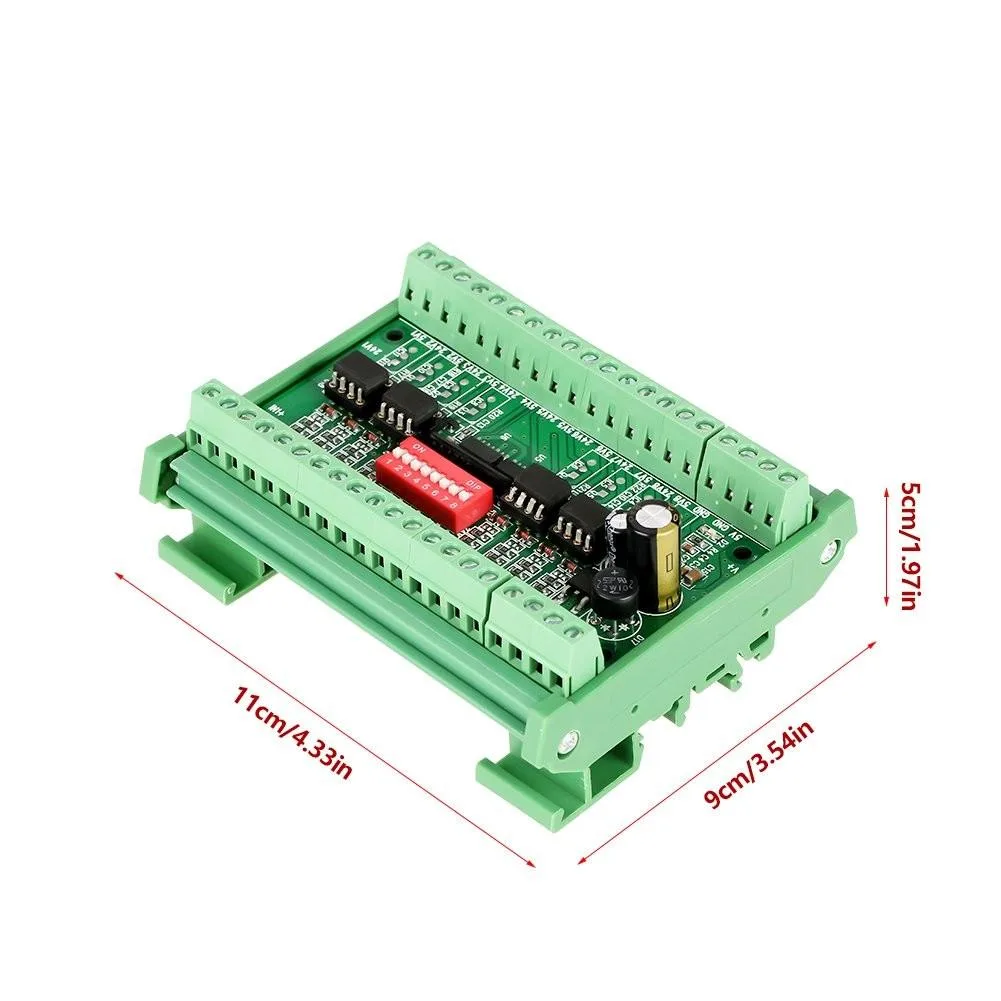

Eight-channel module converts 5V and 24V logic signals bidirectionally with optocoupler isolation and DIP-switch configuration

  • Bidirectional 5V to 24V level conversion for flexible signal interfacing
  • Optocoupler isolation boosts anti-interference performance in noisy environments
  • DIP switch input selection simplifies configuration for 100mA NPN output
  • Built-in amplification circuit delivers clean waveforms with strong drive capability

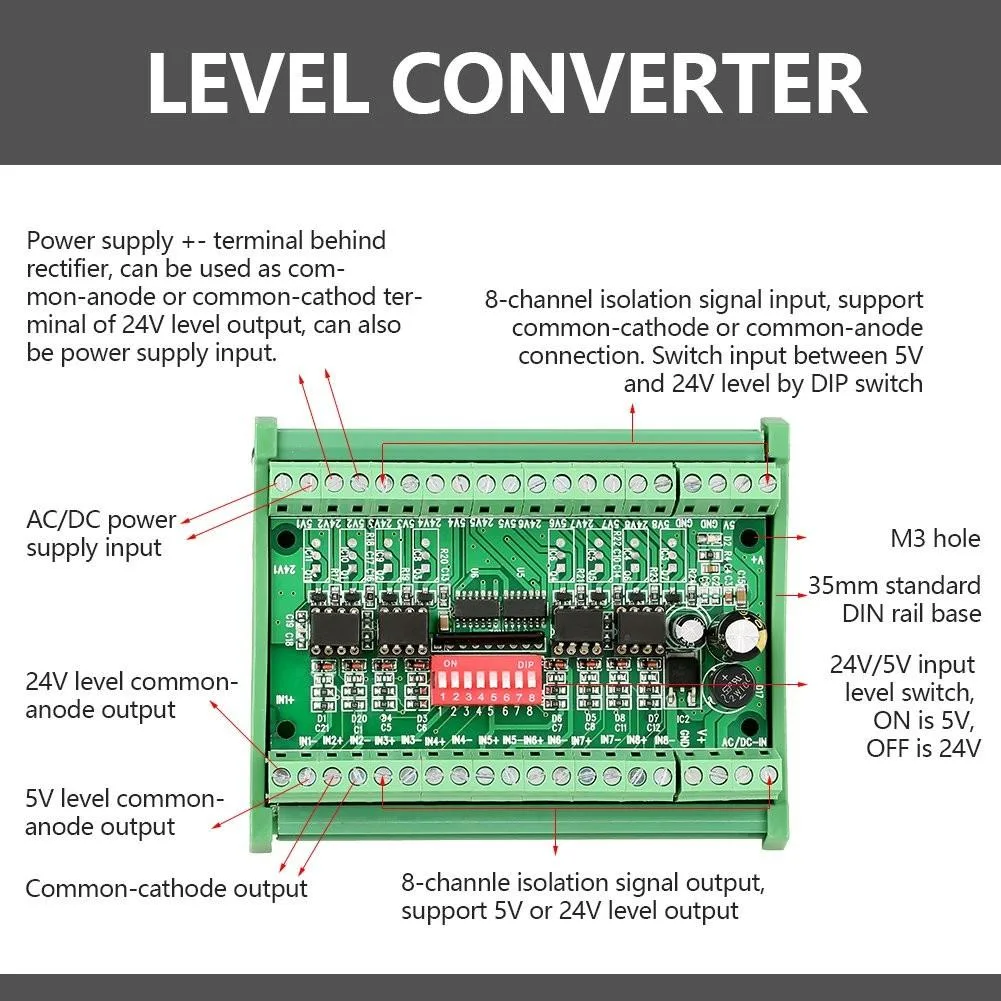

  • Supports both common-cathode and common-anode inputs matching PLC standards

8-Channel 5V/24V Level Translator

This module translates logic signals between 5V and 24V across eight independent channels. It suits engineers and technicians integrating microcontrollers, sensors or PLCs that operate at different voltage levels. The board also provides optocoupler isolation to improve noise immunity in industrial environments.

10MHz switching and NPN open-collector output

Signal conversion is rated up to 10MHz, setting a practical ceiling for high-speed pulse trains. The 24V side uses NPN open-collector outputs limited to 100mA per channel, so external pull-up resistors and load calculations are required. Optocoupler isolation adds propagation delay that becomes noticeable near the upper frequency limit.

Eight channels with DIP-selectable direction

Eight channels give enough width for typical encoder, stepper or safety-interlock interfaces without needing multiple boards. Each channel can be configured for 5V-to-24V, 24V-to-5V or same-voltage isolation via DIP switches, covering common European and Japanese PLC wiring conventions. The 100mA output current restricts direct driving of relays or solenoids; a buffer stage is needed for heavier loads.

Highlights

  • Bidirectional 5V to 24V level conversion for flexible signal interfacing
  • Optocoupler isolation boosts anti-interference performance in noisy environments
  • DIP switch input selection simplifies configuration for 100mA NPN output
  • Built-in amplification circuit delivers clean waveforms with strong drive capability
  • Supports both common-cathode and common-anode inputs matching PLC standards

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 5V-to-24V or the 24V-to-5V translation direction for my PLC?

The module handles both directions on the same board; set the DIP switch to match the input voltage you are using.

What does the 10 MHz rating mean when the board is driving a real load?

It indicates the maximum square-wave frequency the translator can process while maintaining clean edges and the specified 100 mA output current.

How does the optocoupler isolation affect the 24 V NPN open-collector output?

The optocoupler separates input and output grounds, improving noise immunity while the NPN output sinks up to 100 mA at 24 V.
