Seven inch IPS touchscreen display with capacitive glass and ribbon cables

Bipra

Bipra 7 Inch Touchscreen IPS DSI Display 800x480

SKU CH-FAY8-CHAQ9

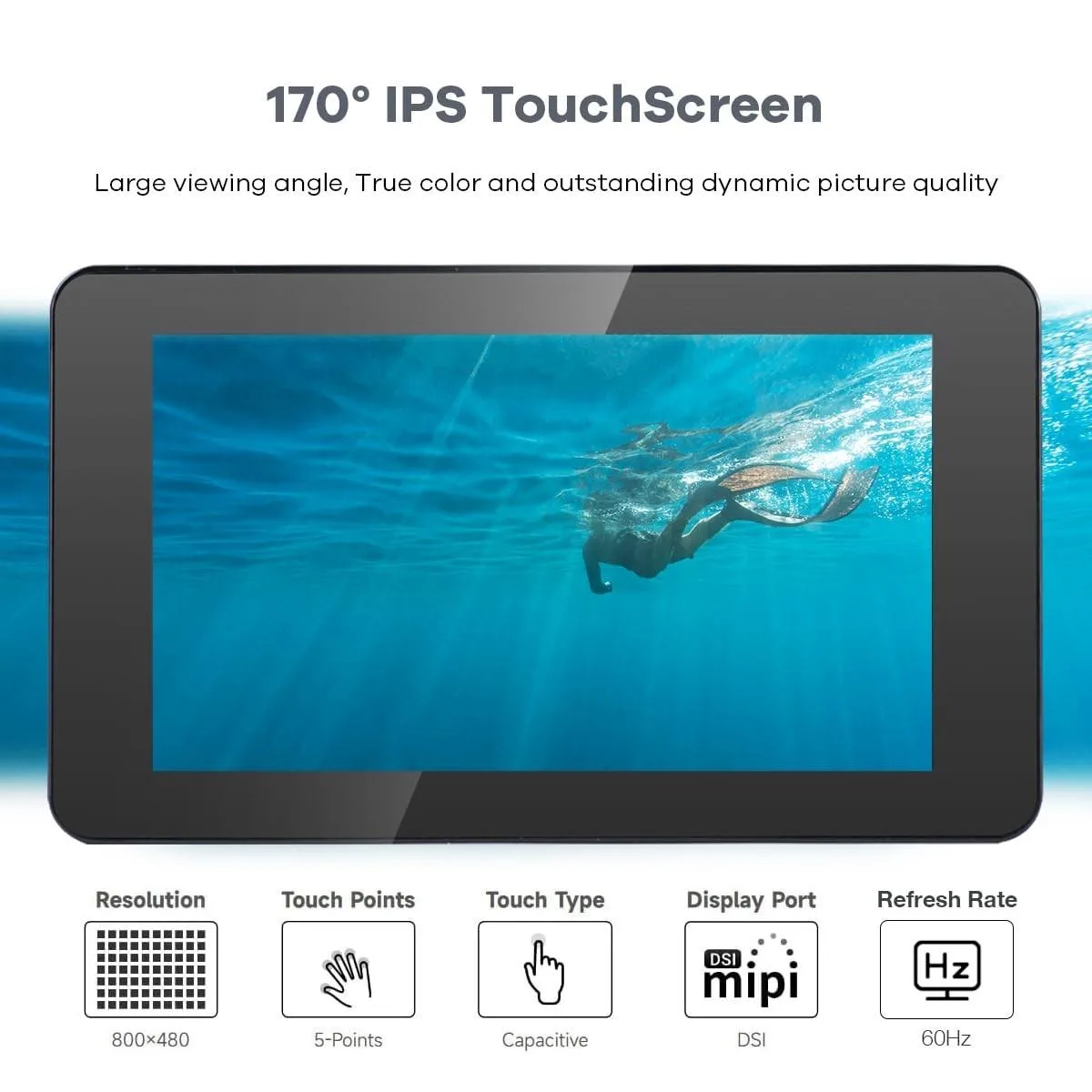

A 7.0 inch IPS capacitive touchscreen with 800×480 resolution, 170° viewing angle and 400 cd/m² brightness connects via MIPI DSI to Raspberry Pi 5 without extra power or drivers

  • True-to-life colours on 7.0 inch IPS panel with 800x480 resolution
  • Smooth 5-point capacitive touch with no drivers required
  • Low 2.2 W draw from 5.0 V via DSI interface
  • Wide 170° viewing angle and 400 cd/m² brightness
  • Works from -20 °C to 70 °C with Raspberry Pi 5

7 Inch IPS Touchscreen for Raspberry Pi 5

This 7.0 inch capacitive IPS display connects directly to a Raspberry Pi 5 through the MIPI DSI interface. It delivers an 800x480 resolution at 60Hz with a 170 degree viewing angle and 400 cd/m2 brightness. No separate power adapter is required because the panel draws 2.2W from the 5.0V rail.

Driver-Free MIPI DSI Connection

The screen uses a MIPI DSI ribbon cable that plugs straight into the Raspberry Pi 5 without any driver installation. A 16cm cable for the Pi 5 is included along with three additional cables for older Pi 4B models. The 5-point capacitive touch panel is ready to use immediately after connection.

Makers Building Portable Pi 5 Projects

This display suits builders who need a compact touchscreen for Raspberry Pi 5 based handhelds, kiosks or embedded panels. It is not suited for users who require HDMI input, higher resolution panels, or a display that works with non-Pi single-board computers.

Highlights

  • True-to-life colours on 7.0 inch IPS panel with 800x480 resolution
  • Smooth 5-point capacitive touch with no drivers required
  • Low 2.2 W draw from 5.0 V via DSI interface
  • Wide 170° viewing angle and 400 cd/m² brightness
  • Works from -20 °C to 70 °C with Raspberry Pi 5

Specifications

No published specifications for this item yet.

Questions about this item

How does the 800x480 resolution look on a 7.0 inch panel in daily use?

The 154.21 x 85.92 mm active area gives a pixel density that keeps text legible and UI elements distinct, while the IPS panel and 170° viewing angle preserve colour and contrast from almost any position.

What does the MIPI DSI interface limit in practice?

The DSI link is tailored to the Raspberry Pi 5 and earlier Pi 4B models; the kit includes 5 cm, 10 cm, 16 cm and 20 cm ribbon cables so you can match the cable length to your board without signal degradation.

What mounting hardware is required to secure the display?

Four M2.5 screws and four M3 copper pillars are supplied together with a mini screwdriver, allowing direct attachment to the Pi board or a compatible case without extra parts.
