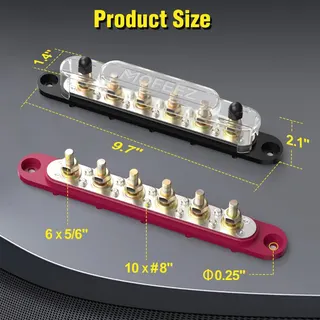

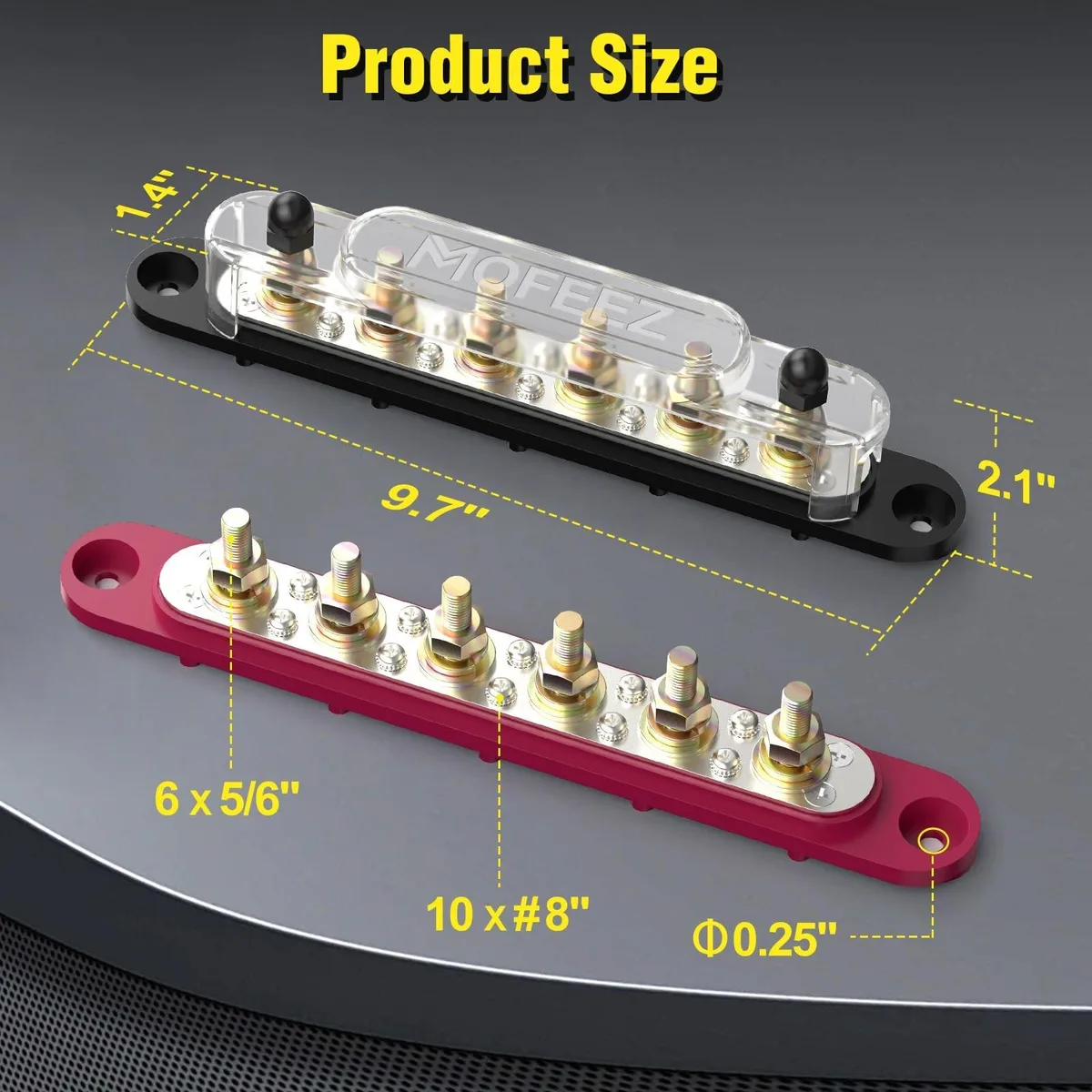

Pair of red and black power bus bars with screw and stud terminals, frosted covers

Bipra

Bipra 2 in 1 accessory 10 × #8 screws 6 × 5/16" studs 250 A 48 V pair red black

SKU CH-X0MM-E99Y2

Power distribution block with ten #8 screw terminals and six 5/16" studs rated 250 A at 48 VDC

  • 10 #8 screws and 6 studs give plenty of connection points
  • 250 A continuous capacity handles heavy-duty DC loads
  • 48 V DC rating suits automotive, marine and RV systems
  • Nickel-plated brass busbars provide low resistance and corrosion protection
  • Insulated nylon base and protective cover prevent accidental shorts

Power Distribution Block Pair

This set includes two bus bars, one red and one black, designed to organise DC wiring in vehicles, boats or RVs. Each block provides ten #8 screw terminals and six 5/16" stud posts for secure cable connections. The pair suits installers who need a tidy, labelled positive and negative distribution point.

250 A Continuous Capacity

The assembly is rated for a maximum continuous current of 250 A across the entire block at up to 48 VDC. Individual connections can handle a brief 20 A surge for less than one minute. Builders requiring higher per-circuit limits or AC voltage ratings should look elsewhere.

Nickel-Plated Brass Bus Bars

Conductive plates are nickel-plated brass for low resistance and corrosion protection. An insulated nylon base and a frosted polycarbonate cover shield live parts from accidental shorts. No active cooling is required; the blocks dissipate heat passively during normal operation.

Highlights

  • 10 #8 screws and 6 studs give plenty of connection points
  • 250 A continuous capacity handles heavy-duty DC loads
  • 48 V DC rating suits automotive, marine and RV systems
  • Nickel-plated brass busbars provide low resistance and corrosion protection
  • Insulated nylon base and protective cover prevent accidental shorts

Specifications

No published specifications for this item yet.

Questions about this item

Will the 250 A bus bar fit alongside my existing 5/16" stud terminals?

Yes, the block includes six 5/16" studs plus ten #8 screws, so it can connect directly to the same stud size you already use.

How do I verify the 48 VDC block is operating correctly after wiring?

With power applied, measure voltage across the nickel-plated brass plates and confirm continuity through each of the sixteen terminals; the frosted cover lets you inspect connections visually.

What hardware comes in the pair and what must I supply?

The box contains two blocks (red and black) with ten #8 stainless screws and six 5/16" studs each; you provide the ring terminals and cables sized for up to 250 A continuous.
