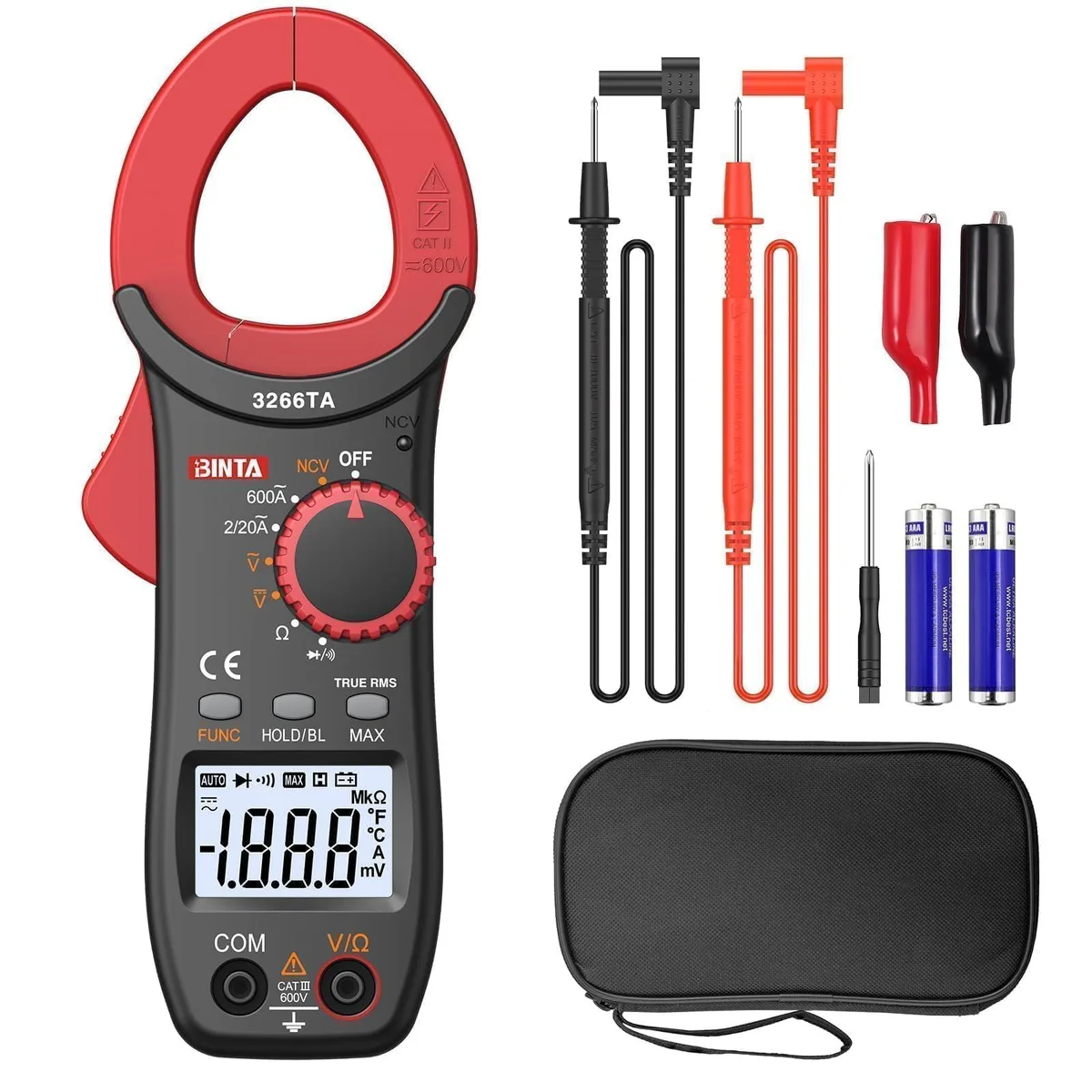

Big Ant digital clamp meter, black handheld unit with hinged jaw, backlit LCD, test leads and alligator clips included

Big Ant Digital Clamp Meter 2000 Counts Auto Range NCV TRMS

SKU CH-MWGC-4EW14

A portable clamp meter measuring AC/DC voltage, AC current, resistance and diodes with 2000-count auto-ranging, NCV detection, TRMS accuracy, backlight, flashlight and continuity test under 50 Ω

  • Features1 x Test Leads (Pair) 1 x Alligator Clip(1 pair), CE, Batter
  • Weight183 grams
  • Sports Team1 Piece
  • TypeVoltmeter
  • Auto-ranging selects the correct range instantly
  • NCV detects live AC voltage without contact
  • Backlit LCD and flashlight for low-light use
  • Clamp measures AC current up to 25 mm safely
  • Continuity beeps under 50 Ω with overload protection

Multi-Function Electrical Tester

The Big Ant digital clamp meter combines AC/DC voltage, AC current, resistance and diode measurement in a single handheld tool. Auto-ranging selects the correct decimal precision instantly, while a non-contact voltage detector alerts users to live conductors before contact is made. A continuity test with a threshold below 50 Ω and overload protection displaying "OL" complete the core diagnostic set. The kit includes test leads, alligator clips and a zippered storage pouch.

Portable Build With Safety Clamp

Weighing 183 grams, the meter fits easily in a tool bag and operates on battery power with a low-battery warning at approximately 2.6 V and auto power-off after about 15 minutes. The clamp jaw opens to 25 mm, allowing current measurement on conductors up to that diameter without breaking the circuit. A backlit LCD and integrated flashlight support work in dim environments, and the included pouch protects the unit during transport.

2000-Count Display Limits Resolution

The 2000-count display caps the finest resolution available on any range, so small changes on high-voltage or high-current readings may not be visible. Auto-ranging cannot overcome this count ceiling, and the continuity beeper only triggers below the stated 50 Ω threshold. Users needing higher resolution, DC current measurement, capacitance, frequency or temperature functions will require a different instrument.

Highlights

  • Auto-ranging selects the correct range instantly
  • NCV detects live AC voltage without contact
  • Backlit LCD and flashlight for low-light use
  • Clamp measures AC current up to 25 mm safely
  • Continuity beeps under 50 Ω with overload protection

Specifications

BrandBig Ant
Features1 x Test Leads (Pair) 1 x Alligator Clip(1 pair), CE, Battery Powered, true
Weight183 grams
Sports Team1 Piece
TypeVoltmeter

Questions about this item

What is the maximum conductor diameter the 25 mm clamp jaw can fit around?

The clamp jaw opens to 25 mm, so it fits around conductors up to that diameter without breaking the circuit.

What accessories are included for mounting or carrying the meter?

The kit includes a zippered storage pouch, a pair of test leads and a pair of alligator clips for hands-free probing.

How is the meter powered and when does the low-battery warning appear?

It runs on a 9 V battery; the low-battery indicator activates when voltage drops below 2.6 V.
