BFKK Handheld Oscilloscope 40MHz 2CH Waveform Generator Multimeter 3 in 1

Handheld 40 MHz Oscilloscope

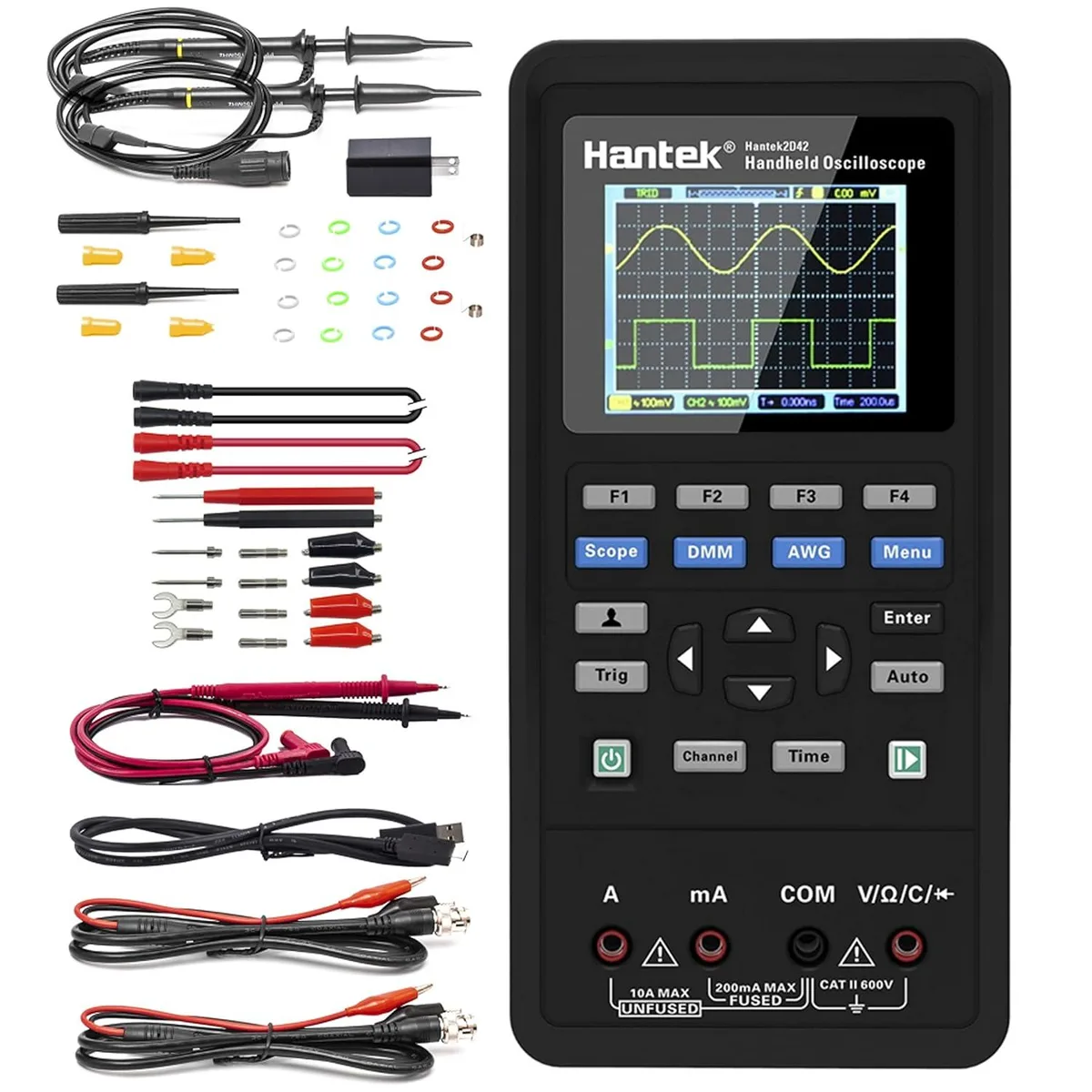

This instrument combines a 40 MHz digital oscilloscope, a waveform generator and a digital multimeter in one handheld unit. It captures signals on two channels at up to 250 MSa/s in single-channel mode or 125 MSa/s in dual-channel mode. The multimeter measures AC and DC voltage, current, resistance, capacitance, diode and continuity. A protective film covers the screen and should be removed before first use.

Engineers, hobbyists and field technicians needing

Users who require a compact tool for signal capture, waveform generation and standard multimeter readings will find the three functions convenient. The generator produces sine waves up to 25 MHz, square waves up to 10 MHz, triangular waves up to 1 MHz and trapezoidal waves up to 5 MHz with 1 Hz resolution. Builders who need higher bandwidth, deeper memory or more generator channels should look at other equipment.

40 MHz bandwidth with 250 MSa/s sampling

The oscilloscope section provides 40 MHz bandwidth and a maximum sample rate of 250 MSa/s on a single channel, dropping to 125 MSa/s when both channels are active. Vertical sensitivity ranges from 10 mV to 10 V. The waveform generator runs at 250 MSa/s with 12-bit vertical resolution and 50 ohm output impedance. Six waveform storage slots and a reference waveform compare function are included.
