1U 19 inch rack drawer with 17 inch LCD screen and keyboard tray

BFKK

BFKK 8 Port Rack Mount KVM Switch Over IP 17 LCD 1U 19 Inch

SKU CH-AKDW-46MHN

Rack-mount 1U console with 17-inch LCD manages eight servers locally or over IP with BIOS-level control

  • TypeKVM Switch
  • Secure BIOS-level remote access over LAN or IP
  • 17-inch LCD with 1280x1024 resolution built in
  • Four switching methods: OSD, hotkey, button, IP
  • Daisy-chain up to 64 servers from one console
  • Fits 1U 19-inch rack, depth adjustable 60-81 cm

8-Port IP KVM with 17-Inch LCD

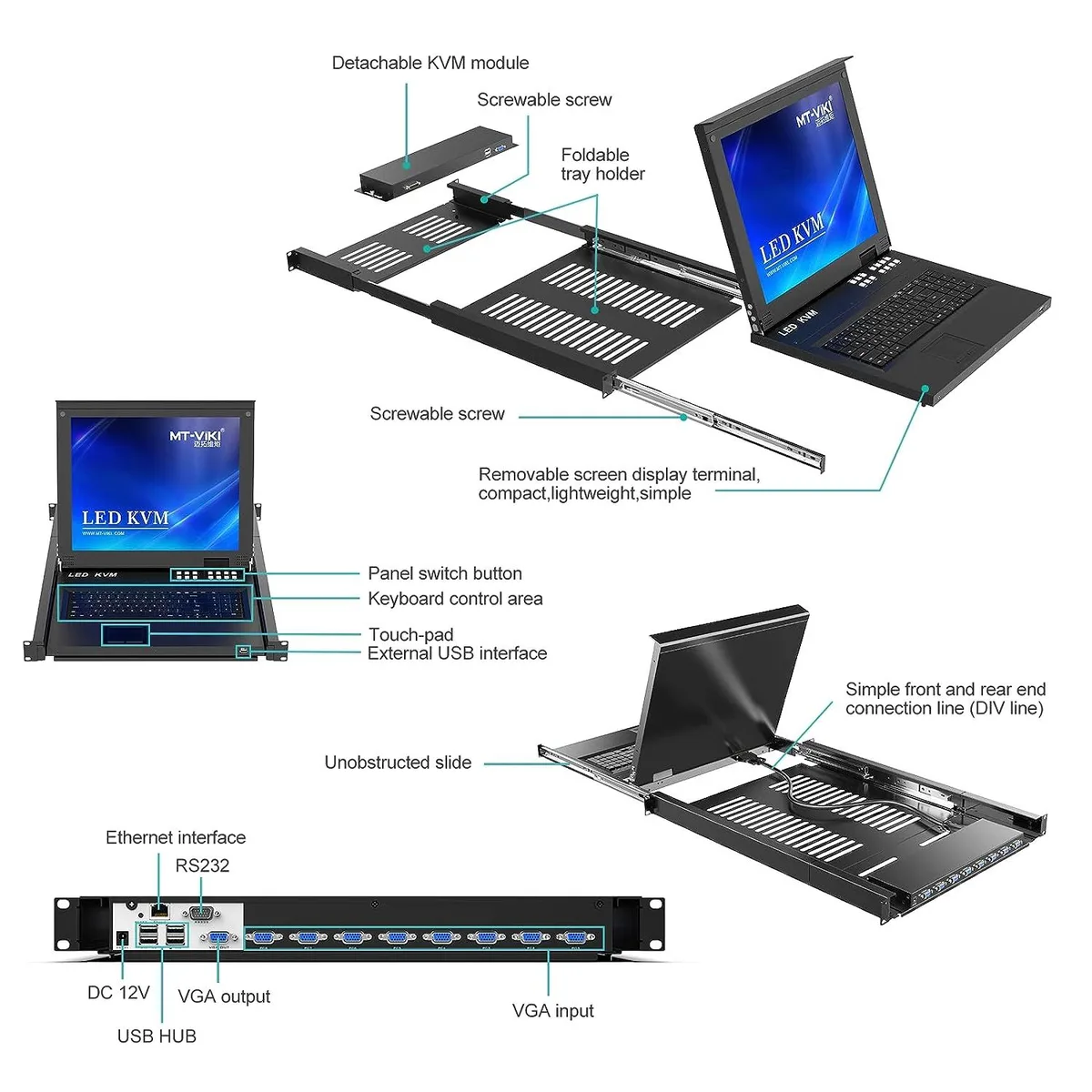

This 1U rack-mount console integrates a 17-inch LCD, keyboard and touchpad with an 8-port KVM switch that provides both local and IP-based remote access. It is built for administrators who need to manage up to eight servers from a single rack location or over a LAN, WAN or Internet connection.

Resolution headroom and server count

The integrated display supports video resolutions up to 1280 x 1024, which is sufficient for BIOS-level interaction, boot-process monitoring and text-heavy server consoles. The switch controls eight servers directly and can be cascaded to reach 64 computers, although cascaded units are limited to local control only.

IP access method and security

Remote sessions require the supplied client software for stable operation and support SSH, SSL and RADIUS authentication plus a configurable firewall. The unit fits standard 19-inch racks with a mounting depth adjustable from 60 cm to 81 cm and occupies 1U of rack height.

Highlights

  • Secure BIOS-level remote access over LAN or IP
  • 17-inch LCD with 1280x1024 resolution built in
  • Four switching methods: OSD, hotkey, button, IP
  • Daisy-chain up to 64 servers from one console
  • Fits 1U 19-inch rack, depth adjustable 60-81 cm

Specifications

TypeKVM Switch

Questions about this item

Will the 17" LCD drawer fit my existing 19" rack with a 60 cm depth?

Yes, the unit mounts in a standard 1U 19" rack and the sliding rails adjust from 60 cm to 81 cm depth, so a 60 cm cabinet works.

How can I verify the IP remote session is active at 1280x1024 after installation?

Open the OSD menu on the LCD or the client software; both show the current video mode, and the panel's native resolution is 1280x1024.

Do the eight included KVM cables cover every server port, or must I buy extra cables for the daisy-chain ports?

The package supplies eight KVM cables for the eight primary ports; daisy-chaining up to 64 computers requires additional cascade cables not included.
