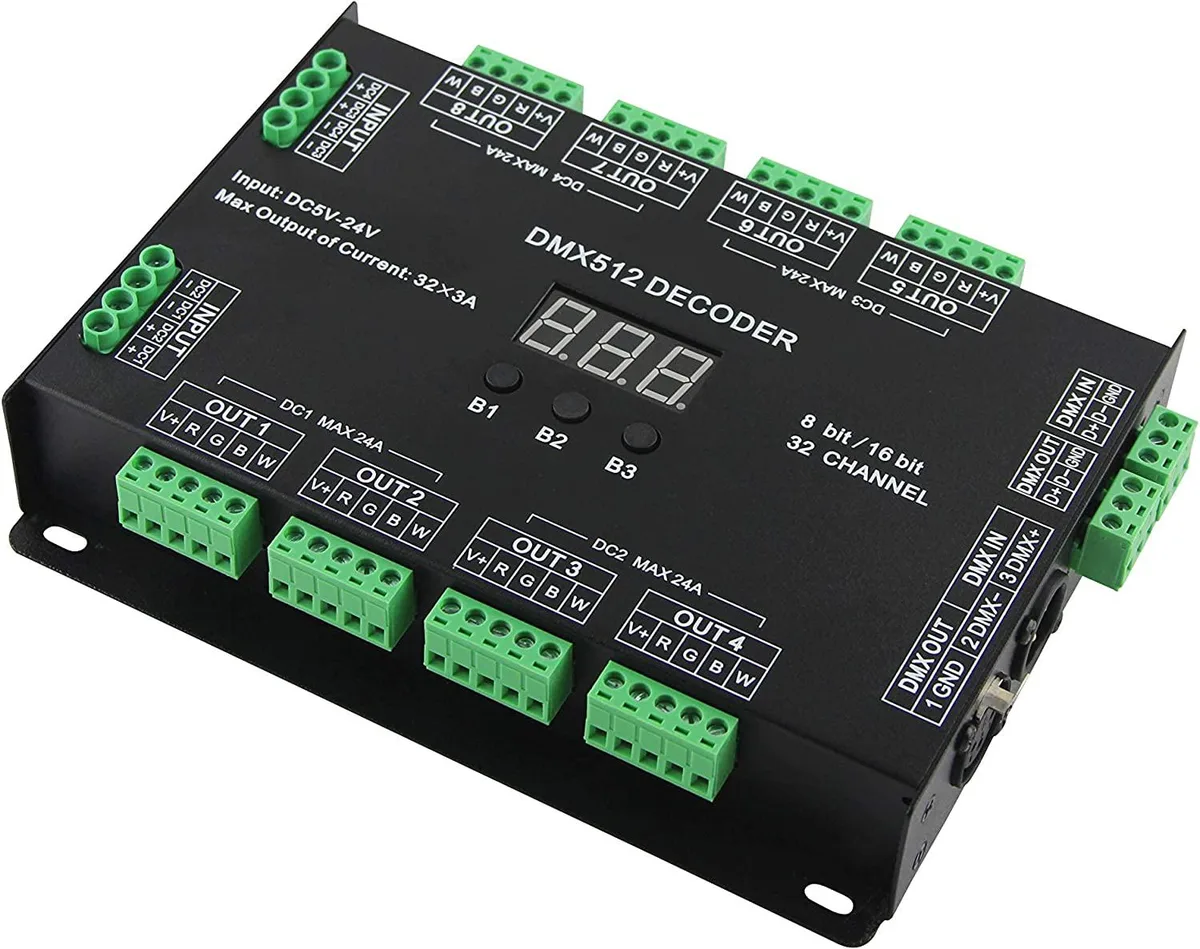

Compact black DMX decoder with digital display and terminal blocks

BFKK

BFKK 32 Channel 96A DMX512 RGBW Decoder Controller

SKU CH-H5VD-CMKWQ

A 32-channel DMX512 decoder with 96A capacity, DC5-24V auto-ranging, linear flicker-free dimming, DIM/CT/RGB/RGBW modes, 14 built-in effects at 10 speeds, 8/16-bit resolution and wiring protection

  • 32 channels support complex RGBW lighting designs
  • 96 A total capacity drives high-power LED installations
  • DC5-24V auto-ranging input simplifies power supply choice
  • 14 built-in programmes with 10 speeds enable standalone effects
  • 8-bit and 16-bit dimming deliver smooth flicker-free output

32-Channel DMX512 Decoder for LED Installations

The BFKK decoder accepts standard DMX512 signals and drives up to 32 output channels. It operates on any DC input from 5 V to 24 V and includes power-loss memory plus incorrect-wiring protection at the DMX port. A three-digit display shows the active DMX address.

Suited for Fixed RGBW Lighting.

The unit handles DIM, CT, RGB and RGBW modes with linear, flicker-free dimming and offers 14 built-in colour programmes at 10 speed settings for standalone testing. Buyers who need per-pixel addressable control, high-channel-count moving-head support or wireless DMX should look elsewhere.

96 A Total Capacity Across Four 24-A Channel Groups

Each of the 32 channels can carry up to 24 A, giving 96 A aggregate headroom for large LED runs at 24 V. The decoder runs out of headroom when a single colour group exceeds its 24 A limit or when the combined load surpasses 96 A, requiring additional decoders.

Highlights

  • 32 channels support complex RGBW lighting designs
  • 96 A total capacity drives high-power LED installations
  • DC5-24V auto-ranging input simplifies power supply choice
  • 14 built-in programmes with 10 speeds enable standalone effects
  • 8-bit and 16-bit dimming deliver smooth flicker-free output

Specifications

No published specifications for this item yet.

Questions about this item

What power supply voltage does the 32-channel decoder require to operate?

It automatically adapts to any DC input between 5 V and 24 V.

Can the 96 A output run alongside an older DMX dimmer on the same DMX512 line?

Yes — it reads standard DMX512 and includes incorrect-wiring protection at the DMX port.

How do I verify the decoder is addressing the correct fixture after setup?

The 3-digit display shows the active DMX address and a signal-presence indicator confirms data reception.
