17 inch LCD KVM console with 8 VGA ports in 1U rackmount chassis

BFKK

BFKK 17" LCD 8-Port VGA KVM Switch 1U Rack Mount

SKU CH-1ADQ-186HB

A 17-inch LCD console with an 8-port VGA KVM switch mounts in a 1U 19-inch rack and controls up to 64 servers via daisy-chain

  • Controls 8 computers from one 17" LCD console
  • Daisy-chains two levels to manage up to 64 servers

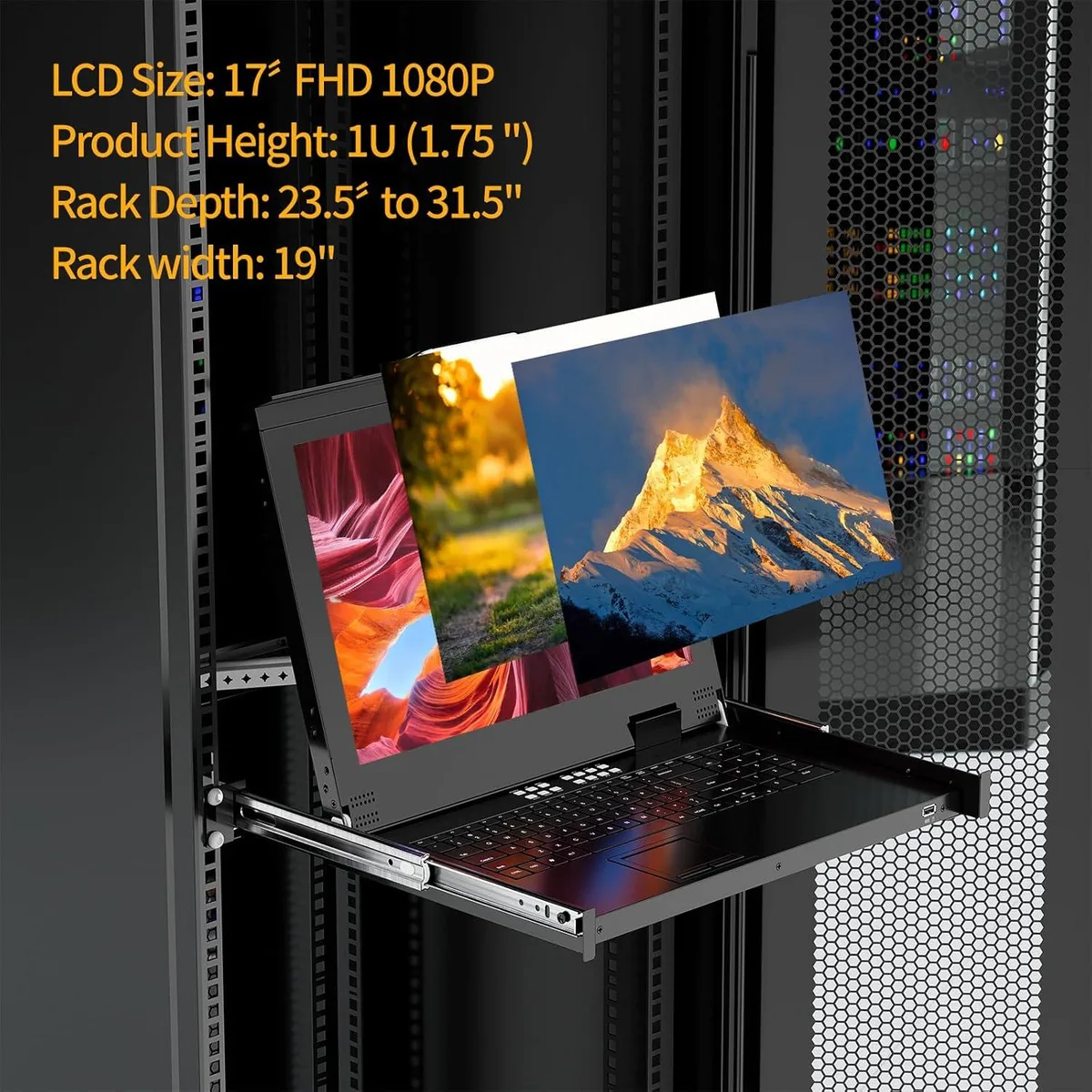

  • Fits 1U in 19" racks 600–800 mm deep with included rails

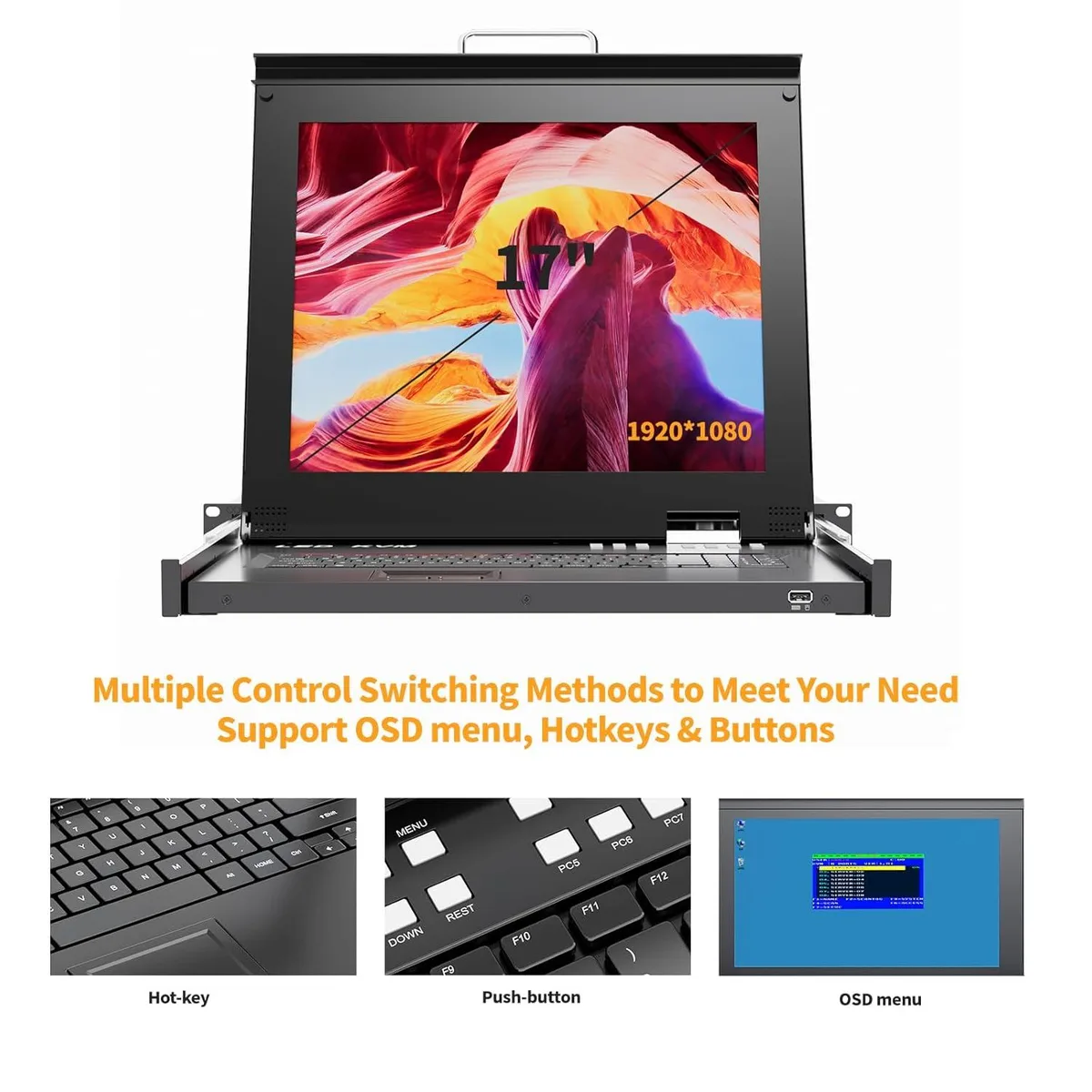

  • Switches via OSD menu, hotkeys or front-panel buttons
  • Supports DOS, Windows, Linux, Mac and UNIX with dual-level password security

17" LCD 8-Port VGA KVM Switch

This 1U rackmount console integrates a 17-inch LCD with an 8-port VGA KVM switch for server management. It fits standard 19-inch racks with adjustable rails for depths between 600 mm and 800 mm. The unit includes eight VGA KVM cables and supports DOS, Windows, Linux, Mac, and UNIX systems.

Expands to 64 servers via cascade

A two-level daisy-chain capability allows one console to control up to 64 computers. This upgrade is worthwhile when rack space is limited and multiple servers must be managed from a single keyboard, monitor, and mouse. Two-level password security restricts access to authorised operators only.

VGA interface limits resolution and distance

The analogue VGA connection constrains maximum video quality and cable reach compared with digital alternatives. Switching relies on OSD menu, hotkeys, or front-panel buttons, and extra VGA and USB ports allow an external monitor or peripherals. No digital video or remote-over-IP features are included.

Highlights

  • Controls 8 computers from one 17" LCD console
  • Daisy-chains two levels to manage up to 64 servers
  • Fits 1U in 19" racks 600–800 mm deep with included rails
  • Switches via OSD menu, hotkeys or front-panel buttons
  • Supports DOS, Windows, Linux, Mac and UNIX with dual-level password security

Specifications

No published specifications for this item yet.

Questions about this item

How deep must the rack be to mount this 1U console?

The included metal rails fit racks from 600 mm to 800 mm deep, which equals 23.5 to 31.5 inches.

What is the first step when installing the unit in a 19-inch rack?

Slide the supplied metal rails into the cabinet, then secure the console to the rails before connecting the eight VGA cables.

Which cables should be checked first if a port stops passing video?

Inspect the four 5-foot and four 6-foot VGA KVM cables supplied with the console; replace any that show bent pins or damaged sheathing.
