Yellow handheld insulation tester with large grey-backlit LCD, high-voltage leads and USB port

BFKK

BFKK 10kV Digital Insulation Meter 0.01M–35TΩ

SKU CH-BC4X-ZQCZW

Tests insulation resistance from 0.01 MΩ to 35 TΩ at up to 10 kV with absorption ratio, polarisation index and DC/AC voltage measurement

  • Measures insulation resistance up to 35 TΩ with 0.01 MΩ resolution
  • Tests absorption ratio and polarization index for insulation quality assessment
  • Built-in data storage for 500 measurement groups with USB data transfer
  • Shockproof, dustproof and moisture-proof construction for field durability
  • Controllable gray backlight LCD readable in dim environments

BFKK 10kV Digital Insulation Meter

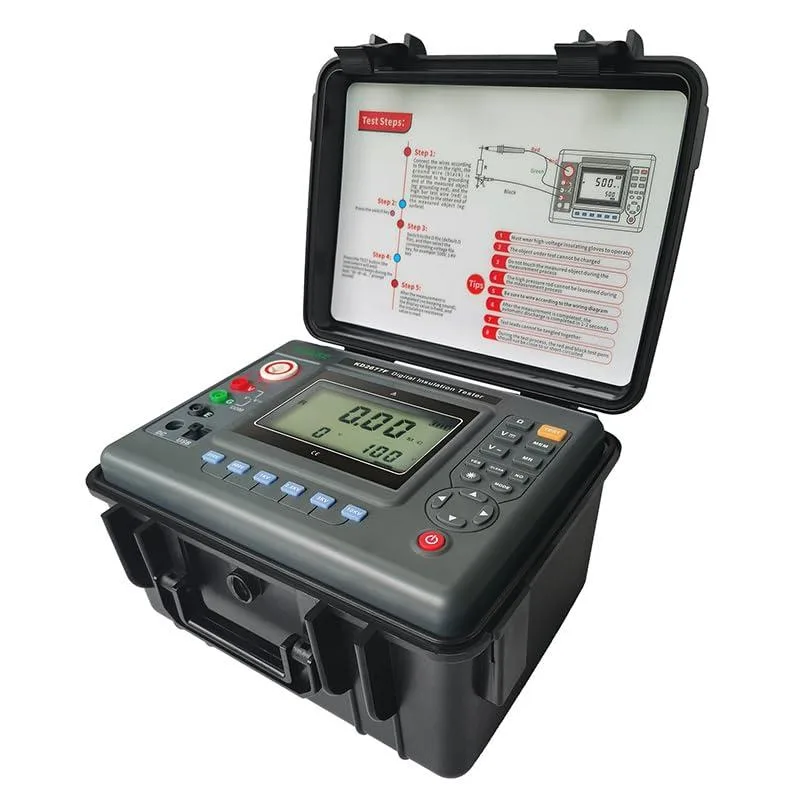

The BFKK 10kV Digital Insulation Meter is a high-voltage insulation resistance tester designed for electrical maintenance professionals. It measures insulation resistance from 0.01M to 35T across transformers, motors, cables and other equipment. The instrument includes a 108mm×65mm gray backlit LCD, 500-group data storage with USB upload capability, and a shockproof, dustproof, moisture-proof structure for field use.

Sustained-load behaviour

During extended testing the meter delivers a stable output short-circuit current of 6mA at 15kV. The ramp function steps voltage in 10% increments to the target level, while filter test intervals of 10, 20, 30, 40 and 50 seconds support absorption ratio and polarization index measurement without interruption. Automatic shutdown preserves the 12.6V rechargeable battery between sessions.

Replaces analogue megohmmeters lacking data logging

This unit upgrades from basic insulation testers that cannot store results or transfer data to a PC. The USB interface enables software monitoring, saving and printing of up to 500 recorded groups. It is not suited for buyers who require networked multi-device synchronisation or cloud-based asset management.

Highlights

  • Measures insulation resistance up to 35 TΩ with 0.01 MΩ resolution
  • Tests absorption ratio and polarization index for insulation quality assessment
  • Built-in data storage for 500 measurement groups with USB data transfer
  • Shockproof, dustproof and moisture-proof construction for field durability
  • Controllable gray backlight LCD readable in dim environments

Specifications

No published specifications for this item yet.

Questions about this item

How much heat or noise does the 10 kV meter generate during continuous all-day testing?

The unit runs on a 12.6 V rechargeable battery with a maximum 6 mA short-circuit current at 15 kV, so it produces minimal heat and no audible fan noise during extended use.

What must I already own to start testing with this insulation meter?

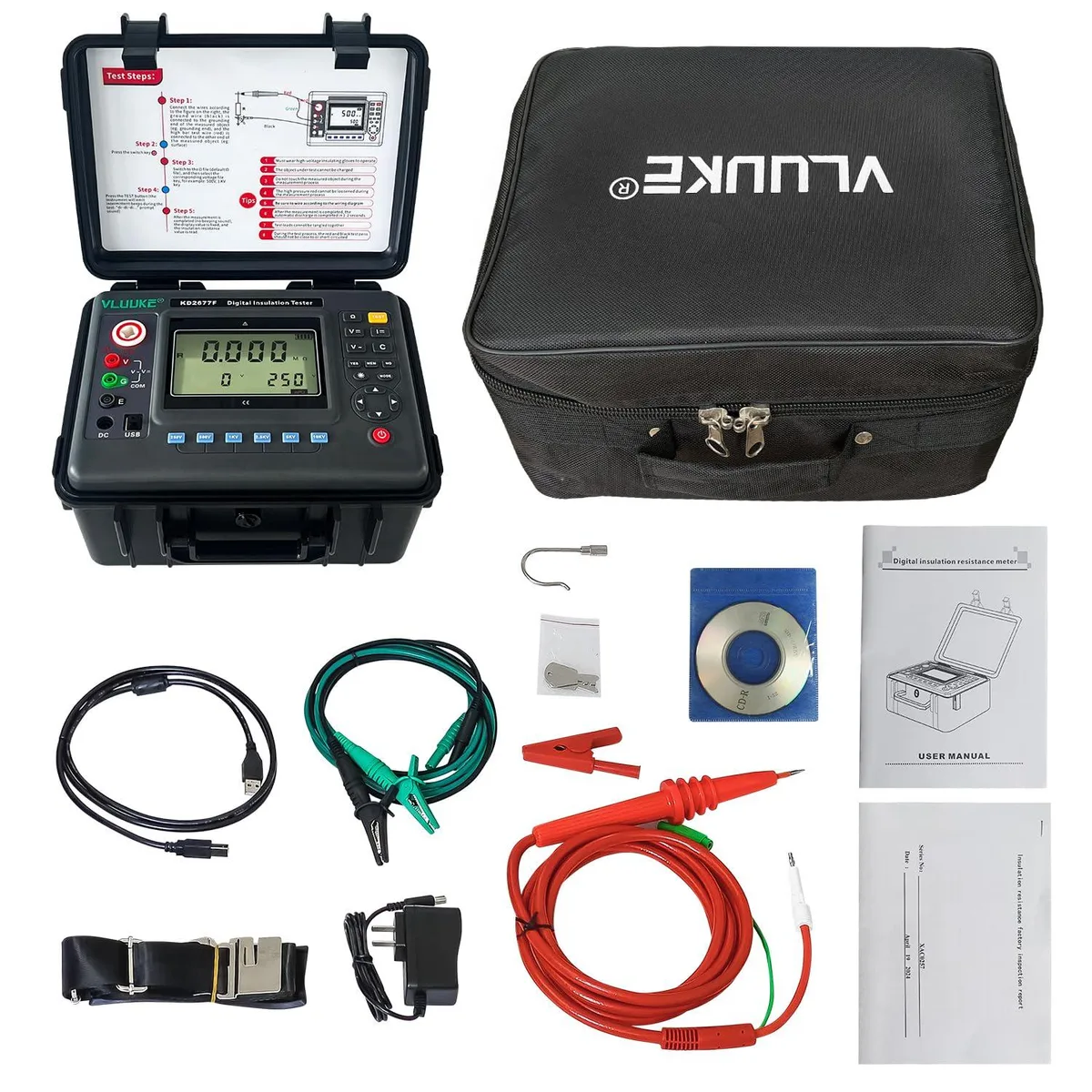

The package includes a USB communication cable, red 3 m high-voltage lead, black and green 1.5 m test leads, and the internal 12.6 V battery, so no extra accessories are required for basic operation.

Will the USB data upload work on my older Windows 7 laptop?

The meter provides a standard USB interface for software monitoring and data transfer; compatibility depends on the PC software supplied, not on the instrument itself.
