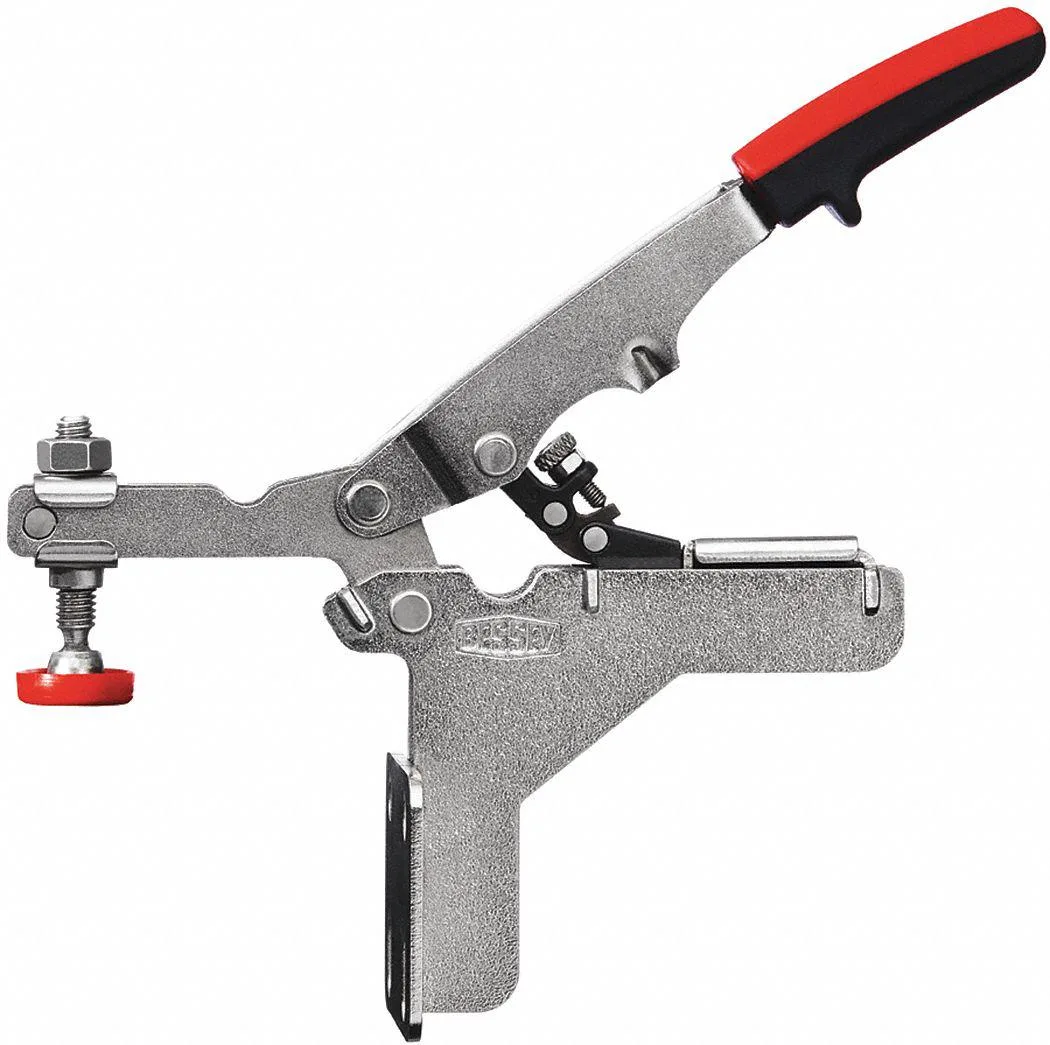

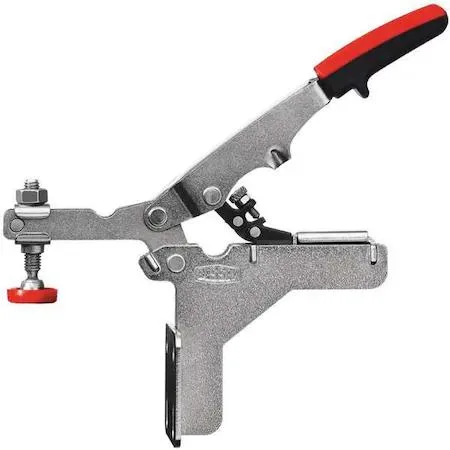

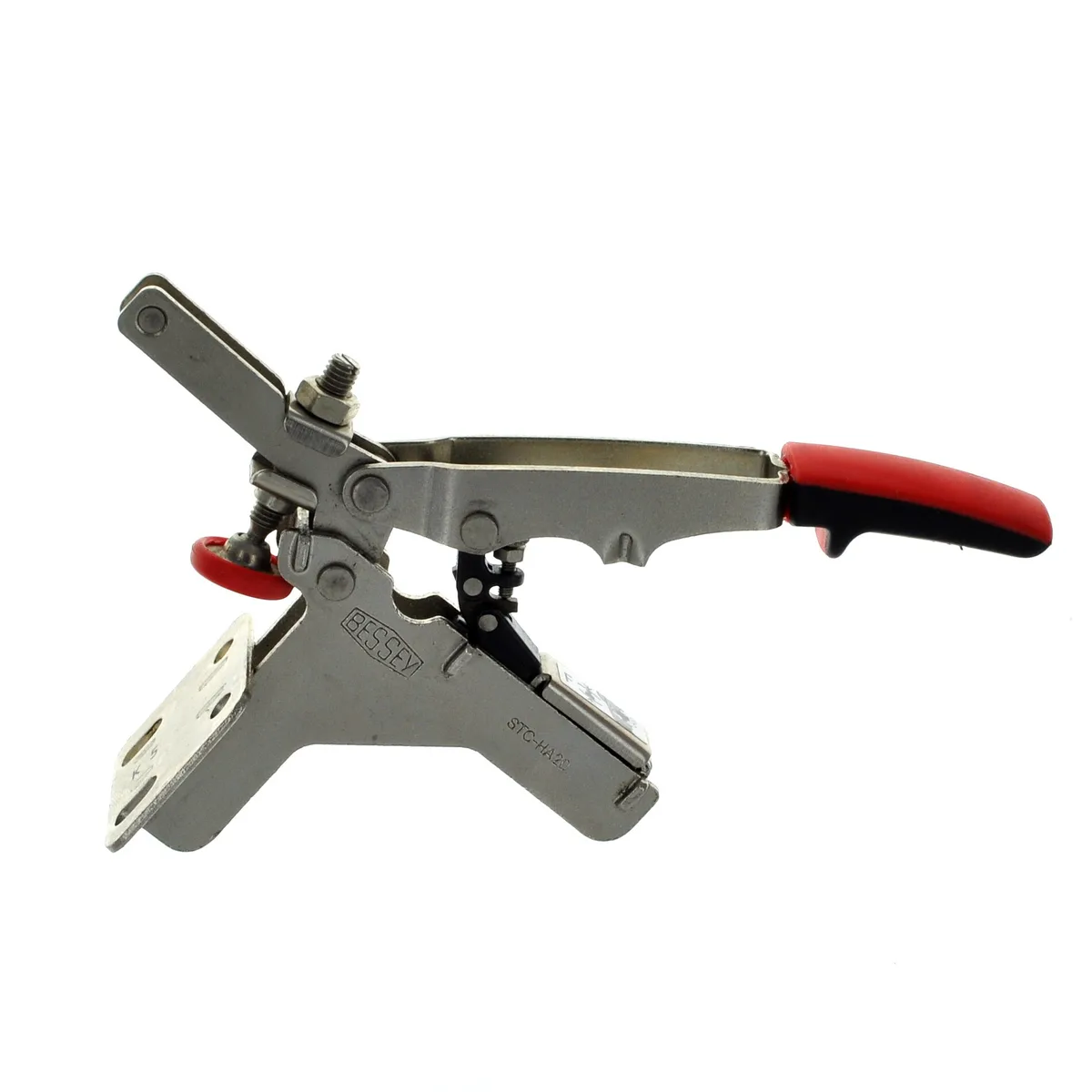

Bessey STC-HA20 horizontal toggle clamp, steel body, U-bar arm, polyethylene tip, front base mount

Bessey Tools

Bessey STC-HA20 Horizontal Toggle Clamp PPE

SKU CH-3KEF-KBQ41

Horizontal toggle clamp with auto-adjusting U-bar arm holds up to 450 lbf and applies 250 lb clamping force

  • Auto-adjusts to workpiece variations for consistent grip
  • 450 lbf maximum holding capacity secures heavy parts
  • 250 lb clamping force delivers strong pressure
  • Horizontal handle with 180° arm opening allows easy access
  • Steel body with M6 mounting holes spaced 1.02 in apart

Bessey STC-HA20 Horizontal Toggle Clamp

The Bessey STC-HA20 is a steel horizontal toggle clamp designed for repetitive holding tasks. It features a U-bar arm with a polyethylene tip and a 180-degree opening angle. The clamp mounts via front-facing holes spaced 1.02 inches apart on centre. A plastic protective cap is included with the unit.

Suits fixtures needing quick horizontal locking

This clamp suits jigs and fixtures where a horizontal handle saves vertical clearance. The auto-adjust mechanism accommodates workpiece variation without manual resetting. Buyers who need a vertical handle orientation or a locking handle for vibration security should look at alternative clamp styles. The 450 lbf holding capacity fits light to medium clamping jobs.

450 lbf maximum holding capacity

The single specification that decides fit is the 450 lbf maximum holding capacity. The clamping force is rated at 250 lb with a U-bar arm length of 1.77 inches. Height under the arm measures .79 inches. The fastener thread size is M6 for standard mounting hardware.

Highlights

  • Auto-adjusts to workpiece variations for consistent grip
  • 450 lbf maximum holding capacity secures heavy parts
  • 250 lb clamping force delivers strong pressure
  • Horizontal handle with 180° arm opening allows easy access
  • Steel body with M6 mounting holes spaced 1.02 in apart

Specifications

BrandBESSEY

Questions about this item

How much clamping force does the 450 lbf holding capacity deliver in use?

The clamp applies up to 250 lb of clamping force while the holding capacity is rated at 450 lbf.

What does the M6 fastener thread size limit for mounting?

The M6 thread size means the clamp must be bolted with M6 hardware; it caps the bolt diameter you can use for installation.

How much space does the 1.77 in arm and 0.79 in height need to fit?

The U-bar arm extends 1.77 in and sits 0.79 in above the base, so allow at least that clearance for the clamp to operate.
