Industrial fanless metal PoE switch with solar charge controller

BESIGN

BESIGN 2 in 1 Accessory Solar PoE Switch 120W

SKU CH-J3TA-12GS8

Industrial solar PoE switch with built-in MPPT charge controller powers up to four cameras or bridges using 300W panels and 120W PoE budget

  • Industrial switch runs directly from PV panels up to 300W
  • Four PoE ports deliver 120W total budget with 90W PoE++ on ports 3-4
  • Remote battery monitoring supports lead-acid lithium and LiFePO4 at 12V or 24V
  • Layer 2 management via web CLI SNMP includes VLAN STP QoS ACL
  • Fanless metal enclosure rated -40 to 176 with 6KV surge protection

Solar PoE Switch for Off-Grid Cameras

This industrial-grade switch combines a managed PoE layer-2 core with a built-in MPPT solar charge controller. It powers up to four cameras, wireless bridges or LED lights directly from PV panels rated up to 300W. The fanless metal enclosure operates from -40 to 176 degrees Fahrenheit and mounts on DIN rail. Total PoE budget is 120W.

Upgrade from Separate Injector and Charge Controller

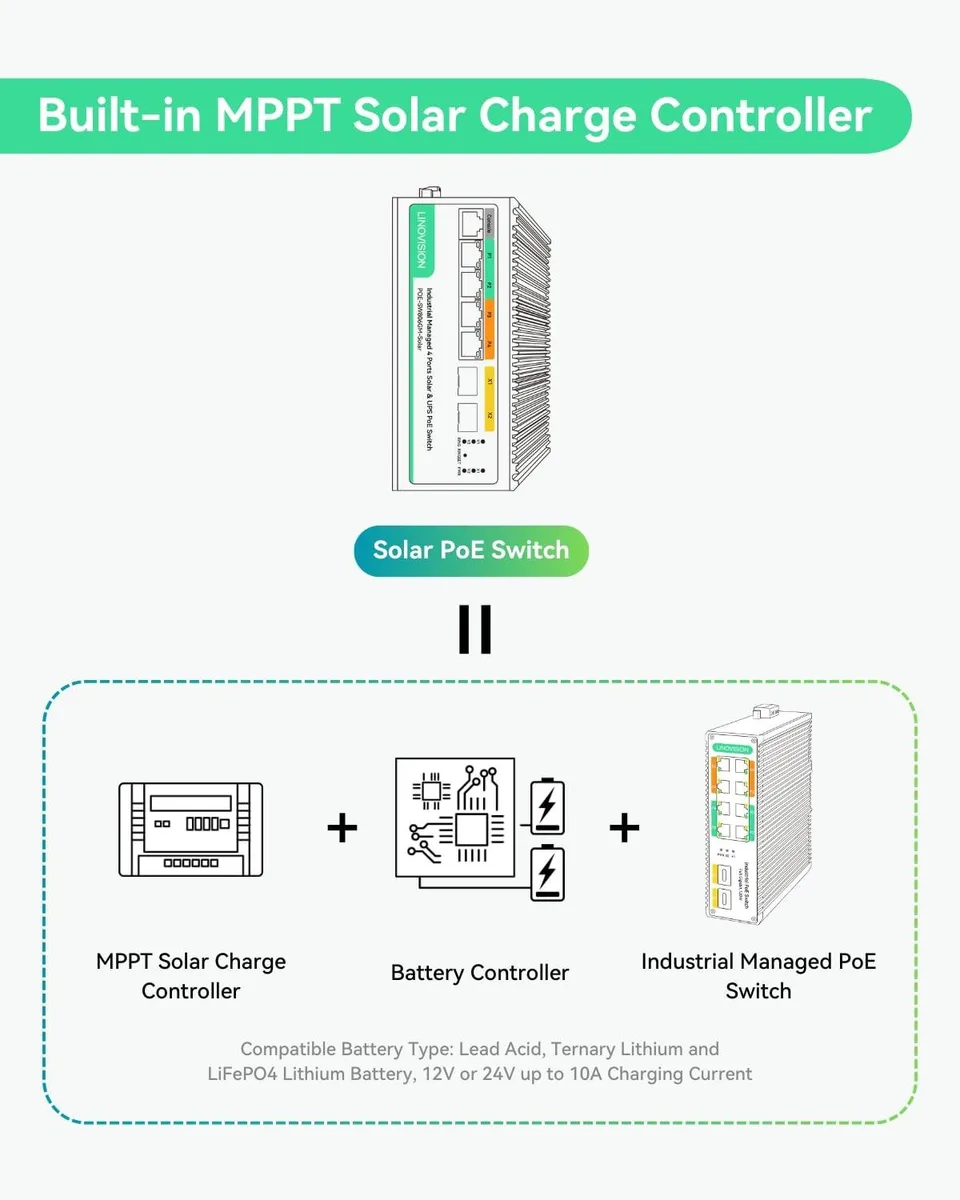

The unit replaces a discrete solar regulator, battery monitor and multi-port PoE injector with a single managed device. The jump is worth it when you need remote battery telemetry, low-voltage cut-off protection and per-port PoE scheduling without running mains power to the cabinet. Layer-2 features such as VLAN, STP and link aggregation simplify network segmentation.

Check Panel Voltage and Battery Chemistry Before

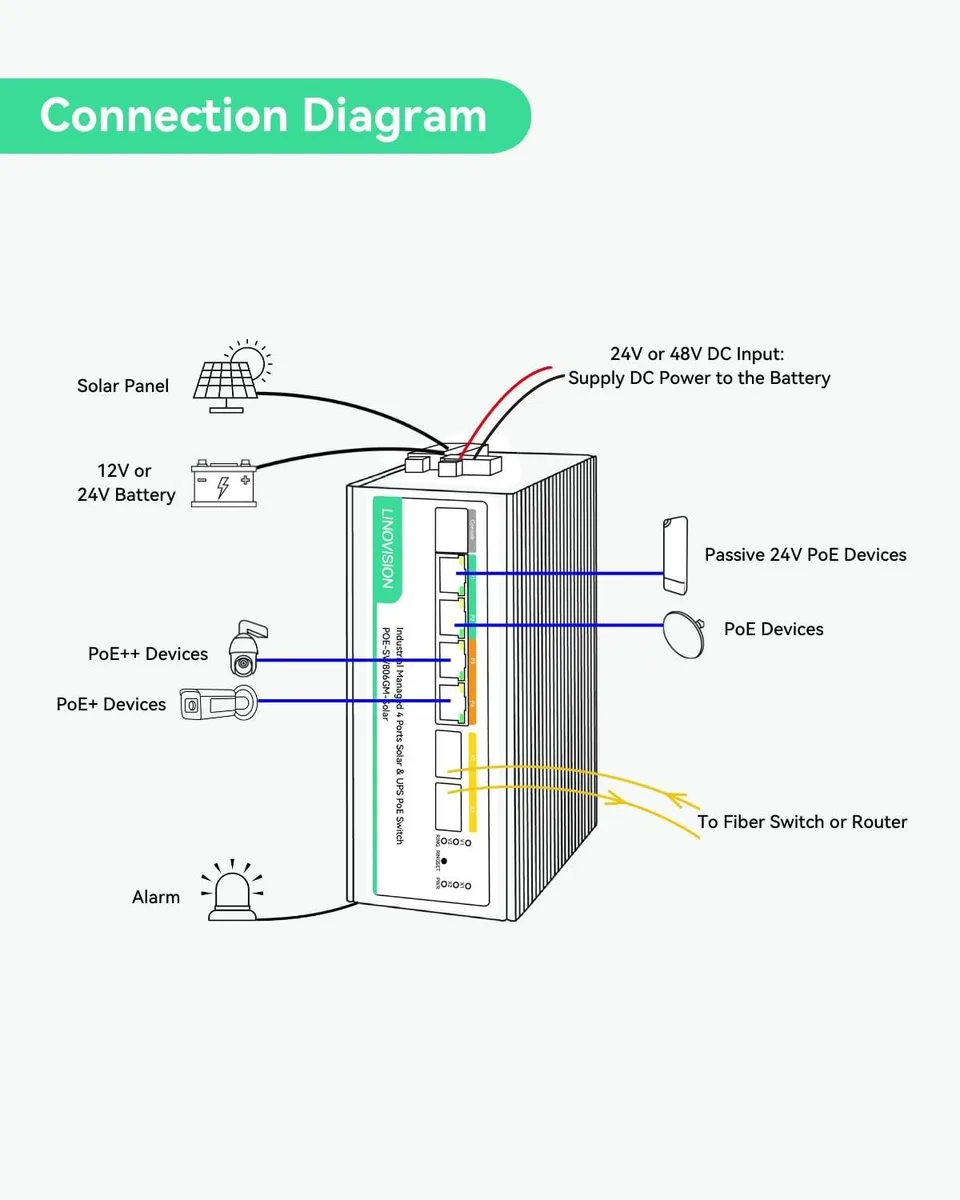

Verify that your solar array open-circuit voltage stays within the MPPT input window and that your battery bank is 12V or 24V lead-acid, lithium or LiFePO4 rated up to 10A charge current. Confirm the switch’s alarm I/O matches your monitoring system and that DIN rail space is available in the enclosure. Port 1-2 deliver 802.3af/at 30W or passive 24V, while ports 3-4 provide up to 802.3bt 90W each.

Highlights

  • Industrial switch runs directly from PV panels up to 300W
  • Four PoE ports deliver 120W total budget with 90W PoE++ on ports 3-4
  • Remote battery monitoring supports lead-acid lithium and LiFePO4 at 12V or 24V
  • Layer 2 management via web CLI SNMP includes VLAN STP QoS ACL
  • Fanless metal enclosure rated -40 to 176 with 6KV surge protection

Specifications

No published specifications for this item yet.

Questions about this item

What mounting option does the fanless metal enclosure provide for the 120W solar PoE switch?

The enclosure supports DIN rail mounting for installation in industrial cabinets or outdoor enclosures.

Which management interface should be accessed first to configure VLANs and QoS on the L2 managed switch?

Connect to the WEB GUI through a browser to set up VLAN, STP, Link Aggregation, QoS and ACL features.

When should the 12V or 24V lead-acid, lithium or LiFePO4 battery be replaced under the smart battery management system?

The remote monitoring and local LED indicator track battery health; replace the unit when capacity drops below the low-voltage cut-off threshold.
