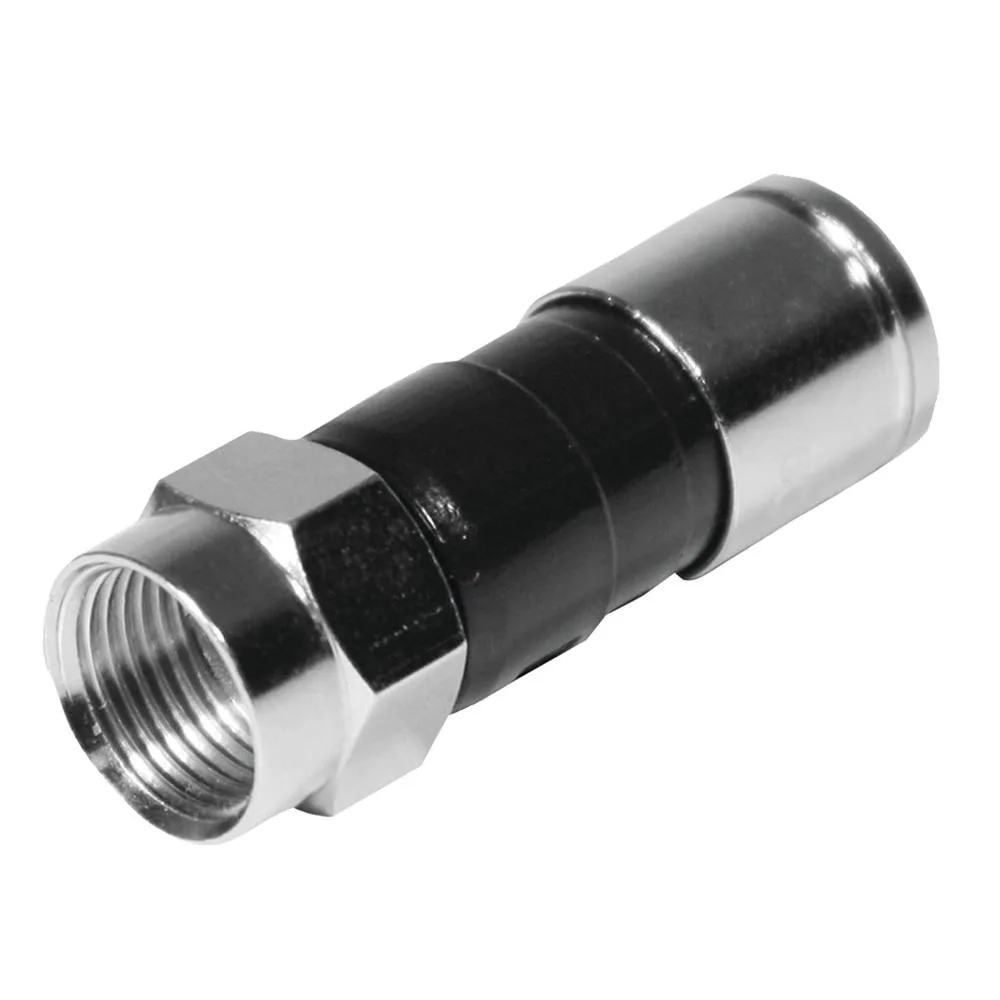

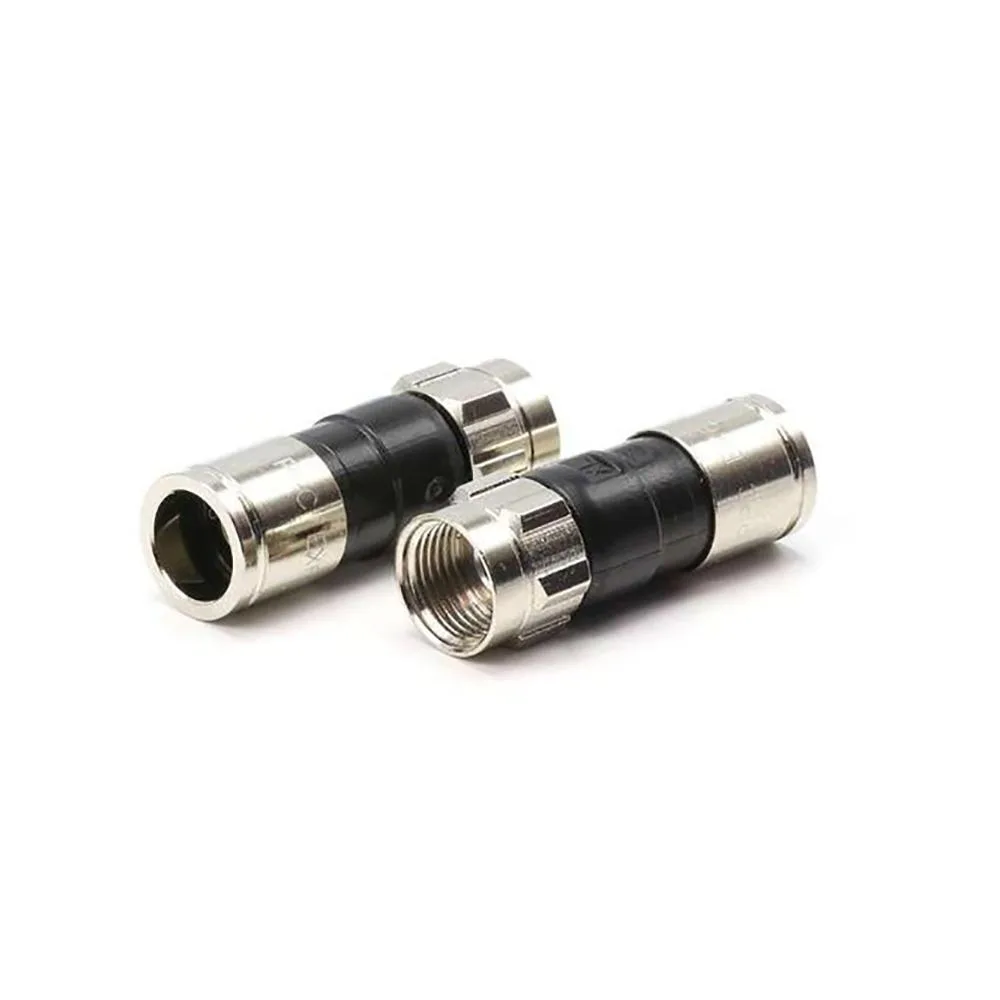

Twenty brass compression connectors in a clear plastic bag

BELDEN

BELDEN RG6-EX6XLPLUS20Pack 20 wire cap connectors

SKU CH-9HHF-6MZQD MPN RG6-EX6XLPLUS20Pack

A 20-pack of universal compression connectors fitting 60% through Quad Shield Series 6 and 59 cable with 75 Ohm impedance to 3 GHz

  • TypeCable Connectors
  • FeaturesUniversal
  • Universal fit for 60 % through Quad Shield cable
  • Patented co-polymer body resists moisture ingress
  • Bandwidth from 0 MHz to 3 GHz at 75 Ohms
  • Return loss minimum -30 dB to 3 GHz
  • Pack of 20 connectors for multiple installations

Universal RG6 Compression Connectors

The Belden EX6XL Plus connectors are universal compression fittings for Series 6 coaxial cable. They fit standard, tri-shield and quad-shield braids in a single part number. The 20-pack suits installers and technicians who terminate RG6 and Series 59 drops daily. The one-piece design removes the guesswork of matching connectors to unmarked cable jackets.

Patented Co-Polymer Body and Outdoor Rating

A compliant co-polymer body expands to grip 60% through quad-shield constructions on both PE and PVC jackets. The moisture-tight seal meets the demands of outdoor plant and satellite installations. Physically contoured parts allow quick visual identification on the job site. Dish and DirecTV approval confirms suitability for subscriber-side distribution networks.

3 GHz Bandwidth and 75 Ohm Impedance

The interface supports 0 MHz to 3 GHz with a 75 Ohm impedance match. Return loss holds at a minimum of -30 dB across the band while insertion loss stays below 0.10 dB. These limits define the practical ceiling for high-speed data and IP telephony signals carried over the connector. Installers working beyond 3 GHz or requiring a different impedance must select another product.

Highlights

  • Universal fit for 60 % through Quad Shield cable
  • Patented co-polymer body resists moisture ingress
  • Bandwidth from 0 MHz to 3 GHz at 75 Ohms
  • Return loss minimum -30 dB to 3 GHz
  • Pack of 20 connectors for multiple installations

Specifications

BrandBelden
ModelRG6-EX6XLPLUS20Pack
TypeCable Connectors
FeaturesUniversal

Questions about this item

What bandwidth does the RG6-EX6XLPLUS20Pack connector support?

The connector is rated for 0 MHz to 3 GHz with 75 Ohm impedance, return loss of at least -30 dB, and insertion loss below 0.10 dB across that range.

Which cable types fit this universal compression connector?

It fits all Series 6 drop cables including standard, tri-shield and quad-shield constructions with PE or PVC jackets, and also covers 59 series cable.

How is the EX6XL Plus connector installed and what mistake should be avoided?

Strip the cable, slide the connector over the prepared end, then compress with a compatible tool; the common error is not seating the cable fully before compression, which breaks the moisture-tight seal.
