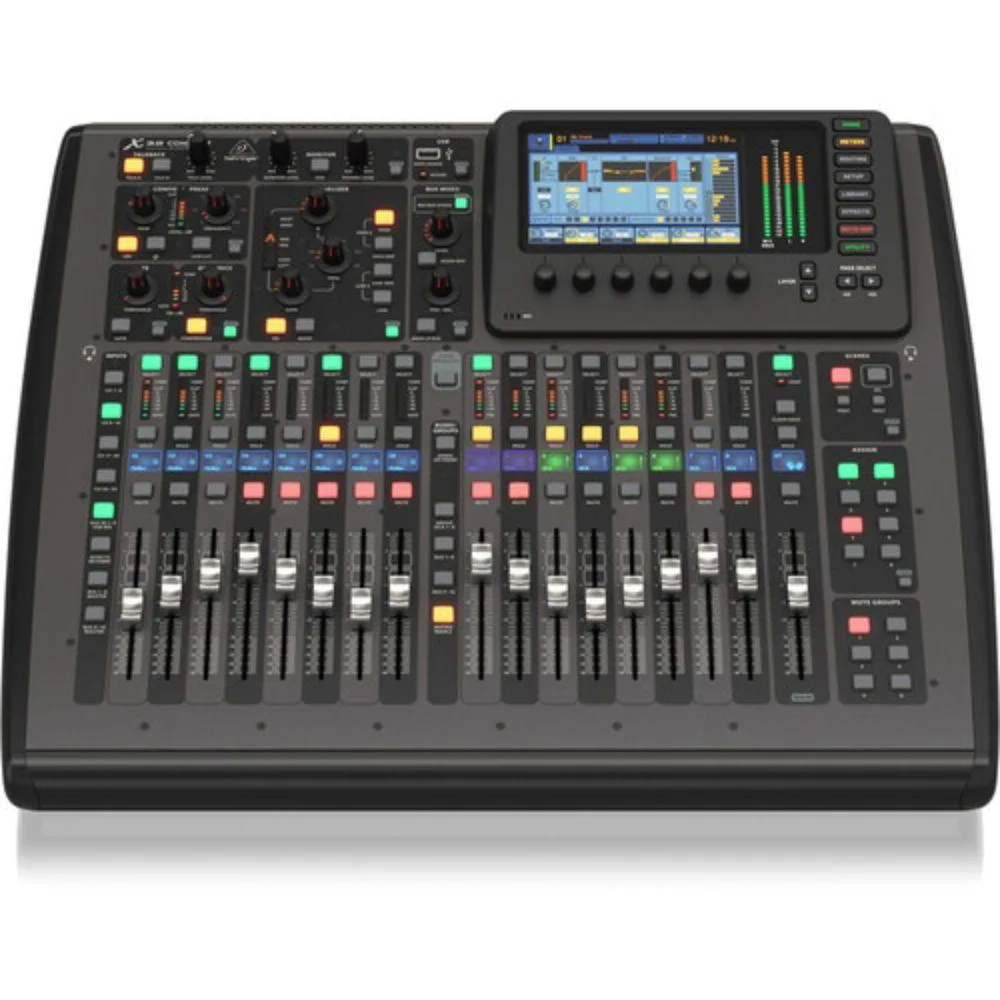

Behringer X32 Compact digital mixer with 17 motorized faders and 16 XLR inputs

Behringer

Behringer X32 Compact 40-Channel 25-Bus Digital Audio Mixer 16 XLR Inputs 17 Motorized Faders

SKU CH-ZJEA-Z8ENP

A 40-channel, 25-bus digital mixer with 16 MIDAS-designed mic preamps, 17 motorized 100mm faders, 8 XLR outputs and a 32x32 USB audio interface

  • 40 input channels and 25 buses handle large live or studio sessions
  • 16 programmable MIDAS-designed mic preamps deliver audiophile-grade sound quality
  • 17 motorised 100 mm faders give instant visual feedback and scene recall
  • Built-in 32×32 USB audio interface connects directly to a DAW
  • AES50 ports with SuperMAC networking support 48-channel digital snakes

Compact 40-Channel Mixer for Live and Studio

The Behringer X32 Compact is a 40-input channel, 25-bus digital mixing console built for professional live sound and recording applications. It delivers 16 fully programmable MIDAS-designed mic preamps for high-quality audio capture. The console includes 17 motorized 100mm faders that provide instant visual feedback and tactile control. A 7-inch color TFT display offers clear metering and parameter access.

Upgrade from Analog or Smaller Digital Desks

This console replaces larger analog boards or limited-channel digital mixers by combining 40 processing channels and 25 mix buses in a reduced footprint. The jump is worth it when you need motorized fader automation, scene management, and integrated effects without a full-size frame. Eight XLR outputs and six balanced line-level connections handle main and monitor sends. Dual AES50 ports with SuperMAC networking support 48-channel digital snakes for stagebox expansion.

Integration into a Professional Audio Build

The X32 Compact fits into a rack or desktop setup and connects to a DAW via the installed 32x32 X-USB audio interface card. It requires external stage boxes or personal monitor mixers to utilize the full AES50 channel capacity. Two 1/4-inch headphone jacks and a talkback section with external mic support cover local monitoring and communication needs. Six-band parametric EQ and dynamics on every bus free up outboard rack processors.

Highlights

  • 40 input channels and 25 buses handle large live or studio sessions
  • 16 programmable MIDAS-designed mic preamps deliver audiophile-grade sound quality
  • 17 motorised 100 mm faders give instant visual feedback and scene recall
  • Built-in 32×32 USB audio interface connects directly to a DAW
  • AES50 ports with SuperMAC networking support 48-channel digital snakes

Specifications

No published specifications for this item yet.

Questions about this item

What rack width and height does the X32 Compact require?

The X32 Compact is a desktop console with integrated side handles; no rack-mount dimensions are supplied.

How do I install the included 32x32 X-USB card, and what step is often missed?

The X-USB card ships pre-installed in the expansion slot; connect the USB cable to the computer and select the ASIO or Core Audio driver in your DAW.

When will the 17 motorized faders need service or replacement?

The 100 mm faders are rated for extended professional use; clean dust from the tracks periodically and contact authorised service if a fader becomes noisy or unresponsive.
