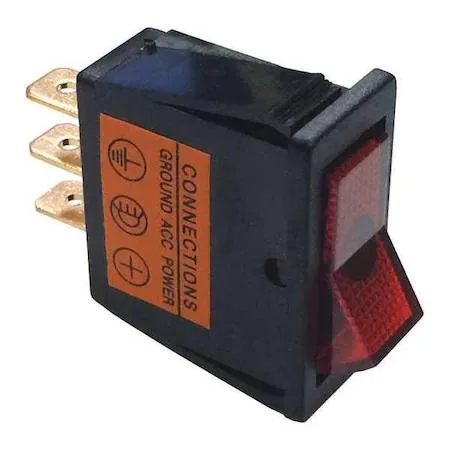

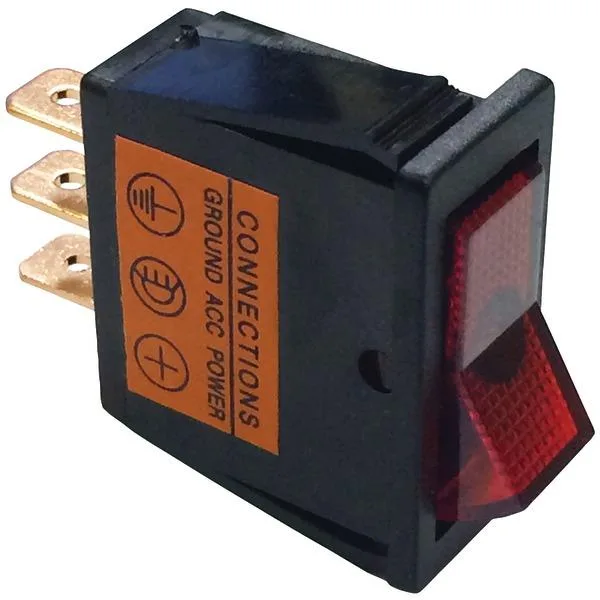

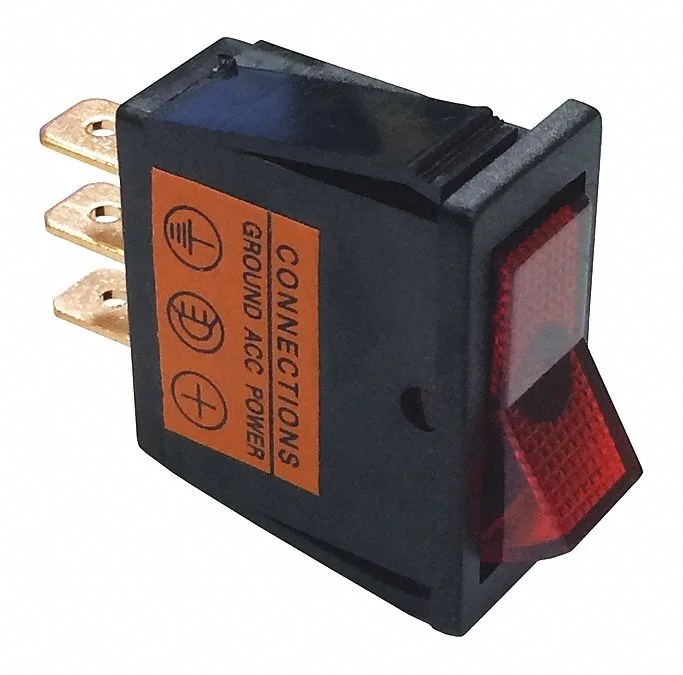

Black rocker switch with red illuminated actuator, panel mount design

Battery Doctor

Battery Doctor 20532 car electronics accessory

SKU CH-CM23-FKZ7Y MPN 20532

A 12 V DC rocker switch rated at 20 A with a red illuminated actuator for panel mounting

  • TypeDC Adapters
  • On/off rocker switch gives clear visual control
  • Red illuminated actuator shows status at a glance
  • 20 A at 12 V DC handles high-current accessories
  • Panel mount fits 12 mm by 30 mm slot
  • Three 1/4 in male terminals simplify wiring

20-Amp Rocker Switch for 12V DC Systems

This Battery Doctor 20532 is a single-pole single-throw rocker switch rated at 20 amps and 12 volts DC. It fits a standard 12mm by 30mm panel cutout and uses 1/4-inch male terminals for wiring. The red illuminated actuator shows the on state at a glance. It is intended for automotive and low-voltage DC accessory circuits.

Thermals Noise and Power Draw in Normal Use

The switch body is rated to carry 20 amps continuously at 12 volts DC with minimal voltage drop across the contacts. No active cooling is required and the device operates silently because it contains no moving parts beyond the rocker mechanism. Heat generation stays low in typical accessory loads such as lighting or small motors.

Red Illumination and Panel-Mount Convenience

The built-in red LED lights only when the switch is in the on position, giving immediate visual confirmation without a separate indicator lamp. The panel-mount design with a 12mm by 30mm footprint allows clean installation in dashboards or custom enclosures. Three terminals simplify wiring for power, load and illumination ground.

Highlights

  • On/off rocker switch gives clear visual control
  • Red illuminated actuator shows status at a glance
  • 20 A at 12 V DC handles high-current accessories
  • Panel mount fits 12 mm by 30 mm slot
  • Three 1/4 in male terminals simplify wiring

Specifications

BrandBattery Doctor
Model20532
TypeDC Adapters
Shipping weight0.04 kg
Package size25 × 25 × 25 mm

Questions about this item

How do I install the Battery Doctor 20532 rocker switch into a 12 mm by 30 mm panel slot and what step is often missed?

Push the switch body through the rectangular cut-out until the housing flanges seat flush, then tighten the 1/4 inch male terminals onto the 20 A @ 12V DC circuit; the step most people skip is verifying the SPST on/off orientation before securing the panel.

What maintenance or replacement will the Battery Doctor 20532 switch need over time?

The red illuminated actuator and SPST contacts are rated for 20 A at 12V DC; inspect the 1/4 inch terminals for corrosion or loosening after extended vibration and replace the entire unit if the light dims or the on/off action becomes intermittent.

What limit appears first when the Battery Doctor 20532 switch runs continuously at its 20 A rating?

The 20 A @ 12V DC current rating is the primary limit; sustained loads at or above this level will cause contact heating and actuator temperature rise before any voltage or mechanical endurance limit is reached.
