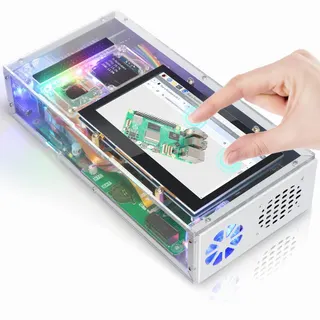

Batianda Raspberry Pi 5 case kit with 4.3 inch touchscreen, 5 MP camera, 0.96 inch OLED, M.2 NVMe slot

Batianda

Batianda Raspberry Pi 5 Case Kit 4.3" Touchscreen 5 MP Camera 0.96" OLED M.2 NVMe Slot 1231 MB/s

SKU CH-CVCM-8WRA2

Case kit adds 4.3" touchscreen, 5 MP camera, 0.96" OLED, stereo speakers and M.2 NVMe slot up to 1231 MB/s

  • M.2 NVMe slot enables 1231 MB/s PCIe 3.0 speeds
  • 3 inch touchscreen with 800 x 480 IPS and 5-point capacitive touch
  • 5 MP camera captures 2592 x 1944 pixel images
  • 96 inch OLED shows 128 x 64 pixel status data
  • Built-in stereo speakers plus 3.5 mm and optical audio outputs

All-in-One Raspberry Pi 5 Enclosure

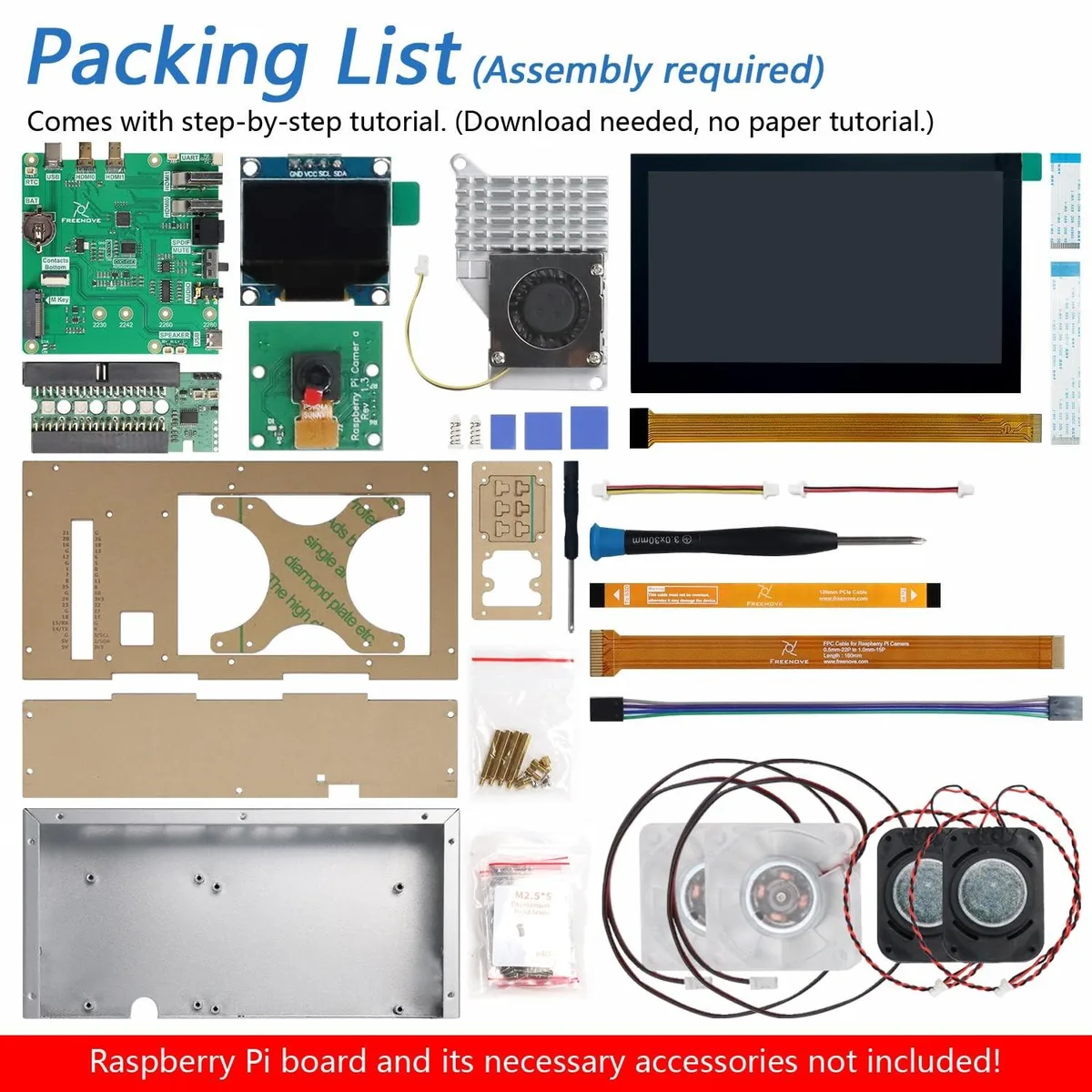

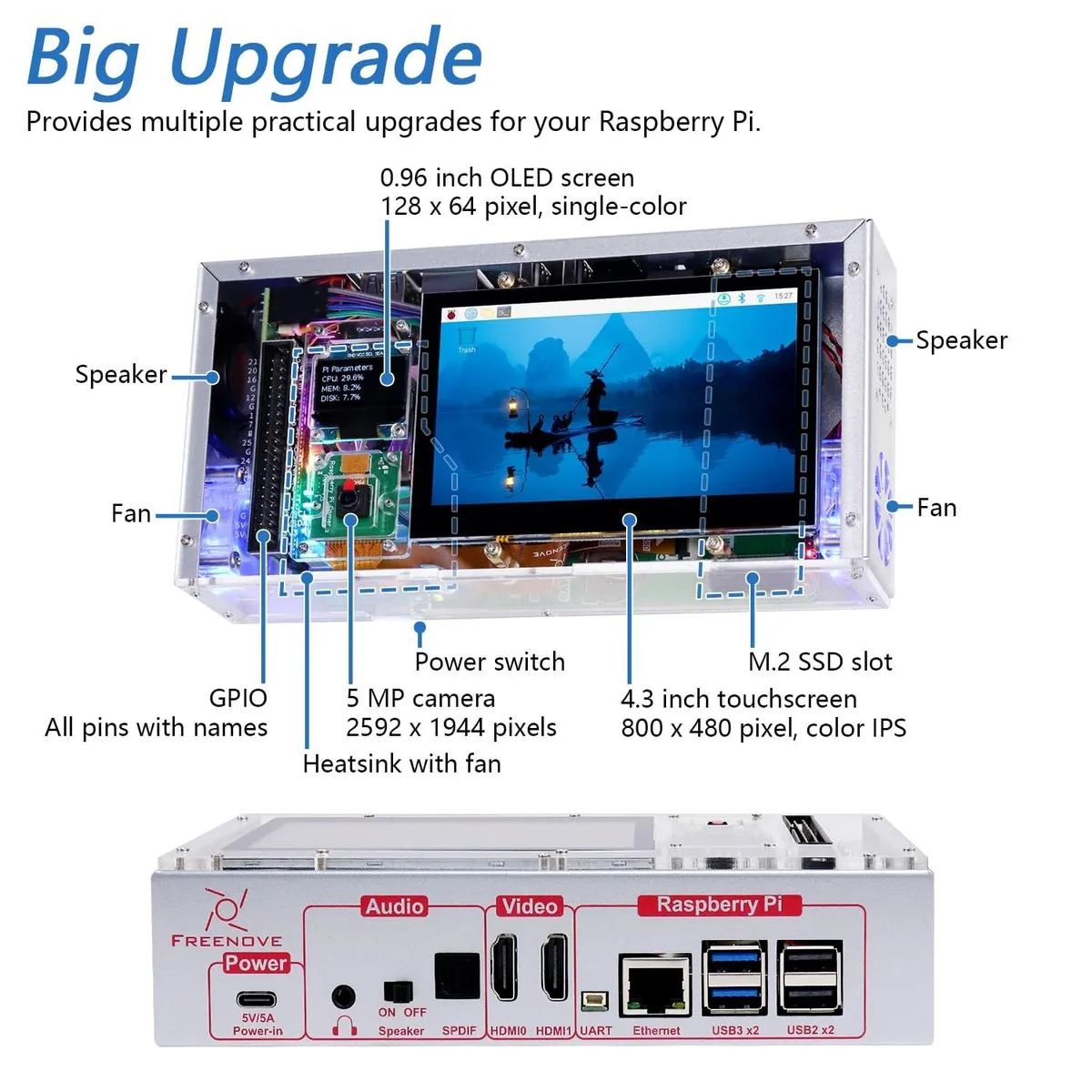

This kit transforms a Raspberry Pi 5 into a compact desktop unit. It bundles a 4.3 inch IPS touchscreen, a 5 MP camera, a 0.96 inch OLED status display, stereo speakers, active cooling and programmable RGB lighting. An M.2 NVMe slot accepts 2230 to 2280 drives for high-speed storage. The board itself is not included.

Makers Who Want Integrated Peripherals

Builders who need a ready-to-use touchscreen, camera and NVMe storage in one chassis will benefit. Users who already own separate displays or cameras, or who prefer a bare-board setup, should look at simpler cases. The kit is exclusive to Raspberry Pi 5 and cannot be used with earlier models.

NVMe Storage Up to 1231 MB/s

The PCIe 3.0 interface supports sequential reads up to 1231 MB/s, far above the SD card ceiling of 104 MB/s. PCIe 2.0 drives are limited to 500 MB/s. SATA M.2 drives are not compatible. The SSD serves as a bootable system drive, removing the microSD bottleneck for OS and application loads.

Highlights

  • M.2 NVMe slot enables 1231 MB/s PCIe 3.0 speeds
  • 3 inch touchscreen with 800 x 480 IPS and 5-point capacitive touch
  • 5 MP camera captures 2592 x 1944 pixel images
  • 96 inch OLED shows 128 x 64 pixel status data
  • Built-in stereo speakers plus 3.5 mm and optical audio outputs

Specifications

No published specifications for this item yet.

Questions about this item

Which Raspberry Pi board must I already own for this kit to work?

The kit is compatible only with Raspberry Pi 5; earlier models will not fit or function.

Can I keep using my M.2 SATA drive with the PCIe 2.0 or 3.0 NVMe slot?

No, the slot accepts only M.2 NVMe SSDs in 2230, 2242, 2260 or 2280 sizes; SATA drives are not supported.

How can I verify the SSD is running at the declared 1231 MB/s after setup?

Run a disk benchmark such as hdparm or fio on the NVMe drive; the result should approach the PCIe 3.0 ceiling of 1231 MB/s.
