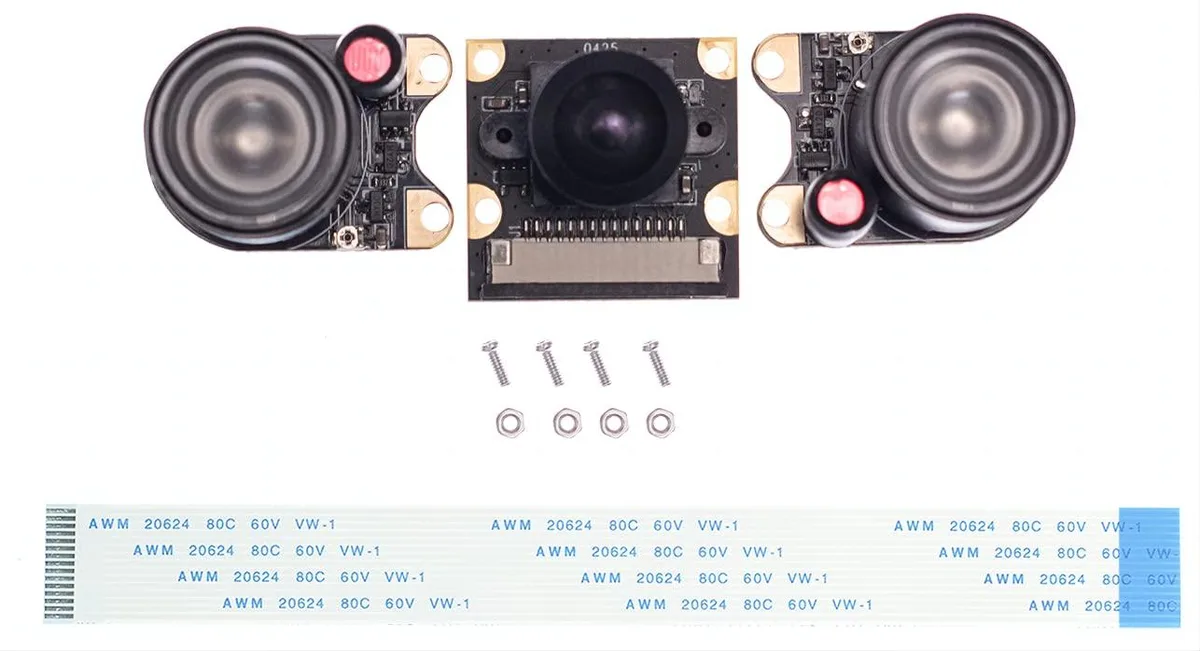

Small green circuit board camera module with wide-angle lens and IR LEDs, 25 by 24 by 17.7 mm

Batianda

Batianda IMX219-160 IR Camera Module network camera

SKU CH-JXJ7-HM3RF

An 8 MP IR camera module with a 160° fixed-focus lens, 3296×2512 resolution at 30 fps, and a 15-pin MIPI interface for Jetson Nano AI projects

  • 8 MP resolution captures fine detail at 3296 × 2512
  • 160° wide-angle lens covers a broad field of view
  • Infrared fill light enables night vision in low light
  • 15P-1.0 MIPI interface connects directly to Jetson Nano
  • Lightweight 10 g module simplifies integration into AI projects

Compact 160° vision module

The Batianda IMX219-160 is an 8 megapixel network camera module built around the IMX219 sensor. It delivers a 160 degree field of view at 3296 by 2512 resolution and 30 frames per second. The fixed-focus lens covers object distances from 30 centimetres to infinity. Infrared fill light enables night vision for continuous monitoring.

MIPI integration for embedded builds

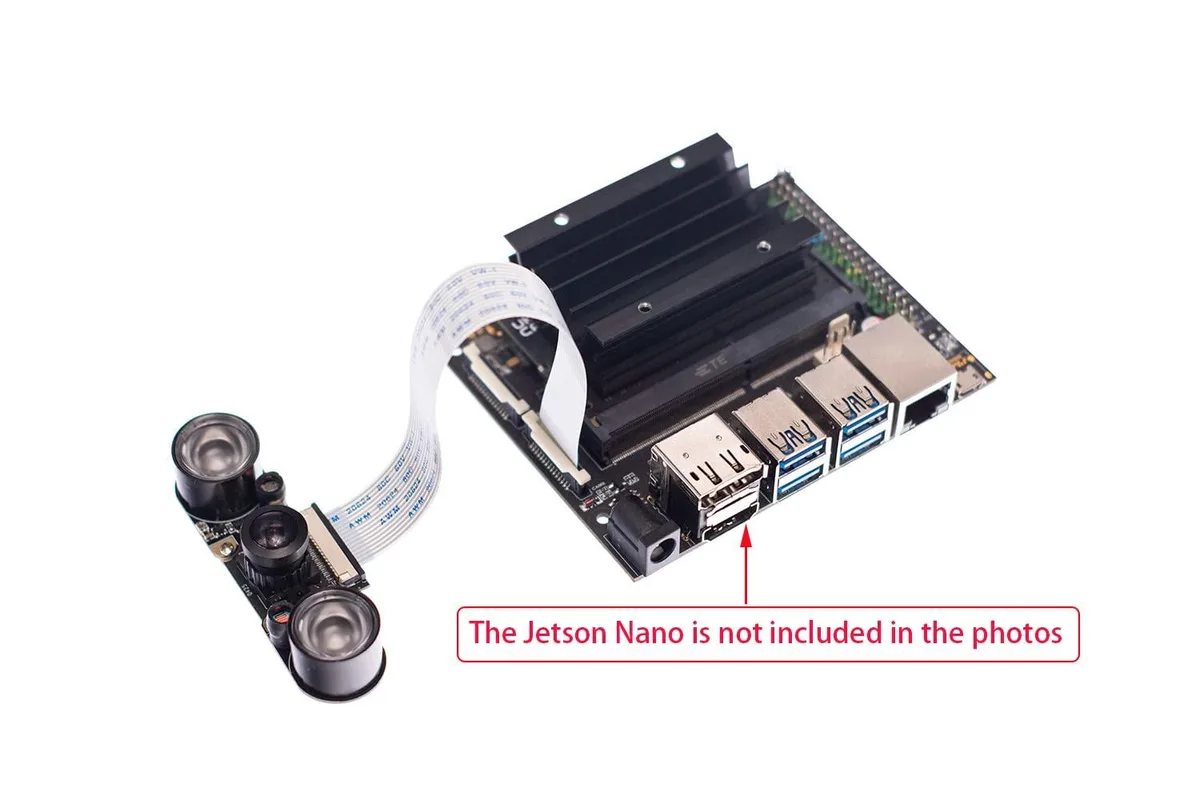

A 15P-1.0 MIPI interface connects directly to a Jetson Nano developer kit. The module operates on a 3.3 volt supply at pin 15 and weighs 10 grams. Its 25 by 24 by 17.7 millimetre footprint fits tight enclosures. SMT assembly on an anti-electrostatic tray supports straightforward board-level integration without extra cabling.

Stable output across temperature range

Stable image quality is maintained from 0 to 50 degrees Celsius while the unit operates from minus 20 to 70 degrees. The sensor provides 600 millivolt per lux-second sensitivity, 39 decibel signal-to-noise ratio and 69 decibel dynamic range. Output formats include 8 and 10 bit RGB raw data. TV distortion stays below 14.3 percent with 70 percent relative illumination.

Highlights

  • 8 MP resolution captures fine detail at 3296 × 2512
  • 160° wide-angle lens covers a broad field of view
  • Infrared fill light enables night vision in low light
  • 15P-1.0 MIPI interface connects directly to Jetson Nano
  • Lightweight 10 g module simplifies integration into AI projects

Specifications

No published specifications for this item yet.

Questions about this item

How long before the 15P-1.0 MIPI link drops frames when the IMX219 sensor runs at 30 fps continuously?

The module is rated for stable image output from 0 to 50 °C; sustained 30 fps operation stays within this range, so the MIPI link will not drop frames due to temperature.

What is the noise level and heat output when the IR fill light runs all day?

The camera draws 3.3 V at the sensor and the IR LEDs add only a few milliwatts; it produces no audible noise and stays within the 0–50 °C stable-image temperature window.

Which host board and connector must I already have to use this 15P-1.0 MIPI camera?

You need a Jetson Nano developer kit with a matching 15-pin 1.0 mm pitch MIPI CSI-2 connector; the module plugs directly into that interface.
