Four yellow duplex fiber patch cables with LC and SC connectors

Batianda

Batianda 2 in 1 Accessories

SKU CH-3RYP-WTYV0

Four-pack of 3-metre LC/UPC to SC/UPC single-mode duplex patch cables using Corning SMF-28 Ultra 9/125 µm fibre with OFNR riser jacket

  • Low insertion loss with .2 dB UPC and .3 dB APC connectors
  • High return loss at 50 dB UPC and 65 dB APC for signal integrity
  • Corning SMF-28 Ultra fiber exceeds ITU-T G.657.A1 bend standard
  • Riser OFNR PVC jacket rated for in-wall and vertical installations
  • Tested terminations and color-coded heat shrink ensure reliable deployment

4-pack single-mode fibre patch cables

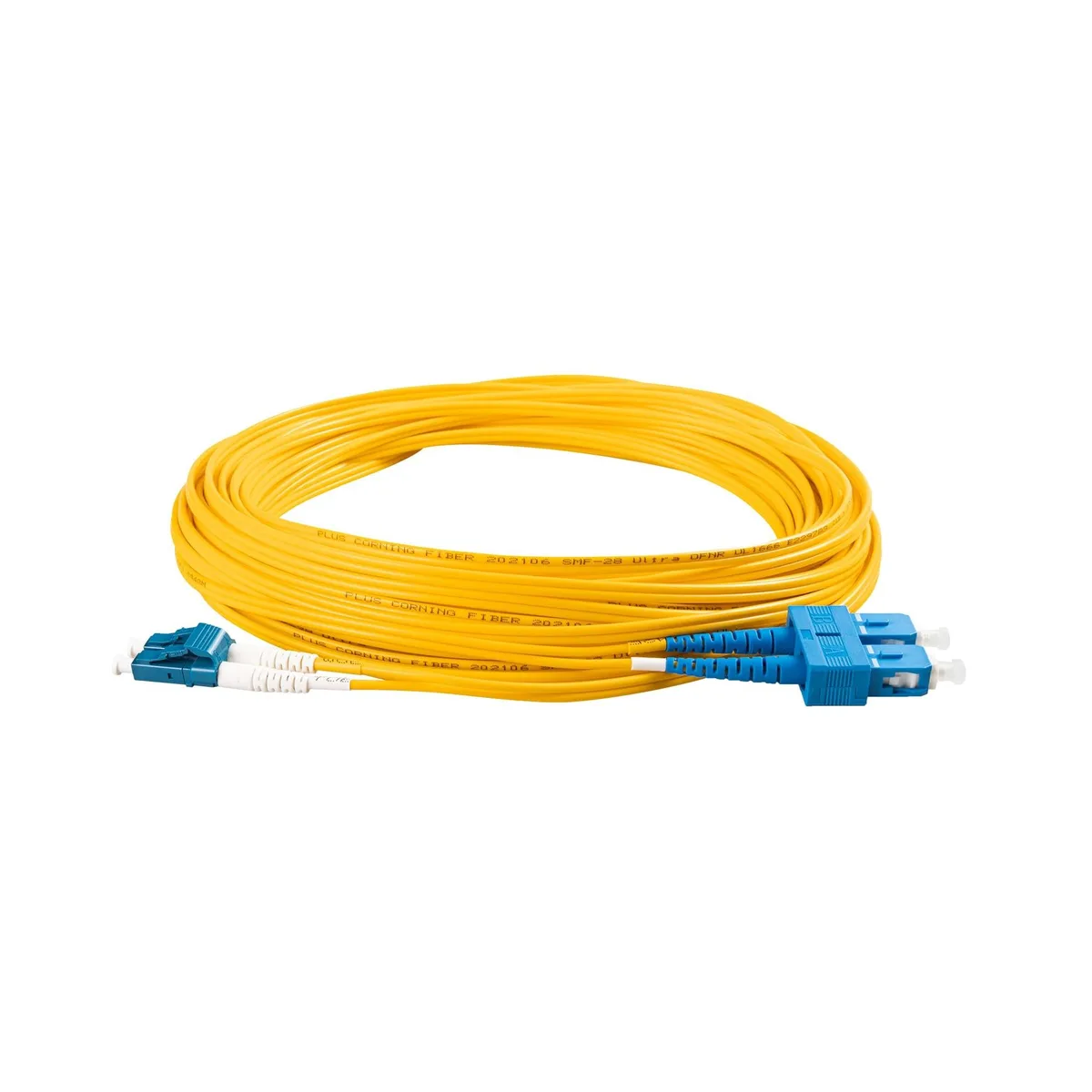

This 4-pack supplies four 3-metre duplex cables terminated with LC/UPC to SC/UPC connectors. Each uses Corning SMF-28 Ultra 9/125 µm fibre inside a yellow riser OFNR zipcord jacket rated for indoor vertical runs. The cables arrive new and ready for immediate deployment in campus or building backbone links.

Insertion loss .2 dB UPC and .3 dB APC

Typical insertion loss measures 0.2 dB for UPC and 0.3 dB for APC polish, while return loss reaches 50 dB and 65 dB respectively. Attenuation is 0.32 dB/km at 1310 nm and 0.18 dB/km at 1550 nm across the 1285–1625 nm operating window. Performance is specified from –20 °C to +70 °C, so extremely cold or hot outdoor plant environments fall outside the rated range.

Ceramic ferrules and colour-coded heat-shrink

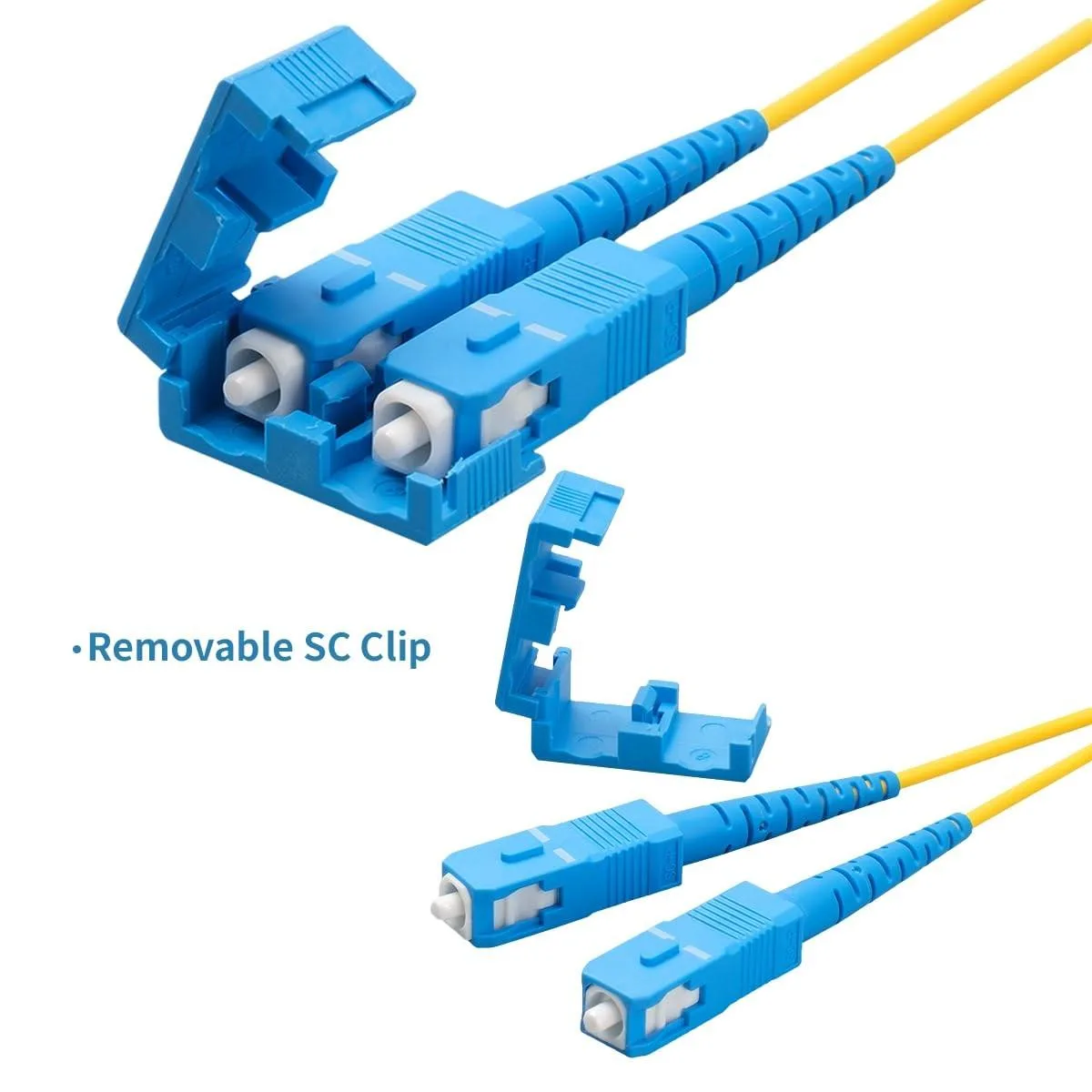

Ceramic ferrules and a slim 2.0 mm jacket keep the assembly lightweight and easy to route through dense patch panels. Every cable carries a length label and colour-coded heat-shrink tubing (yellow to yellow, white to white) for quick channel identification. Compliance with ITU-T G.652D, G.657.A1, UL, CE, IEC, TIA and RoHS confirms suitability for regulated indoor installations.

Highlights

  • Low insertion loss with .2 dB UPC and .3 dB APC connectors
  • High return loss at 50 dB UPC and 65 dB APC for signal integrity
  • Corning SMF-28 Ultra fiber exceeds ITU-T G.657.A1 bend standard
  • Riser OFNR PVC jacket rated for in-wall and vertical installations
  • Tested terminations and color-coded heat shrink ensure reliable deployment

Specifications

No published specifications for this item yet.

Questions about this item

Will these LC/U to SC/U patch cables connect directly to the LC and SC transceivers on my existing single-mode switches?

Yes, each 3-metre duplex cable uses standard LC/UPC and SC/UPC ceramic ferrules that mate with any single-mode LC or SC transceiver port.

How can I confirm the links are performing within spec after installation?

Expect insertion loss around 0.2 dB per UPC connector and return loss of 50 dB or better; measure with a light source and power meter at 1310 nm or 1550 nm.

Does the four-pack include everything needed to run the cables, or must I buy separate clips or cleaning tools?

The box contains four 3-metre duplex yellow riser OFNR cables with length labels and colour-coded heat-shrink; cleaning pens and cable-management clips are not included.
