Batianda

Batianda 150W 48V Din Rail Power Supply 2 in 1 accessory

SKU CH-HJHJ-ME9QD

A 150 W DIN-rail power supply converts 100–240 V AC to an adjustable 42–56 V DC output at up to 3.2 A, with fanless operation from –20 °C to 70 °C and short-circuit.

  • 150 W output powers demanding industrial loads with 3.2 A at 48 V
  • Fanless design runs silently from -20 °C to 70 °C ambient
  • Universal 100-240 V AC input accepts global mains voltages
  • Adjustable 42-56 V DC output fine-tunes voltage to the load
  • TS35 DIN-rail mounting fits standard 7.5 mm or 15 mm rails
  • Overload, short-circuit and over-temperature protection safeguards connected equipment

Industrial 48V 150W Din-Rail Supply

This unit is a 150W 48V AC-DC converter built for DIN-rail mounting in control cabinets and automation panels. It accepts 100-240V AC or 127-370V DC input and delivers up to 3.2A at 48V DC. The fanless design operates silently across a -20°C to 70°C range.

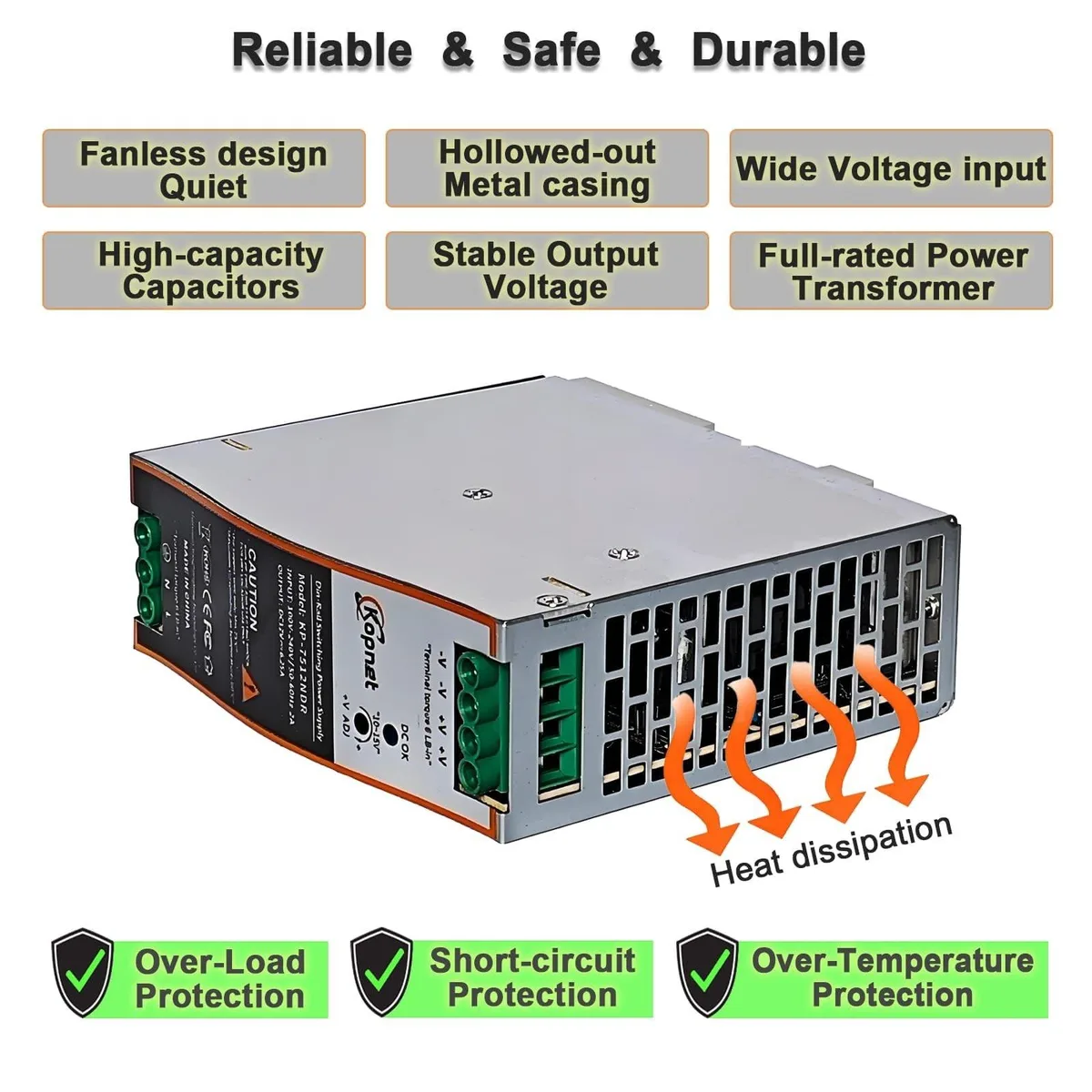

Adjustable Output and Protection Features

The output voltage can be trimmed between 42V and 56V DC to match specific load requirements. Built-in safeguards include short-circuit, over-load and over-temperature protection that shut down the unit before damage occurs. These functions operate automatically without external configuration.

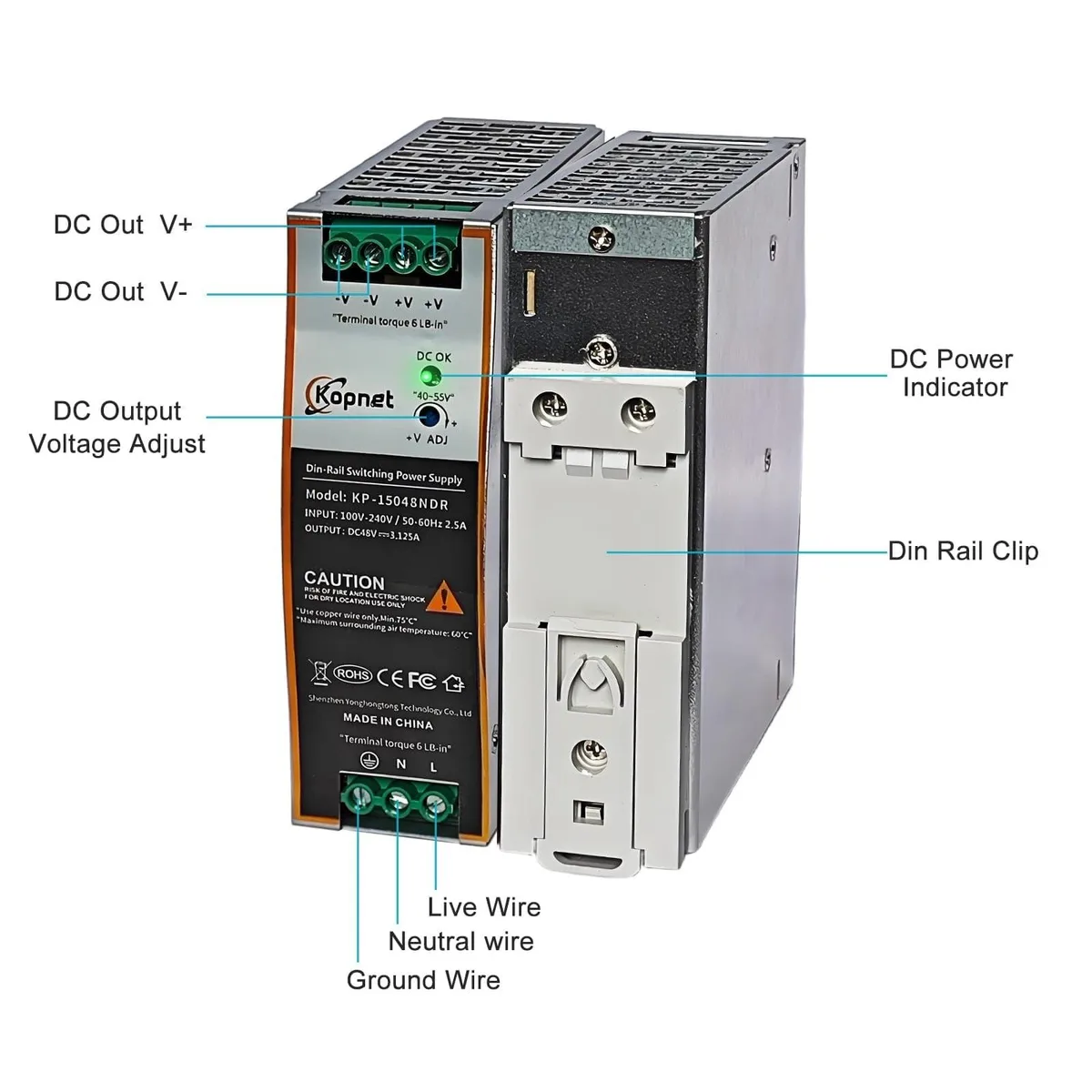

TS35 Rail Mounting and Wiring Notes

The housing clips onto standard TS35/7.5 or TS35/15 rails for quick panel installation. Ensure the rail is firmly secured and allow adequate air space around the unit for convection cooling. Verify input polarity and voltage range before energising to avoid start-up faults.

Highlights

  • 150 W output powers demanding industrial loads with 3.2 A at 48 V
  • Fanless design runs silently from -20 °C to 70 °C ambient
  • Universal 100-240 V AC input accepts global mains voltages
  • Adjustable 42-56 V DC output fine-tunes voltage to the load
  • TS35 DIN-rail mounting fits standard 7.5 mm or 15 mm rails
  • Overload, short-circuit and over-temperature protection safeguards connected equipment

Specifications

No published specifications for this item yet.

Questions about this item

Does the fanless 150 W unit need any periodic maintenance such as dust cleaning or capacitor replacement?

No fan is fitted, so no internal airflow path collects dust; the sealed design means no user-serviceable parts and no scheduled maintenance is required.

What is the first limit reached when the supply runs continuously at full 3.2 A load?

The over-temperature protection will trip first if the ambient temperature approaches 70 °C, because the fanless case relies on convection cooling alone.

How much heat and noise does the supply produce when mounted on a TS35 rail and left on 24/7?

Silent operation with zero fan noise; the case becomes warm as it dissipates up to 150 W through convection, so allow clearance above and below the rail for airflow.
