Green rectangular circuit board with silver heatsink and black cooling fan, screw terminals visible

Batianda

Batianda 10-60V to 12-97V 1500W 30A Boost Module 2 in 1 accessory

SKU CH-N4NY-28GM6

A non-isolated DC-DC boost converter steps 10-60 V up to 12-97 V at 1500 W and 30 A with 97 % efficiency and a temperature-controlled fan

  • Adjustable 10-60V input to 12-97V output for flexible power conversion
  • Up to 97% conversion efficiency reduces energy waste and heat
  • 1500W at 30A delivers high power for demanding applications
  • Smart fan activates at 60°C for automatic thermal management
  • Supports constant current and constant voltage modes for versatile charging and driving

10-60V to 12-97V Boost Module

This non-isolated DC-DC step-up converter accepts an input range of 10 to 60 volts and delivers an adjustable output from 12 to 97 volts. It supports up to 1500 watts and 30 amps with both constant voltage and constant current modes. The unit suits DIY power projects, solar charging, LED driving and mobile equipment.

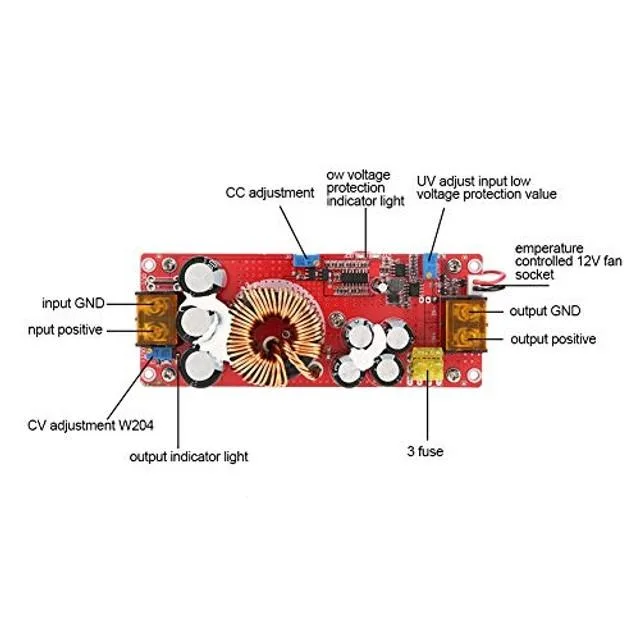

Smart fan and terminal wiring

A temperature-controlled fan starts automatically at around 60 degrees and stops when the temperature falls below that threshold. High-quality components provide up to 97 percent conversion efficiency for stable output. Connections are made via screw terminals, so secure wiring is required for reliable daily operation.

Check input source protection voltage

Before ordering, verify that your battery, solar panel, generator or switching supply can have its protection voltage lowered. The manufacturer notes that failing to reduce this value can damage both the source and the module. Ensure your application can accommodate the required adjustment.

Highlights

  • Adjustable 10-60V input to 12-97V output for flexible power conversion
  • Up to 97% conversion efficiency reduces energy waste and heat
  • 1500W at 30A delivers high power for demanding applications
  • Smart fan activates at 60°C for automatic thermal management
  • Supports constant current and constant voltage modes for versatile charging and driving

Specifications

No published specifications for this item yet.

Questions about this item

What input and output voltage range does this DC-DC boost module support?

The module accepts 10-60 VDC input and delivers an adjustable 12-97 VDC output.

What mounting provisions does the board include for installation?

The module has four corner mounting holes for screw fixing to a chassis or enclosure.

How is the cooling fan controlled and at what temperature does it start?

A built-in temperature sensor activates the fan automatically at about 60 °C and stops it when the temperature falls below that threshold.
